Side By Side Item

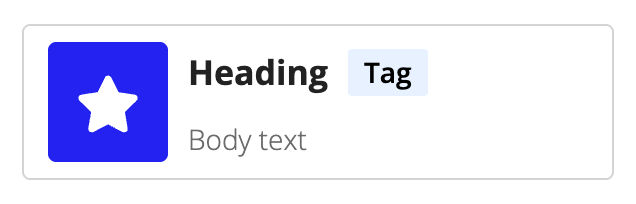

SAIL Design System guidance available for Side by Side Layout When you want to split the available space evenly to create a visual balance in your design, use the side by side layout.

About the side by side item

Displays one or more components within a side by side layout.

Where to use the side by side item

Use a!sideBySideItem() in the items parameter of a!sideBySideLayout().

Supported components

The item parameter of a!sideBySideItem() supports a list of the following components:

• a!sideBySideLayout()
• Input components (except chat components such as the data fabric chatbot, documents chatbot, and records chatbot)
• Selection components
• Display components
• Action components
• Chart components
• Picker components

The item parameter of a!sideBySideItem() doesn't support the following components:

• Read-only (a!pagingGrid()) and editable (a!gridLayout()) grids
• a!eventHistoryListField()
• Browser components
• Layouts (except a!sideBySideLayout())

Parameters

a!sideBySideItem( item, width, showWhen )

Using the side by side item

The following sections cover important details about the side by side item.

Using the width parameter

The "MINIMIZE" width is appropriate for items with a fixed width, such as images or buttons. Use relative widths for items whose width is determined by the containing layout or user interaction, such as text inputs or dropdowns. For further explanation and examples, see UX Side by Side Guidance.

Examples

The following examples demonstrate the side by side item.

To experiment with examples, copy and paste the expression into an interface object.

Input fields with relative widths

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
a!sideBySideLayout(
  items: {
    a!sideBySideItem(
      width: "4X",
      item: a!textField(
        label: "First Name"
      )
    ),
    a!sideBySideItem(
      item: a!textField(
        label: "M.I."
      )
    ),
    a!sideBySideItem(
      width: "4X",
      item: a!textField(
        label: "Last Name"
      )
    )
  }
)

Minimized width for icon and button

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
a!sideBySideLayout(
  alignVertical: "MIDDLE",
  spacing: "DENSE",
  items: {
    a!sideBySideItem(
      width: "MINIMIZE",
      item: a!richTextDisplayField(
        labelPosition: "COLLAPSED",
        value: a!richTextIcon(
          icon: "user",
          size: "LARGE"
        )
      )
    ),
    a!sideBySideItem(
      item: a!textField(
        labelPosition: "COLLAPSED"
      )
    ),
    a!sideBySideItem(
      width: "MINIMIZE",
      item: a!buttonArrayLayout(
        marginBelow: "NONE",
        buttons: {
          a!buttonWidget(
            label: "Check Availability",
            size: "SMALL",
            style: "OUTLINE",
            color: "SECONDARY"
          )
        }
      )
    )
  }
)

Feature compatibility
