Document List Pattern

On This Page

Tip: Interface patterns give you an opportunity to explore different interface designs. Be sure to check out How to Adapt a Pattern for Your Application.

Goal

Use the document list items pattern to display a list of documents that can be searched and filtered. This pattern uses a combination of cards and rich text to show an easy to navigate list of documents of different types. This page explains how you can use this pattern in your interface, and walks through the design structure in detail.

Design structure

This page will break down this expression so you can better understand how to adapt this pattern to your own data so that it works to best suit your needs.

The main components in this pattern are card layouts, side by side layouts, and rich text. The image below displays how the pattern looks on a blank interface. You can examine the entire expression or jump down to the subsections below with referenced line numbers to see a detailed breakdown of the main components.

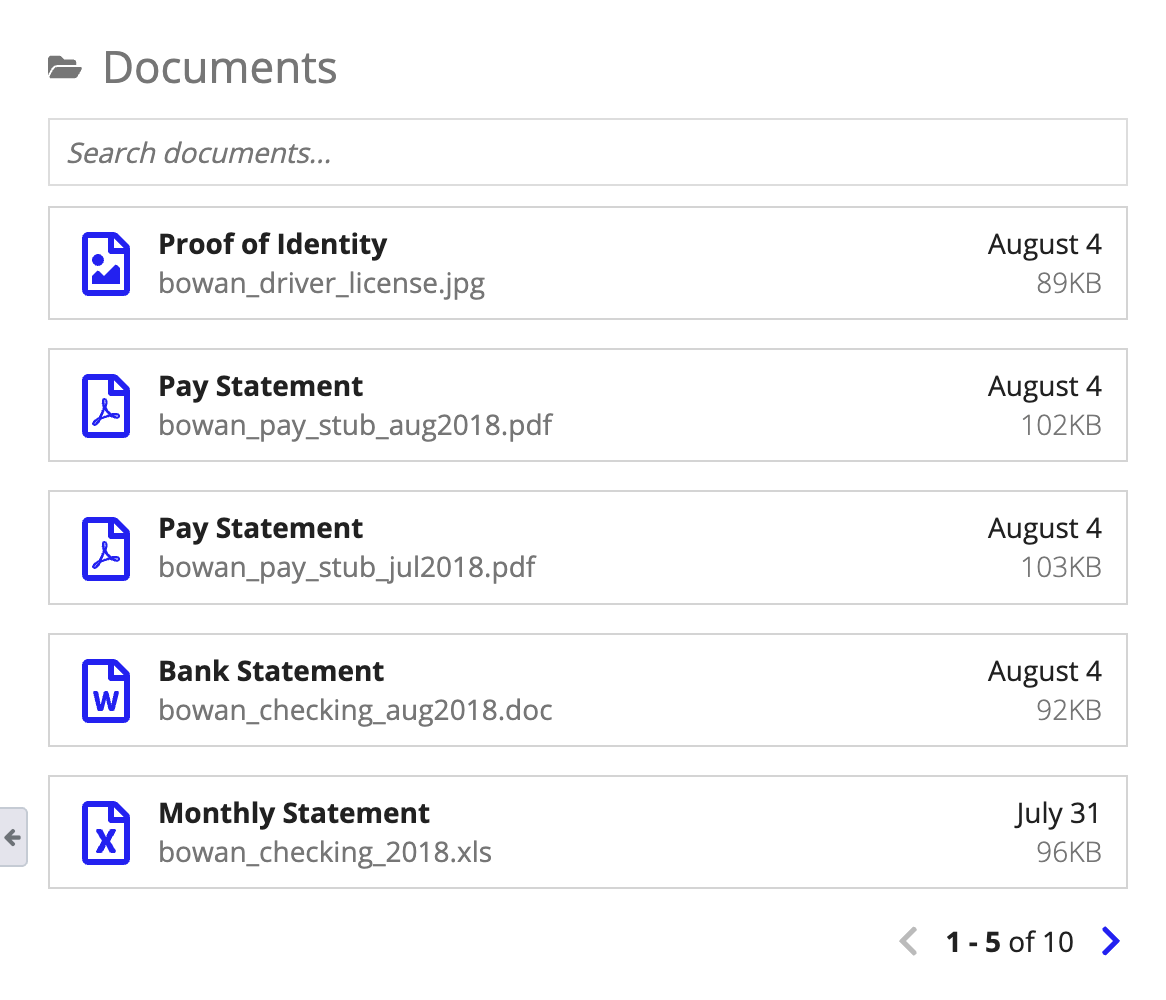

screenshot of the document list pattern

Pattern expression

When you drag and drop the document list pattern onto your interface, 312 lines of expressions will be added to the section where you dragged it.

{
  a!localVariables(
    local!searchText,
    local!documents: {
      a!map(
        name: "Proof of Identity",
        fileName: "bowan_driver_license.jpg",
        uploadDate: "August 4",
        size: "89KB",
        type: "image"
      ),
      a!map(
        name: "Pay Statement",
        fileName: "bowan_pay_stub_aug2018.pdf",
        uploadDate: "August 4",
        size: "102KB",
        type: "pdf"
      ),
      a!map(
        name: "Pay Statement",
        fileName: "bowan_pay_stub_jul2018.pdf",
        uploadDate: "August 4",
        size: "103KB",
        type: "pdf"
      ),
      a!map(
        name: "Bank Statement",
        fileName: "bowan_checking_aug2018.doc",
        uploadDate: "August 4",
        size: "92KB",
        type: "word"
      ),
      a!map(
        name: "Monthly Statement",
        fileName: "bowan_checking_2018.xls",
        uploadDate: "July 31",
        size: "96KB",
        type: "excel"
      ),
      a!map(
        name: "Proof of Identity",
        fileName: "bowan_driver_license.jpg",
        uploadDate: "July 30",
        size: "89KB",
        type: "image"
      ),
      a!map(
        name: "Pay Statement",
        fileName: "bowan_pay_stub_aug2017.pdf",
        uploadDate: "July 27",
        size: "102KB",
        type: "pdf"
      ),
      a!map(
        name: "Pay Statement",
        fileName: "bowan_pay_stub_jul2017.pdf",
        uploadDate: "July 27",
        size: "103KB",
        type: "pdf"
      ),
      a!map(
        name: "Bank Statement",
        fileName: "bowan_checking_aug2017.doc",
        uploadDate: "July 26",
        size: "92KB",
        type: "word"
      ),
      a!map(
        name: "Monthly Statement",
        fileName: "bowan_checking_2017.xls",
        uploadDate: "July 20",
        size: "96KB",
        type: "excel"
      )
    },
    /* This value determines the max number of documents *
     * to display on each page of the document list.     */
    local!docBatchSize: 5,
    local!docStartIndex: 1,
    /* This document dataSubset can be replaced with a query */
    local!docDatasubset: a!refreshVariable(
      refreshOnReferencedVarChange: true,
      value: todatasubset(
        if(
          a!isNullOrEmpty(local!searchText),
          local!documents,
          index(
            local!documents,
            where(
              a!forEach(
                local!documents,
                search(local!searchText, fv!item.name, 1) > 0
              )
            ),
            {}
          )
        ),
        a!pagingInfo(local!docStartIndex, local!docBatchSize)
      )
    ),
    {
      a!columnsLayout(
        columns: {
          a!columnLayout(
            contents: {
              a!sideBySideLayout(
                items: {
                  a!sideBySideItem(
                    item: a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        a!richTextIcon(
                          icon: "folder-open",
                          color: "SECONDARY",
                          size: "MEDIUM"
                        )
                      }
                    ),
                    width: "MINIMIZE"
                  ),
                  a!sideBySideItem(
                    item: a!headingField(
                      text: "Documents",
                      size: "MEDIUM",
                      color: "SECONDARY",
                      marginBelow: "NONE"
                    )
                  )
                },
                alignVertical: "MIDDLE"
              ),
              /* Search field */
              a!textField(
                label: "Search Documents",
                labelPosition: "COLLAPSED",
                placeholder: "Search documents...",
                value: local!searchText,
                saveInto: {
                  local!searchText,
                  a!save(local!docStartIndex, 1)
                },
                refreshAfter: "KEYPRESS"
              ),
              /* Message announced to screen reader users to let them know how many results were returned */
              a!messageBanner(
                primaryText: local!docDatasubset.totalCount & if(local!docDatasubset.totalCount = 1, " result found", " results found"),
                showWhen: a!isNotNullOrEmpty(local!searchText),
                announceBehavior: "ANNOUNCE_ONLY"
              ),
              /* Displays a card for each document in the dataSubset */
              a!forEach(
                items: local!docDataSubset.data,
                expression: if(
                  or(
                    a!isNullOrEmpty(local!searchText),
                    search(local!searchText, fv!item.name, 1) > 0
                  ),
                  a!cardLayout(
                    contents: {
                      a!sideBySideLayout(
                        items: {
                          a!sideBySideItem(
                            item: a!richTextDisplayField(
                              labelPosition: "COLLAPSED",
                              value: {
                                /* Displays an icon for the corresponding document type */
                                a!richTextIcon(
                                  icon: "file-" & fv!item.type & "-o",
                                  color: "ACCENT",
                                  size: "LARGE"
                                )
                              }
                            ),
                            width: "MINIMIZE"
                          ),
                          a!sideBySideItem(
                            item: a!richTextDisplayField(
                              labelPosition: "COLLAPSED",
                              value: {
                                a!richTextItem(
                                  text: fv!item.name,
                                  color: "STANDARD",
                                  style: "STRONG"
                                ),
                                char(10),
                                a!richTextItem(text: fv!item.fileName, color: "#767676")
                              }
                            )
                          ),
                          a!sideBySideItem(
                            item: a!richTextDisplayField(
                              labelPosition: "COLLAPSED",
                              value: {
                                a!richTextItem(text: fv!item.uploadDate),
                                char(10),
                                a!richTextItem(text: fv!item.size, color: "SECONDARY")
                              },
                              align: "RIGHT"
                            ),
                            width: "MINIMIZE"
                          )
                        },
                        alignVertical: "MIDDLE"
                      )
                    },
                    link: a!dynamicLink(),
                    height: "AUTO",
                    marginBelow: "STANDARD"
                  ),
                  {}
                )
              ),
              /* Document list paging */
              a!sideBySideLayout(
                items: {
                  a!sideBySideItem(),
                  a!sideBySideItem(
                    item: a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        a!richTextIcon(
                          icon: "chevron-left",
                          link: a!dynamicLink(
                            value: local!docStartIndex - local!docBatchSize,
                            saveInto: local!docStartIndex,
                            showWhen: not(local!docStartIndex = 1)
                          ),
                          linkStyle: "STANDALONE",
                          color: if(
                            not(local!docStartIndex = 1),
                            "ACCENT",
                            "#bbb"
                          ),
                          size: "MEDIUM"
                        )
                      },
                      align: "RIGHT"
                    ),
                    width: "MINIMIZE"
                  ),
                  a!sideBySideItem(
                    item: a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        /* Displays a number range which indicates     *
                         * the current subset of documents in the list */
                        a!richTextItem(
                          text: local!docStartIndex & a!localVariables(
                            local!docEndIndex: if(
                              (
                                local!docStartIndex + local!docBatchSize - 1
                              ) > local!docDataSubset.totalCount,
                              local!docDataSubset.totalCount,
                              local!docStartIndex + local!docBatchSize - 1
                            ),
                            if(
                              local!docStartIndex = local!docEndIndex,
                              "",
                              " - " & local!docEndIndex
                            )
                          ),
                          style: "STRONG"
                        ),
                        /* Displays the total number of documents */
                        a!richTextItem(
                          text: " of " & local!docDataSubset.totalCount
                        )
                      },
                      align: "RIGHT"
                    ),
                    width: "MINIMIZE"
                  ),
                  a!sideBySideItem(
                    item: a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        a!richTextIcon(
                          icon: "chevron-right",
                          link: a!dynamicLink(
                            value: local!docStartIndex + local!docBatchSize,
                            saveInto: local!docStartIndex,
                            showWhen: not(
                              (local!docStartIndex + local!docBatchSize) > local!docDataSubset.totalCount
                            )
                          ),
                          linkStyle: "STANDALONE",
                          color: if(
                            not(
                              (local!docStartIndex + local!docBatchSize) > local!docDataSubset.totalCount
                            ),
                            "ACCENT",
                            "#bbb"
                          ),
                          size: "MEDIUM"
                        )
                      },
                      align: "RIGHT"
                    ),
                    width: "MINIMIZE"
                  )
                },
                alignVertical: "MIDDLE",
                showWhen: local!docDataSubset.totalCount > local!docBatchSize
              )
            },
            width: "MEDIUM_PLUS"
          )
        }
      )
    }
  )
}
