Pane Layout

On This Page
SAIL Design System guidance available for Pane Layout

When users need to scroll through information but also leave part of the interface static, use the pane layout. Learn how to use two- and three-pane layouts to build flexible interfaces with greater user control.

Function

a!paneLayout( panes, showWhen, showPaneDividers )

Displays two or three vertical panes, each with independent scrolling. Can be used as a top-level layout, or in the contents parameter of a form or header content layout.

See also:

Parameters

Name Keyword Types Description

Pane

panes

Any Type

List of two or three a!pane() components to display in the pane layout.

Show When

showWhen

Boolean

Determines whether the layout is displayed on the interface. When set to false, the layout is hidden and is not evaluated. Default: true.

Show pane dividers

showPaneDividers

Boolean

Determines whether to display a divider line to separate the panes. Default: true

Usage considerations

Using pane layout

The pane layout is primarily a top-level layout designed to structure an entire interface.

You can also use it within an a form layout or header content layout to create interfaces with independently scrolling sections below a common header or within a form structure.

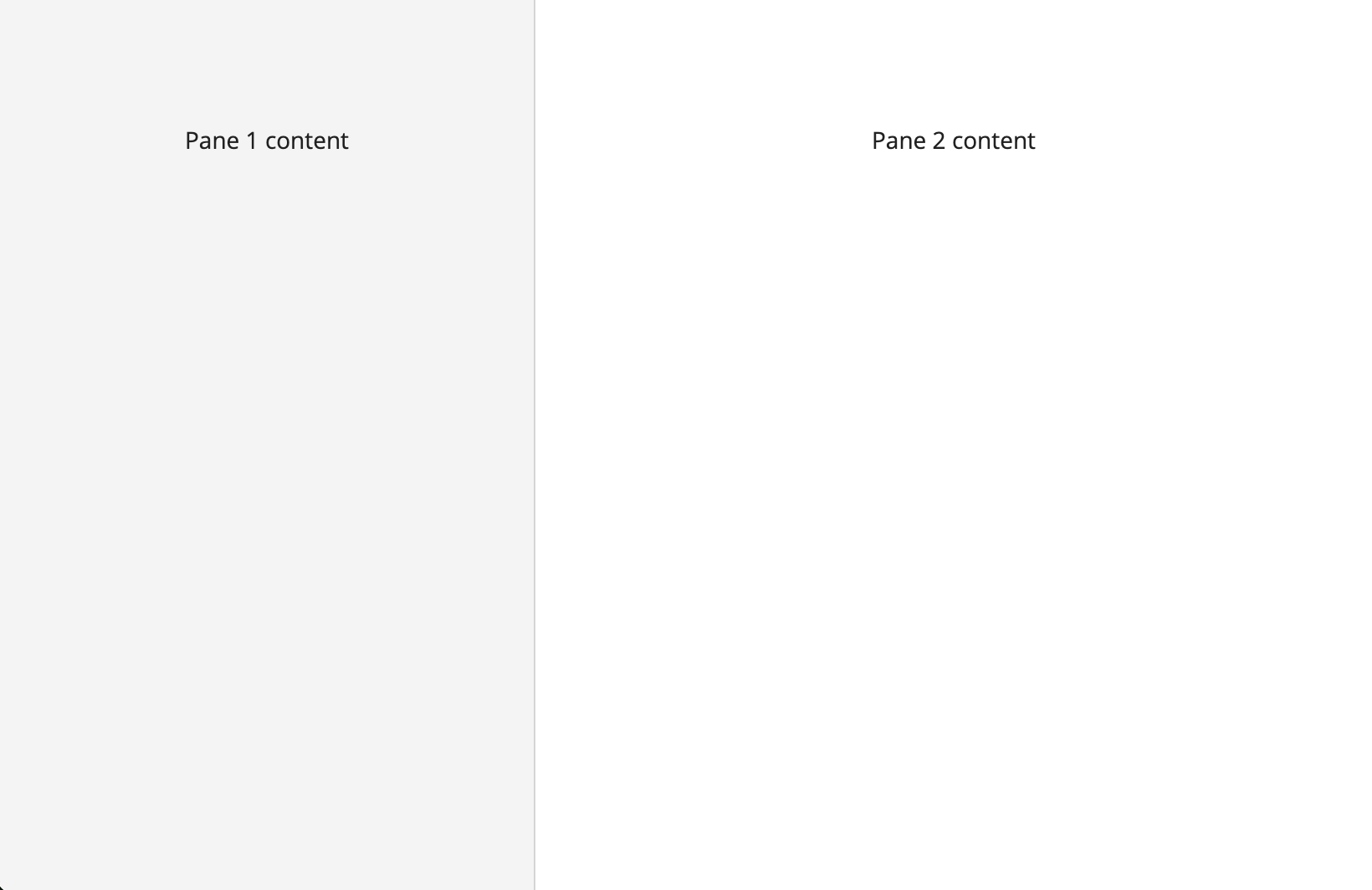

Using a pane layout as a top-level layout

When used as a top-level layout, the pane layout takes up the full width and height of the screen.

Because it is designed to structure an entire page, there are several limitations on how you can use a pane layout:

  • You cannot place other components next to a pane layout or nest it inside other components (except a form layout or header content layout).
  • You cannot nest a pane layout inside of another pane layout.
  • An interface can only contain one pane layout.


Using a pane layout in a form layout

Related style guidelines: Turn off pane dividers in forms with header and button footer dividers

You can place a single pane layout within the contents parameter of a form layout to create forms with multiple, independently scrolling columns of content.

When a pane layout is used in a form layout:

  • The form's header and button footer will span across the top and bottom of all panes.
  • The contentsWidth parameter of the form layout will always use "FULL". The panes will always occupy the entire width of the form's content area.

pane layout in form layout example

Using a pane layout in a header content layout

You can place a single pane layout inside the contents parameter of a header content layout.This is useful when you need a consistent header that spans across multiple, independently scrollable content sections.

When a pane layout is used in a header content layout:

  • The fixedHeader parameter of the header content layout is ignored.
  • The contentsPadding parameter of the header content layout will apply to the area around the pane layout.

pane layout in header content layout example

Adjusting for different screen sizes

The user's screen size should be considered when designing a paned interface. Let's look at the message inbox template as an example.

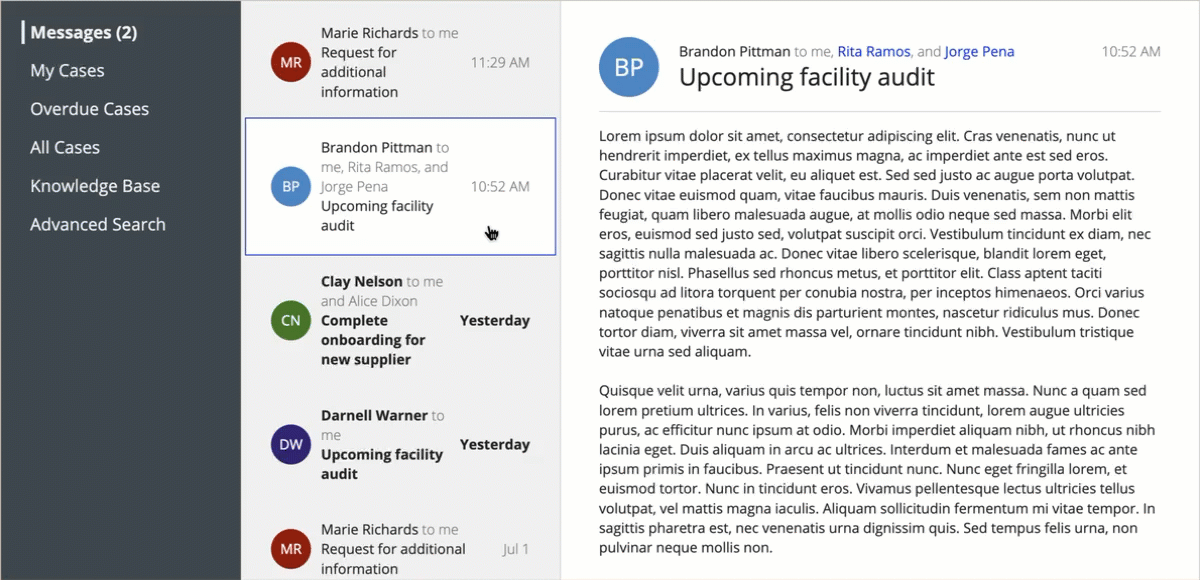

On a large, wide screen, such as a laptop display, this interface uses three panes so users can scroll both the list of messages and the message contents.

Message Inbox interface on desktop

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeMessage Inbox interface on desktop

For smaller screens, we recommend considering alternative layouts to better accommodate the contents of the panes.

You can reuse the wide display for a tablet in landscape mode, but the user will not have the ability to scroll the panes independently.

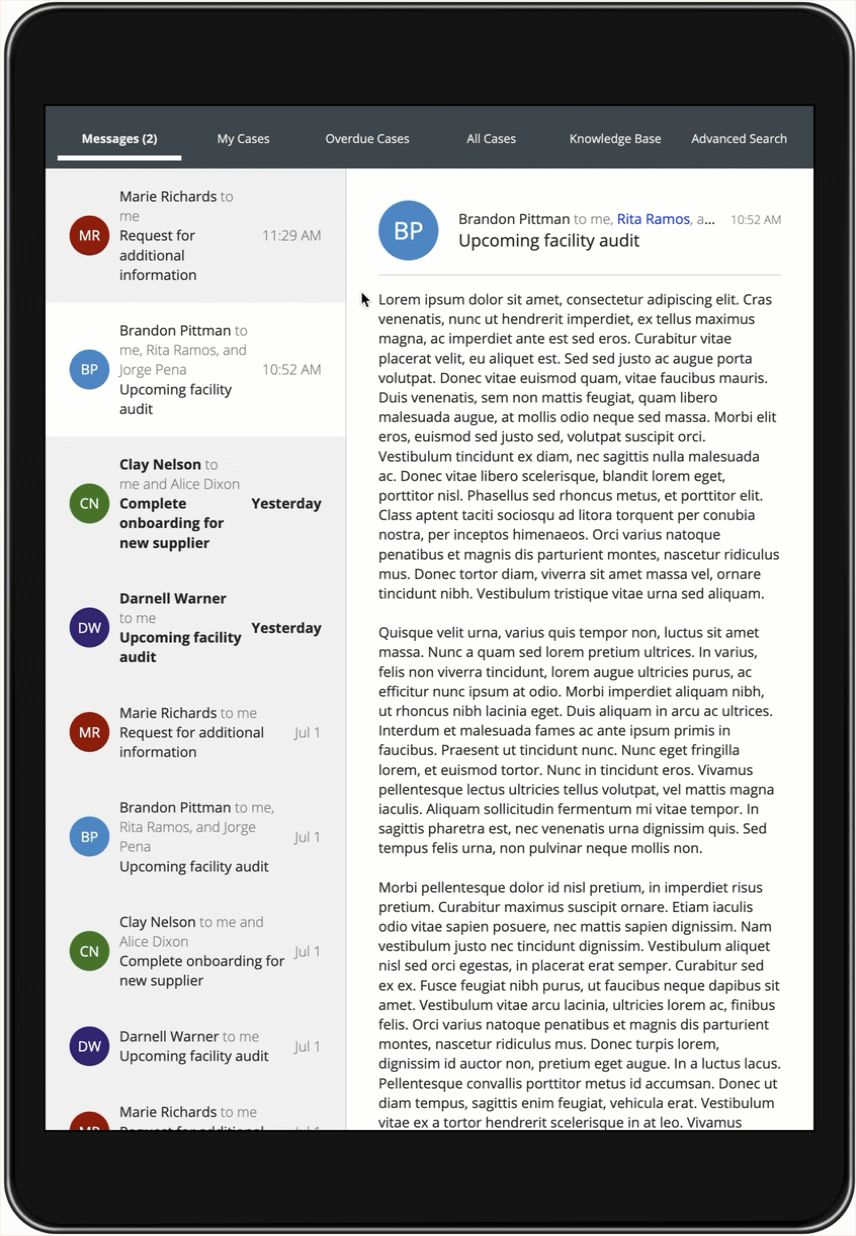

For a tablet in portrait mode, moving the navigation elements to a top bar helps save some space so users can still comfortably see the list of messages and message details.

Message Inbox interface on tablet in portrait mode

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeMessage Inbox interface on tablet in portrait mode

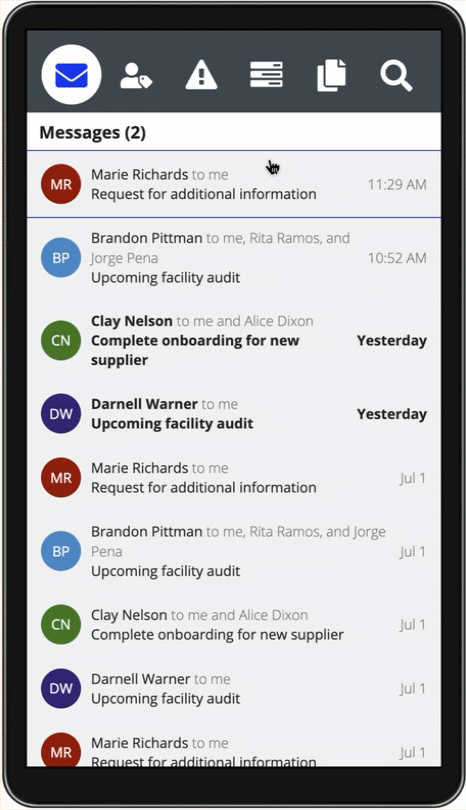

On phone screens, you can display the list of messages separately from the message contents to give users the ability to navigate each set of information freely.

Message Inbox interface on phone

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeMessage Inbox interface on phone

Appian Mobile considerations

Panes have different behavior when the interface is viewed in the Appian Mobile app. Panes are converted to columns, so the contents cannot be scrolled independently. Larger devices like tablets will display the columns side by side, while phones and other smaller devices will show the panes as stacked columns. This may result in very long pages depending on a pane's contents.

Note:  Panes are not converted for mobile browsers. Users viewing the paned interface this way will have a similar experience to those using a desktop browser. See Adjusting for different screen sizes to learn how to adapt the layout for smaller screens.

Examples

Pane layout with two panes

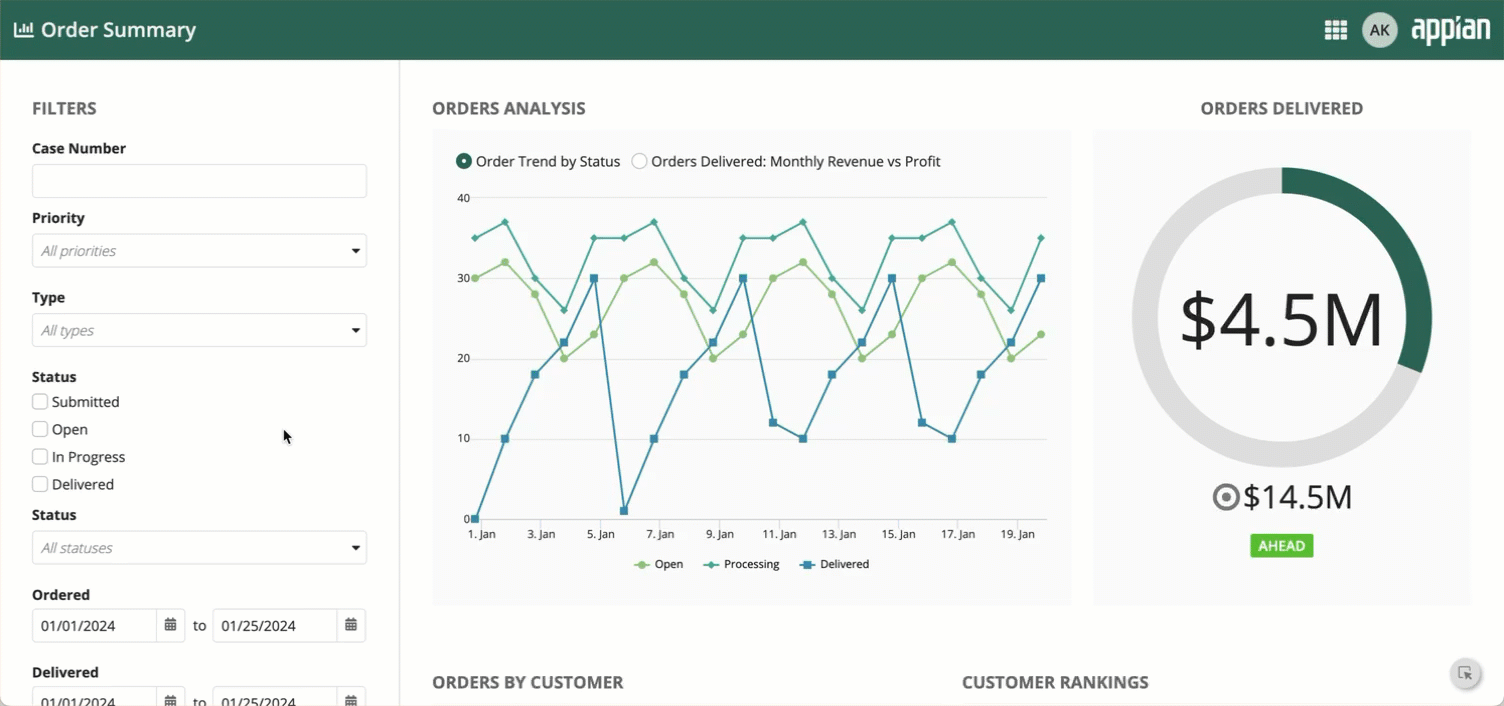

This example shows a two-pane layout for a dashboard with filter controls. Users can select from the available filters to apply to the dashboard data. Each pane can be scrolled while the other remains fixed.

Order Summary interface with filter controls pane and data pane

Pane layout with three panes

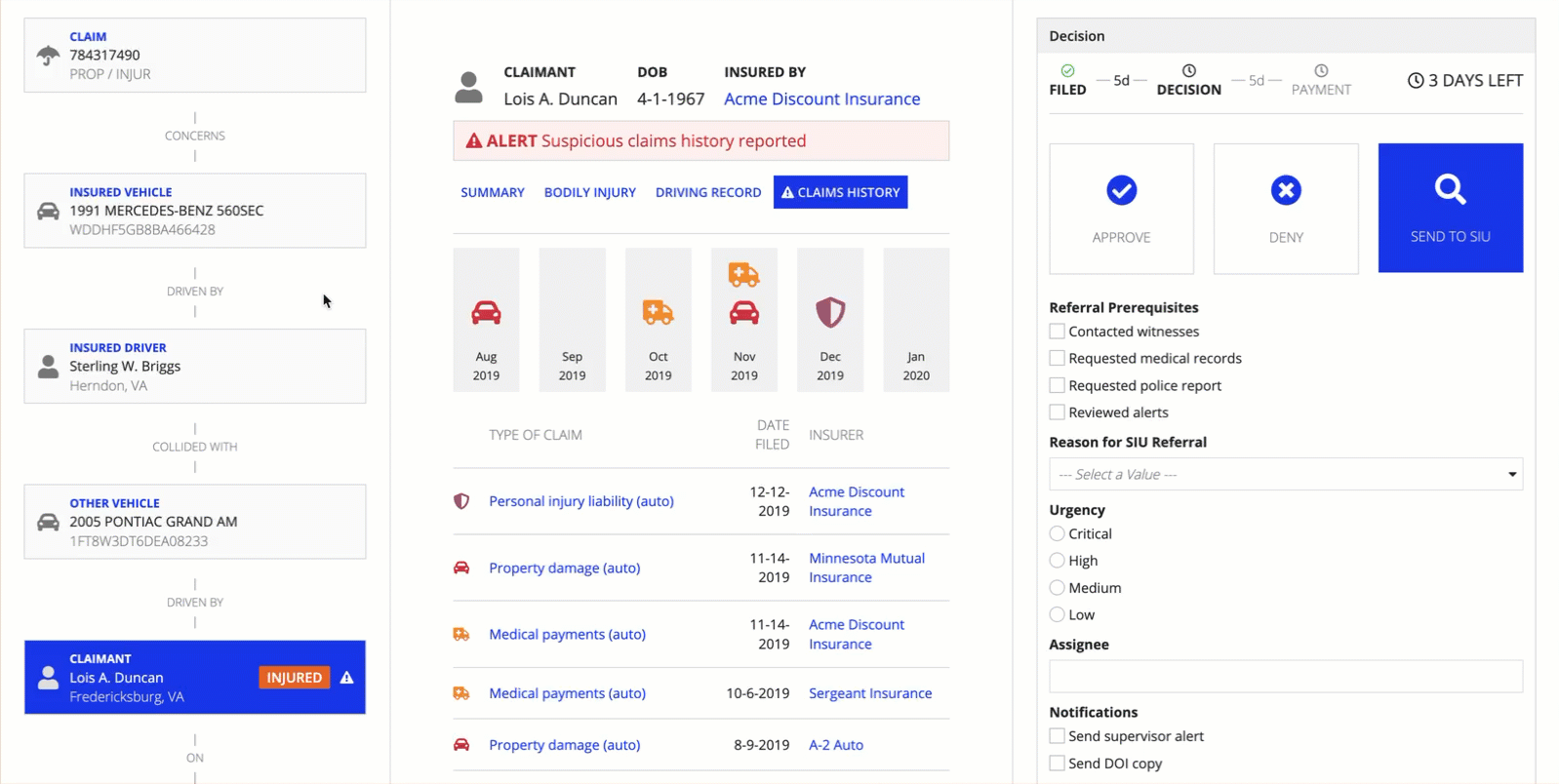

This example shows a three-pane layout from an insurance claim processing app. The layout includes a timeline, claim details, and input fields for the claim reviewer to add their findings. Each pane can be scrolled while the others remain fixed.

Order Summary interface with filter controls pane and data pane

Empty form with panes

This example shows an empty pane layout within a form layout.

To experiment with this example, copy and paste the expression into an interface object, or select the Form with Panes template from an empty interface object.

screenshot of how to select form with panes template in an interface object

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

a!formLayout(
  titleBar: a!headerTemplateFull(
    title: "Form",
    secondaryText: "Enter your details",
    secondaryTextColor: "SECONDARY",
    backgroundColor: "ACCENT"
  ),
  showTitleBarDivider: false,
  contents: {
 a!paneLayout(
      panes: {
        a!pane(contents: {}, width: "NARROW_PLUS"),
        a!pane(contents: {}, width: "AUTO")
      }
    )
  },
  buttons: a!buttonLayout(
    primaryButtons: {
      a!buttonWidget(
        label: "Submit",
        submit: true,
        style: "SOLID",
        loadingIndicator: true
      )
    },
    secondaryButtons: {
      a!buttonWidget(
        label: "Cancel",
        value: true,
        saveInto: ri!cancel,
        submit: true,
        style: "OUTLINE",
        validate: false
      )
    }
  ),
  showButtonDivider: true
)

Pane layout in form layout

This example shows a document review form created with a pane layout in a form layout. It displays the following interface.

a pane layout in form layout with a document viewer in one pane and form fields in another pane

To experiment with examples, copy and paste the expression into an interface object.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

a!formLayout(
  titleBar: a!headerTemplateSimple(
    title: "Review Form Data",
    secondaryText: "Review the information extracted from the submitted document. Compare the details below with the form on the left. Correct any fields that are inaccurate before submitting.",
    secondaryTextColor: "STANDARD"
  ),
  showTitleBarDivider: true,
  contents: {
    a!paneLayout(
      panes: {
        a!pane(
          contents: {
            a!documentViewerField(
              labelPosition: "COLLAPSED",
              /* Replace this with a document constant in your environment */
              /* document: cons!DOC_EXAMPLE, */
              height: "TALL"
            )
          },
          width: "AUTO",
          padding: "NONE"
        ),
        a!pane(
          contents: {
            a!textField(
              label: "Name"
            ),
            a!textField(
              label: "Street Address"
            ),
            a!textField(
              label: "City"
            ),
            a!dropdownField(
              data: null,
              label: "State",
              placeholder: "Select a state"
            ),
            a!integerField(
              label: "Zip Code"
            ),
            a!textField(
              label: "Phone Number"
            ),
            a!textField(
              label: "Email"
            ),
            a!paragraphField(
              label: "Supporting Information",
              height: "TALL"
            ),
            a!dateField(
              label: "Start Date"
            ),
            a!dateField(
              label: "End Date"
            )
          },
          width: "NARROW_PLUS",
          backgroundColor: "GRAY"
        )
      },
      showPaneDividers: false
    )
  },
  buttons: a!buttonLayout(
    primaryButtons: {
      a!buttonWidget(
        label: "Submit",
        style: "SOLID"
      )
    },
    secondaryButtons: {
      a!buttonWidget(
        label: "Cancel"
      )
    }
  ),
  showButtonDivider: true
)

Pane layout with billboard header

This example shows a two-pane layout within a billboard header content layout. It displays the following interface.

A billboard header with a pane layout

To experiment with examples, copy and paste the expression into an interface object.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128

a!headerContentLayout(
  header: {
    a!billboardLayout(
      backgroundMedia: a!documentImage(document: a!EXAMPLE_BILLBOARD_IMAGE()),
      backgroundColor: "#f0f0f0",
      marginBelow: "NONE",
      overlay: a!fullOverlay(
        alignVertical: "BOTTOM",
        contents: {
          a!cardLayout(
            contents: {
              a!richTextDisplayField(
                labelPosition: "COLLAPSED",
                value: {
                  a!richTextItem(text: "Properties / First Property / "),
                  a!richTextItem(text: "Messages", style: "STRONG"),
                  char(10),
                  char(10)
                }
              ),
              a!sideBySideLayout(
                items: {
                  a!sideBySideItem(
                    item: a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        a!richTextItem(
                          text: "First Property",
                          size: "LARGE",
                          style: "STRONG"
                        ),
                        char(10),
                        a!richTextItem(text: "Address, City, VA 99999"),
                        char(10)
                      }
                    )
                  )
                },
                alignVertical: "MIDDLE"
              )
            },
            style: "TRANSPARENT",
            padding: "NONE",
            marginBelow: "NONE",
            showBorder: false
          )
        },
        style: "SEMI_DARK"
      )
    )
  },
  contents: a!paneLayout(
    panes: {
      a!pane(
        contents: {
          a!sectionLayout(
            label: "",
            contents: {
              a!cardLayout(
                contents: {
                  a!sideBySideLayout(
                    items: {
                      a!sideBySideItem(
                        item: a!richTextDisplayField(
                          labelPosition: "COLLAPSED",
                          value: a!richTextHeader(text: "Inbox")
                        ),
                        width: "MINIMIZE"
                      )
                    },
                    alignVertical: "MIDDLE",
                    marginAbove: "STANDARD",
                    marginBelow: "STANDARD"
                  )
                },
                height: "AUTO",
                style: "TRANSPARENT",
                marginBelow: "NONE",
                showBorder: false
              )
            },
            marginAbove: "EVEN_LESS",
            marginBelow: "EVEN_LESS"
          ),
          a!cardLayout(contents: {}, height: "EXTRA_TALL"),
          a!cardLayout(contents: {}, height: "EXTRA_TALL")
        },
        width: "MEDIUM",
        padding: "NONE"
      ),
      a!pane(
        contents: {
          a!cardLayout(
            contents: {
              a!sideBySideLayout(
                items: {
                  a!sideBySideItem(
                    item: a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        a!richTextItem(text: "Messages", size: "MEDIUM_PLUS")
                      },
                      preventWrapping: true
                    )
                  )
                },
                alignVertical: "MIDDLE"
              )
            },
            height: "AUTO",
            style: "#ffffff",
            shape: "SEMI_ROUNDED",
            padding: "STANDARD",
            marginBelow: "NONE",
            showBorder: false
          ),
          a!cardLayout(contents: {}, height: "EXTRA_TALL"),
          a!cardLayout(contents: {}, height: "EXTRA_TALL"),
          a!horizontalLine(marginAbove: "NONE", marginBelow: "NONE")
        },
        width: "AUTO",
        backgroundColor: "GRAY",
        padding: "STANDARD"
      )
    }
  ),
  contentsPadding: "NONE"
)

Feature compatibility

The table below lists this component's compatibility with various features in Appian.
Feature Compatibility Note
Portals Compatible
Offline Interfaces Compatible
Sync-Time Custom Record Fields Incompatible
Real-Time Custom Record Fields Incompatible

Custom record fields that evaluate in real time must be configured using one or more Custom Field functions.
Process Reports Incompatible

Cannot be used to configure a process report.
Process Events Incompatible

Cannot be used to configure a process event node, such as a start event or timer event.
Process Autoscaling Incompatible

Cannot be used in autoscaled processes.
Event Consumer Filter Conditions Compatible

Can be used in filter conditions.
Event Consumer Event Handlers Compatible

Can be used in event handler expressions.
