Sidebar Template

On This Page

Function

a!sidebarTemplate( title, secondaryText, titleColor, secondaryTextColor, backgroundColor, image, imageSize, width, additionalContents )

A title bar template that displays a sidebar in a form or wizard. On narrower screens, the sidebar automatically displays as a header. In wizard layouts with a vertical milestone, the sidebar displays the milestone.

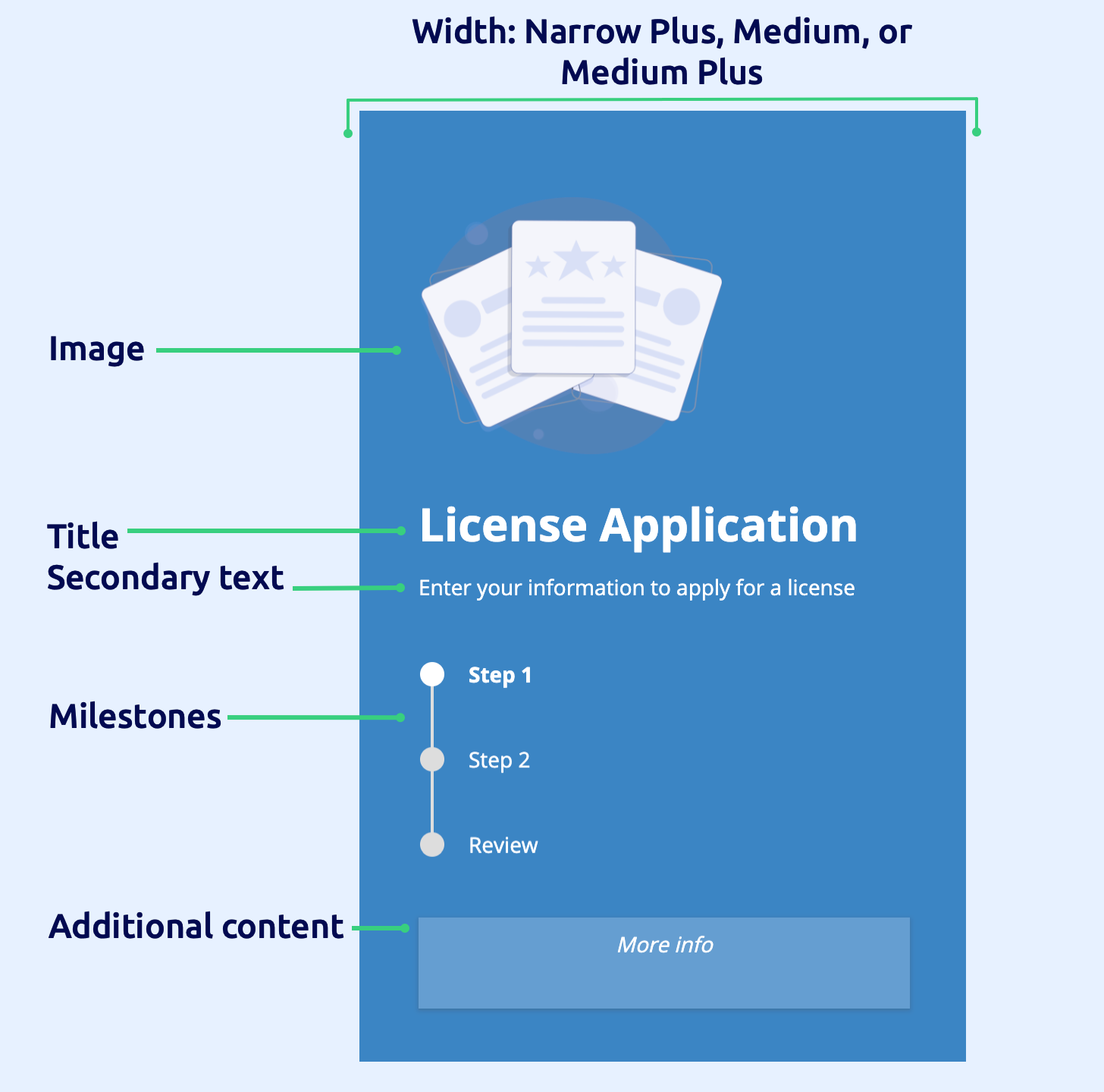

Example of a form with a sidebar template with annotations

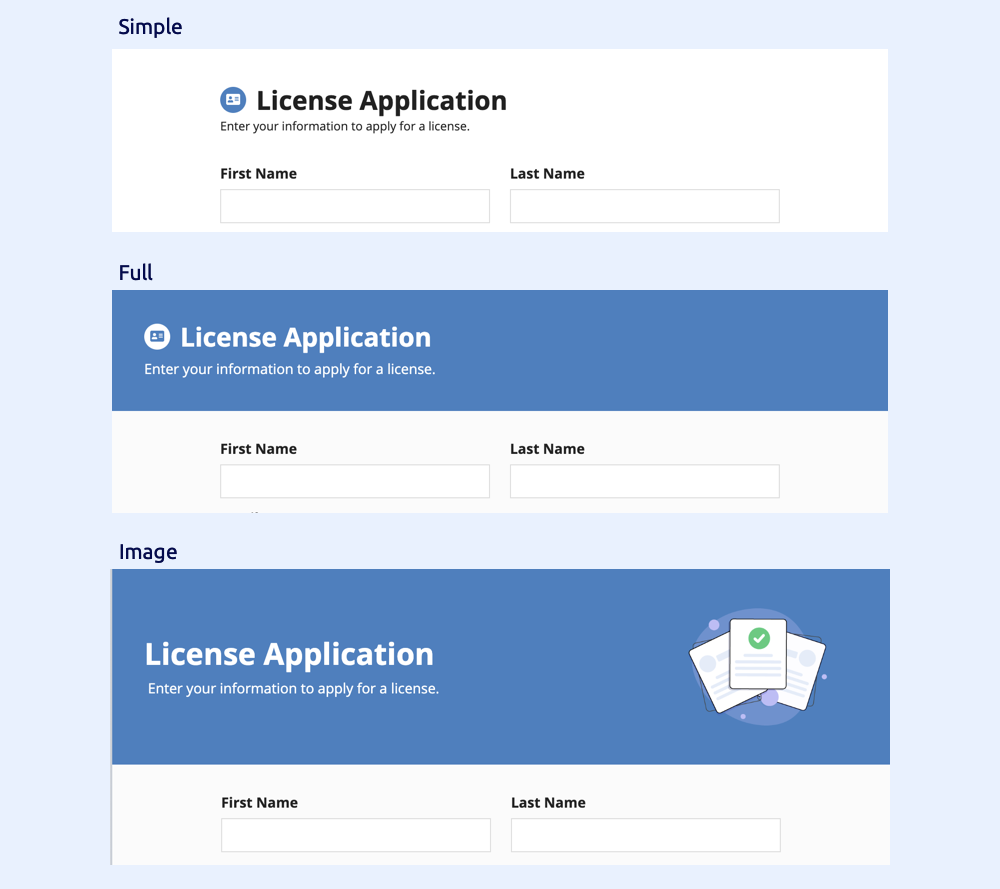

You can also choose a simple, full, or image header. See the SAIL Design System for guidelines about when to choose each template as well as using the sidebar template.

simple, full, and image header

Parameters

Name Keyword Types Description

Title

title

Text

Text to display as the sidebar title.

Secondary Text

secondaryText

Text

Optional text to display below the title.

Title Color

titleColor

Text

Determines the title text color. Valid values: Any valid hex color or "STANDARD" (default), "ACCENT", "SECONDARY".

Secondary Text Color

secondaryTextColor

Text

Determines the secondary text color. Valid values: Any valid hex color or "STANDARD" (default), "ACCENT", "SECONDARY".

Background Color

backgroundColor

Text

Determines the title bar background color. Valid values: Any valid hex color or hex color including transparency, or "ACCENT" (default), "WHITE", "CHARCOAL_SCHEME", "NAVY_SCHEME", "PLUM_SCHEME". To add transparency to the hex color, add two additional digits between 00 (more transparent) and FF (less transparent).



Any Type

Image to display above the title in the sidebar. Configured using a!webImage(), a!userImage, or a!documentImage. Hidden when the sidebar displays as a header on narrow screens.

Image Size

imageSize

Text

Determines the image size. Valid values: "MEDIUM" (default), "SMALL_PLUS", "MEDIUM_PLUS".

Sidebar Width

width

Text

Sets the width of the sidebar. Valid values: "MEDIUM" (default), "NARROW_PLUS", "MEDIUM_PLUS".

Additional Contents

additionalContents

Any Type

Components and layouts to display below the rest of the sidebar content. Use this to provide additional details about the form.

Usage considerations

Responsiveness on smaller screen sizes

The sidebar is fully responsive and its appearance will change based on the screen width.

On narrow screens, the sidebar automatically displays as a header at the top of the interface. This includes when it displays in dialogs that use Medium width or narrower.

When the sidebar displays as a header, the image is hidden, but any components in the additionalContents parameter will still be displayed below the secondary text.

Sidebar on a wider screen:

a sidebar layout on a wider screen

Sidebar on a narrower screen:

a sidebar layout on a narrower screen

Related style guidelines:

Wizard layout vertical milestone behavior

When using a sidebar template in an a!wizardLayout() with a vertical milestone, the milestone steps will automatically be moved into the sidebar, appearing below the secondaryText and above any additionalContents.

When the sidebar's responsive behavior causes it to display as a header, the milestone will display below the header using the "MINIMAL" style.

image of a wizard layout that uses the sidebar template

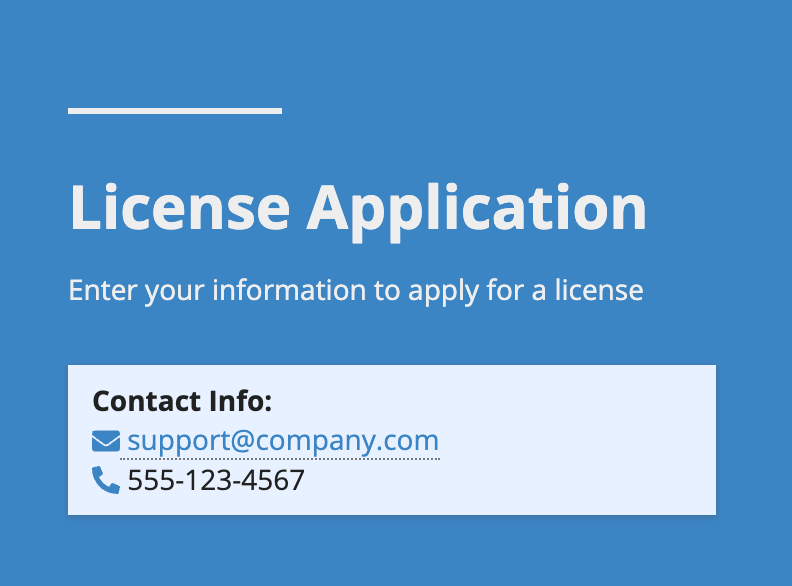

If you don't include an image in the sidebar, a horizontal line will appear to help balance the sidebar.

sidebar-no-image

Example

The following example shows an a!wizardLayout() that uses a!sidebarTemplate. The vertical milestone displays in the sidebar and contact information displays using the additionalContents parameter.

image of a wizard layout that uses the sidebar template

To experiment with examples, copy and paste the expression into an interface object.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
a!wizardLayout(
  titleBar: a!sidebarTemplate(
    title: "New License Application",
    secondaryText: "Complete this for to apply for a license, providing all required personal information.",
    backgroundColor: "ACCENT",
    image: a!documentImage(document: a!EXAMPLE_TITLE_BAR_IMAGE()),
    width: "MEDIUM",
    additionalContents: {
      {
        a!cardLayout(
          contents: {
            a!richTextDisplayField(
              labelPosition: "COLLAPSED",
              value: {
                a!richTextItem(
                  text: "Contact Info:",
                  style: "STRONG"
                ),
                char(10),
                a!richTextIcon(icon: "envelope"),
                a!richTextItem(
                  text: " support@company.com",
                  color: "#94B2C0",
                  link: a!safeLink(uri: "mailto:support@company.com")
                ),
                char(10),
                a!richTextIcon(icon: "phone"),
                " 555-123-4567"
              }
            )
          },
          style: "#141494",
          showBorder: false,
          showShadow: true
        )
      }
    }
  ),
  steps: {
    a!wizardStep(
      label: "Personal Information",
      contents: {
        a!columnsLayout(
          columns: {
            a!columnLayout(
              contents: { a!textField(label: "First Name") }
            ),
            a!columnLayout(
              contents: { a!textField(label: "Last Name") }
            )
          }
        ),
        a!textField(label: "Email")
      }
    ),
    a!wizardStep(
      label: "Address",
      contents: {
        a!textField(label: "Street Address"),
        a!columnsLayout(
          columns: {
            a!columnLayout(
              contents: { a!textField(label: "City") }
            ),
            a!columnLayout(
              contents: { a!textField(label: "State") }
            ),
            a!columnLayout(
              contents: { a!integerField(label: "Zip Code") }
            )
          }
        )
      }
    ),
    a!wizardStep(
      label: "Supporting Documents",
      instructions: "Upload supporting documents such as proof of address",
      contents: {
        a!fileUploadField(
          label: "File Upload",
          labelPosition: "COLLAPSED"
        )
      }
    )
  },
  primaryButtons: {
    a!buttonWidget(
      label: "Submit",
      style: "SOLID",
      showWhen: fv!isLastStep
    )
  },
  secondaryButtons: {
    a!buttonWidget(
      label: "Cancel",
      style: "LINK"
    )
  }
)

Feature compatibility

The table below lists this component's compatibility with various features in Appian.
Feature Compatibility Note
Portals Compatible
Offline Interfaces Compatible
Sync-Time Custom Record Fields Incompatible
Real-Time Custom Record Fields Incompatible

Custom record fields that evaluate in real time must be configured using one or more Custom Field functions.

Process Reports Incompatible

Cannot be used to configure a process report.

Process Events Incompatible

Cannot be used to configure a process event node, such as a start event or timer event.

Process Autoscaling Incompatible

Cannot be used in autoscaled processes.

Event Consumer Filter Conditions Compatible

Can be used in filter conditions.

Event Consumer Event Handlers Compatible

Can be used in event handler expressions.
