Configure the Control Panel Object for Case Management Studio

Overview

The control panel object that comes out-of-the-box with Case Management Studio has some configurations already made to it to support the Case Management Studio functionality, such as automation rules, tasks, and workflows. This page provides information on these settings and configurations and provides general instructions for how to configure the out-of-the-box control panel object.

The control panel object that comes out-of-the-box with Case Management Studio is named CMGT_ControlPanel and is in the CMMGT Case Management Studio Base (CMGT) application in Appian Designer. This app is where you can find all of the pre-configured objects that come with Case Management Studio, including the CMGT Cases record type.

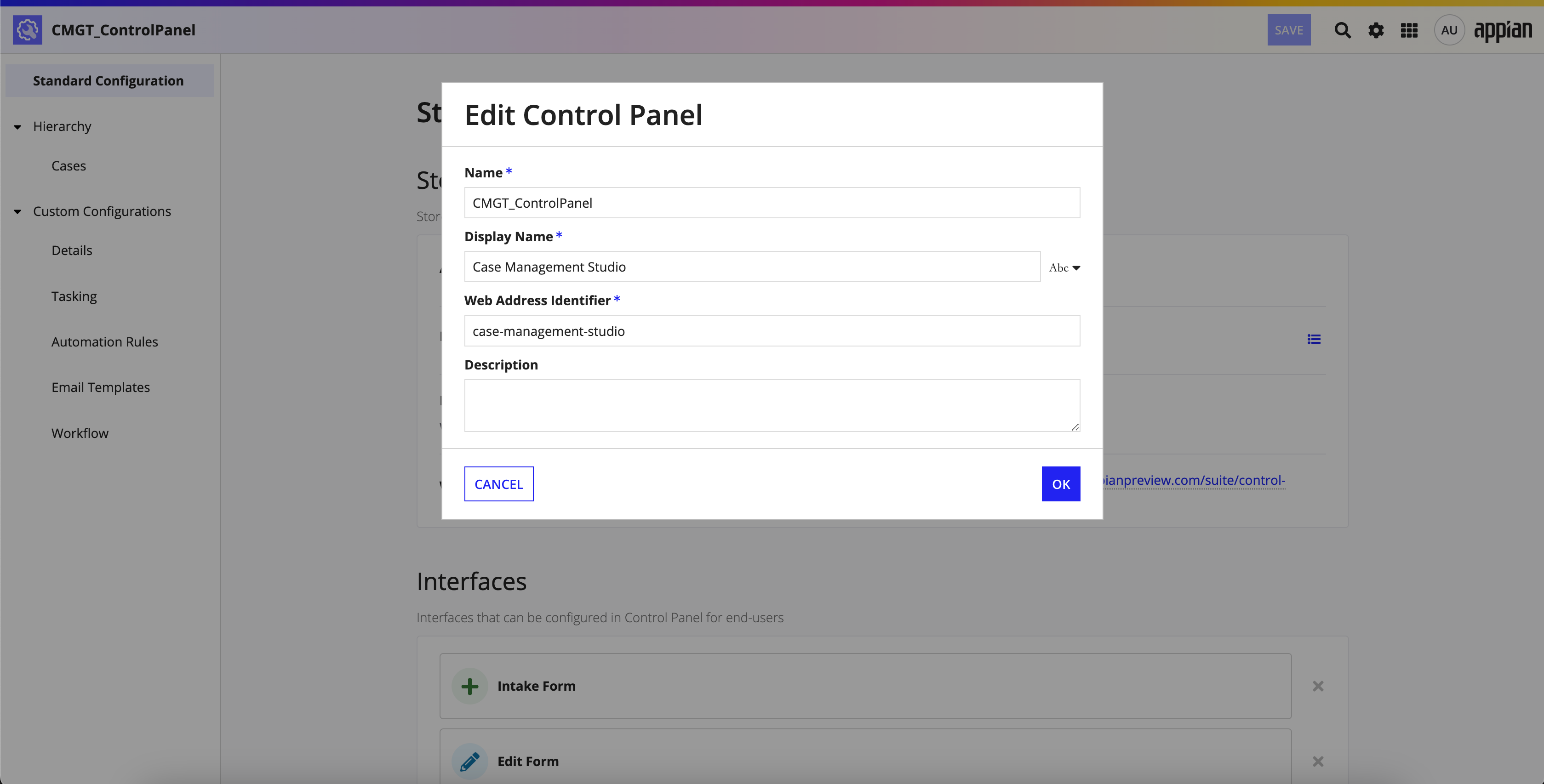

Step 1: Configure properties and security

To configure the control panel object properties:

1. In the control panel object, open the gear menu and click Properties.

2. Configure the following properties and out-of-the-box values:

   Property	Pre-configured value	Description
   Name	CMGT_ControlPanel	The name of the control panel object. This is only shown in Designer.
   Display name	Case Management Studio	The name of the control panel object that is shown in the Control Panel workspace. The display name can either be a plain text string or a translation string.
   Web address identifier	case-management-studio	The URL for the control panel object. The identifier must be unique in the Appian environment. By default, Appian constructs this property using the Name property, but you can modify the identifier as needed.
   Description	Blank	A description of the control panel object to display to low-code developers.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To edit the out-of-the-box security for the Case Management Studio control panel object:

1. In the header bar of the control panel object, click the gear menu.
2. Click Security.

3. You can edit the out-of-the-box security for the object:

   User or Group	Permission Level
   Default (All Other Users)	No Access
   CMGT Design Administrators	Administrator
   CMGT Case Managers	Editor
   CMGT All Users	Viewer

4. Click SAVE CHANGES.

To learn more about security for the Control Panel workspace and object, see Control Panel Object Security.

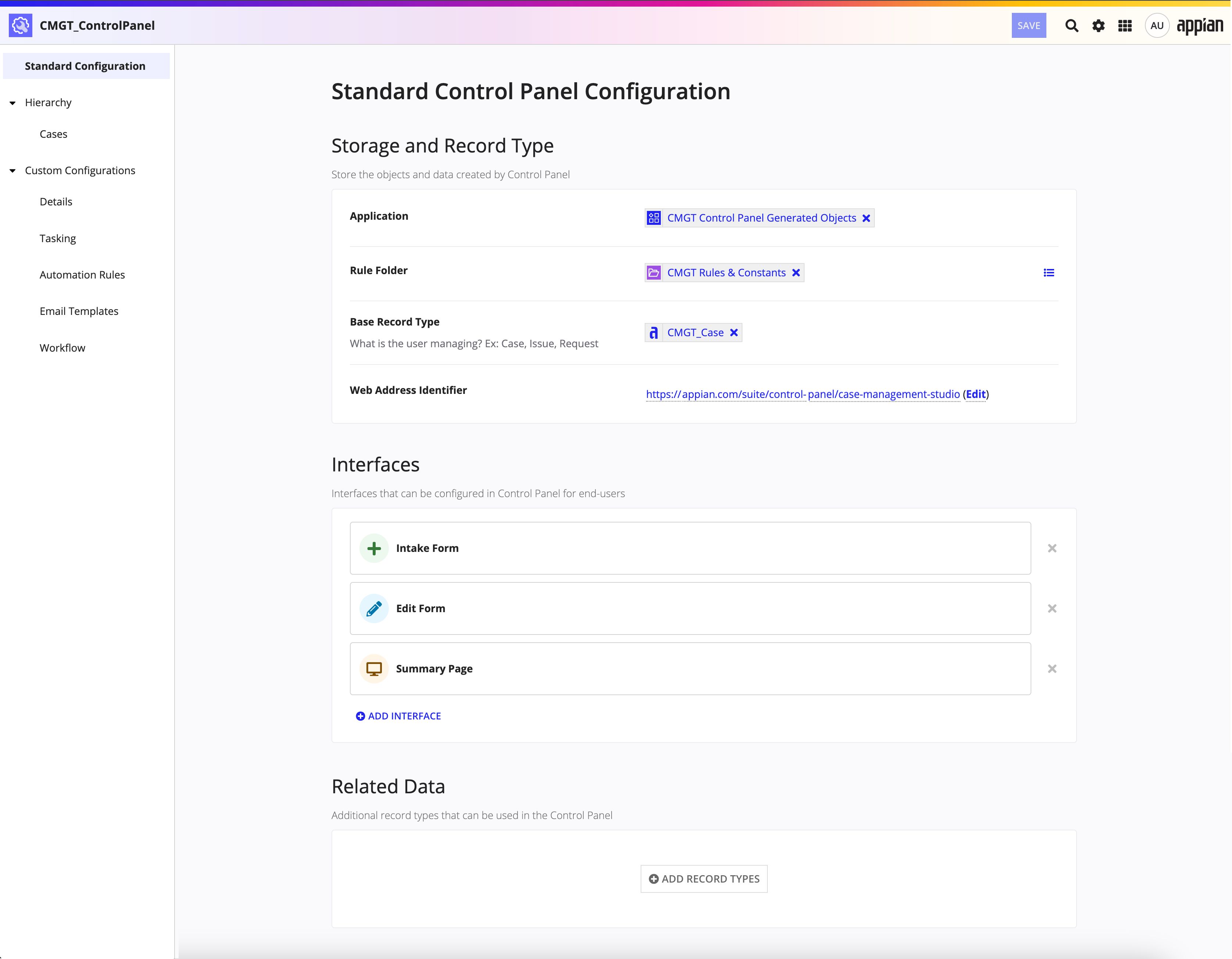

Step 2: Configure the Standard Configurations

From the Standard Configuration page, you can:

• Configure where to store and access your data and objects.
• Define which types of interfaces business users can add and use in your case management workflow.
• Add related record types to allow users to leverage more data across your applications through the Control Panel workspace.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To configure where to store and access the control panel data and objects:

1. Go to Storage and Record Type section in the Standard Configuration page of the control panel object.

2. You can configure the following fields and out-of-the-box values:

   Property	Pre-configured value	Description
   Application	CMGT Control Panel Generated Objects	The application that stores the objects created in the control panel.
   Rule folder	CMGT Rules & Constants	The rule folder that stores the interfaces created by the control panel object.
   Base record type	CMGT Case	The record type that holds the data for all cases submitted and created through the control panel object. It does not hold the data structure for your control panel hierarchy, nor does it hold the data associated with categories or types.
   Web address identifier	A unique value depending on your environment settings.	The URL for the Control Panel workspace. The identifier must be unique in the Appian environment. By default, Appian constructs this property using the Name property, but you can modify the identifier as needed.

To configure the types of interfaces that your business users can generate and configure in the Control Panel workspace:

1. Go to Interfaces section in the Standard Configuration page of the control panel object.

2. You can edit the following interface types:

   Interface Type	Intent	Description
   Intake Form	Create	Allows end-users to create new cases.
   Edit Form	Edit	Allows end-users to edit existing cases.
   Summary Page	Display	Displays case details to end-users.

3. (Optional) Click ADD INTERFACE to add a new interface type to the existing list.

The interface types represent the different kinds of interfaces that business users can generate and configure for your case management processes. You can configure and remove interface types for case categories and types, depending on your needs. Not all interface types are needed or required to be used in all case categories and types.

To optionally add additional related record types and data to your control panel object:

1. Go to the Related Data section in the Standard Configuration page of the control panel object.
2. Click + ADD RECORD TYPES.
3. Select a record type and click ADD.

Step 3: Configure and manage the Hierarchy

Configuring the case category and type hierarchy for your case management processes is a combined effort between low-code developers and business users. Case categories and types cannot only be created directly from the control panel object. Once case categories and types are created in the Control Panel workspace, they can be configured in the control panel object.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

But before you or your business users can create case categories and types through the Control Panel workspace, you should define the terminology that you want to use for your case categories and types. For instance, if you want to use other terminology to refer to "case types", such as "request types" or "issue folders", you can update that terminology from the Hierarchy page.

From here, you can also decide to use case categories. While case types are required in the Control Panel workspace and object, case categories are not.

To update terminology and category settings:

1. In the Hierarchy page of the control panel object, click the gear menu.
2. Select Manage Hierarchy.
3. (Optional) Configure the terminology for case types and categories.
4. Decide whether or not to use categories in your case management app hierarchy.
5. Click SUBMIT.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

Once you or your business user has created case categories and types from the Control Panel workspace, you can configure security for the case categories and types.

To configure security for a case category or type:

1. On the Hierarchy page, click next to the case category or type you want to configure security for.
2. Click Configure Security.

3. Edit the out-of-the-box security for the case category or type.

   User or Group	Permission Level
   Default (All Other Users)	No Access
   CMGT Design Administrators	Administrator
   CMGT Case Managers	Viewer

4. Click SAVE CHANGES.

To learn more about security for the Control Panel workspace and object, see Control Panel Object Security.

To delete a case category or type from the control panel object:

1. On the Hierarchy page, click next to the case category or type you want to delete.
2. Click Delete.

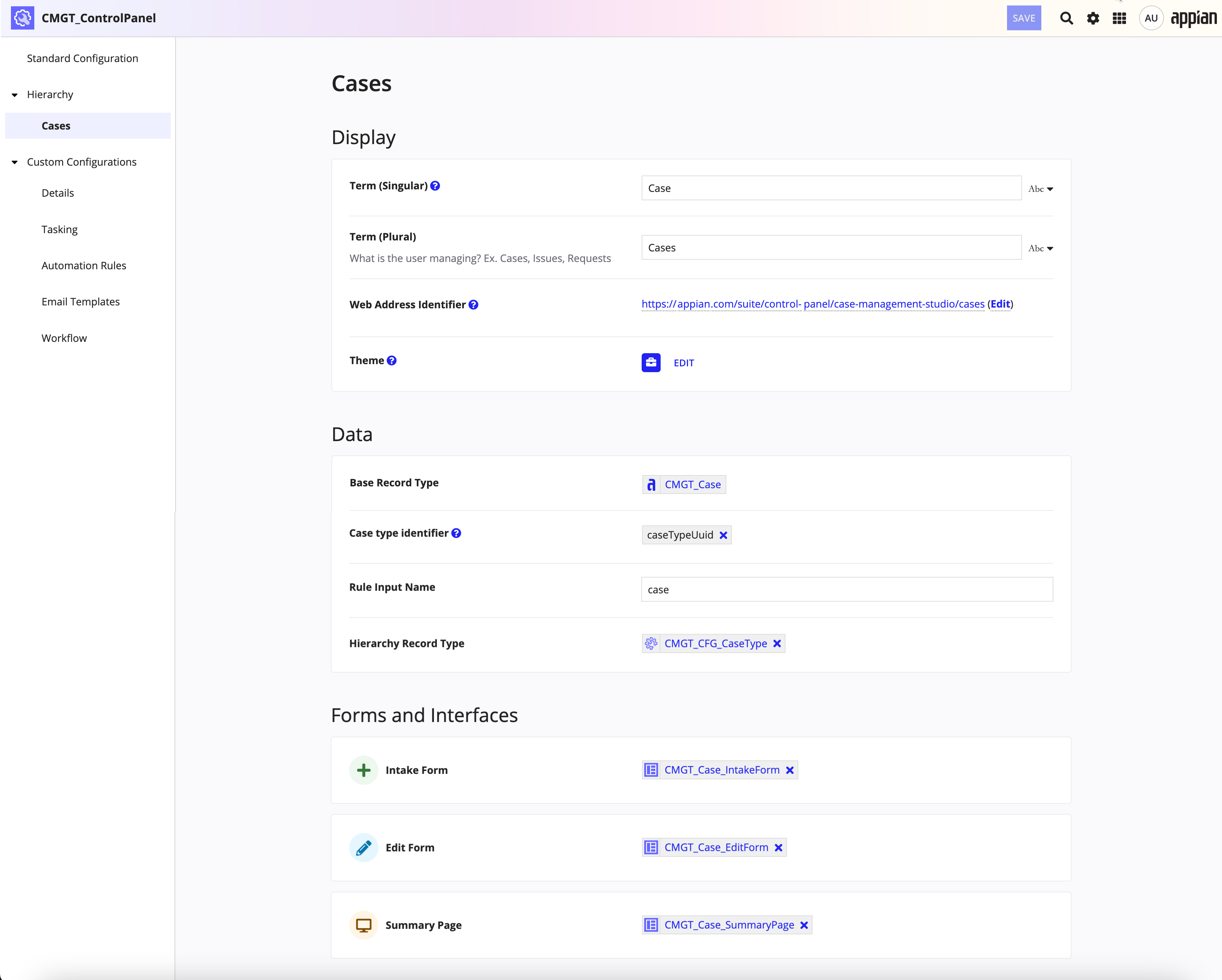

Step 4: Set the configurations for all cases

From the Cases page, you can configure the display properties for all cases, where the data for cases is stored, and which forms and interfaces can be used with cases.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To configure the display properties for your cases:

1. Go to Display section in the Cases page of the control panel object.

2. You can configure the following fields and out-of-the-box values:

   Property	Pre-configured value	Description
   Term (singular)	Case	The word for the key concept that the user is interacting with. For example, a single case, request, issue, etc. The term can either be a plain text string or a translation string.
   Term (plural)	Cases	The word for multiple cases, requests, issues, etc. The term can either be a plain text string or a translation string.
   Web address identifier	A unique value depending on your environment settings.	The URL that points to the page that shows all cases for this control panel object in the Control Panel workspace. The identifier must be unique in the Appian environment. By default, Appian constructs this property using the term for "case" that you selected, but you can modify the identifier as needed.
   Theme	Royal blue and the briefcase icon.	The color and icon shown on the top level page for the cases in this control panel object in the Control Panel workspace.

To configure where to store and access the data for your cases:

1. Go to the Data section in the Cases page of the control panel object.

2. You can configure the following fields and out-of-the-box values:

   Property	Pre-configured value	Description
   Base record type	CMGT_Case	The record type that holds the data for all cases submitted and created through the control panel object.
   Case identifier	friendlyId	A unique text field used as a foreign key and common field between the base record type and any of the record types for the specified types and categories.
   Case type identifier	caseTypeUuid	The text field on the base record type that is populated with the identifier for the type or category.
   Rule input	case	The name of the rule input that passes the data of the base record type into the interfaces related to Cases. This rule input is not related to the case type UUID.
   Hierarchy record type	CMGT_CFG_CaseType	A system generated record type that contains the metadata, configurations, and properties for all types and categories in the control panel. It does not hold the data for individual categories, types, or cases.

To configure the forms and interfaces used across all your cases:

1. Go to the Forms and Interfaces section in the Cases page of the control panel object.

2. You can edit the out-of-the-box interfaces used for all cases:

   Interface type	Pre-configured interface
   Intake Form	CMGT_Case_IntakeForm
   Edit Form	CMGT_Case_EditForm
   Summary Page	CMGT_Case_SummaryPage

Step 5: Set the configurations for each category and type

Once you've created case categories and types, you can edit select configurations for them from each of their relevant pages in the control panel object. Since case categories and types do not come configured out-of-the-box, there are no pre-configured values or interfaces for case categories and types.

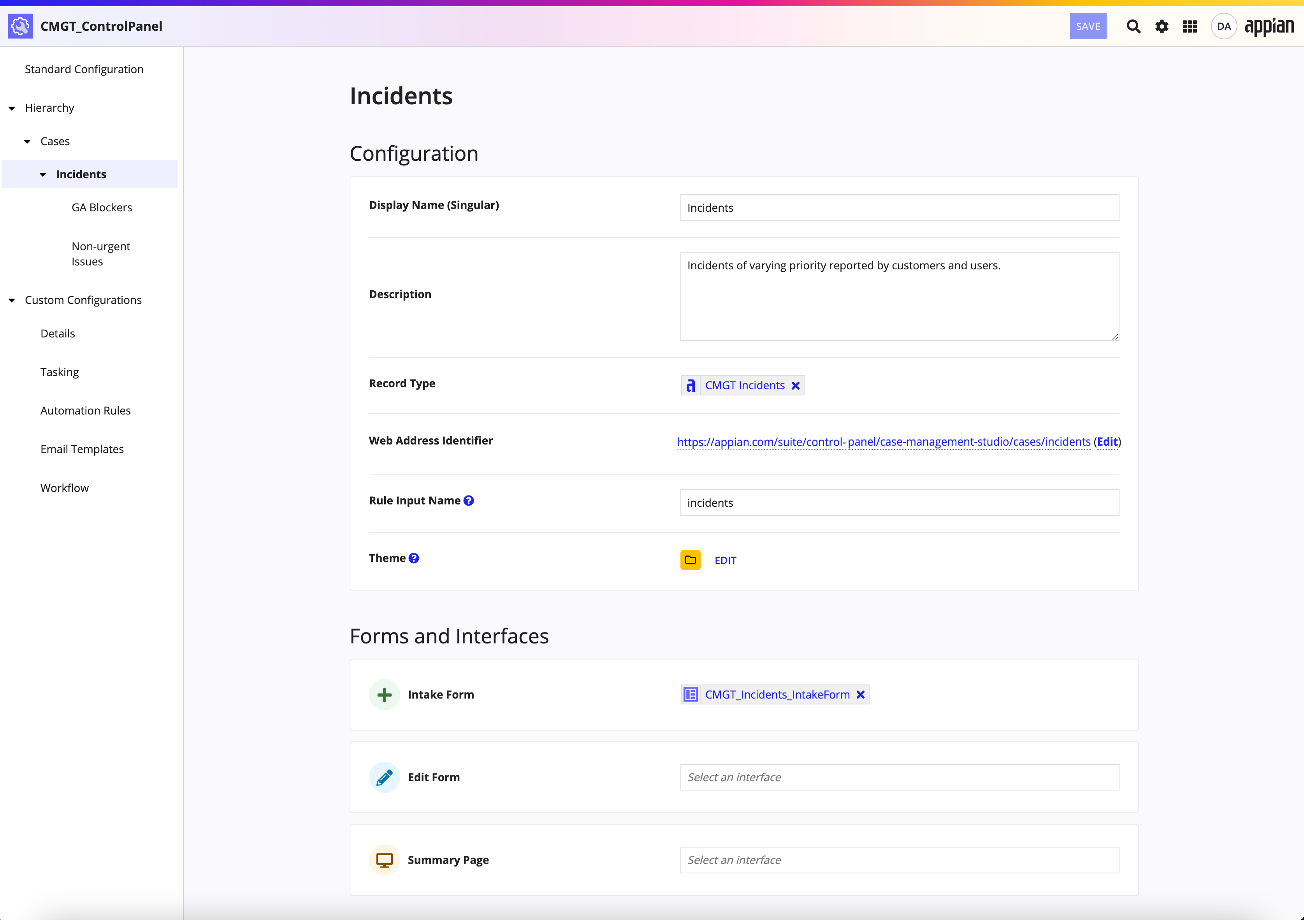

Example of a case category page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

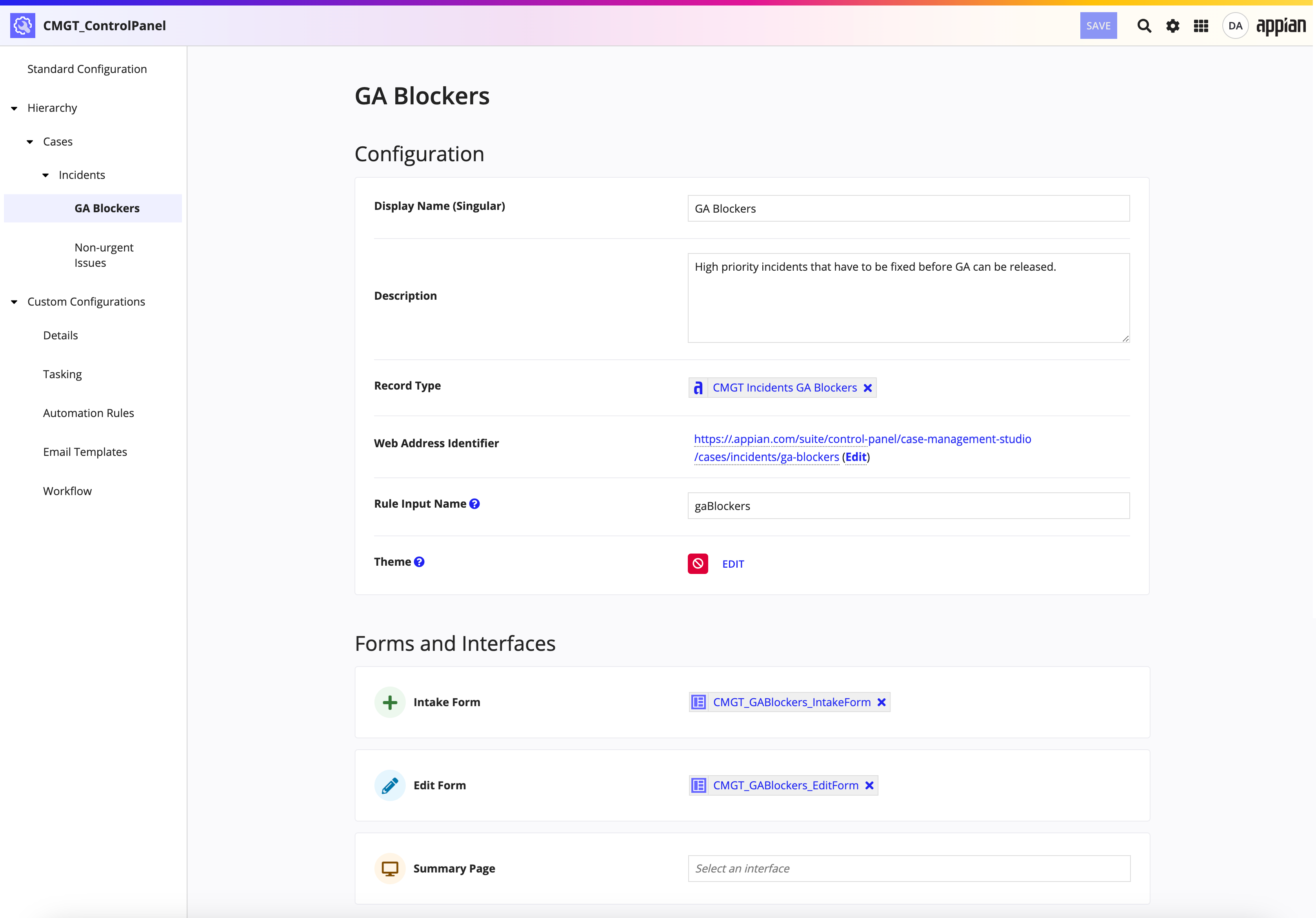

Example of a case type page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To configure case categories and types form the control panel object:

1. Go to the Configuration section of each case category or type page.

2. Configure the following fields:

   Field	Description
   Display name	The name of the case category or type that is shown in the Control Panel workspace. This is separate from the object name in Designer. The display name can either be a plain text string or a translation string. In control panels for Case Management Studio, translation strings can be added directly to the out-of-the-box translation set.
   Display description	A description of the case category or type to display in the Control Panel workspace to business users. This is separate from the object description in Designer. The display description can either be a plain text string or a translation string. In control panels for Case Management Studio, translation strings can be added directly to the out-of-the-box translation set.
   Record type	The record type associated with the case category or type.
   Web address identifier	The URL that points to the case category or type. The identifier must be unique in the Appian environment. By default, Appian constructs this property using the Display name, but you can modify the identifier as needed.
   Rule input name	The name of the rule input that passes the record data for this case category or type into the interface. It is also used as the name for this case category or type on the map returned by a!controlPanelRecords() function.
   Theme	The color and icon for the case category or type that is shown in the Control Panel workspace.

If your business users have generated interfaces for the intake form, edit form, and summary page for the case category or type, you will be able to see and quickly access them from the Forms and Interfaces section. It is a best practice to allow business users to generate interfaces and forms for case categories and types through the Control Panel workspace and not to add existing interfaces directly to the fields in this section of the control panel object.

Use translation strings for display names and descriptions

You can use translation strings for the display names and descriptions of both categories and types to ensure that all of your users can access the correct information in their preferred locale.

To use a translation string as the display name or description for a category or type:

1. Go to the Configuration section of each case category or type page.
2. Click EDIT.
3. Beside Display Name or Display Description, click the Abc dropdown.
4. Select Translation String.
5. Use an existing translation string or create a new one.
6. Click SAVE.

Step 6: (Optional) Add or edit Custom Configurations

The control panel object that comes out-of-the-box with Case Management Studio uses pages added as Custom Configurations to support key Case Management Studio functionality, such as the pages for tasks, automation rules, and workflow.

The following pages are Custom Configurations that come out-of-the-box:

• Details
• Tasking
• Automation Rules
• Email Templates
• Workflow

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To add additional custom configurations to use in the Control Panel workspace:

1. From the Custom Configurations page, click ADD CUSTOM CONFIGURATION.

2. Configure the following fields:

   Field	Description
   Display name	The name that is shown for the page in the Control Panel workspace.
   Icon	The icon that is shown with the page display name in the Control Panel workspace.
   Description	A description of the page or tab to show to low-code developers in the setup details for the custom configuration in the control panel object.
   Web address identifier	The page URL. The identifier must be unique in the Appian environment. By default, Appian constructs this property using the Display Name, but you can modify the identifier as needed.
   Cases location	The place where the page will be shown. The location options are: globally, across all categories and types, and across all types. See the definitions below for more details.
   Interface	The interface for the page that defines what the business user will see when using the page in the Control Panel workspace.
   Type UUID Rule Input	The rule input used to pass in the UUID for the type. This is only applicable to custom configurations that appear Across all categories and types and Across all types.

You can also reorder or edit the out-of-the-box custom configurations.

Custom configurations are organized by location and listed in order of their appearance in the Control Panel workspace. You can drag and drop the custom configurations in the list to change the order in which the custom configurations appear in the Control Panel workspace.

For example, if you want to move Email Templates up so that it appears above Tasking in the side navigation of the Control Panel workspace, reorder the custom configurations on the Custom Configurations page so that Email Templates appears above Tasking in the Global list.

Keep reading to find out more about editing the out-of-the-box custom configurations.

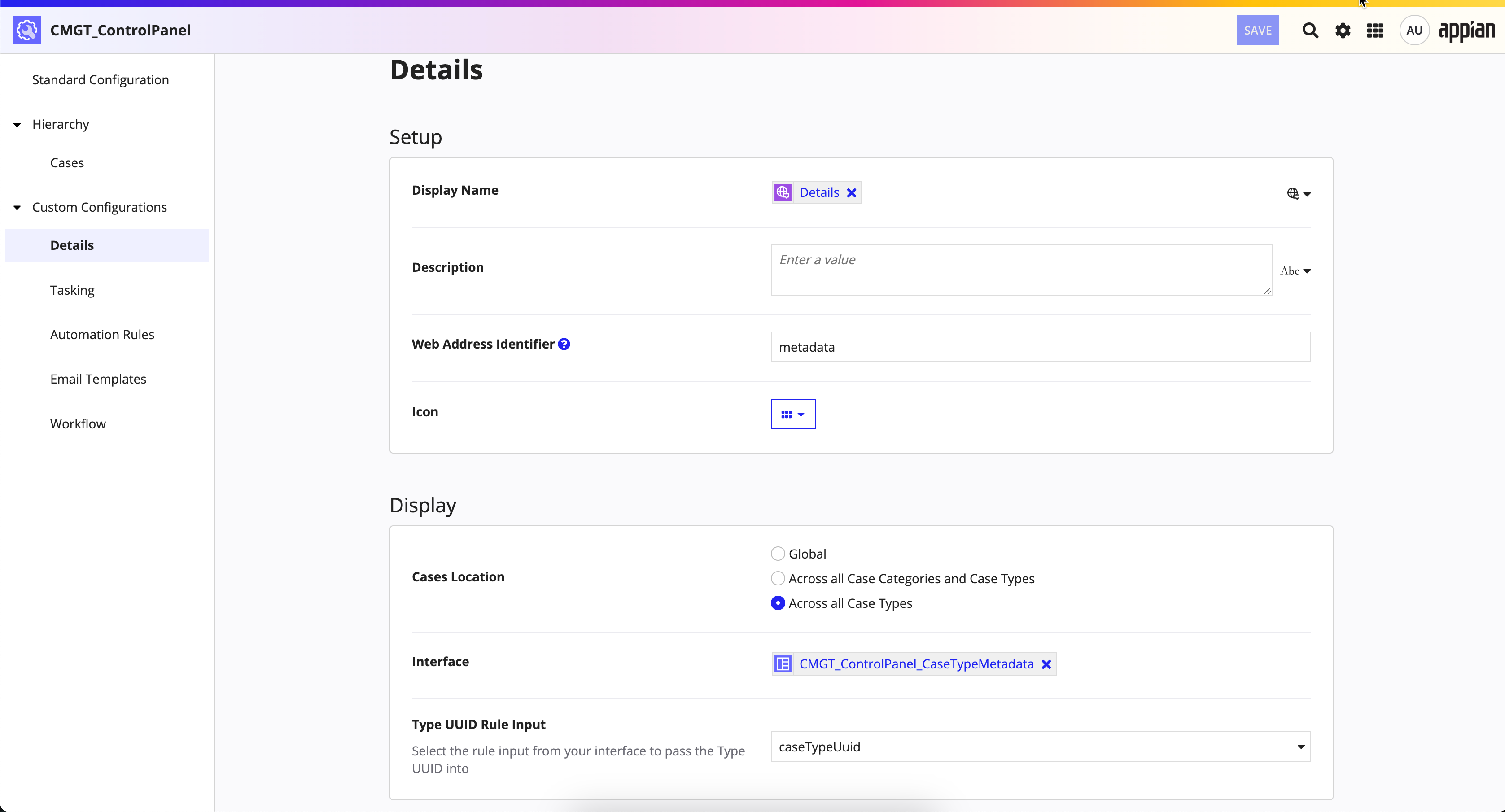

Edit the Details page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To edit the custom configuration for the Details page:

1. Go to the Details page in the control panel object.

2. In the Setup section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Display name	Details. This value is a translation string in the CMGT_BaseTranslations translation set.
   Description	Blank
   Web address identifier	metadata
   Icon	grip-horizontal icon

3. In the Display section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Cases location	Across all Case Types
   Interface	CMGT_ControlPanel_CaseTypeMetadata
   Type UUID Rule Input	caseTypeUuid

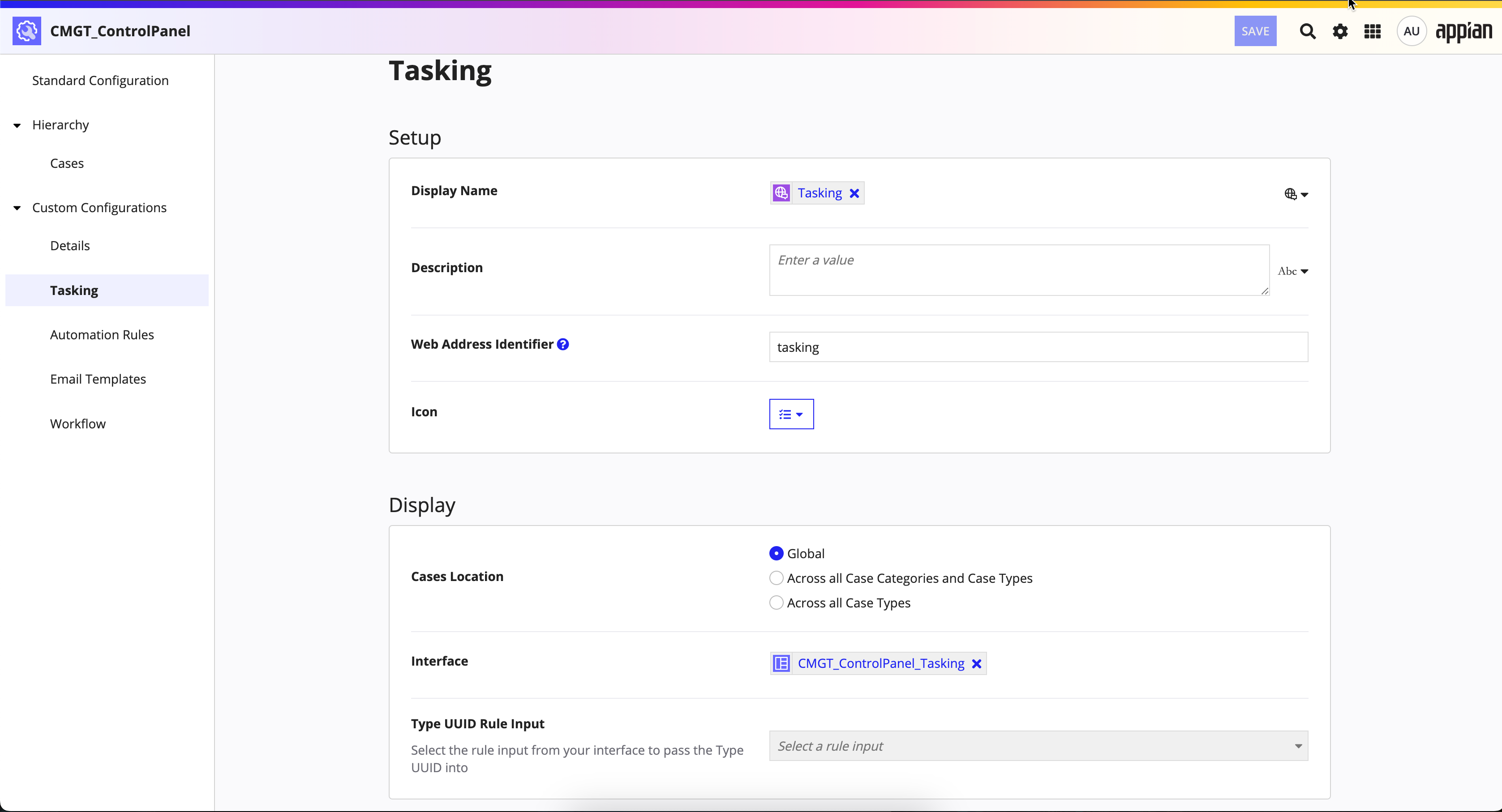

Edit the Tasking page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To edit the custom configuration for the Tasking page:

1. Go to the Tasking page in the control panel object.

2. In the Setup section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Display name	Tasking. This value is a translation string in the CMGT_BaseTranslations translation set.
   Description	Blank
   Web address identifier	tasking
   Icon	tasks-alt icon

3. In the Display section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Cases location	Global
   Interface	CMGT_ControlPanel_Tasking
   Type UUID Rule Input	Blank

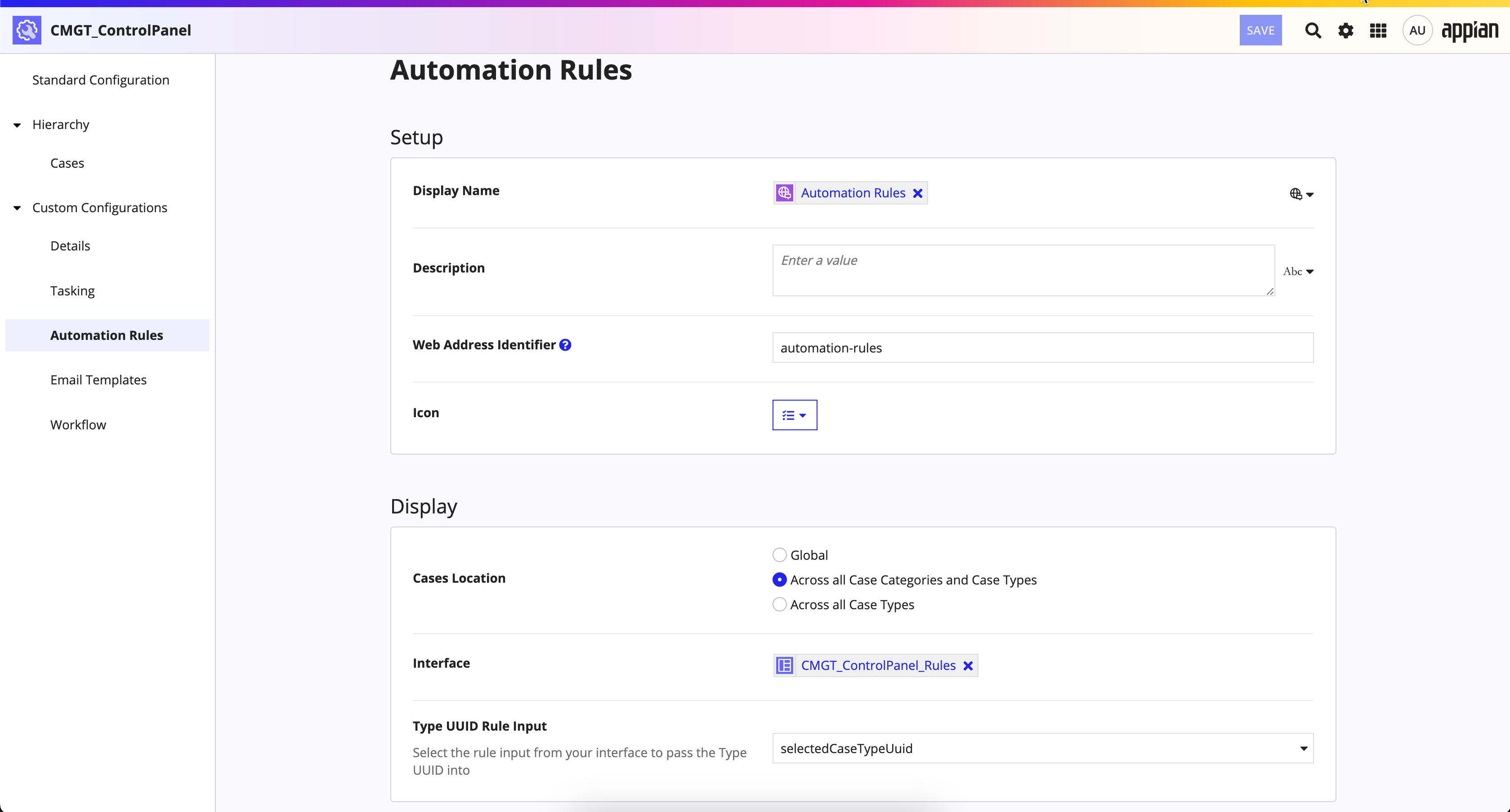

Edit the Automation Rules page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To edit the custom configuration for the Automation Rules page:

1. Go to the Automation Rules page in the control panel object.

2. In the Setup section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Display name	Automation Rules. This value is a translation string in the CMGT_BaseTranslations translation set.
   Description	Blank
   Web address identifier	automation-rules
   Icon	tasks-alt icon

3. In the Display section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Cases location	Across all Case Categories and Case Types
   Interface	CMGT_ControlPanel_Rules
   Type UUID Rule Input	selectedCaseTypeUuid

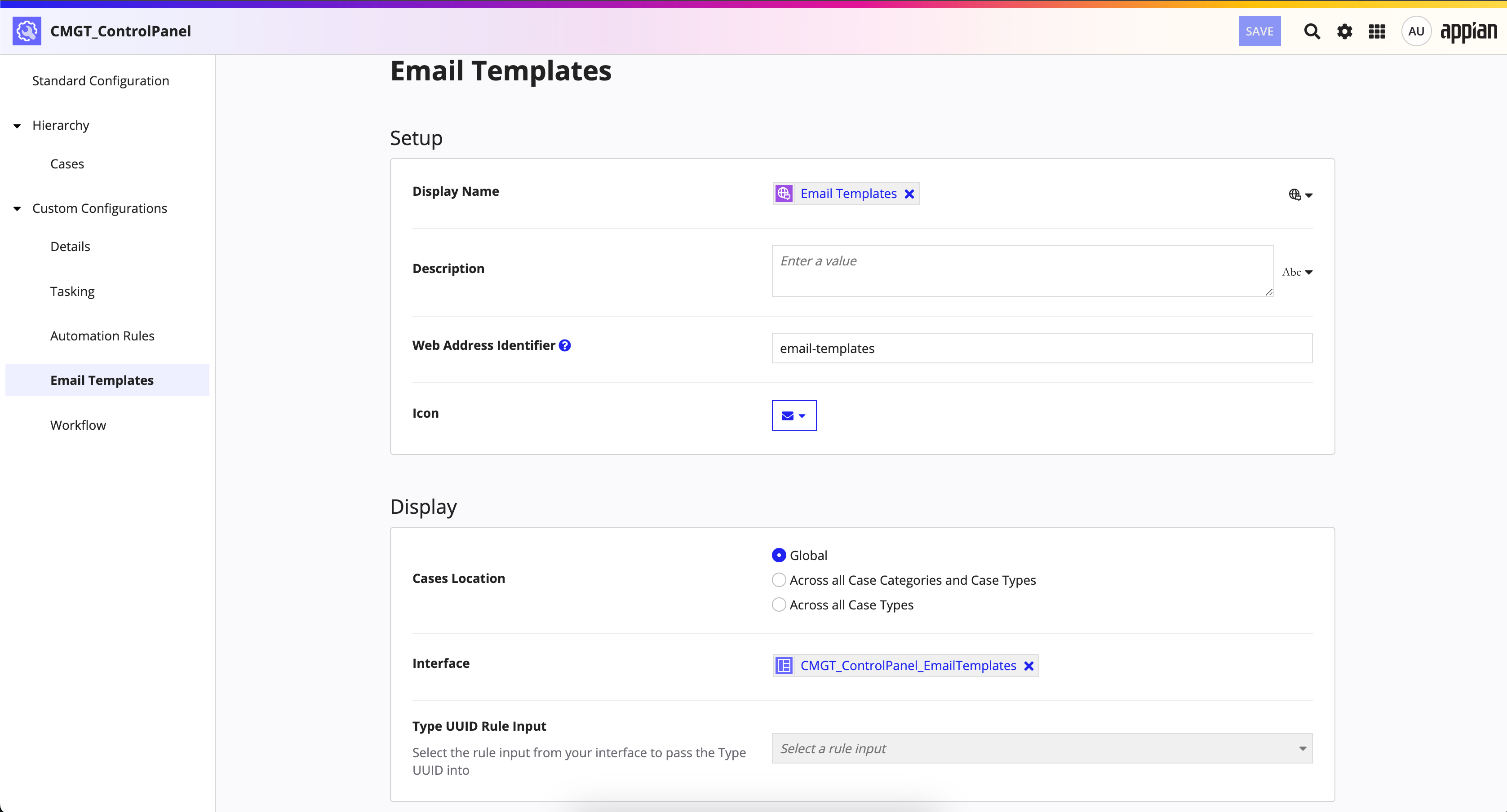

Edit the Email Templates page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To edit the custom configuration for the Email Templates page:

1. Go to the Email Templates page in the control panel object.

2. In the Setup section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Display name	Email Templates. This value is a translation string in the CMGT_BaseTranslations translation set.
   Description	Blank
   Web address identifier	email-templates
   Icon	envelope icon

3. In the Display section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Cases location	Global
   Interface	CMGT_ControlPanel_EmailTemplates
   Type UUID Rule Input	blank

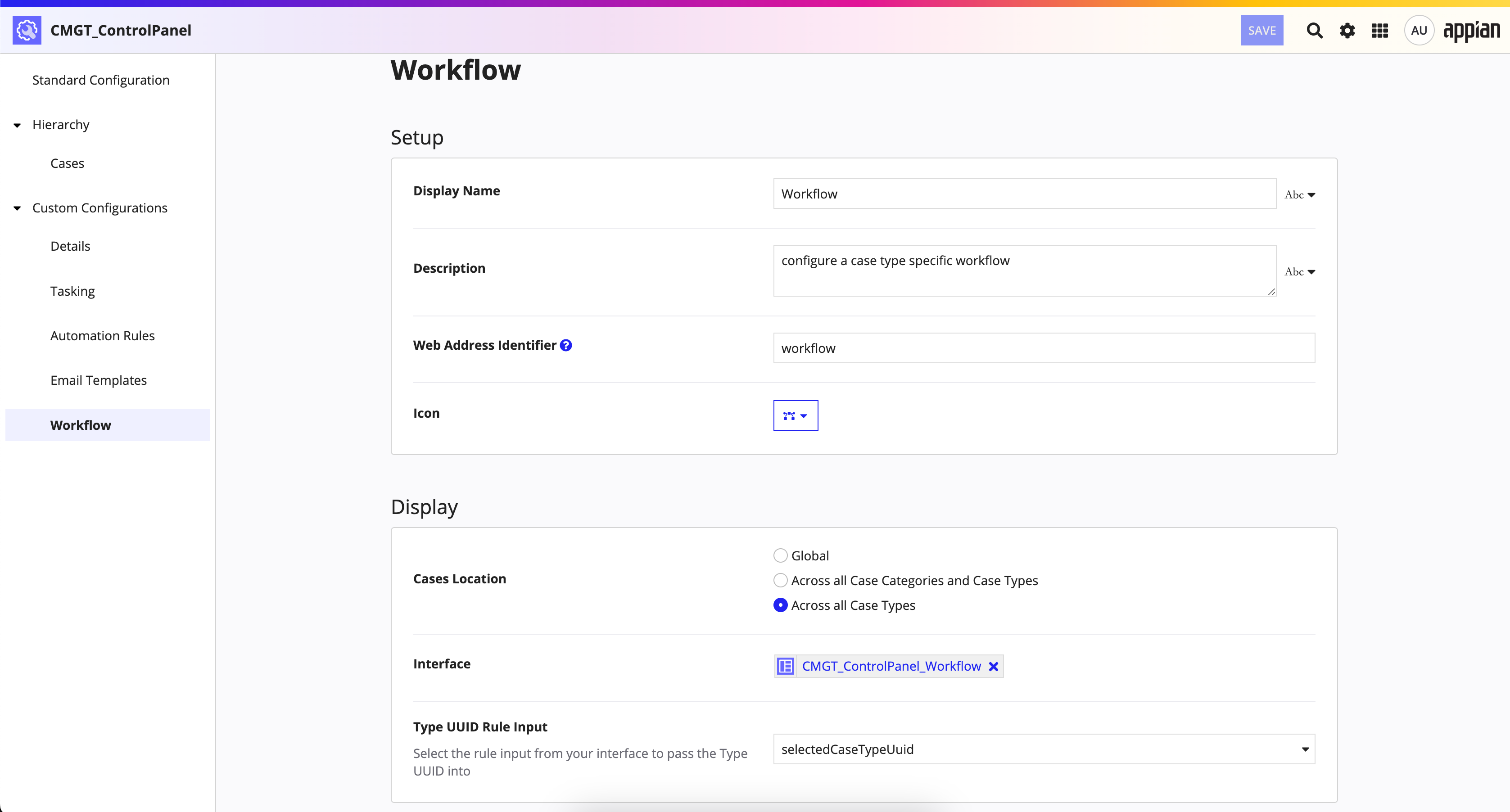

Edit the Workflow page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

To edit the custom configuration for the Workflow page:

1. Go to the Workflow page in the control panel object.

2. In the Setup section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Display name	Workflow. This value is a translation string in the CMGT_BaseTranslations translation set.
   Description	configure a case type specific workflow
   Web address identifier	workflow
   Icon	bezier-curve icon

3. In the Display section, you can configure the following fields and out-of-the-box values:

   Property	Pre-configured value
   Cases location	Across all Case Types
   Interface	CMGT_ControlPanel_Workflow
   Type UUID Rule Input	selectedCaseTypeUuid

Step 7: Save your changes

Make sure to save your changes by clicking SAVE in the header bar of the control panel object after you make changes to any page or in any dialog.

Feedback
