Apache Kafka Connected System

Apache Kafka connected system configuration

Apache Kafka connected systems allow you to connect to Kafka brokers and share this connection configuration across multiple event consumers.

The following sections describe Kafka connected system properties. For properties that apply to all connected systems, see Connected System Object.

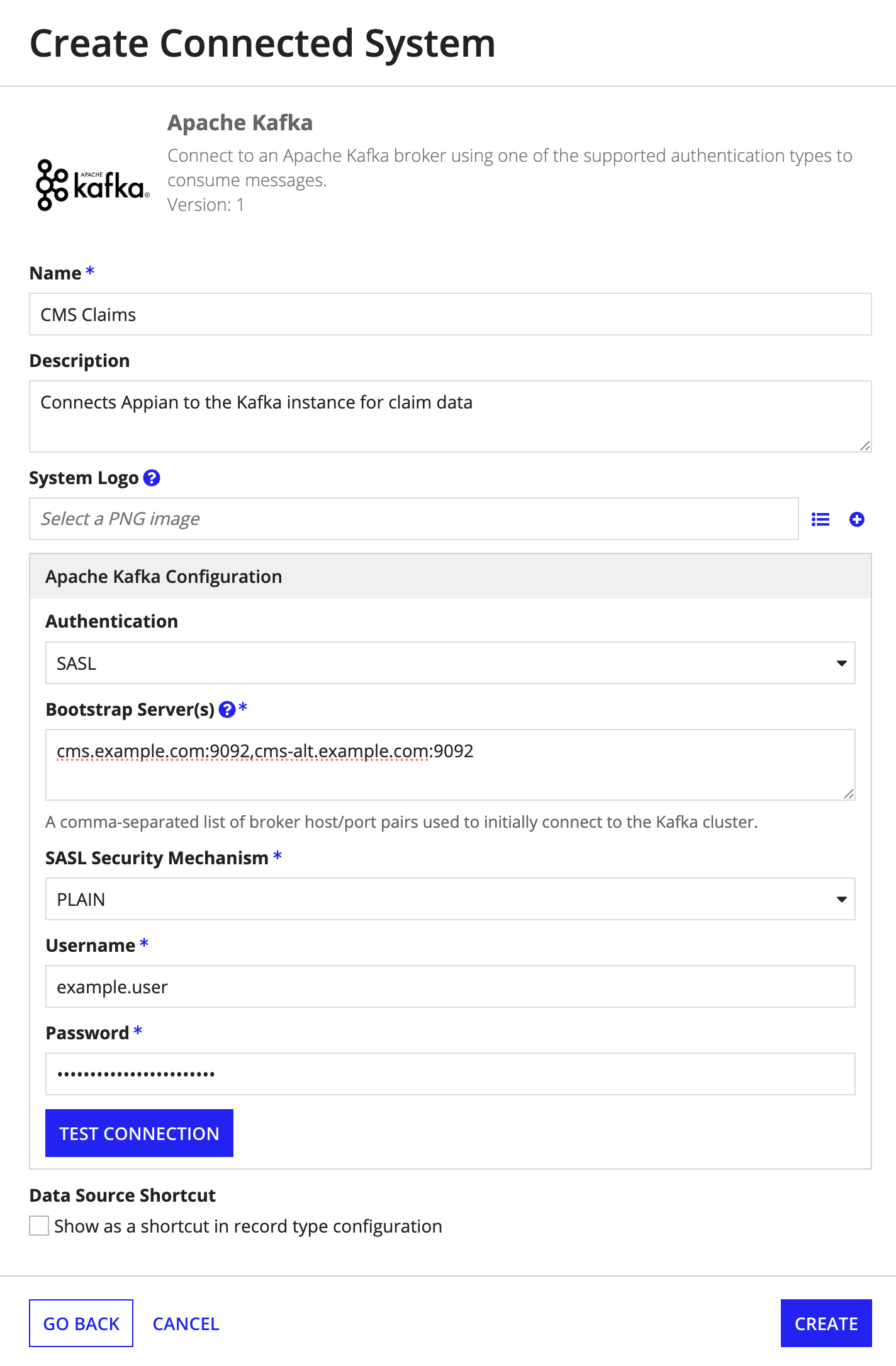

Connected system properties

Each Kafka connected system has the following properties.

Field	Description
Name	The name of the connected system. Use a name that will uniquely identify this connection to the external system.
Description	Supplemental information about the connected system that is displayed in the objects grid of some Designer views and when selecting the system in an integration object.
UUID	The Appian-generated identifier of the connected system object. This UUID is needed when updating the object using the connected system management API.
System Logo	An image document used to visually represent the external system or service being connected to. The logo is displayed in the integration designer and in the Process Modeler on integrations that connect to this system (using the Call Integration Smart Service). If no document is selected a default logo will be used instead.
Authentication	The type of authentication to use when connecting to the Kafka cluster. PLAINTEXT SASL SASL-SSL SSL
Bootstrap Servers	A comma-separated list of the broker hostnames and ports to be used when connecting to the cluster. To help ensure a stable connection, add at least two servers.
Data Source Shortcut	Apache Kafka connected systems cannot be used with integrations to build service-backed record types. This checkbox must not be selected.
Shortcut Display Name	The name of the data source shortcut option. This property only appears when Data Source Shortcut is selected.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

Automating property updates

This object's properties can also be updated programmatically using the Update Connected System endpoint. This lets you change passwords, API keys, and other values without needing to sign in to Appian.

The following properties can be included in the JSON request body of the PATCH /connected-system/<UUID> call.

Authentication Type	SASL Mechanism	Available Properties
PLAINTEXT	Not applicable	bootstrapServers
SASL	PLAIN	bootstrapServers, username, password
SASL	SCRAM-SHA-256	bootstrapServers, username, password
SASL	SCRAM-SHA-512	bootstrapServers, username, password
SASL	OAuth 2.0: Client Credentials Grant	bootstrapServers, oauthTokenEndpoint, oauthClientId, oauthClientSecret, oauthScope
SASL-SSL	PLAIN	bootstrapServers, username, password
SASL-SSL	SCRAM-SHA-256	bootstrapServers, username, password
SASL-SSL	SCRAM-SHA-512	bootstrapServers, username, password
SASL-SSL	OAuth 2.0: Client Credentials Grant	bootstrapServers, oauthTokenEndpoint, oauthClientId, oauthClientSecret, oauthScope
SSL	Not applicable	bootstrapServers

Authentication types

The Apache Kafka connected system supports the following authentication methods:

• Plaintext
• SASL (PLAIN)
• SASL (SCRAM)
• SASL (OAuth)
• SASL-SSL (PLAIN)
• SASL-SSL (SCRAM)
• SASL-SSL (OAuth)
• SSL

Plaintext authentication properties

No additional properties are needed to use plaintext authentication.

SASL authentication properties

When you select SASL as the authentication type, a secondary SASL Mechanism dropdown appears. The available SASL mechanisms are:

• PLAIN: Authenticates with a username and password sent in plaintext to the broker.
• SCRAM-SHA-256: Authenticates using a challenge-response mechanism with SHA-256 hashing.
• SCRAM-SHA-512: Authenticates using a challenge-response mechanism with SHA-512 hashing.
• OAuth 2.0: Client Credentials Grant: Authenticates using an OAuth 2.0 client credentials flow with an external identity provider.

SASL with PLAIN or SCRAM mechanism

The following properties apply to the PLAIN, SCRAM-SHA-256, and SCRAM-SHA-512 mechanisms:

Field	Description
SASL Mechanism*	Required. The SASL method to use when connecting to the cluster. Select PLAIN, SCRAM-SHA-256, or SCRAM-SHA-512.
Username*	Required. Username of the service account connecting to the cluster.
Password*	Required/Sensitive. The password of the service account. This value is masked to prevent unauthorized users from seeing it.

SASL with OAuth mechanism

Field	Description
SASL Mechanism*	Required. Select OAuth 2.0: Client Credentials Grant.
Token Endpoint*	Required. The token endpoint of the external OAuth provider used to authenticate with the Kafka broker.
Client ID*	Required. The client ID registered with the OAuth provider.
Client Secret*	Required/Sensitive. The client secret registered with the OAuth provider. This value is masked to prevent unauthorized users from seeing it.
Scope*	Optional. The scopes required by the OAuth provider.

^* This value is included in an import customization file so that you can specify a different value for each environment. Sensitive values will not be exported in the import customization file and must be added manually. Required fields must have a value upon import or else import will fail. See Connected Systems Object import/export behavior for details.

SASL-SSL authentication properties

When you select SASL-SSL as the authentication type, a secondary SASL Mechanism dropdown appears. The available SASL mechanisms are:

• PLAIN: Authenticates with a username and password inside an encrypted SSL tunnel.
• SCRAM-SHA-256: Authenticates using a challenge-response mechanism with SHA-256 hashing inside an encrypted SSL tunnel.
• SCRAM-SHA-512: Authenticates using a challenge-response mechanism with SHA-512 hashing inside an encrypted SSL tunnel.
• OAuth 2.0: Client Credentials Grant: Authenticates using an OAuth 2.0 client credentials flow with an external identity provider, inside an encrypted SSL tunnel.

The SASL-SSL authentication type combines SSL encryption with SASL credential authentication. The connected system uses the trusted server certificates available in the environment. If you need to use a self-signed or private CA certificate to connect to the Kafka broker, upload the certificate in the Admin Console.

SASL-SSL with PLAIN or SCRAM mechanism

The following properties apply to the PLAIN, SCRAM-SHA-256, and SCRAM-SHA-512 mechanisms:

Field	Description
SASL Mechanism*	Required. The SASL method to use when connecting to the cluster. Select PLAIN, SCRAM-SHA-256, or SCRAM-SHA-512.
Username*	Required. Username of the service account connecting to the cluster.
Password*	Required/Sensitive. The password of the service account. This value is masked to prevent unauthorized users from seeing it.
Enable two-way SSL*	If your Kafka broker is set up for client authentication, select this checkbox and upload the client certificates to the Admin Console.

SASL-SSL with OAuth mechanism

Field	Description
SASL Mechanism*	Required. Select OAuth 2.0: Client Credentials Grant.
Token Endpoint*	Required. The token endpoint of the external OAuth provider used to authenticate with the Kafka broker.
Client ID*	Required. The client ID registered with the OAuth provider.
Client Secret*	Required/Sensitive. The client secret registered with the OAuth provider. This value is masked to prevent unauthorized users from seeing it.
Scope*	Optional. The scopes required by the OAuth provider.
Enable two-way SSL	If your Kafka broker is set up for client authentication, select this checkbox and upload the client certificates to the Admin Console.

^* This value is included in an import customization file so that you can specify a different value for each environment. Sensitive values will not be exported in the import customization file and must be added manually. Required fields must have a value upon import or else import will fail. See Connected Systems Object import/export behavior for details.

SSL authentication properties

If your environment uses self-signed certificates, upload the trusted server certificates to the Admin Console.

If your Kafka broker is set up for client authentication, select the Enable two-way SSL checkbox and upload the client certificates to the Admin Console.

Test the connection

Click TEST CONNECTION to verify your credentials are valid and that you can access the Kafka instance. Appian checks that the credentials you provided can access at least one topic from which you can consume events.

For SASL-SSL authentication types, Appian validates the SSL handshake before validating the SASL credentials. If the SSL certificate is invalid, the test returns an SSL handshake error. If the SSL handshake succeeds but the broker rejects the SASL credentials, the test returns a SASL authentication error.

The test connection has a 15-second timeout. If the connection exceeds this limit, the test fails with a timeout error.
