Rule Performance

Purpose

The Rule Performance page in the Admin Console allows you to see the historical performance of all of the rules in your Appian environment.

Access

To access the Rule Performance page, go to the Admin Console. Then, in the left navigation menu, under Monitoring, click Rule Performance.

Usage considerations

Monitoring information cannot be imported or exported from the Admin Console.

Elements

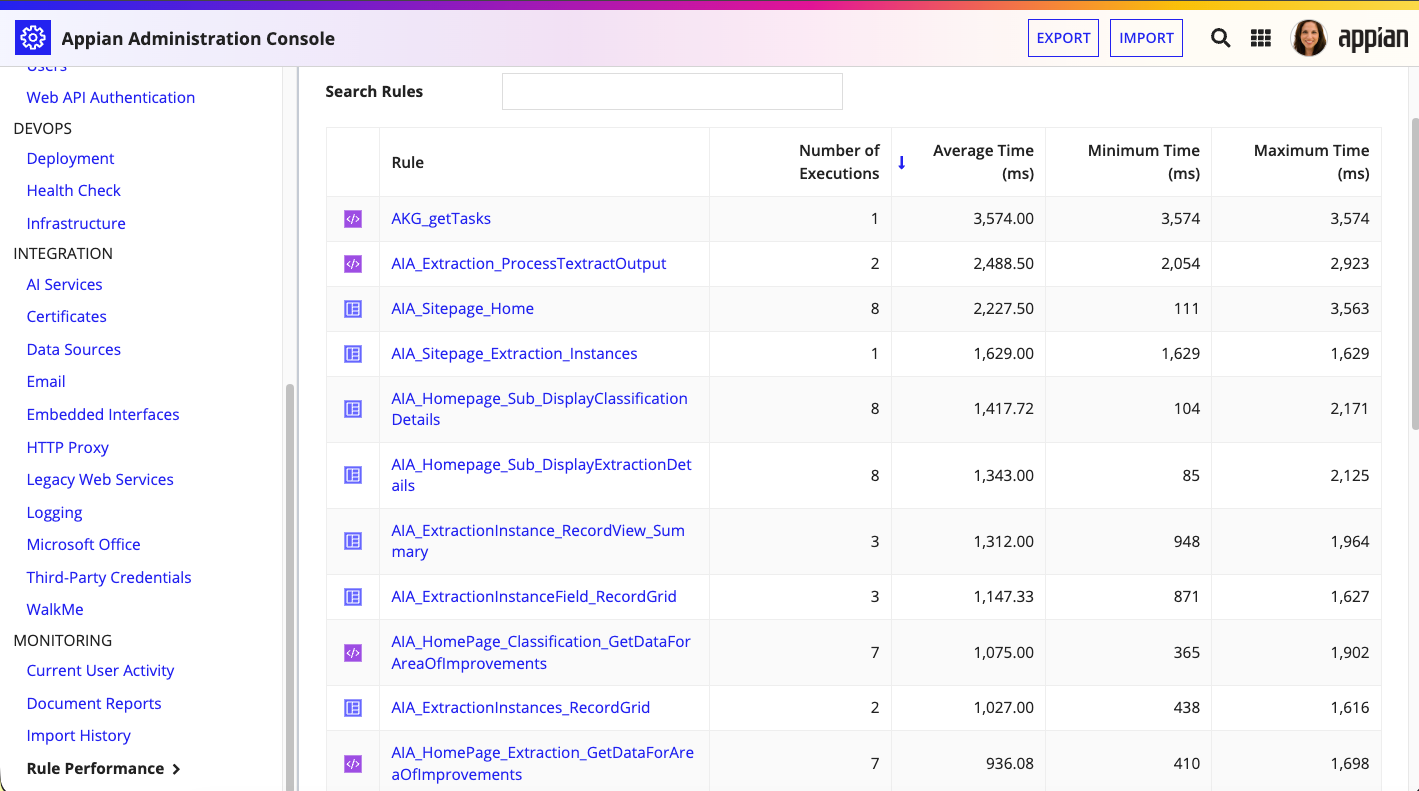

The page contains performance data for rule objects, including expression rules, interfaces, query rules, integrations, and decisions.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

The elements of the rule list are:

• The rule name.
• The number of times that rule has been executed.
• The average execution time.
• The minimum execution time.
• The maximum execution time.

Date range

A moving window of thirty days of performance metrics are gathered and stored as end users execute the rules. The evaluation times recorded do not include the evaluation of the rules when they are executed in Appian Designer.

Rule Performance details

Clicking on the name of a rule will bring up more details on the performance of that rule, including graphs of the performance over time. These graphs are the same as the ones found in the historical performance trends in the performance view.
