Editable Grid Component

On This Page

SAIL Design System guidance available for Grids

Grids should help your users take action and make decisions. Check out the grids design guidance page to learn how to display your data in a structured, easy-to-scan layout to help your users find what they need.

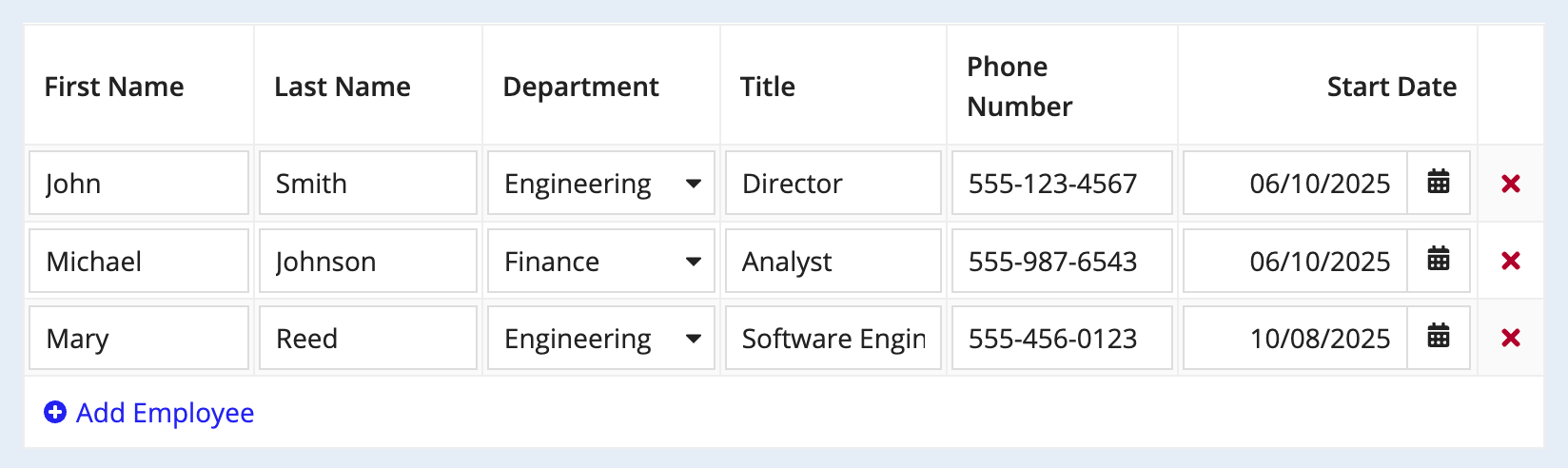

About the editable grid component

Displays a tabular layout of SAIL components to provide quick inline editing of fields. For an example of how to configure an editable grid, see the Add, Edit, and Remove Data in an Inline Editable Grid SAIL Recipe.

To organize display-only data in a tabular layout, use a read-only grid.

editable-grid-overview

Where to use the editable grid component

Use the editable grid (a!gridLayout()) in the following components:

a!formLayout(): contents parameter.
a!headerContentLayout(): contents parameter, or in the header parameter (inside a!cardLayout()).
a!pane(): contents parameter (inside a!paneLayout()).
a!wizardStep(): contents parameter (inside a!wizardLayout()).
a!boxLayout(): contents parameter.
a!cardLayout(): contents parameter.
a!columnLayout(): contents parameter (inside a!columnsLayout()).
a!sectionLayout(): contents parameter.
a!tabItem(): contents parameter (inside a!tabLayout()).
a!sidebarTemplate(): additionalContents parameter (inside a!formLayout() or a!wizardLayout()).

You cannot use the read-only grid (a!gridField()) in the following components:

a!sideBySideItem()
a!barOverlay()
a!columnOverlay()
a!fullOverlay()

Supported components

The following editable grid (a!gridLayout()) parameters support certain components:

The headerCells parameter supports a list of a!gridLayoutHeaderCell().
The columnConfigs parameter supports a list of a!gridLayoutColumnConfig().
The rows parameter supports a list of a!gridRowLayout(), which supports only the following components:
The addRowLink parameter supports a!dynamicLink().

The editable grid (a!gridLayout()) does not use a!gridColumn, which is a read-only grid subcomponent.

Parameters

a!gridLayout( label, instructions, headerCells, columnConfigs, rows, validations, validationGroup, selectable, selectionDisabled, selectionRequired, selectionValue, selectionSaveInto, addRowLink, totalCount, emptyGridMessage, helpTooltip, labelPosition, showWhen, shadeAlternateRows, spacing, height, borderStyle, selectionStyle, rowHeader, accessibilityText, allowRowReordering, rowOrderTooltip, rowOrderData, rowOrderField )

Name	Keyword	Types	Description
Label	label	Text	Text to display as the grid label.
Instructions	instructions	Text	Supplemental text about this grid.
Header Cells	headerCells	List of Variant	Array of column headers created with a!gridLayoutHeaderCell().
Column Configurations	columnConfigs	List of GridColumnConfiguration	Array of column configurations created with a!gridLayoutColumnConfig().
Rows	rows	List of Variant	Array of grid rows created with a!gridRowLayout().
Validations	validations	List of Variant	Validation errors to display below the grid.
Validation Group	validationGroup	Text	When present, the requiredness of the field is only evaluated when a button in the same validation group is pressed. The value for this parameter cannot contain spaces. For example, `“validation group”` is not a valid value. You need to add an underscore between words: `“validation_group”`. See the following recipes for more information: Configure Buttons with Conditional Requiredness Validation Groups for Buttons with Multiple Validation Rules'
Selectable	selectable	Boolean	Determines if the selection column is displayed. Default: false.
Selection disabled	selectionDisabled	Boolean	Determines if selection is disabled on all rows. Default: false.
Selection required	selectionRequired	Boolean	Determines if a selection is required to submit the form. Default: false.
Selection Value	selectionValue	List of Variant	Identifiers of selected rows.
Save Selection To	selectionSaveInto	List of Save	One or more variables that are updated with the selected identifiers when the user changes selections. Use a!save() to save a modified or alternative value to a variable.
Add Row Link	addRowLink	Any Type	Link for adding a row to the grid. Create link using a!dynamicLink().
Total Count	totalCount	Number (Integer)	Number of rows of data displayed in the grid.
Empty Grid Message	emptyGridMessage	Text	Text to display in the grid when no data is available. Default is `"No items available"`.
Help Tooltip	helpTooltip	Text	Displays a help icon with the specified text as a tooltip. The tooltip displays a maximum of 500 characters. The help icon does not show when the label position is `"COLLAPSED"`.
Label Position	labelPosition	Text	Determines where the label appears. Valid values: `"ABOVE"` (default) Displays the label above the component. `"ADJACENT"` Displays the label to the left of the component. `"COLLAPSED"` Hides the label. The label will still be read by screen readers; see accessibility considerations for more information. `"JUSTIFIED"` Aligns the label alongside the component starting at the edge of the page.
Show When	showWhen	Boolean	Determines whether the component is displayed on the interface. When set to false, the component is hidden and is not evaluated. Default: true.
Shade alternate rows	shadeAlternateRows	Boolean	Determines whether alternate rows are shaded. Default: true.
Spacing	spacing	Text	Determines the spacing within grid cells. Valid values: `"STANDARD"`, `"DENSE"`. Auto default: Uses `"STANDARD"` in browsers and `"DENSE"` in Appian Mobile.
Height	height	Text	Determines the height of the grid. Valid values: `"SHORT"`, `"SHORT_PLUS"`, `"MEDIUM"`, `"MEDIUM_PLUS"`, `"TALL"`, `"TALL_PLUS"`, `"EXTRA_TALL"`, `"AUTO"` (default). All grid heights besides AUTO have fixed headers that will remain at the top of the grid when scrolling.
Border Style	borderStyle	Text	Determines the grid border style. Valid values: `"LIGHT"`, `"LIGHT_WITH_OUTER_BORDERS"`, `"STANDARD"` (default). `"LIGHT"` displays row borders; `"LIGHT_WITH_OUTER_BORDERS"` displays row and outer borders; `"STANDARD"` displays all borders.
Selection Style	selectionStyle	Text	Determines the style when a row is selected. When viewed in Appian Mobile, the default `“CHECKBOX”` style is used. Valid values: `"CHECKBOX"` (default), `"ROW_HIGHLIGHT"`, `"CHECKBOX_SUBTLE_HIGHLIGHT"`, `"SUBTLE_HIGHLIGHT"`.
Row Header	rowHeader	Number (Integer)	Index of the column to be used as the row header. Screen readers will announce the value in each row header when navigating to other cells within that row. Used only for accessibility; produces no visible change.
Accessibility Text	accessibilityText	Text	Additional text to be announced by screen readers. Used only for accessibility; produces no visible change.
Allow row reordering using drag and drop	allowRowReordering	Boolean	Determines if grid rows can be reordered by dragging and dropping (browser only). Default: false.
Show row order tooltip	rowOrderTooltip	Boolean	Determines whether a tooltip with row reordering keyboard shortcuts is shown in the header of the row order column. Default: true.
Data to reorder	rowOrderData	Any Type	A local variable or rule input that points to the list of data that is updated when the rows are reordered. For example, a record type query or a map defined in a local variable.
Row order field	rowOrderField	Any Type	The field in rowOrderData that stores the updated index of a row after it is reordered. For example, if rowOrderData uses a record type, add a Number (Integer) field to the record type and reference it, such as recordType!Record.field.orderIndex. If it uses a map, add a key value pair to the map and reference the key name, such as "orderIndex".

Using the editable grid component

The following sections cover important details about the editable grid component.

Paging in editable grids

Paging isn't supported in editable grids. If you need to allow users to page through and edit a large dataset, use a read-only grid configured to allow users to edit the data for each row.

For example, you could add a link on each row that allows users to edit the data in the row, or add a record action to let users edit each record directly from the grid.

Performance and data

Performance is affected by the number of components in an interface. If your interface contains an editable grid with many cells, the interface may feel slow. See also: Interface Evaluation Lifecycle
When using a datasubset obtained using a!queryEntity() as the source of data for the editable grid, make sure to set its fetchTotalCount parameter to true. Otherwise, the totalCount field on the resulting datasubset may be invalid (i.e. set to -1). This is relevant for the totalCount parameter on the editable grid. See also: a!queryEntity() Function.

Component behavior in grid cells

When an interface component is placed into a grid cell, the following component configurations are ignored:
- label
- instructions
- label position
Validation messages on the component within the grid cell are displayed when the component's value is not null.
The components placed within a grid cell can be different across the rows in one column.

Using images in editable grids

When placing an Image Field component inside an editable grid, there are some additional restrictions that do not apply when an image component is outside of a grid.
The image component behaves slightly differently when it is placed inside of a Grid Layout component than when it is outside of a Grid Layout.
- Inside an editable grid, the image size FIT is not allowed.
- Inside an editable grid, the default size for an image component is ICON. Other valid image sizes include SMALL, MEDIUM, and LARGE.
- Inside an editable grid, you can only have 0 or 1 images in an image component. Multiple images in the same grid cell are not supported.
- All image components in the same column must have the same size.
The Grid Text Column and Grid Image Column components cannot be used in an editable grid.

Choosing a selection style

When the selectable parameter is set to true, you can choose one of the following styles for the editable grid:

"CHECKBOX": (Default style) Displays a selection column.
"CHECKBOX_SUBTLE_HIGHLIGHT": Displays a selection column and applies a light blue highlight to the selected row.
"SUBTLE_HIGHLIGHT": Applies a light blue highlight to the selected row without a selection column.
"ROW_HIGHLIGHT": Applies a solid blue highlight to the selected row without a selection column.

When choosing your selection style, consider the following:

The "SUBTLE_HIGHLIGHT" and "ROW_HIGHLIGHT" styles provide no visual feedback if you disable selection using the disableRowSelectionWhen parameter.
On Appian Mobile, the grid always uses the "CHECKBOX" style, regardless of the value set for this parameter.

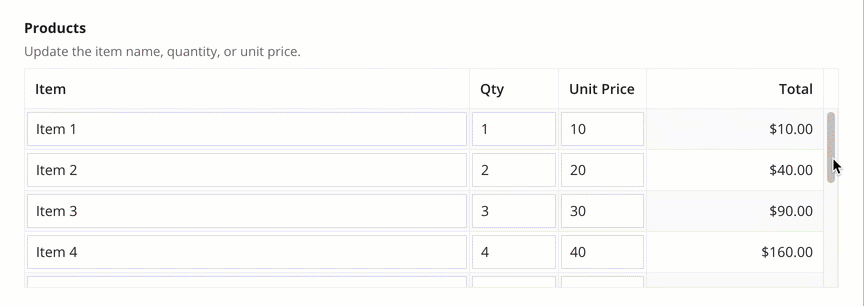

Grid height and headers

Grid heights behave as a fixed height on web but a maximum height on mobile.
Setting the height of the grid to SHORT, MEDIUM, or TALL will freeze the grid's header and footer. See the Short Editable Grid with Weighted Columns example below.
For accessibility purposes, every grid should have a row header configured. The first column containing text is usually the correct choice for row header. See the SAIL Design System for more information.

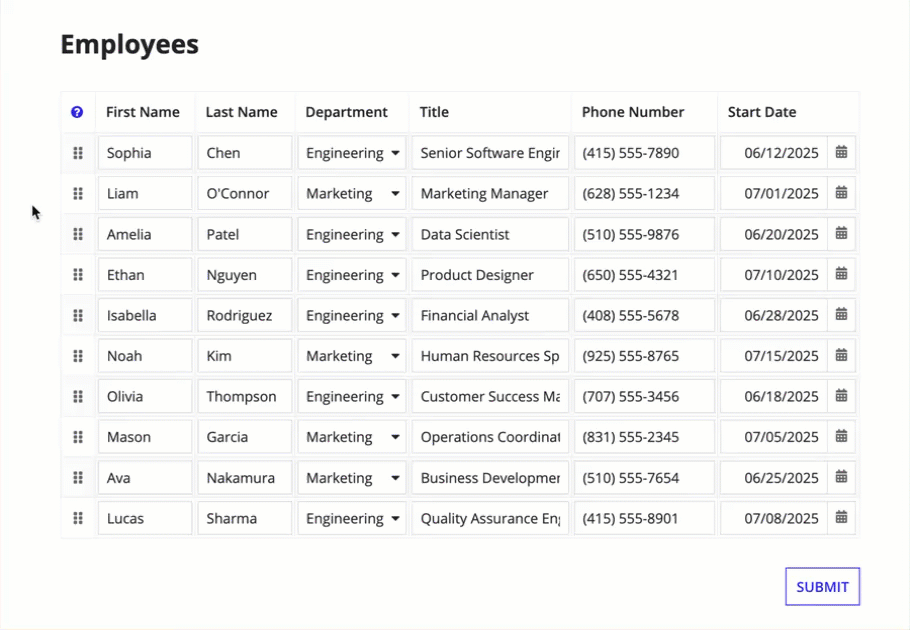

Reordering grid rows

You can allow users to reorder the grid by dragging and dropping the rows. Simply configure a few parameters and add a field to your source that will allow you to store the data. See Editable grid with grid row reordering for examples.

See Appian Mobile considerations for important information about grid row reordering in Appian Mobile.

To enable grid row reordering:

Set the allowRowReordering parameter to true.
Set the rowOrderData parameter to a local variable or rule input that is being used for the grid data.
Add a field to your record type or CDT of type Number (Integer) and name it something like "orderIndex".
Set the rowOrderField parameter to one of the following:
- If you're using a record type for the grid data, reference the record type field that you added in the previous step. For example, recordType!Record.field.orderIndex.
- If you're using a CDT or map for the grid data, enter the name of the field that you added in the previous step as a string. For example, "orderIndex".

Using the rowOrderData parameter

For the rowOrderData parameter, reference a local variable or rule input that is being used for the grid data.

For example, for a local variable, this could be a query created with a!queryRecordType() or a!queryEntity() that returns a list of data.

See an example using a record type below.

Using the rowOrderField parameter

For the rowOrderField parameter, reference a field that stores the index of the row order.

The field that you reference in the rowOrderField parameter:

Should be Number (Integer).
Cannot be a field in a related record.

To reference a field in the rowOrderField parameter:

If you're using a record type for the grid data, reference the record type field. For example, recordType!Record.field.orderIndex.
If you're using a CDT or map for the grid data, enter the name of the field as a string. For example, "orderIndex".

Accessibility considerations

If you are concerned about accessibility for users who cannot use a mouse to drag items, provide an alternative way to reorder grid rows for users with mobility impairments. For example, you could add arrows that can be clicked to reorder the rows.

Appian Mobile considerations

In Appian Mobile, users will not be able to reorder grid rows. If you have grid row reordering enabled, users will need to view the interface in a browser to be able to reorder the rows.

Examples

The following examples demonstrate the editable grid component.

To experiment with examples, copy and paste the expression into an interface object.

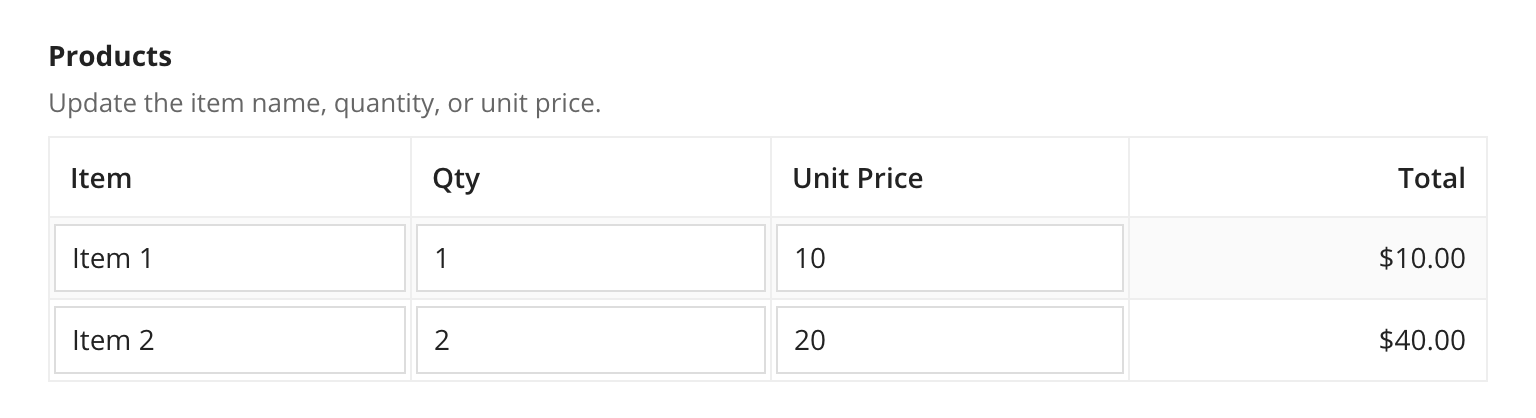

Editable grid with two rows

gridLayout with two Rows

a!localVariables(
  local!items: {
    {item: "Item 1", qty: 1, unitPrice: 10},
    {item: "Item 2", qty: 2, unitPrice: 20}
  },
  a!gridLayout(
    label: "Products",
    instructions: "Update the item name, quantity, or unit price.",
    headerCells: {
      a!gridLayoutHeaderCell(label: "Item"),
      a!gridLayoutHeaderCell(label: "Qty"),
      a!gridLayoutHeaderCell(label: "Unit Price"),
      a!gridLayoutHeaderCell(label: "Total", align: "RIGHT")
    },
    rows: {
      a!gridRowLayout(
        contents: {
          a!textField(
            value: local!items[1].item,
            saveInto: local!items[1].item
          ),
          a!integerField(
            value: local!items[1].qty,
            saveInto: local!items[1].qty
          ),
          a!floatingPointField(
            value: local!items[1].unitPrice,
            saveInto: local!items[1].unitPrice
          ),
          a!textField(
            value: a!currency(
              isoCode: "USD",
              value: tointeger(local!items[1].qty) * todecimal(local!items[1].unitPrice)
            ),
            readOnly: true,
            align: "RIGHT"
          )
        }
      ),
      a!gridRowLayout(
        contents: {
          a!textField(
            value: local!items[2].item,
            saveInto: local!items[2].item
          ),
          a!integerField(
            value: local!items[2].qty,
            saveInto: local!items[2].qty
          ),
          a!floatingPointField(
            value: local!items[2].unitPrice,
            saveInto: local!items[2].unitPrice
          ),
          a!textField(
            value: a!currency(
              isoCode: "USD",
              value: tointeger(local!items[2].qty) * todecimal(local!items[2].unitPrice)
            ),
            readOnly: true,
            align: "RIGHT"
          )
        }
      )
    },
    rowHeader: 1
  )
)

Editable grid with two rows using looping

See Add, Edit, and Remove Data in an Inline Editable Grid recipe for more help using a!forEach with the editable grid.

gridLayout with two Rows

a!localVariables(
  local!items: {
    {item: "Item 1", qty: 1, unitPrice: 10},
    {item: "Item 2", qty: 2, unitPrice: 20}
  },
  a!gridLayout(
    label: "Products",
    instructions: "Update the item name, quantity, or unit price.",
    headerCells: {
      a!gridLayoutHeaderCell(label: "Item"),
      a!gridLayoutHeaderCell(label: "Qty"),
      a!gridLayoutHeaderCell(label: "Unit Price"),
      a!gridLayoutHeaderCell(label: "Total", align: "RIGHT")
    },
    rows: a!forEach(
      items: local!items,
      expression: a!gridRowLayout(
        contents: {
          a!textField(
            value: fv!item.item,
            saveInto: fv!item.item
          ),
          a!integerField(
            value: fv!item.qty,
            saveInto: fv!item.qty
          ),
          a!floatingPointField(
            value: fv!item.unitPrice,
            saveInto: fv!item.unitPrice
          ),
          a!textField(
            value: a!currency(
              isoCode: "USD",
              value: tointeger(fv!item.qty) * todecimal(fv!item.unitPrice)
            ),
            readOnly: true,
            align: "RIGHT"
          )
        }
      )
    ),
    rowHeader: 1
  )
)

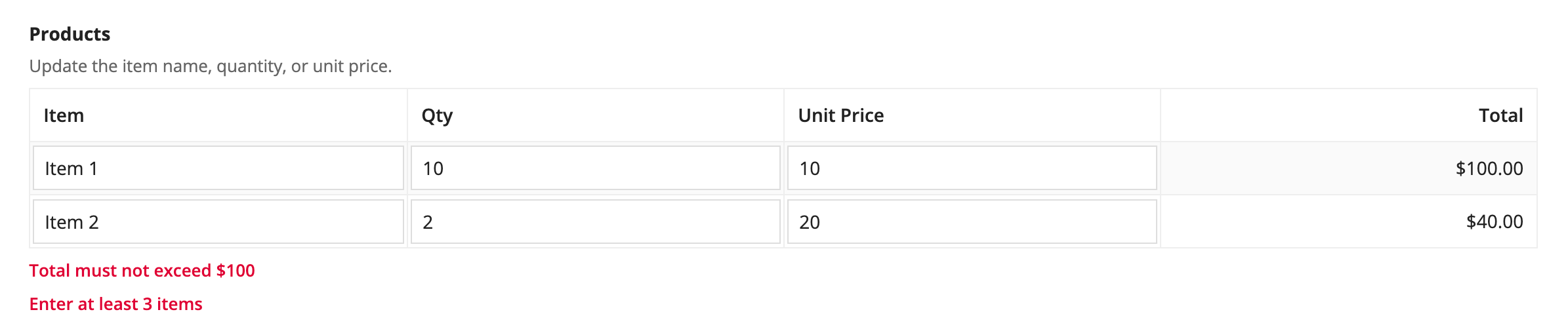

Editable grid with validations

gridLayout with validation

a!localVariables(
  local!items: {
    {item: "Item 1", qty: 10, unitPrice: 10},
    {item: "Item 2", qty: 2,  unitPrice: 20}
  },
  a!gridLayout(
    label: "Products",
    instructions: "Update the item name, quantity, or unit price.",
    headerCells: {
      a!gridLayoutHeaderCell(label: "Item"),
      a!gridLayoutHeaderCell(label: "Qty"),
      a!gridLayoutHeaderCell(label: "Unit Price"),
      a!gridLayoutHeaderCell(label: "Total", align: "RIGHT")
    },
    rows: a!forEach(
      items: local!items,
      expression: a!gridRowLayout(
        contents: {
          a!textField(
            value: fv!item.item,
            saveInto: fv!item.item
          ),
          a!integerField(
            value: fv!item.qty,
            saveInto: fv!item.qty
          ),
          a!floatingPointField(
            value: fv!item.unitPrice,
            saveInto: fv!item.unitPrice
          ),
          a!textField(
            value: a!currency(
              isoCode: "USD",
              value: tointeger(fv!item.qty) * todecimal(fv!item.unitPrice)
            ),
            readOnly: true,
            align: "RIGHT"
          )
        }
      )
    ),
    validations: {
      if(
        sum(tointeger(local!items.qty) * todecimal(local!items.unitPrice))>100,
        "Total must not exceed $100",
        null
      ),
      if(
        length(local!items)<3,
        a!validationMessage(
          message: "Enter at least 3 items",
        ),
        null
      )
    },
    rowHeader: 1
  )
)

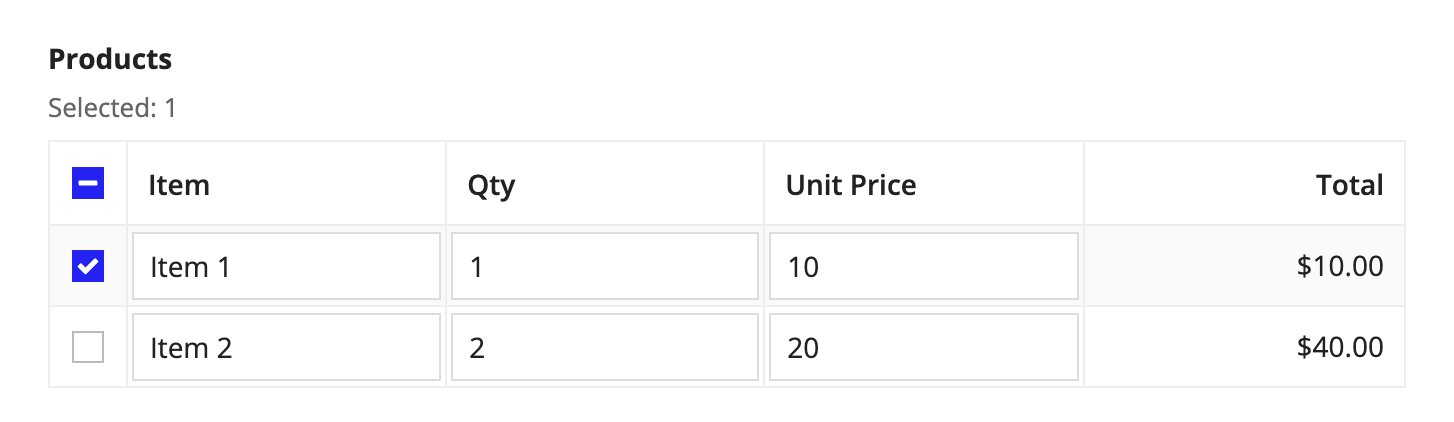

Editable grid with selection

gridLayout with selection

a!localVariables(
  local!items: {
    {item: "Item 1", qty: 1, unitPrice: 10},
    {item: "Item 2", qty: 2, unitPrice: 20}
  },
  local!selected: tointeger({}),
  a!gridLayout(
    label: "Products",
    instructions: "Selected: " & local!selected,
    headerCells: {
      a!gridLayoutHeaderCell(label: "Item"),
      a!gridLayoutHeaderCell(label: "Qty"),
      a!gridLayoutHeaderCell(label: "Unit Price"),
      a!gridLayoutHeaderCell(label: "Total", align: "RIGHT")
    },
    rows: a!forEach(
      items: local!items,
      expression: a!gridRowLayout(
        id: fv!index,
        contents: {
          a!textField(
            value: fv!item.item,
            saveInto: fv!item.item
          ),
          a!integerField(
            value: fv!item.qty,
            saveInto: fv!item.qty
          ),
          a!floatingPointField(
            value: fv!item.unitPrice,
            saveInto: fv!item.unitPrice
          ),
          a!textField(
            value: a!currency(
              isoCode: "USD",
              value: tointeger(fv!item.qty) * todecimal(fv!item.unitPrice)
            ),
            readOnly: true,
            align: "RIGHT"
          )
        }
      )
    ),
    selectable: true,
    selectionValue: local!selected,
    /* Flatten the selected values so the result is easier to work with */
    /* when the select/deselect all option is used in an editable grid  */
    selectionSaveInto: a!save(local!selected, a!flatten(save!value)),
    rowHeader: 1
  )
)

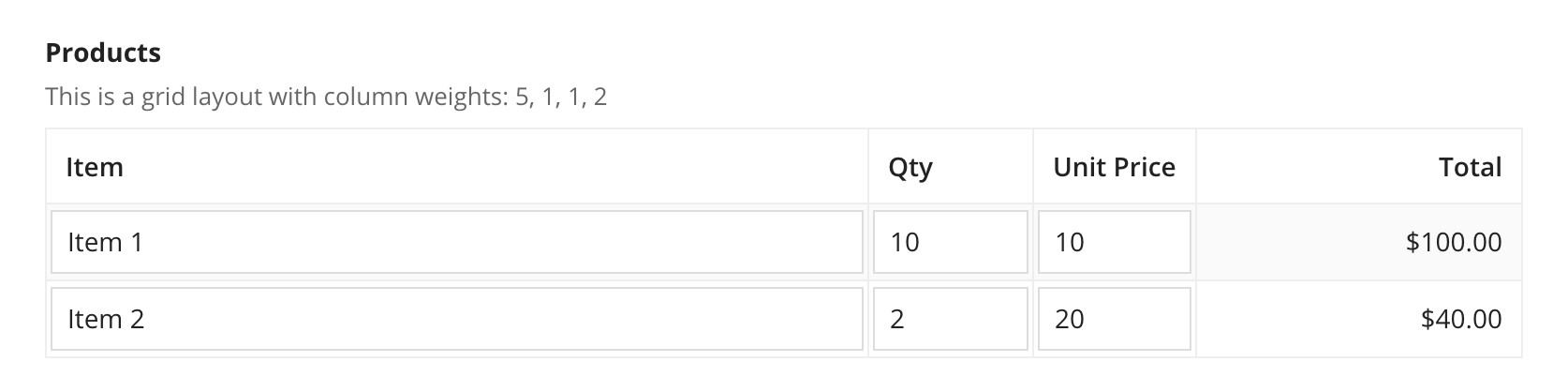

Editable grid with weighted columns

gridLayout with weighted columns

a!localVariables(
  local!items: {
    {item: "Item 1", qty: 10, unitPrice: 10},
    {item: "Item 2", qty: 2,  unitPrice: 20}
  },
  a!gridLayout(
    label: "Products",
    instructions: "This is a grid layout with column weights: 5, 1, 1, 2",
    headerCells: {
      a!gridLayoutHeaderCell(label: "Item"),
      a!gridLayoutHeaderCell(label: "Qty"),
      a!gridLayoutHeaderCell(label: "Unit Price"),
      a!gridLayoutHeaderCell(label: "Total", align: "RIGHT")
    },
    columnConfigs: {
      a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 5),
      a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
      a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
      a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 2)
    },
    rows: a!forEach(
      items: local!items,
      expression: a!gridRowLayout(
        contents: {
          a!textField(
            value: fv!item.item,
            saveInto: fv!item.item
          ),
          a!integerField(
            value: fv!item.qty,
            saveInto: fv!item.qty
          ),
          a!floatingPointField(
            value: fv!item.unitPrice,
            saveInto: fv!item.unitPrice
          ),
          a!textField(
            value: a!currency(
              isoCode: "USD",
              value: tointeger(fv!item.qty) * todecimal(fv!item.unitPrice)
            ),
            readOnly: true,
            align: "RIGHT"
          )
        }
      )
    ),
    rowHeader: 1
  )
)

Short editable grid with weighted columns

gridLayout short

a!localVariables(
  local!items: {
    {item: "Item 1", qty: 1, unitPrice: 10},
    {item: "Item 2", qty: 2, unitPrice: 20},
    {item: "Item 3", qty: 3, unitPrice: 30},
    {item: "Item 4", qty: 4, unitPrice: 40},
    {item: "Item 5", qty: 5, unitPrice: 50},
    {item: "Item 6", qty: 6, unitPrice: 60},
    {item: "Item 7", qty: 7, unitPrice: 70},
    {item: "Item 8", qty: 8, unitPrice: 80},
    {item: "Item 9", qty: 9, unitPrice: 90},
    {item: "Item 10", qty: 10, unitPrice: 100}
  },
  a!gridLayout(
    label: "Products",
    instructions: "Update the item name, quantity, or unit price.",
    headerCells: {
      a!gridLayoutHeaderCell(label: "Item"),
      a!gridLayoutHeaderCell(label: "Qty"),
      a!gridLayoutHeaderCell(label: "Unit Price"),
      a!gridLayoutHeaderCell(label: "Total", align: "RIGHT")
    },
    columnConfigs: {
      a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 5),
      a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
      a!gridLayoutColumnConfig(width: "DISTRIBUTE"),
      a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 2)
    },
    rows: a!forEach(
      items: local!items,
      expression: a!gridRowLayout(
        contents: {
          a!textField(
            value: fv!item.item,
            saveInto: fv!item.item
          ),
          a!integerField(
            value: fv!item.qty,
            saveInto: fv!item.qty
          ),
          a!floatingPointField(
            value: fv!item.unitPrice,
            saveInto: fv!item.unitPrice
          ),
          a!textField(
            value: a!currency(
              isoCode: "USD",
              value: tointeger(fv!item.qty) * todecimal(fv!item.unitPrice)
            ),
            readOnly: true,
            align: "RIGHT"
          )
        }
      )
    ),
    height: "SHORT",
    rowHeader: 1
  )
)

Editable grid with grid row reordering

These examples demonstrate how to configure grid row reordering. One uses a!map() and the other uses record types for the data.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

a!map example

This example uses a!map() for the data so that you can easily copy and paste it into an interface object.

a!localVariables(
  local!data: {
    a!map(
      id: 1,
      firstName: "John",
      lastName: "Smith",
      department: "Engineering",
      title: "Director",
      phoneNumber: "555-123-4567",
      startDate: today() - 360,
      /* orderIndex sets the index for the order of rows.
      Leave it null initially and it will update when the rows are reordered.
      Since we are using a!map for the data, it won't update here,
      but you can view the updated index in the Local Variables pane. */
      orderIndex: null()
    ),
    a!map(
      id: 2,
      firstName: "Michael",
      lastName: "Johnson",
      department: "Finance",
      title: "Analyst",
      phoneNumber: "555-987-6543",
      startDate: today() - 360,
      orderIndex: null()
    ),
    a!map(
      id: 3,
      firstName: "Mary",
      lastName: "Reed",
      department: "Engineering",
      title: "Software Engineer",
      phoneNumber: "555-456-0123",
      startDate: today() - 240,
      orderIndex: null()
    )
  },
  a!formLayout(
    titleBar: "Employees",
    contents: {
      a!gridLayout(
        labelPosition: "COLLAPSED",
        headerCells: {
          a!gridLayoutHeaderCell(label: "First Name"),
          a!gridLayoutHeaderCell(label: "Last Name"),
          a!gridLayoutHeaderCell(label: "Department" ),
          a!gridLayoutHeaderCell(label: "Title"),
          a!gridLayoutHeaderCell(label: "Phone Number"),
          a!gridLayoutHeaderCell(label: "Start Date")
        },
        columnConfigs: {
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 3),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 3),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 3),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 3),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 3),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 2)
        },
        rows: a!forEach(
          items: local!data,
          expression: a!gridRowLayout(
            id: fv!index,
            contents: {
              a!textField(
                label: "first name " & fv!index,
                value: fv!item.firstName,
                saveInto: fv!item.firstName,
                required: true
              ),
              a!textField(
                label: "last name " & fv!index,
                value: fv!item.lastName,
                saveInto: fv!item.lastName,
                required: true
              ),
              a!dropdownField(
                label: "department " & fv!index,
                placeholder: "-- Select -- ",
                choiceLabels: { "Corporate", "Engineering", "Finance", "Human Resources", "Professional Services", "Sales" },
                choiceValues: { "Corporate", "Engineering", "Finance", "Human Resources", "Professional Services", "Sales" },
                value: fv!item.department,
                saveInto: fv!item.department,
                required:true
              ),
              a!textField(
                label: "title " & fv!index,
                value: fv!item.title,
                saveInto: fv!item.title,
                required: true
              ),
              a!textField(
                label: "phone number " & fv!index,
                placeholder: "555-456-7890",
                value: fv!item.phoneNumber,
                saveInto: fv!item.phoneNumber
              ),
              a!dateField(
                label: "start date " & fv!index,
                value: fv!item.startDate,
                saveInto: fv!item.startDate,
                align: "RIGHT",
                required: true
              )
            }
          )
        ),
        allowRowReordering: true,
        rowOrderTooltip: true,
        /* rowOrderData should be a local variable or rule input that points
        to a list of data to update when the rows are reordered */
        rowOrderData: local!data,
        /* For rowOrderField, use the name of the field from a!map() */
        rowOrderField: "orderIndex"
      )
    },
    buttons: a!buttonLayout(
      primaryButtons: {
        a!buttonWidget(
          label: "Submit",
          style: "OUTLINE"
        )
      }
    )
  )
)

Record type example

This example uses record type references for the data. You will need to replace the record type references to view it in an interface object.

Record type references are specific to each environment. If you copy and paste this example into your interface, it will not evaluate. Use it as a reference only.

Tip: You can recreate this example using the record type from the Record Type Tutorial (Database).

a!localVariables(
  local!record: a!queryRecordType(
    recordType: recordType!AT Employee,
    fields: {
      recordType!AT Employee.fields.firstName,
      recordType!AT Employee.fields.lastName,
      recordType!AT Employee.fields.title,
      recordType!AT Employee.fields.phoneNumber,
      recordType!AT Employee.fields.startDate,
      recordType!AT Employee.fields.departmentId,
      recordType!AT Employee.relationships.department.fields.value,
    },
    pagingInfo: a!pagingInfo(startIndex: 1, batchSize: 100)
  ).data,
  a!formLayout(
    titleBar: "Employees",
    contentsWidth: "MEDIUM",
    contents: {
      a!gridLayout(
        labelPosition: "COLLAPSED",
        headerCells: {
          a!gridLayoutHeaderCell(label: "First Name"),
          a!gridLayoutHeaderCell(label: "Last Name"),
          a!gridLayoutHeaderCell(label: "Department" ),
          a!gridLayoutHeaderCell(label: "Title"),
          a!gridLayoutHeaderCell(label: "Phone Number"),
          a!gridLayoutHeaderCell(label: "Start Date")
        },
        columnConfigs: {
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 4),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 4),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 2),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 7),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 6),
          a!gridLayoutColumnConfig(width: "DISTRIBUTE", weight: 6)
        },
        rows: a!forEach(
          items: local!record,
          expression: a!gridRowLayout(
            id: fv!index,
            contents: {
              a!textField(
                value: fv!item[recordType!AT Employee.fields.firstName],
                saveInto: fv!item[recordType!AT Employee.fields.firstName],
                required: true
              ),
              a!textField(
                value: fv!item[recordType!AT Employee.fields.lastName],
                saveInto: fv!item[recordType!AT Employee.fields.lastName],
                required: true
              ),
              a!dropdownField(
                data: recordType!AT Employee',
                choiceLabels: recordType!AT Employee.relationships.department.fields.value,
                choiceValues: recordType!AT Employee.fields.departmentId,
                value: fv!item[recordType!AT Employee.fields.departmentId],
                saveInto: fv!item[recordType!AT Employee.fields.departmentId],
                required: true,
                placeholder: "Choose a department"
              ),
              a!textField(
                value: fv!item[recordType!AT Employee.fields.title],
                saveInto: fv!item[recordType!AT Employee.fields.title],
                required: true
              ),
              a!textField(
                value: fv!item[recordType!AT Employee.fields.phoneNumber],
                saveInto: fv!item[recordType!AT Employee.fields.phoneNumber]
              ),
              a!dateField(
                value: fv!item[recordType!AT Employee.fields.startDate],
                saveInto: fv!item[recordType!AT Employee.fields.startDate],
                align: "RIGHT",
                required: true
              )
            }
          )
        ),
        allowRowReordering: true,
        rowOrderTooltip: true,
        /* rowOrderData should be a local variable or rule input that points
        to a list of data to update when the rows are reordered */
        rowOrderData: local!record,
        /* For rowOrderField, use the name of the field from a!map() */
        rowOrderField: recordType!AT Employee.fields.orderIndex
      )
    },
    buttons: a!buttonLayout(
      primaryButtons: {
        a!buttonWidget(
          label: "Submit",
          style: "OUTLINE"
        )
      }
    )
  )
)

Feature compatibility

The table below lists this component's compatibility with various features in Appian.

Feature	Compatibility	Note
Portals	Compatible
Offline Interfaces	Compatible
Sync-Time Custom Record Fields	Incompatible
Real-Time Custom Record Fields	Incompatible	Custom record fields that evaluate in real time must be configured using one or more Custom Field functions.
Process Reports	Incompatible	Cannot be used to configure a process report.
Process Events	Incompatible	Cannot be used to configure a process event node, such as a start event or timer event.
Process Autoscaling	Incompatible	Cannot be used in autoscaled processes.
Event Consumer Filter Conditions	Compatible	Can be used in filter conditions.
Event Consumer Event Handlers	Compatible	Can be used in event handler expressions.

The following recipes include usage of the Editable Grid Component.

Add Validations to an Inline Editable Grid (Validation, Grids, Looping):
Allows the user to change data directly in a grid, and validate a various entries.
Add, Edit, and Remove Data in an Inline Editable Grid (Grids, Looping):
Allow the user to change data directly in an inline editable grid.
Display Multiple Files in a Grid (Document Management, Grids):
Show a dynamic number of files in a grid and edit certain file attributes.
Expand/Collapse Rows in a Tree Grid (Hierarchical Data, Grids):
Create a grid that shows hierarchical data and allows users to dynamically expand and collapse rows within the grid.
Track Adds and Deletes in Inline Editable Grid (Grids):
In an inline editable grid, track the employees that are added for further processing in the next process steps.
Upload Multiple Documents in an Editable Grid (Document Management, Records):
Build a form that allows users to create a record and upload related documents in an editable grid.
Use Selection For Bulk Actions in an Inline Editable Grid (Grids):
Allow the user to edit data inline in a grid one field at a time, or in bulk using selection.

Feedback

Was this page helpful?

Editable Grid Component

About the editable grid component

Where to use the editable grid component

Supported components

Parameters

Using the editable grid component

Paging in editable grids

Performance and data

Component behavior in grid cells

Using images in editable grids

Choosing a selection style

Grid height and headers

Reordering grid rows

Using the rowOrderData parameter

Using the rowOrderField parameter

Accessibility considerations

Appian Mobile considerations

Examples

Editable grid with two rows

Editable grid with two rows using looping

Editable grid with validations

Editable grid with selection

Editable grid with weighted columns

Short editable grid with weighted columns

Editable grid with grid row reordering

a!map example

Record type example

Feature compatibility

Related recipes

Feedback
