Kanban Board
Use kanban patterns to give users a visual, column-based layout for tracking tasks across workflow stages.

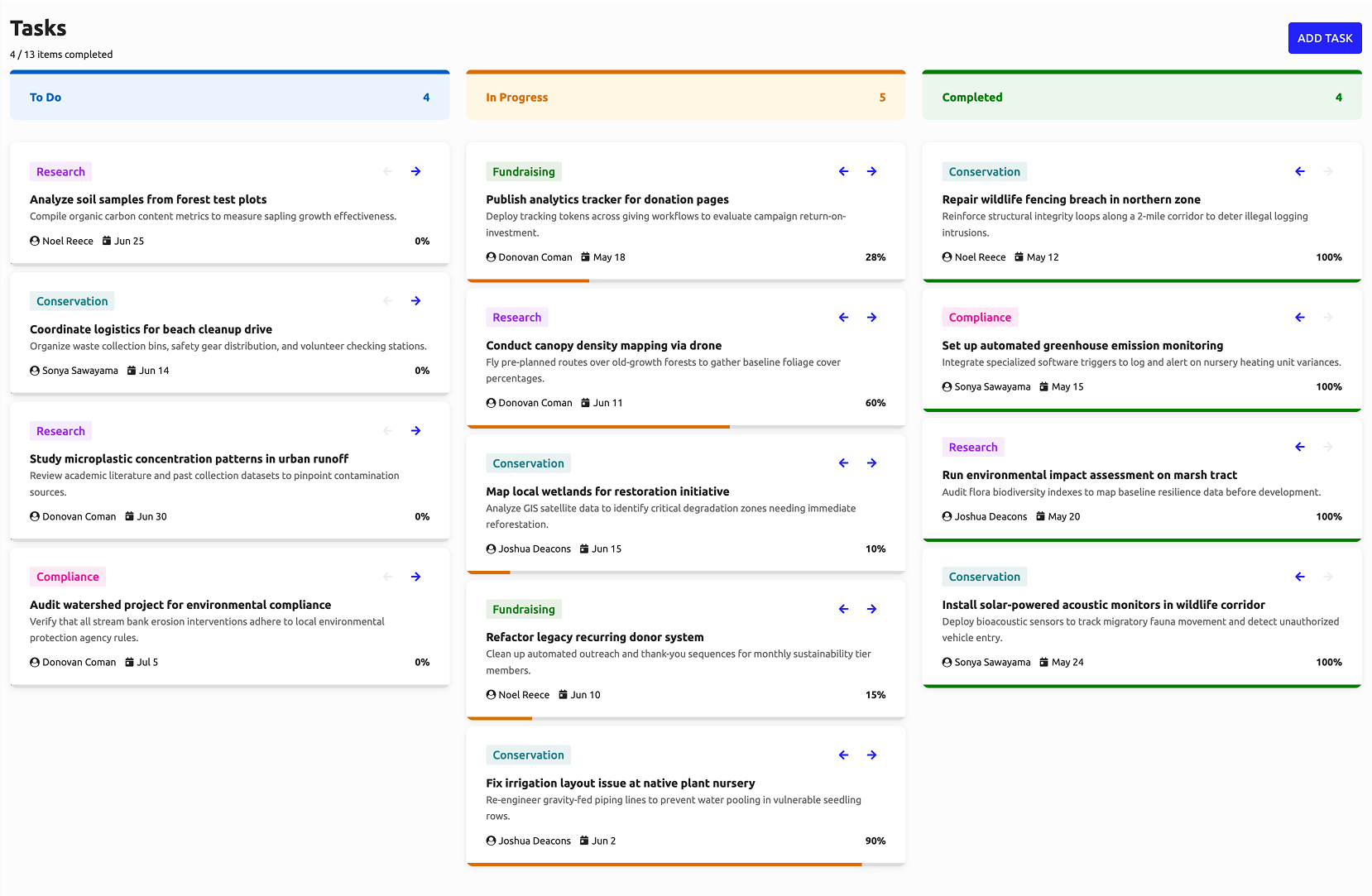

Kanban board
This pattern provides a visually engaging layout for tracking tasks across workflow stages. The board can be implemented as a standalone page or embedded as a tab within a larger dashboard. Each task card displays the work type, assignee, due date, and completion percentage, with arrow controls to move tasks between columns.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
a!localVariables(
/* work type references */
local!workTypes: {
a!map(id: 1, label: "Conservation", color: "#31808B"),
a!map(id: 2, label: "Fundraising", color: "#117c00"),
a!map(id: 3, label: "Research", color: "#962FEA"),
a!map(id: 4, label: "Compliance", color: "#e21496")
},
local!items: {
/* Todo Tasks */
a!map(
id: 1,
workType: local!workTypes[3],
statusId: 1,
dueDate: date(2026, 6, 25),
percentComplete: 0,
assignee: "Noel Reece",
title: "Analyze soil samples from forest test plots",
description: "Compile organic carbon content metrics to measure sapling growth effectiveness."
),
a!map(
id: 2,
workType: local!workTypes[1],
statusId: 1,
dueDate: date(2026, 6, 14),
percentComplete: 0,
assignee: "Sonya Sawayama",
title: "Coordinate logistics for beach cleanup drive",
description: "Organize waste collection bins, safety gear distribution, and volunteer checking stations."
),
a!map(
id: 3,
workType: local!workTypes[3],
statusId: 1,
dueDate: date(2026, 6, 30),
percentComplete: 0,
assignee: "Donovan Coman",
title: "Study microplastic concentration patterns in urban runoff",
description: "Review academic literature and past collection datasets to pinpoint contamination sources."
),
a!map(
id: 4,
workType: local!workTypes[4],
statusId: 1,
dueDate: date(2026, 7, 5),
percentComplete: 0,
assignee: "Donovan Coman",
title: "Audit watershed project for environmental compliance",
description: "Verify that all stream bank erosion interventions adhere to local environmental protection agency rules."
),
/* In Progress Tasks */
a!map(
id: 5,
workType: local!workTypes[2],
statusId: 2,
dueDate: date(2026, 5, 18),
percentComplete: 28,
assignee: "Donovan Coman",
title: "Publish analytics tracker for donation pages",
description: "Deploy tracking tokens across giving workflows to evaluate campaign return-on-investment."
),
a!map(
id: 6,
workType: local!workTypes[3],
statusId: 2,
dueDate: date(2026, 6, 11),
percentComplete: 60,
assignee: "Donovan Coman",
title: "Conduct canopy density mapping via drone",
description: "Fly pre-planned routes over old-growth forests to gather baseline foliage cover percentages."
),
a!map(
id: 7,
workType: local!workTypes[1],
statusId: 2,
dueDate: date(2026, 6, 15),
percentComplete: 10,
assignee: "Joshua Deacons",
title: "Map local wetlands for restoration initiative",
description: "Analyze GIS satellite data to identify critical degradation zones needing immediate reforestation."
),
a!map(
id: 8,
workType: local!workTypes[2],
statusId: 2,
dueDate: date(2026, 6, 10),
percentComplete: 15,
assignee: "Noel Reece",
title: "Refactor legacy recurring donor system",
description: "Clean up automated outreach and thank-you sequences for monthly sustainability tier members."
),
a!map(
id: 9,
workType: local!workTypes[1],
statusId: 2,
dueDate: date(2026, 6, 2),
percentComplete: 90,
assignee: "Joshua Deacons",
title: "Fix irrigation layout issue at native plant nursery",
description: "Re-engineer gravity-fed piping lines to prevent water pooling in vulnerable seedling rows."
),
/* Completed Tasks */
a!map(
id: 10,
workType: local!workTypes[1],
statusId: 3,
dueDate: date(2026, 5, 12),
percentComplete: 100,
assignee: "Noel Reece",
title: "Repair wildlife fencing breach in northern zone",
description: "Reinforce structural integrity loops along a 2-mile corridor to deter illegal logging intrusions."
),
a!map(
id: 11,
workType: local!workTypes[4],
statusId: 3,
dueDate: date(2026, 5, 15),
percentComplete: 100,
assignee: "Sonya Sawayama",
title: "Set up automated greenhouse emission monitoring",
description: "Integrate specialized software triggers to log and alert on nursery heating unit variances."
),
a!map(
id: 12,
workType: local!workTypes[3],
statusId: 3,
dueDate: date(2026, 5, 20),
percentComplete: 100,
assignee: "Joshua Deacons",
title: "Run environmental impact assessment on marsh tract",
description: "Audit flora biodiversity indexes to map baseline resilience data before development."
),
a!map(
id: 13,
workType: local!workTypes[1],
statusId: 3,
dueDate: date(2026, 5, 24),
percentComplete: 100,
assignee: "Sonya Sawayama",
title: "Install solar-powered acoustic monitors in wildlife corridor",
description: "Deploy bioacoustic sensors to track migratory fauna movement and detect unauthorized vehicle entry."
)
},
/* items grouped by status */
local!todoItems: index(local!items, wherecontains(1, local!items.statusId), null),
local!inProgressItems: index(local!items, wherecontains(2, local!items.statusId), null),
local!completedItems: index(local!items, wherecontains(3, local!items.statusId), null),
/* status references */
local!statuses: {
a!map(id: 1, label: "To Do", primaryColor: "#115EBB", secondaryColor: "#EBF4FF", items: local!todoItems),
a!map(id: 2, label: "In Progress", primaryColor: "#CC7600", secondaryColor: "#FFF5E6", items: local!inProgressItems),
a!map(id: 3, label: "Completed", primaryColor: "#117c00", secondaryColor: "#EDF7EE", items: local!completedItems)
},
a!headerContentLayout(
isHeaderFixed: true,
contentsPadding: "LESS",
backgroundColor: "#FCFCFD",
header: {
/* FIXED KANBAN HEADERS */
a!cardLayout(
style: "#FCFCFD",
showBorder: false,
padding: "LESS",
contents: {
/* TITLE & ACTIONS */
a!sideBySideLayout(
alignVertical: "MIDDLE",
marginAbove: "STANDARD",
marginBelow: "STANDARD",
items: {
a!sideBySideItem(
item: {
a!headingField(
text: "Tasks",
headingTag: "H1",
marginAbove: "NONE",
marginBelow: "NONE",
fontWeight: "BOLD"
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
marginAbove: "EVEN_LESS",
marginBelow: "NONE",
value: {
a!richTextItem(
text: { count(local!completedItems), " / ", count(local!items), " items completed" },
size: "SMALL"
)
}
)
}
),
a!sideBySideItem(
width: "MINIMIZE",
item: a!buttonArrayLayout(
marginAbove: "NONE",
marginBelow: "NONE",
align: "END",
buttons: {
a!buttonWidget(label: "ADD TASK", style: "SOLID")
}
)
)
}
),
/* COLUMN TITLE CARD */
a!columnsLayout(
marginBelow: "NONE",
columns: {
a!forEach(
items: local!statuses,
expression: {
a!columnLayout(
contents: {
a!cardLayout(
showBorder: false,
shape: "ROUNDED",
padding: "STANDARD",
style: fv!item.secondaryColor,
decorativeBarPosition: "TOP",
decorativeBarColor: fv!item.primaryColor,
marginBelow: "LESS",
contents: {
a!sideBySideLayout(
alignVertical: "MIDDLE",
marginAbove: "NONE",
marginBelow: "NONE",
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
marginAbove: "NONE",
marginBelow: "NONE",
value: a!richTextItem(
text: fv!item.label,
color: fv!item.primaryColor,
style: "STRONG"
)
)
),
a!sideBySideItem(
width: "MINIMIZE",
item: a!richTextDisplayField(
align: "RIGHT",
labelPosition: "COLLAPSED",
marginAbove: "NONE",
marginBelow: "NONE",
value: a!richTextItem(
text: count(fv!item.items),
color: fv!item.primaryColor,
style: "STRONG"
)
)
)
}
)
}
)
}
)
}
)
}
)
}
)
},
contents: {
/* KANBAN COLUMNS */
a!columnLayout(
width: "EXTRA_WIDE",
contents: {
a!columnsLayout(
marginAbove: "EVEN_LESS",
columns: {
a!forEach(
items: local!statuses,
expression: a!localVariables(
local!status: fv!item,
local!itemsPerStatus: fv!item.items,
{
a!columnLayout(
contents: {
/* KANBAN ITEMS */
a!forEach(
items: local!itemsPerStatus,
expression: a!localVariables(
local!itemIndex: index(local!items.id, fv!item.id),
{
a!cardLayout(
padding: "NONE",
showBorder: false,
showShadow: true,
shape: "ROUNDED",
marginBelow: "LESS",
contents: {
a!cardLayout(
shape: "ROUNDED",
padding: "STANDARD",
showBorder: false,
contents: {
a!sideBySideLayout(
marginBelow: "LESS",
alignVertical: "MIDDLE",
spacing: "NONE",
items: {
a!sideBySideItem(
item: a!tagField(
labelPosition: "COLLAPSED",
tags: {
a!tagItem(
text: fv!item.workType.label,
textColor: fv!item.workType.color,
backgroundColor: concat(fv!item.workType.color, "1a")
)
}
)
),
a!sideBySideItem(
width: "MINIMIZE",
item: a!buttonArrayLayout(
marginBelow: "NONE",
buttons: {
if(
fv!item.statusId = 1,
a!buttonWidget(
icon: "arrow-left",
size: "SMALL",
style: "LINK",
color: "#ddd",
disabled: true
),
a!buttonWidget(
icon: "arrow-left",
size: "SMALL",
style: "LINK",
value: fv!item.statusId - 1,
saveInto: a!save(
local!items[local!itemIndex],
a!update(local!items[local!itemIndex], "statusId", save!value)
),
tooltip: if(fv!item.statusId = 2, "Move to To Do", "Move to In Progress")
)
)
}
)
),
a!sideBySideItem(
width: "MINIMIZE",
item: a!buttonArrayLayout(
marginBelow: "NONE",
buttons: {
if(
fv!item.statusId = 3,
a!buttonWidget(
icon: "arrow-right",
size: "SMALL",
style: "LINK",
color: "#ddd",
disabled: true
),
a!buttonWidget(
icon: "arrow-right",
size: "SMALL",
style: "LINK",
value: fv!item.statusId + 1,
saveInto: a!save(
local!items[local!itemIndex],
a!update(local!items[local!itemIndex], "statusId", save!value)
),
tooltip: if(fv!item.statusId = 1, "Move to In Progress", "Move to Completed")
)
)
}
)
)
}
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: fv!item.title, style: "STRONG"),
char(10),
a!richTextItem(text: fv!item.description, size: "SMALL", color: "#636363")
}
),
a!sideBySideLayout(
alignVertical: "MIDDLE",
items: {
a!sideBySideItem(
width: "MINIMIZE",
item: a!richTextDisplayField(
label: "Assignee",
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(icon: "user-circle", size: "SMALL"),
" ",
a!richTextItem(text: fv!item.assignee, size: "SMALL")
}
)
),
a!sideBySideItem(
item: {
a!richTextDisplayField(
label: "Due Date",
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(icon: "calendar-day", size: "SMALL"),
" ",
a!richTextItem(text: text(fv!item.dueDate, "mmm d"), size: "SMALL")
}
)
}
),
a!sideBySideItem(
width: "MINIMIZE",
item: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: { fv!item.percentComplete, "%" },
size: "SMALL",
style: "STRONG"
)
}
)
}
)
}
)
}
),
a!progressBarField(
label: "Task Progress",
labelPosition: "COLLAPSED",
showPercentage: false,
marginAbove: "NONE",
marginBelow: "NONE",
percentage: fv!item.percentComplete,
color: local!status.primaryColor
)
}
)
}
)
)
}
)
}
)
)
}
)
}
)
}
)
)

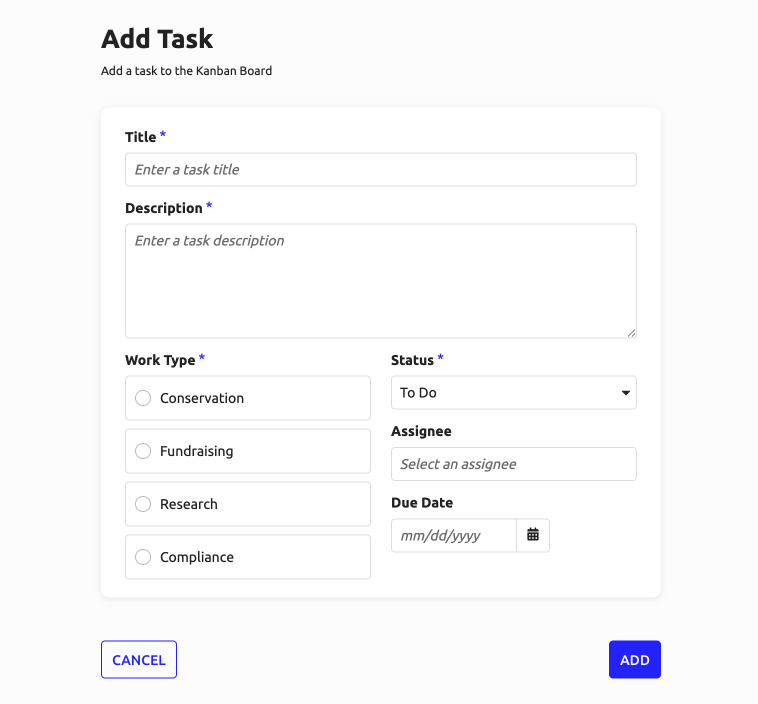

Add task form
Use this form as a record action paired with the kanban board to let users add new tasks directly from the board.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
a!localVariables(
/* work type references */
local!workTypes: {
a!map(id: 1, label: "Conservation", color: "#31808B"),
a!map(id: 2, label: "Fundraising", color: "#117c00"),
a!map(id: 3, label: "Research", color: "#962FEA"),
a!map(id: 4, label: "Compliance", color: "#e21496")
},
/* new task item */
local!item: a!map(
workType: null,
statusId: 1,
dueDate: null,
percentComplete: 0,
assignee: null,
title: null,
description: null
),
a!formLayout(
contents: {
a!cardLayout(
contents: {
a!textField(
label: "Title",
labelPosition: "ABOVE",
placeholder: "Enter a task title",
value: local!item.title,
saveInto: local!item.title,
refreshAfter: "UNFOCUS",
required: true,
requiredMessage: "A task title is required",
validations: {}
),
a!paragraphField(
label: "Description",
labelPosition: "ABOVE",
placeholder: "Enter a task description",
value: local!item.description,
saveInto: local!item.description,
required: true,
requiredMessage: "A task description is required",
showCharacterCount: true,
marginAbove: "NONE",
marginBelow: "STANDARD"
),
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!radioButtonField(
label: "Work Type",
value: local!item.workType,
saveInto: local!item.workType,
choiceLabels: local!workTypes.label,
choiceValues: local!workTypes,
required: true,
requiredMessage: "A work type category is required",
choiceLayout: "STACKED",
choiceStyle: "CARDS",
choicePosition: "START"
)
}
),
a!columnLayout(
contents: {
a!dropdownField(
label: "Status",
labelPosition: "ABOVE",
placeholder: "Select a status",
value: local!item.statusId,
saveInto: local!item.statusId,
choiceLabels: { "To Do", "In Progress", "Completed" },
choiceValues: { 1, 2, 3 },
required: true,
requiredMessage: "A status is required",
validations: {},
searchDisplay: "AUTO"
),
a!pickerFieldUsers(
label: "Assignee",
labelPosition: "ABOVE",
placeholder: "Select an assignee",
value: local!item.assignee,
saveInto: local!item.assignee,
validations: {},
maxSelections: 1
),
a!dateField(
label: "Due Date",
labelPosition: "ABOVE",
value: local!item.dueDate,
saveInto: local!item.dueDate,
validations: {}
)
}
)
}
)
},
marginBelow: "STANDARD",
height: "AUTO",
style: "NONE",
showBorder: false,
showShadow: true,
padding: "STANDARD",
shape: "ROUNDED"
)
},
buttons: a!buttonLayout(
primaryButtons: {
a!buttonWidget(label: "Add", submit: true, loadingIndicator: true, style: "SOLID")
},
secondaryButtons: {
a!buttonWidget(label: "Cancel", value: true, saveInto: {}, validate: false, submit: true, style: "OUTLINE")
}
),
titleBar: a!headerTemplateSimple(
title: "Add Task",
secondaryText: "Add a task to the Kanban Board",
titleColor: "STANDARD"
),
contentsWidth: "NARROW",
showTitleBarDivider: false,
backgroundColor: "#FCFCFD"
)
)
