Calendar
Use calendar patterns to give users a visual overview of time-based data like events, deadlines, and appointments.
When to use a calendar
Use a calendar when users need to understand how time-sensitive items are distributed across days. Calendars work well for scheduling workflows, appointment tracking, project milestones, and any scenario where the relationship between events and dates matters at a glance.
Calendar patterns can be used as standalone widgets or combined — for example, offering a month view and a week view as toggle options on the same page. Each view serves a different purpose:
- Month view: Shows the full shape of a month at once. Use the month view when users need to see the overall distribution of events and navigate across a longer time range. The month view supports a detail panel alongside the calendar grid, making it well-suited for displaying additional event information without leaving the page.

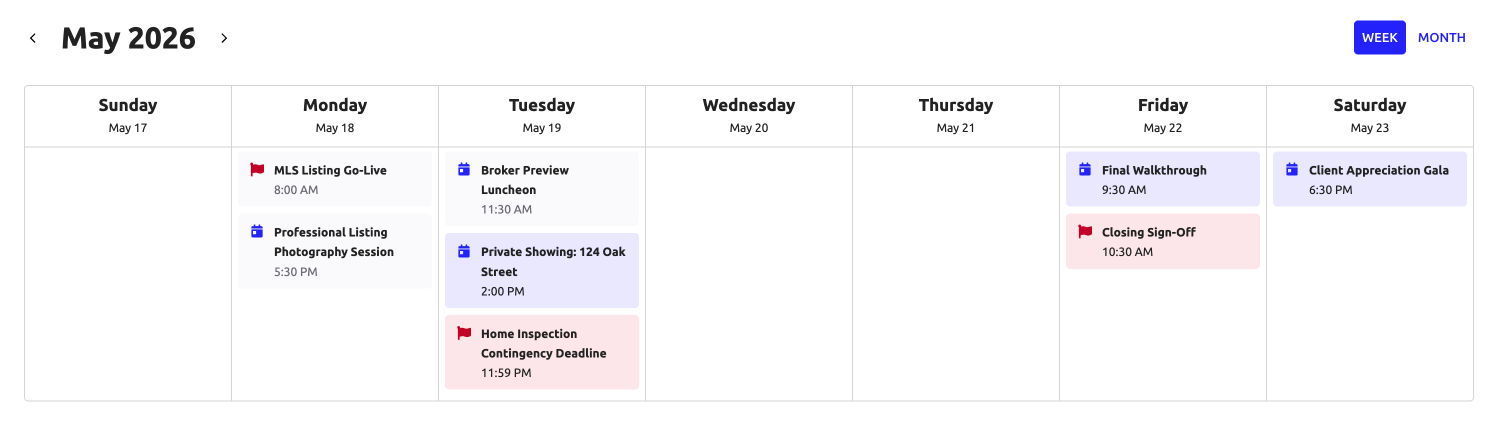

- Week view: Shows a single week in column format. Use the week view when users need to focus on a shorter time window, compare events across days, or see more detail per day. The week view is best for high-level information that does not require additional event context.

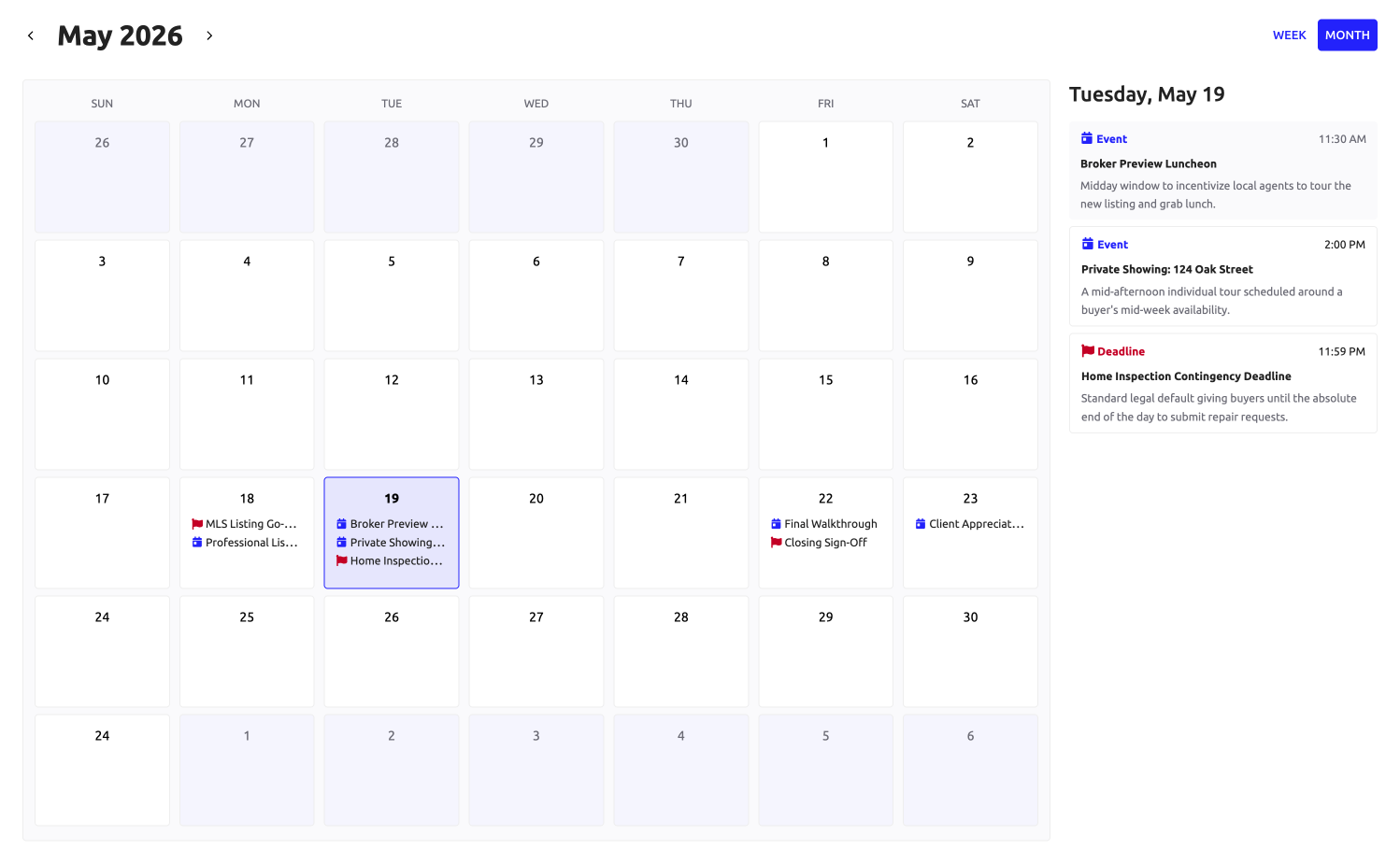

Month view
The month view displays a grid of seven-column weeks with additional details to the right. Clicking a date in the grid updates the right column with more context about that day's events.
This pattern uses color-coded event types (events and deadlines) and dims past events to help users distinguish between upcoming and completed items.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
a!localVariables(
local!today: date(2026, 5, 19),
/* value can replace with now() */
local!now: datetime(2026, 5, 19, 12, 0),
/* row dates for month view */
local!monthViewDates: {
a!map(
row: 1,
dates: {
date(2026, 4, 26),
date(2026, 4, 27),
date(2026, 4, 28),
date(2026, 4, 29),
date(2026, 4, 30),
date(2026, 5, 1),
date(2026, 5, 2)
}
),
a!map(
row: 2,
dates: {
date(2026, 5, 3),
date(2026, 5, 4),
date(2026, 5, 5),
date(2026, 5, 6),
date(2026, 5, 7),
date(2026, 5, 8),
date(2026, 5, 9)
}
),
a!map(
row: 3,
dates: {
date(2026, 5, 10),
date(2026, 5, 11),
date(2026, 5, 12),
date(2026, 5, 13),
date(2026, 5, 14),
date(2026, 5, 15),
date(2026, 5, 16)
}
),
a!map(
row: 4,
dates: {
date(2026, 5, 17),
date(2026, 5, 18),
date(2026, 5, 19),
date(2026, 5, 20),
date(2026, 5, 21),
date(2026, 5, 22),
date(2026, 5, 23)
}
),
a!map(
row: 5,
dates: {
date(2026, 5, 24),
date(2026, 5, 25),
date(2026, 5, 26),
date(2026, 5, 27),
date(2026, 5, 28),
date(2026, 5, 29),
date(2026, 5, 30)
}
),
a!map(
row: 6,
dates: {
date(2026, 5, 24),
date(2026, 6, 1),
date(2026, 6, 2),
date(2026, 6, 3),
date(2026, 6, 4),
date(2026, 6, 5),
date(2026, 6, 6)
}
),
},
/*list of events */
local!events: {
a!map(
datetime: datetime(2026, 5, 18, 8, 0, 0),
date: date(2026, 5, 18),
title: "MLS Listing Go-Live",
type: "Deadline",
icon: "flag",
color: "#B2002C",
attendees: { "Colleen Brock" },
desc: "Early morning push to ensure the listing hits buyer feeds at the start of the week."
),
a!map(
datetime: datetime(2026, 5, 18, 17, 30, 0),
date: date(2026, 5, 18),
title: "Professional Listing Photography Session",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Joshua Deacons",
"Jane Kim",
"Colleen Brock"
},
desc: "Scheduled for late afternoon to capture optimal golden hour lighting."
),
a!map(
datetime: datetime(2026, 5, 19, 11, 30, 0),
date: date(2026, 5, 19),
title: "Broker Preview Luncheon",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Elena Vance",
"Maya Sterling",
"Brokerage Partners"
},
desc: "Midday window to incentivize local agents to tour the new listing and grab lunch."
),
a!map(
datetime: datetime(2026, 5, 19, 14, 0, 0),
date: date(2026, 5, 19),
title: "Private Showing: 124 Oak Street",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Alasdair Finch",
"Naomi Kincaid",
"Gavin Zhao"
},
desc: "A mid-afternoon individual tour scheduled around a buyer's mid-week availability."
),
a!map(
datetime: datetime(2026, 5, 19, 23, 59, 0),
date: date(2026, 5, 19),
title: "Home Inspection Contingency Deadline",
type: "Deadline",
icon: "flag",
color: "#B2002C",
attendees: { "Gavin Zhao" },
desc: "Standard legal default giving buyers until the absolute end of the day to submit repair requests."
),
a!map(
datetime: datetime(2026, 5, 22, 9, 30, 0),
date: date(2026, 5, 22),
title: "Final Walkthrough",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: { "Clara Hendrickson", "Joshua Deacons" },
desc: "Morning final walkthrough immediately preceding the title company signing appointment."
),
a!map(
datetime: datetime(2026, 5, 22, 10, 30, 0),
date: date(2026, 5, 22),
title: "Closing Sign-Off",
type: "Deadline",
icon: "flag",
color: "#B2002C",
attendees: { "Clara Hendrickson", "Joshua Deacons" },
desc: "Signing appointment with client to finalize home closing."
),
a!map(
datetime: datetime(2026, 5, 23, 18, 30, 0),
date: date(2026, 5, 23),
title: "Client Appreciation Gala",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Apex Horizon Realtors",
"Western-conference Clients",
"Western-conference Brokerage Group"
},
desc: "An evening social event hosted after standard business hours to close out the week."
),
},
/*logic to get list of events on a particular date */
local!selectedDay: local!today,
{
a!sideBySideLayout(
marginBelow: "MORE",
spacing: "SPARSE",
alignVertical: "MIDDLE",
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
marginAbove: "NONE",
marginBelow: "NONE",
value: {
a!richTextIcon(
icon: "angle-left",
size: "MEDIUM",
link: a!dynamicLink(),
linkStyle: "STANDALONE",
color: "#000",
caption: "Previous month",
altText: "Previous month"
)
}
),
width: "MINIMIZE"
),
a!sideBySideItem(
width: "MINIMIZE",
item: a!headingField(
text: text(local!today, "mmm yyyy"),
size: "LARGE",
fontWeight: "BOLD",
headingTag: "H2",
marginBelow: "NONE",
)
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
marginAbove: "NONE",
marginBelow: "NONE",
value: {
a!richTextIcon(
icon: "angle-right",
size: "MEDIUM",
link: a!dynamicLink(),
linkStyle: "STANDALONE",
color: "#000",
caption: "Next month",
altText: "Next month"
)
}
)
),
}
),
a!columnsLayout(
columns: {
a!columnLayout(
width: "WIDE_PLUS",
contents: {
a!cardLayout(
shape: "SEMI_ROUNDED",
padding: "LESS",
borderColor: "#eee",
style: "#FAFAFC",
contents: {
/*loop to display each row of the calendar */
a!forEach(
items: local!monthViewDates,
expression: a!localVariables(
local!row: fv!item.row,
{
a!columnsLayout(
marginAbove: "NONE",
marginBelow: "LESS",
spacing: "DENSE",
columns: {
a!forEach(
items: { fv!item.dates },
expression: a!localVariables(
/*logic to detect if date is part of the current month */
local!isCurrentMonth: month(fv!item) = month(local!today),
local!date: fv!item,
{
a!columnLayout(
contents: {
/* DAYS OF WEEK */
a!richTextDisplayField(
showWhen: local!row = 1,
align: "CENTER",
value: {
a!richTextItem(
text: upper(text(fv!item, "eee")),
size: "SMALL",
color: "#6C6C75"
)
}
),
/* EACH DATE */
a!cardLayout(
padding: "LESS",
link: a!dynamicLink(
saveInto: { a!save(local!selectedDay, fv!item) }
),
accessibilityText: if(
local!selectedDay = fv!item,
"Selected",
null
),
shape: "SEMI_ROUNDED",
borderColor: if(
local!selectedDay = fv!item,
"ACCENT",
"#EEE"
),
height: "SHORT",
style: if(
local!today = fv!item,
"#D2D2F980",
if(local!isCurrentMonth, "#FFF", "#F5F5FC")
),
contents: {
/* DATE */
a!richTextDisplayField(
labelPosition: "COLLAPSED",
align: "CENTER",
marginAbove: "EVEN_LESS",
marginBelow: "LESS",
value: {
a!richTextItem(
text: text(fv!item, "d"),
style: if(local!today = fv!item, "STRONG", "PLAIN"),
color: if(local!isCurrentMonth, "#000", "#6C6C75")
)
}
),
/*EVENTS ON DATE */
a!forEach(
items: local!events,
expression: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
marginBelow: "NONE",
preventWrapping: true,
value: {
if(
fv!item.date = local!date,
{
a!richTextIcon(
icon: fv!item.icon,
size: "SMALL",
color: fv!item.color,
),
" ",
a!richTextItem(text: fv!item.title, size: "SMALL"),
char(10),
},
{}
)
}
)
}
)
}
)
}
)
}
)
)
}
)
}
)
)
}
)
}
),
/*SELECTED DATE'S SCHEDULE */
a!columnLayout(
contents: {
/*SELECTED DATE HEADER */
a!headingField(
headingTag: "H3",
text: text(local!selectedDay, "dddd, mmm d"),
fontWeight: "SEMI_BOLD",
size: "MEDIUM"
),
if(
contains(local!events.date, local!selectedDay),
/*LIST OF EVENTS */
a!forEach(
/*looping through list of events on the selected date */
items: index(
local!events,
wherecontains(local!selectedDay, local!events.date)
),
expression: {
a!cardLayout(
marginBelow: "LESS",
padding: "LESS",
shape: "SEMI_ROUNDED",
borderColor: "#eee",
showBorder: fv!item.datetime > local!now,
style: if(
fv!item.datetime < local!now,
"#FAFAFC",
"#fff"
),
contents: {
a!sideBySideLayout(
marginBelow: "LESS",
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(icon: fv!item.icon, color: fv!item.color, ),
" ",
a!richTextItem(
text: fv!item.type,
style: "STRONG",
color: fv!item.color,
size: "SMALL"
)
}
)
),
a!sideBySideItem(
width: "MINIMIZE",
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: { text(fv!item.datetime, "h:mm AM/PM") },
size: "SMALL",
color: if(
fv!item.datetime < local!now,
"#6C6C75",
"STANDARD"
)
)
}
)
)
}
),
a!richTextDisplayField(
marginBelow: "EVEN_LESS",
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: fv!item.title,
style: "STRONG",
size: "SMALL"
)
}
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: { fv!item.desc },
size: "SMALL",
color: "#6C6C75"
)
}
)
}
)
}
),
/*EMPTY STATE */
a!cardLayout(
shape: "SEMI_ROUNDED",
borderColor: "#EEE",
padding: "MORE",
contents: {
a!stampField(
align: "CENTER",
size: "SMALL",
labelPosition: "COLLAPSED",
backgroundColor: "#FAFAFC",
contentColor: "#ddd",
icon: "calendar-o"
),
a!richTextDisplayField(
align: "CENTER",
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "There are no events or deadlines scheduled for this date",
color: "#6C6C75",
size: "SMALL"
)
}
)
}
)
)
}
)
}
)
}
)
Week view
The week view displays each day of the week as a column with events stacked vertically. Each event card uses a tinted background derived from the event's color, with past events displayed in a neutral gray to indicate they have already occurred.
If users need more event context, surface it outside the calendar columns rather than cluttering the week view.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
a!localVariables(
local!today: date(2026, 5, 19),
/* value can replace with now() */
local!now: datetime(2026, 5, 19, 12, 0),
/* column header dates for week view */
local!weekViewDates: {
date(2026, 5, 17),
date(2026, 5, 18),
date(2026, 5, 19),
date(2026, 5, 20),
date(2026, 5, 21),
date(2026, 5, 22),
date(2026, 5, 23)
},
/*list of events */
local!events: {
a!map(
datetime: datetime(2026, 5, 18, 8, 0, 0),
date: date(2026, 5, 18),
title: "MLS Listing Go-Live",
type: "Deadline",
icon: "flag",
color: "#B2002C",
attendees: { "Colleen Brock" },
desc: "Early morning push to ensure the listing hits buyer feeds at the start of the week."
),
a!map(
datetime: datetime(2026, 5, 18, 17, 30, 0),
date: date(2026, 5, 18),
title: "Professional Listing Photography Session",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Joshua Deacons",
"Jane Kim",
"Colleen Brock"
},
desc: "Scheduled for late afternoon to capture optimal golden hour lighting."
),
a!map(
datetime: datetime(2026, 5, 19, 11, 30, 0),
date: date(2026, 5, 19),
title: "Broker Preview Luncheon",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Elena Vance",
"Maya Sterling",
"Brokerage Partners"
},
desc: "Midday window to incentivize local agents to tour the new listing and grab lunch."
),
a!map(
datetime: datetime(2026, 5, 19, 14, 0, 0),
date: date(2026, 5, 19),
title: "Private Showing: 124 Oak Street",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Alasdair Finch",
"Naomi Kincaid",
"Gavin Zhao"
},
desc: "A mid-afternoon individual tour scheduled around a buyer's mid-week availability."
),
a!map(
datetime: datetime(2026, 5, 19, 23, 59, 0),
date: date(2026, 5, 19),
title: "Home Inspection Contingency Deadline",
type: "Deadline",
icon: "flag",
color: "#B2002C",
attendees: { "Gavin Zhao" },
desc: "Standard legal default giving buyers until the absolute end of the day to submit repair requests."
),
a!map(
datetime: datetime(2026, 5, 22, 9, 30, 0),
date: date(2026, 5, 22),
title: "Final Walkthrough",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: { "Clara Hendrickson", "Joshua Deacons" },
desc: "Morning final walkthrough immediately preceding the title company signing appointment."
),
a!map(
datetime: datetime(2026, 5, 22, 10, 30, 0),
date: date(2026, 5, 22),
title: "Closing Sign-Off",
type: "Deadline",
icon: "flag",
color: "#B2002C",
attendees: { "Clara Hendrickson", "Joshua Deacons" },
desc: "Signing appointment with client to finalize home closing."
),
a!map(
datetime: datetime(2026, 5, 23, 18, 30, 0),
date: date(2026, 5, 23),
title: "Client Appreciation Gala",
type: "Event",
icon: "calendar-day",
color: "#2322f0",
attendees: {
"Apex Horizon Realtors",
"Western-conference Clients",
"Western-conference Brokerage Group"
},
desc: "An evening social event hosted after standard business hours to close out the week."
),
},
{
a!sideBySideLayout(
marginBelow: "MORE",
spacing: "SPARSE",
alignVertical: "MIDDLE",
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
marginAbove: "NONE",
marginBelow: "NONE",
value: {
a!richTextIcon(
icon: "angle-left",
size: "MEDIUM",
link: a!dynamicLink(),
linkStyle: "STANDALONE",
color: "#000",
caption: "Previous week",
altText: "Previous week",
)
}
),
width: "MINIMIZE"
),
a!sideBySideItem(
width: "MINIMIZE",
item: a!headingField(
text: text(local!today, "mmm yyyy"),
size: "LARGE",
fontWeight: "BOLD",
headingTag: "H2",
marginBelow: "NONE",
)
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
marginAbove: "NONE",
marginBelow: "NONE",
value: {
a!richTextIcon(
icon: "angle-right",
size: "MEDIUM",
link: a!dynamicLink(),
linkStyle: "STANDALONE",
color: "#000",
caption: "Next week",
altText: "Next week",
)
}
)
),
}
),
a!cardLayout(
style: "NONE",
shape: "SEMI_ROUNDED",
padding: "NONE",
marginAbove: "NONE",
marginBelow: "NONE",
contents: {
a!columnsLayout(
spacing: "NONE",
showDividers: true,
columns: {
/* displaying days as columns */
a!forEach(
items: local!weekViewDates,
expression: a!localVariables(
/*logic to get list of events on a particular date */
local!eventsPerDate: index(
local!events,
wherecontains(fv!item, local!events.date)
),
{
a!columnLayout(
contents: {
a!headingField(
headingTag: "H3",
text: text(fv!item, "dddd"),
align: "CENTER",
size: "SMALL",
fontWeight: "BOLD",
marginAbove: "LESS",
marginBelow: "NONE",
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
align: "CENTER",
marginAbove: "NONE",
marginBelow: "STANDARD",
value: {
a!richTextItem(
text: text(fv!item, "mmm d"),
size: "SMALL"
)
}
),
a!horizontalLine(marginBelow: "NONE"),
a!cardLayout(
showBorder: false,
padding: "EVEN_LESS",
contents: {
a!forEach(
items: local!eventsPerDate,
expression: {
a!cardLayout(
marginBelow: "LESS",
shape: "SEMI_ROUNDED",
showBorder: false,
/* changing background color based on the event time and current time */
style: if(
fv!item.datetime < local!now,
"#FAFAFC",
concat(fv!item.color, "1a")
),
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
width: "MINIMIZE",
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: fv!item.icon,
color: fv!item.color,
)
}
)
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: fv!item.title,
style: "STRONG",
size: "SMALL"
),
char(10),
a!richTextItem(
text: { text(fv!item.datetime, "h:mm AM/PM") },
size: "SMALL",
color: if(
fv!item.datetime < local!now,
"#6C6C75",
"STANDARD"
)
)
}
)
)
}
)
}
)
}
)
}
)
}
)
}
)
)
}
)
}
)
}
)
