Displays any arrangement of layouts and components beneath a billboard or card header that is flush with the edge of the page. Similar to a form layout, this is a top-level layout and cannot be nested within other layouts. The header content layout is ideal for landing pages, dashboards, and record views.
To add a header content layout to your interface from design mode, drag out either a CARD HEADER or BILLBOARD HEADER from the interface palette.
See also: Header Content Layout style guidance
The contentsWidth parameter sets the maximum width of the contents area. When set to any value other than "FULL", the contents are horizontally centered with equal margins on each side.
Keep the following in mind when using this parameter:
"EXTRA_WIDE" on a Narrow site), the contents fill the available space and no horizontal scrollbar is introduced."FULL" regardless of the configured value. This matches the behavior of a!formLayout()."EXTRA_WIDE" is 1440px. The "EXTRA_WIDE" value corresponds to 1440px, matching the "EXTRA_WIDE" column width available in a!columnLayout().Related style guidelines:
The footer parameter accepts a card, billboard, or list of cards and billboards (using a!cardLayout() or a!billboardLayout()). The footer renders edge-to-edge at the bottom of the page.
Keep the following in mind when using this parameter:
true, the footer is not pinned to the bottom of the page during scrolling. The footer remains below contents and scrolls with the page.Related style guidelines:
The backgroundMedia parameter accepts both images and videos. If you want to use a video for your billboard media, there are a few constraints to consider:
For more information, see the Web Video Component page.
You can place a single pane layout inside the contents parameter of a header content layout.This is useful when you need a consistent header that spans across multiple, independently scrollable content sections.
When a pane layout is used in a header content layout:
The following examples demonstrate the header content layout.
To experiment with examples, copy and paste the expression into an interface object.

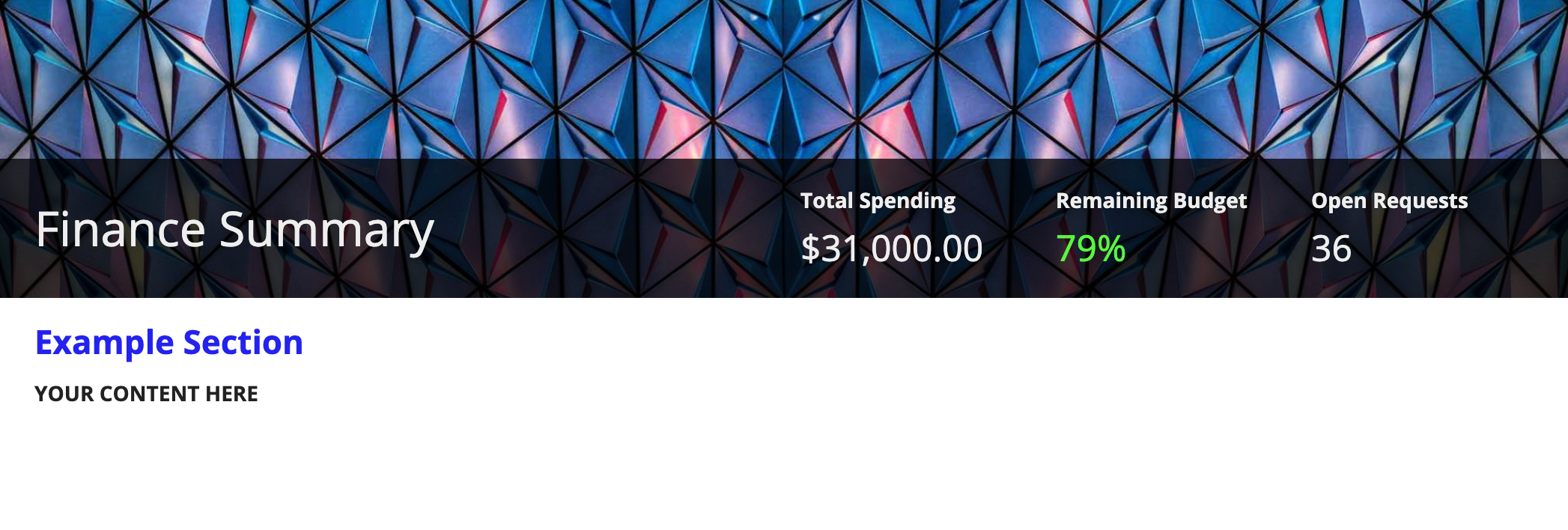

This example uses a billboard layout within the header content layout. It displays the following interface.
See the page on Billboard Layouts for more information on billboards and the SAIL Design System: Billboard Layout for guidance on when to use each overlay style.
Copy and paste this example into an an interface object to experiment with it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
a!headerContentLayout(
header: {
a!billboardLayout(
backgroundMedia: a!documentImage(
document: a!EXAMPLE_BILLBOARD_IMAGE()
),
backgroundColor: "#f0f0f0",
height: "SHORT",
marginBelow: "NONE",
overlay: a!barOverlay(
position: "BOTTOM",
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: {
"Finance Summary"
},
size: "LARGE"
)
}
)
}
),
a!columnLayout(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "Total Spending",
value: {
a!richTextItem(
text: {
"$31,000.00"
},
size: "MEDIUM_PLUS"
)
}
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "Remaining Budget",
value: {
a!richTextItem(
text: {
"79%"
},
color: "POSITIVE",
size: "MEDIUM_PLUS"
)
}
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "Open Requests",
value: {
a!richTextItem(
text: {
"36"
},
size: "MEDIUM_PLUS"
)
}
)
}
)
},
alignVertical: "TOP"
)
}
)
},
alignVertical: "MIDDLE"
)
},
style: "DARK"
)
)
},
contents: {
a!sectionLayout(
label: "Example Section",
contents: {
a!textField(
label: "YOUR CONTENT HERE",
readOnly: true()
)
}
)
}
)

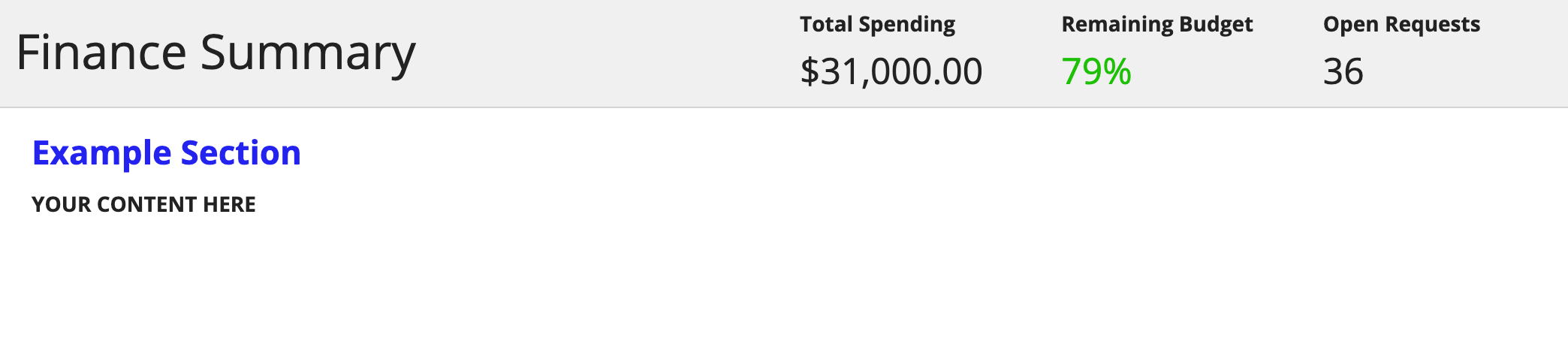

This example uses a card layout within the header content layout. It displays the following interface.
See the page on Card Layouts for more information on cards.
Copy and paste this example into an interface object to experiment with it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
a!headerContentLayout(
header: {
a!cardLayout(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: {
"Finance Summary"
},
size: "LARGE"
)
}
)
}
),
a!columnLayout(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "Total Spending",
value: {
a!richTextItem(
text: {
"$31,000.00"
},
size: "MEDIUM_PLUS"
)
}
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "Remaining Budget",
value: {
a!richTextItem(
text: {
"79%"
},
color: "POSITIVE",
size: "MEDIUM_PLUS"
)
}
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "Open Requests",
value: {
a!richTextItem(
text: {
"36"
},
size: "MEDIUM_PLUS"
)
}
)
}
)
},
alignVertical: "TOP"
)
}
)
},
alignVertical: "MIDDLE"
)
},
style: "STANDARD"
)
},
contents: {
a!sectionLayout(
label: "Example Section",
contents: {
a!textField(
label: "YOUR CONTENT HERE",
readOnly: true()
)
}
)
}
)
This example shows a pane layout within a billboard header content layout. It displays the following interface.
To experiment with examples, copy and paste the expression into an interface object.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
a!headerContentLayout(
header: {
a!billboardLayout(
backgroundMedia: a!documentImage(document: a!EXAMPLE_BILLBOARD_IMAGE()),
backgroundColor: "#f0f0f0",
marginBelow: "NONE",
overlay: a!fullOverlay(
alignVertical: "BOTTOM",
contents: {
a!cardLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "Properties / First Property / "),
a!richTextItem(text: "Messages", style: "STRONG"),
char(10),
char(10)
}
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "First Property",
size: "LARGE",
style: "STRONG"
),
char(10),
a!richTextItem(text: "Address, City, VA 99999"),
char(10)
}
)
)
},
alignVertical: "MIDDLE"
)
},
style: "TRANSPARENT",
padding: "NONE",
marginBelow: "NONE",
showBorder: false
)
},
style: "SEMI_DARK"
)
)
},
contents: a!paneLayout(
panes: {
a!pane(
contents: {
a!sectionLayout(
label: "",
contents: {
a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: a!richTextHeader(text: "Inbox")
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE",
marginAbove: "STANDARD",
marginBelow: "STANDARD"
)
},
height: "AUTO",
style: "TRANSPARENT",
marginBelow: "NONE",
showBorder: false
)
},
marginAbove: "EVEN_LESS",
marginBelow: "EVEN_LESS"
),
a!cardLayout(contents: {}, height: "EXTRA_TALL"),
a!cardLayout(contents: {}, height: "EXTRA_TALL")
},
width: "MEDIUM",
padding: "NONE"
),
a!pane(
contents: {
a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "Messages", size: "MEDIUM_PLUS")
},
preventWrapping: true
)
)
},
alignVertical: "MIDDLE"
)
},
height: "AUTO",
style: "#ffffff",
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "NONE",
showBorder: false
),
a!cardLayout(contents: {}, height: "EXTRA_TALL"),
a!cardLayout(contents: {}, height: "EXTRA_TALL"),
a!horizontalLine(marginAbove: "NONE", marginBelow: "NONE")
},
width: "AUTO",
backgroundColor: "GRAY",
padding: "STANDARD"
)
}
),
contentsPadding: "NONE"
)

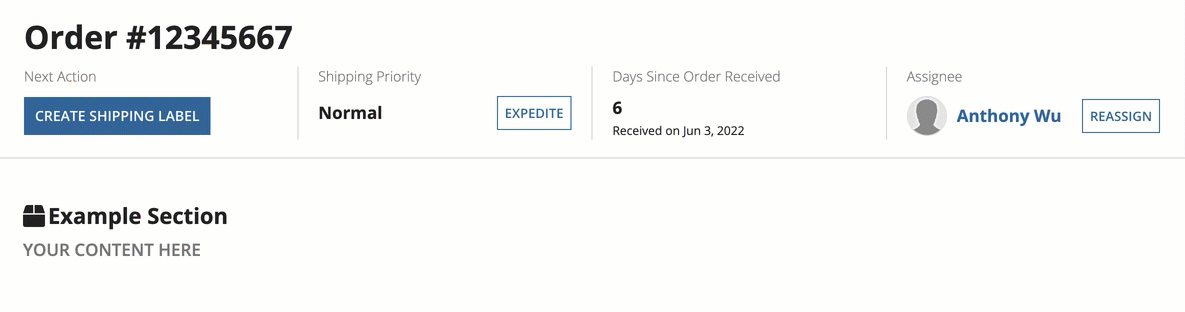

This example uses a fixed header within the header content layout. It displays the following interface.
Note that this pattern contains two empty a!cardLayout() components to help you see the scrolling behavior with a fixed header. These components have no other purpose.
See the SAIL Design System: Header Content Layout for more information on fixed headers.
Copy and paste this example into an interface object to experiment with it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
a!headerContentLayout(
header: {
a!cardLayout(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Order" & " " & "#12345667",
size: "LARGE",
style: "STRONG"
)
}
)
}
)
}
),
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Next Action",
color: "SECONDARY"
)
}
),
a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: if(
a!isPageWidth("TABLET_PORTRAIT"),
"Create Label",
"Create Shipping Label"
),
style: "SOLID"
)
},
align: "START",
marginBelow: "NONE"
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Shipping Priority",
color: "SECONDARY"
)
}
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Normal",
size: "MEDIUM",
style: "STRONG"
)
}
)
),
a!sideBySideItem(
item: a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "Expedite",
size: "SMALL"
)
},
align: "START",
marginBelow: "NONE"
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE",
stackWhen: "TABLET_PORTRAIT"
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Days Since Order Received",
color: "SECONDARY"
)
}
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: 6,
size: "MEDIUM",
style: "STRONG"
)
},
marginBelow: "NONE"
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: {
"Received on",
" ",
text(today()- 6, "MMM D, YYYY")
},
size: "SMALL"
)
}
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Assignee",
color: "SECONDARY"
)
}
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!imageField(
labelPosition: "COLLAPSED",
images: a!userImage(),
size: "TINY",
style: "AVATAR"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Anthony Wu",
link: a!userRecordLink(),
linkStyle: "STANDALONE",
size: "MEDIUM",
style: "STRONG"
)
},
preventWrapping: true
)
),
a!sideBySideItem(
item: a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "Reassign",
size: "SMALL"
)
},
align: "START",
marginBelow: "NONE"
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE",
stackWhen: "TABLET_PORTRAIT"
)
}
)
},
spacing: "SPARSE",
showDividers: true
)
},
padding: "STANDARD",
marginBelow: "MORE"
)
},
isHeaderFixed: if(a!isPageWidth("PHONE"),false,true),
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!sectionLayout(
label: "Example Section",
labelIcon: "box",
labelColor: "STANDARD",
contents: {
a!sectionLayout(
label: upper("Your content here"),
labelSize: "SMALL",
labelColor: "SECONDARY"
),
a!cardLayout(
contents: {},
height: "EXTRA_TALL",
style: "NONE",
marginBelow: "STANDARD",
showBorder: false
),
a!cardLayout(
contents: {},
height: "EXTRA_TALL",
style: "NONE",
marginBelow: "STANDARD",
showBorder: false
)
}
)
}
)
},
spacing: "SPARSE",
stackWhen: {"TABLET_LANDSCAPE", "TABLET_PORTRAIT", "PHONE"
}
)
}
)

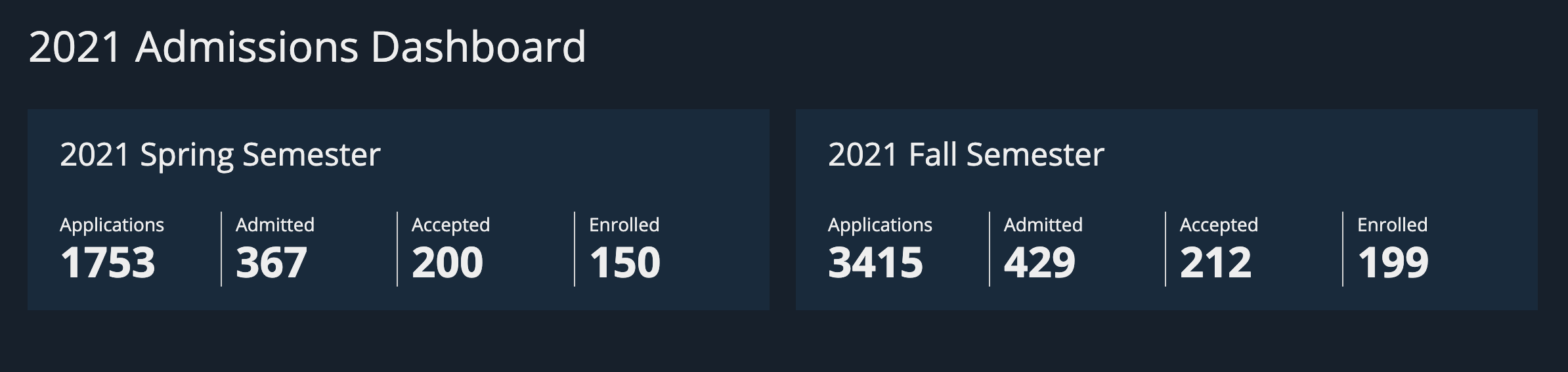

This example uses the navy color scheme within a header content layout. It displays the following interface.
Copy and paste this example into an interface object to experiment with it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
a!localVariables(
local!universityAdmissionsMetricsSpring: {
a!map(name: "Applications", totalCount: 1753),
a!map(name: "Admitted", totalCount: 367),
a!map(name: "Accepted", totalCount: 200),
a!map(name: "Enrolled", totalCount: 150)
},
local!universityAdmissionsMetricsFall: {
a!map(name: "Applications", totalCount: 3415),
a!map(name: "Admitted", totalCount: 429),
a!map(name: "Accepted", totalCount: 212),
a!map(name: "Enrolled", totalCount: 199)
},
a!headerContentLayout(
header:{},
contents:{
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value:
{
a!richTextItem(
text: {
"2021 Admissions Dashboard"
},
size: "LARGE"
),
char(10),
char(10)
}
),
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!cardLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "2021 Spring Semester",
size: "MEDIUM_PLUS"
),
char(10),
char(10)
}
),
a!columnsLayout(
columns: {
a!forEach(
items: local!universityAdmissionsMetricsSpring,
expression: a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: fv!item.name,
color: "STANDARD"
),
char(10),
a!richTextItem(
text: fv!item.totalCount,
size: "LARGE",
style: "STRONG"
)
}
)
}
)
)
},
showDividers: true
)
},
style: "NAVY_SCHEME",
padding: "STANDARD",
marginBelow: "STANDARD",
showBorder: false
)
}
),
a!columnLayout(
contents: {
a!cardLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "2021 Fall Semester",
size: "MEDIUM_PLUS"
),
char(10),
char(10)
}
),
a!columnsLayout(
columns: {
a!forEach(
items: local!universityAdmissionsMetricsFall,
expression: a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: fv!item.name,
color: "STANDARD"
),
char(10),
a!richTextItem(
text: fv!item.totalCount,
size: "LARGE",
style: "STRONG"
)
}
)
}
)
)
},
showDividers: true
)
},
style: "NAVY_SCHEME",
padding: "STANDARD",
marginBelow: "STANDARD",
showBorder: false
)
}
)
}
)
},
backgroundColor: "NAVY_SCHEME"
)
)
This example uses the contentsWidth parameter to center content on wide monitors. The header spans the full page while the contents are constrained to a "WIDE" column.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
a!headerContentLayout(
header: {
a!billboardLayout(
backgroundMedia: a!documentImage(
document: a!EXAMPLE_BILLBOARD_IMAGE()
),
backgroundColor: "#f0f0f0",
height: "SHORT",
marginBelow: "NONE",
overlay: a!barOverlay(
position: "BOTTOM",
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "Dashboard",
size: "LARGE"
)
}
)
},
style: "DARK"
)
)
},
contents: {
a!sectionLayout(
label: "Example Section",
contents: {
a!textField(
label: "YOUR CONTENT HERE",
readOnly: true()
)
}
)
},
contentsWidth: "WIDE"
)
This example uses the footer parameter to display a card at the bottom of the page. When the page content is short, the footer anchors to the bottom of the page.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
a!headerContentLayout(
header: {
a!cardLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "My Application",
size: "LARGE",
style: "STRONG"
)
}
)
},
style: "STANDARD"
)
},
contents: {
a!sectionLayout(
label: "Example Section",
contents: {
a!textField(
label: "YOUR CONTENT HERE",
readOnly: true()
)
}
)
},
footer: {
a!cardLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: "© 2026 My Company. All rights reserved.",
color: "SECONDARY",
size: "SMALL"
)
}
)
},
style: "STANDARD",
showBorder: false
)
}
)
