Install Automobile LOB Module - PostgreSQL

Prepare for installation

The Automobile LOB add-on module ships as a separate self-contained application that can be incorporated with your Connected Claims Base application. After installation and setup, this module allows your organization to rapidly deploy a line of business-specific records that enable your teams to configure automobile insurance products in Studio.

This guide outlines the steps for downloading and installing the Automobile LOB add-on module before incorporating it with your Connected Claims Base application.

Before starting the installation process, review the System Prerequisites to make sure all minimum requirements are met.

System prerequisites

• Appian platform running version 26.6 or greater.
• An Appian Cloud environment with the advanced or premium platform tiers.
• A supported version of PostgreSQL as a business data source.
  • Note: The PostgreSQL database name must be jdbc/CCM
• A supported web browser.
• Imported Connected Claims Management Base Application version 2.0 and higher, which includes the following application containers:
  • Connected Claims Management Base (CCM)
  • CCM Studio Generated Objects
• Imported Survey Task Framework v1.2 application.

Download the software package

Download the software package for the Automobile LOB add-on module, which contains the following files. You use these files when you install the module.

• PostgresConnectedClaimsManagementAddOnCategoryAutomobilev1.2.0.sql
• PostgresConnectedClaimsManagementAddOnCategoryAutomobilev1.2.0.zip

To download the software package:

1. In My Appian, navigate to the Support tab.
2. Select DOWNLOADS > SOLUTIONS.
3. Search for and open Appian Connected Claims.
4. Under Downloads, click Appian Connected Claims and agree to the License Agreement.
5. Click Postgres CCM Add-On: LOB Automobile to download the ZIP file.
6. Unzip PostgresConnectedClaimsManagementAddOnCategoryAutomobilev1.2.0.zip to access the installation files.

Import the application

Import the Automobile LOB application files into the target environment.

To import the database script:

1. Run the PostgresConnectedClaimsManagementAddOnCategoryAutomobilev1.2.0.sql DDL script that you downloaded when you downloaded the software package in your PostgreSQL business database.

To import the application files:

1. In the target environment, log in as the deployment user.
2. Navigate to the Appian Designer.
3. Click IMPORT, then UPLOAD to choose the application zip file.
4. Click INSPECT to check for problems before you import.
5. Click IMPORT.

   Note:  The import can time out because of the file size. If the import times out, it continues in the background.

6. Review the import results and verify the CCM Add On: Automobile AI Features (CCM_AI) application container was imported.

Set up the record source for PostgreSQL

Perform the following steps to set up the record source for the category automobile module application.

1. In the target environment, navigate to Appian Designer.
2. Search for and open the CCM Add-on: Category Automobile application.

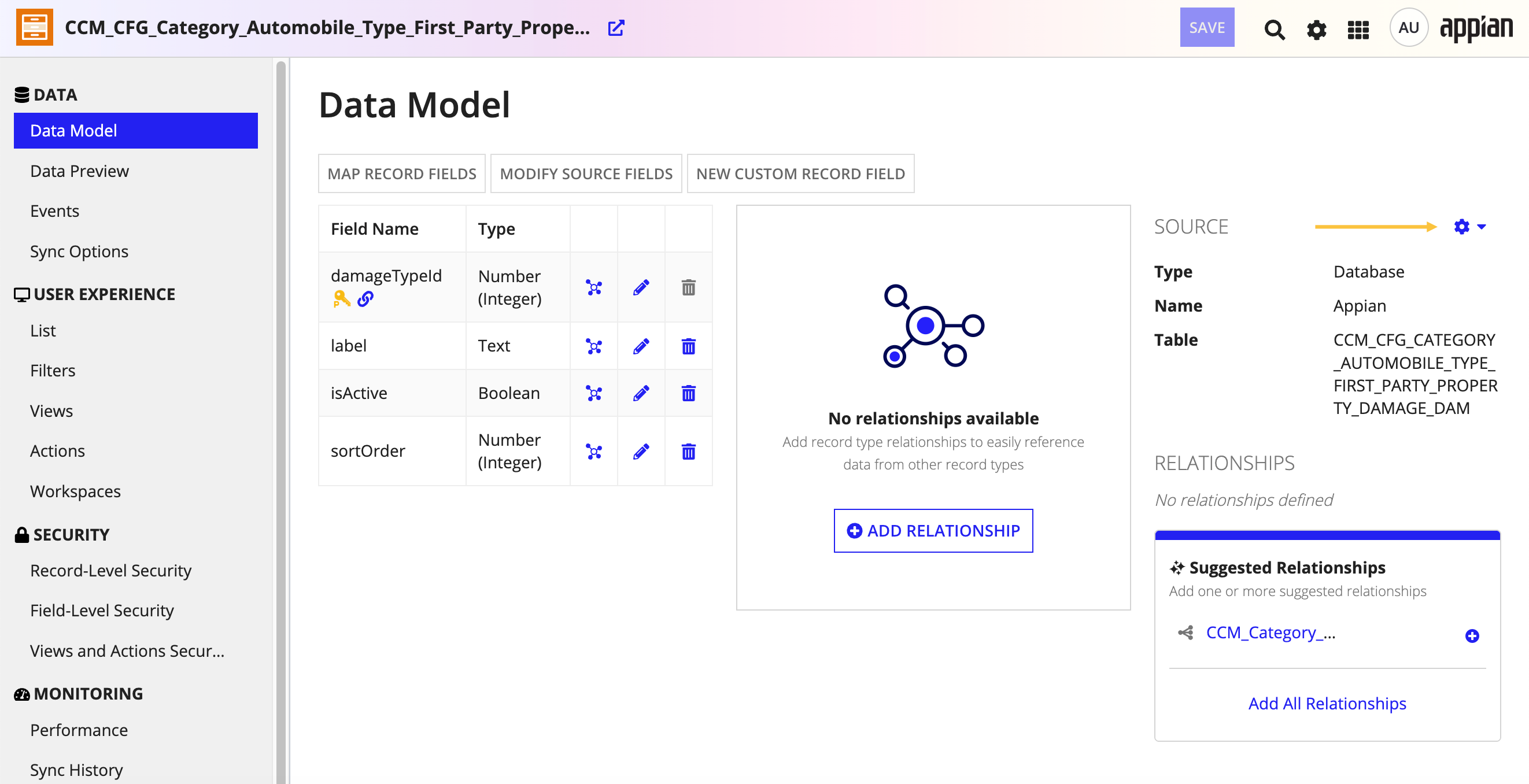

3. Search for and open the CCM_CFG_Category_Automobile_Type_First_Party_Property_Damage_DamageType record type.
   1. Select the Data Model tab.

   2. Select the SOURCE configuration icon.



      1. Select Change Database Table from the dropdown.
      2. Select the CCM_CFG_CATEGORY_AUTOMOBILE_TYPE_FIRST_PARTY_PROPERTY_DAMAGE_DA database table, which maps to the record type.
   3. Click FINISH.
4. Click SAVE.

5. Repeat steps 3-4 for the following record types and map each to its respective table name:

   • CCM_CFG_Category_Automobile_Type_First_Party_Property_Damage_VehicleCondition: CCM_CFG_CATEGORY_AUTOMOBILE_TYPE_FIRST_PARTY_PROPERTY_DAMAGE_VEH
   • CCM_CFG_Category_Automobile_Type_Property_Damage_And_Liability_DamageType: CCM_CFG_CATEGORY_AUTOMOBILE_TYPE_PROPERTY_DAMAGE_AND_LIABILITY_D

Set up the module after installation

After you install the Automobile LOB add-on module, follow the steps in Setting Up the Automobile LOB to start using this capability with Connected Claims.
