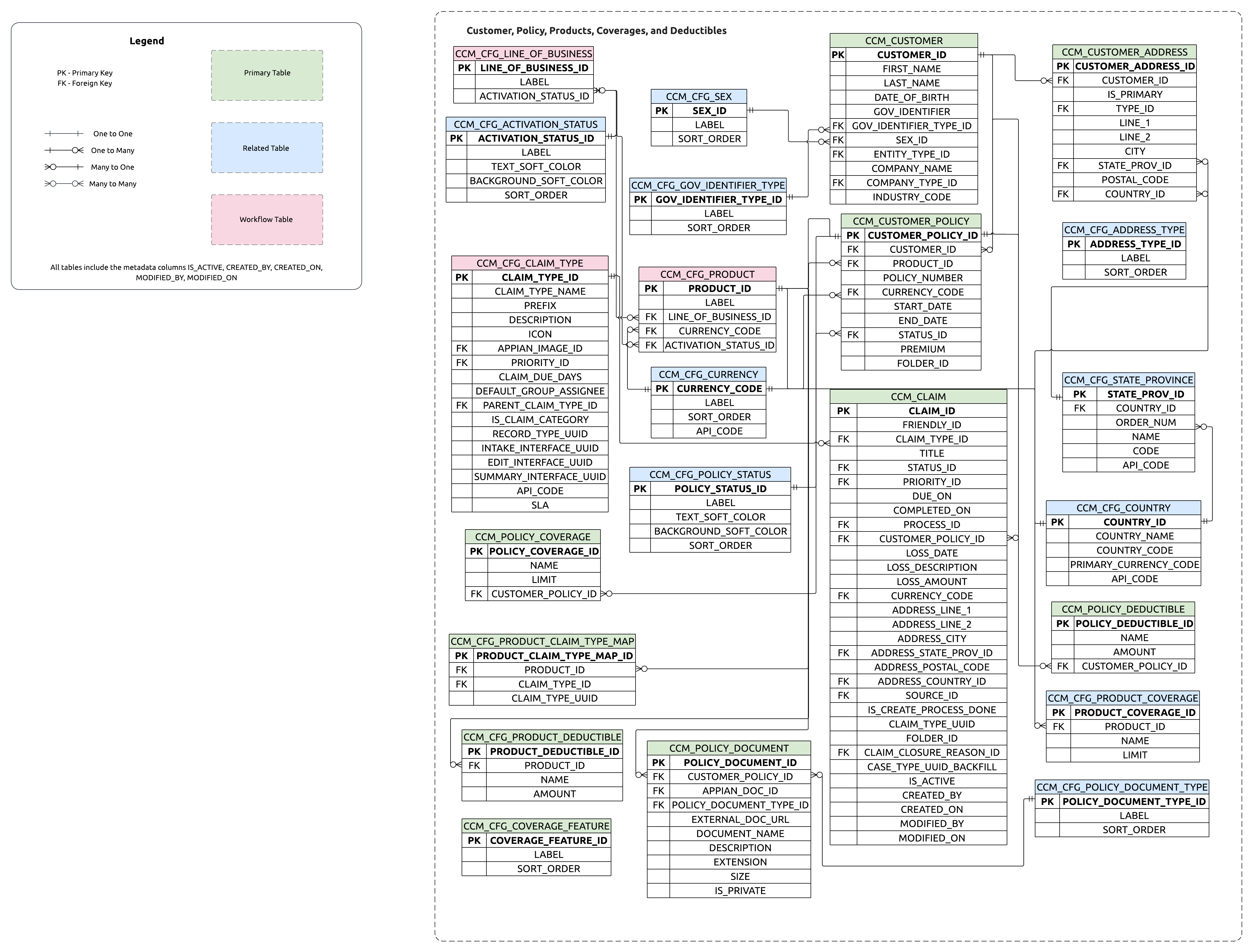

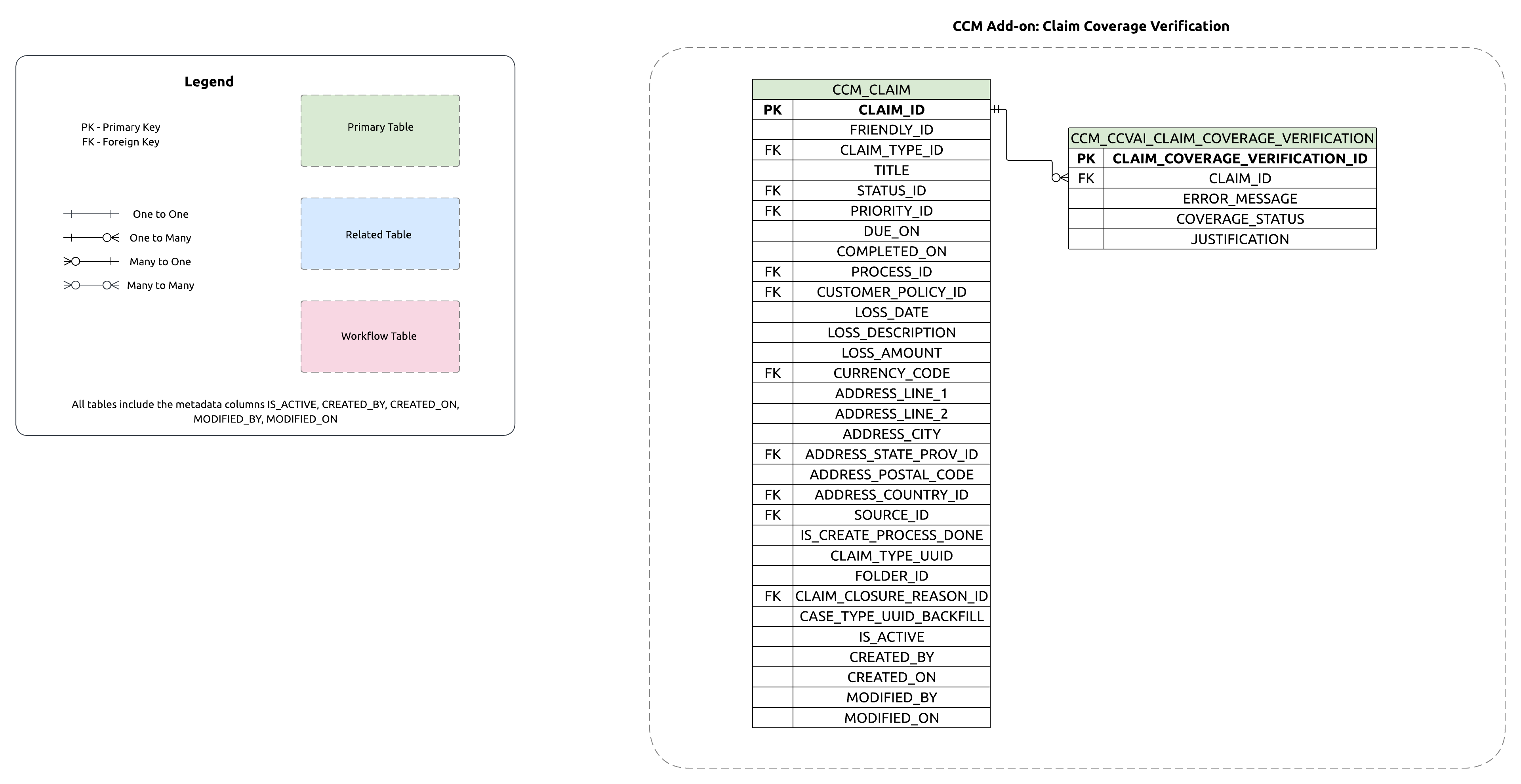

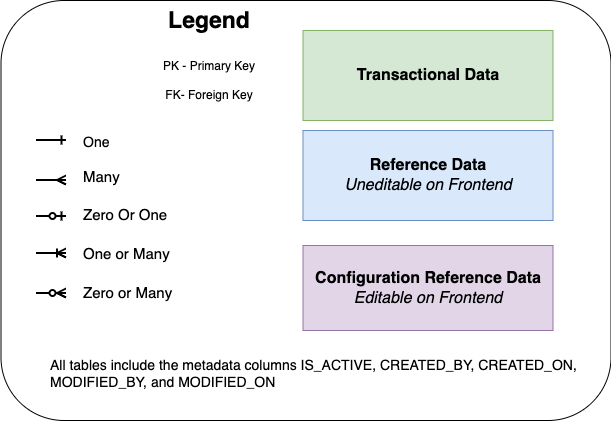

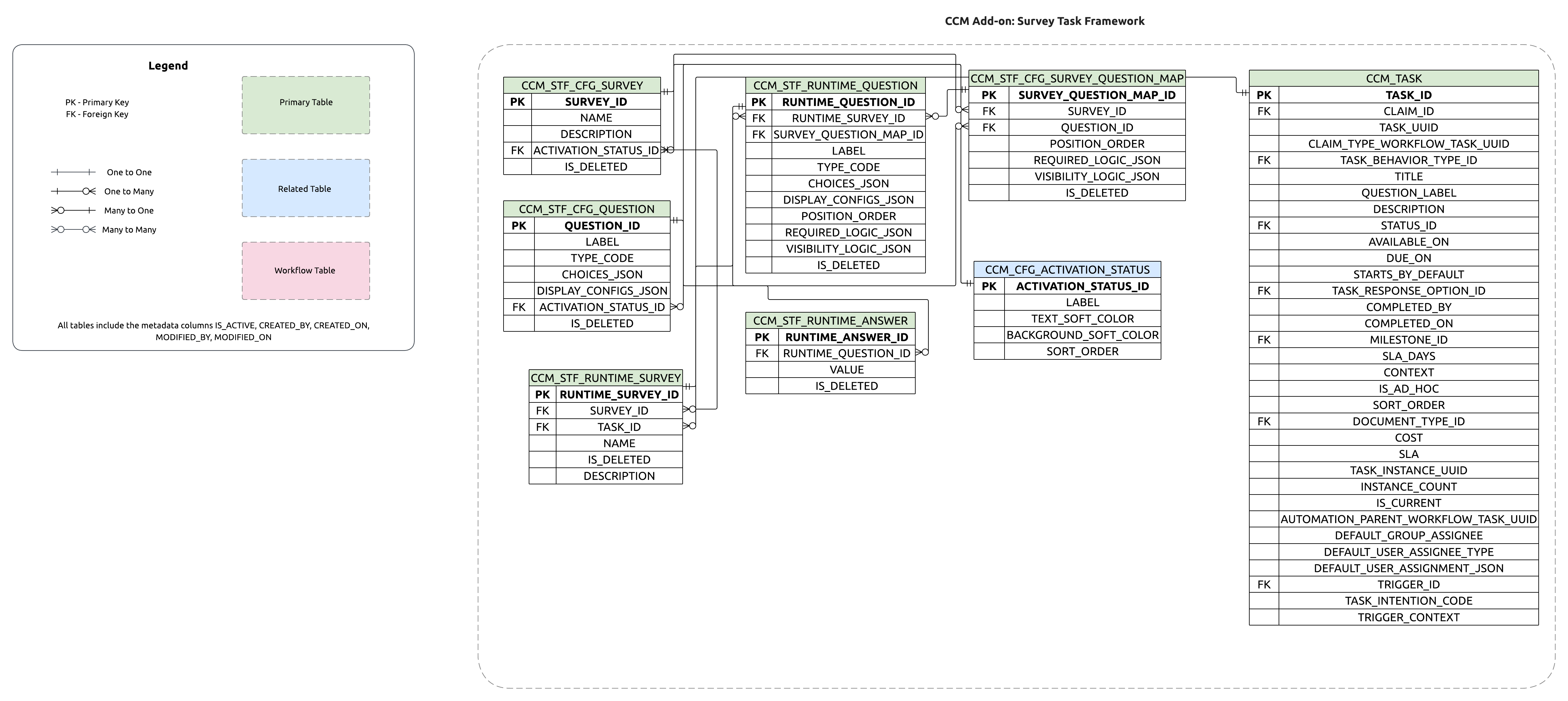

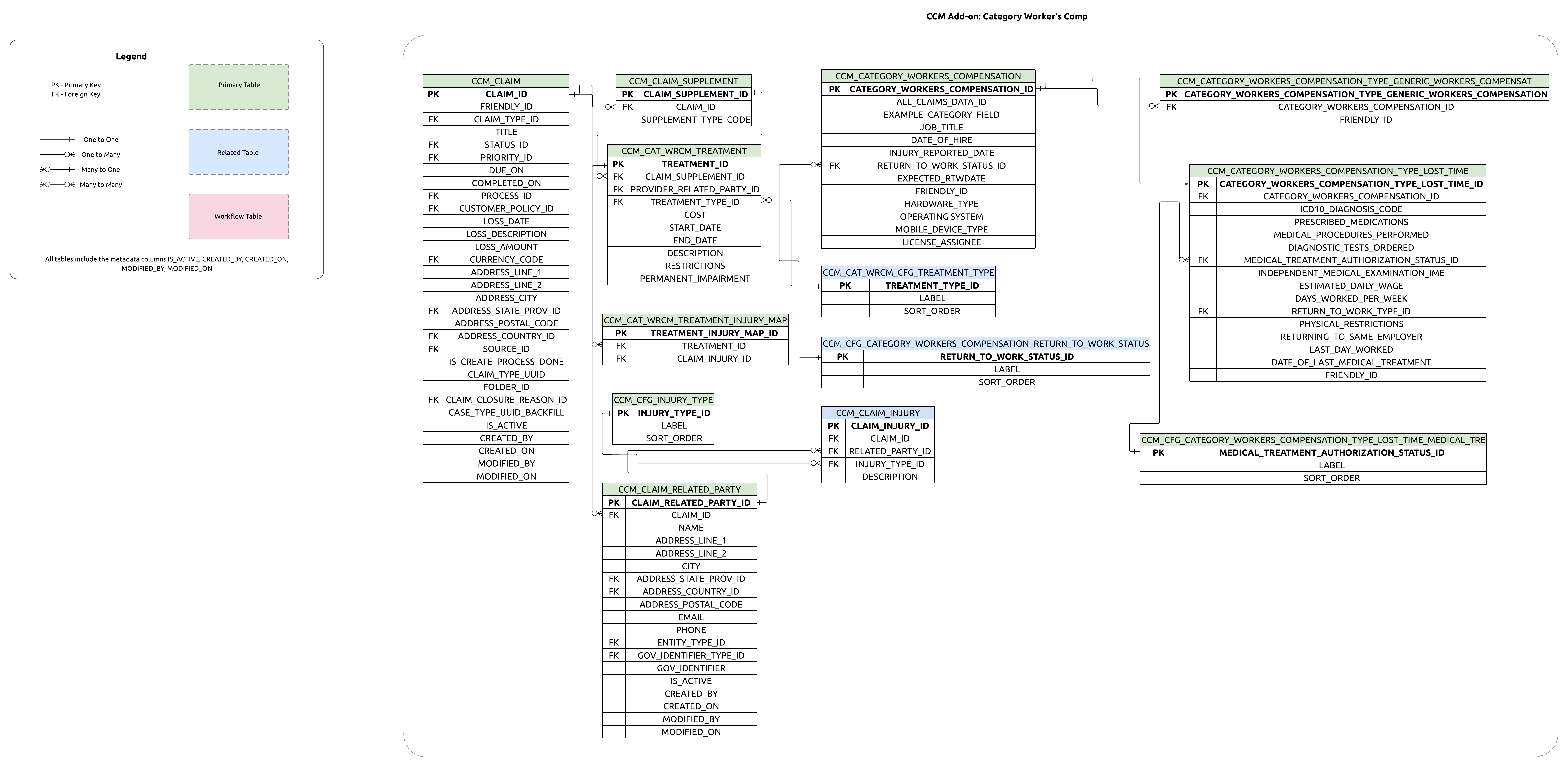

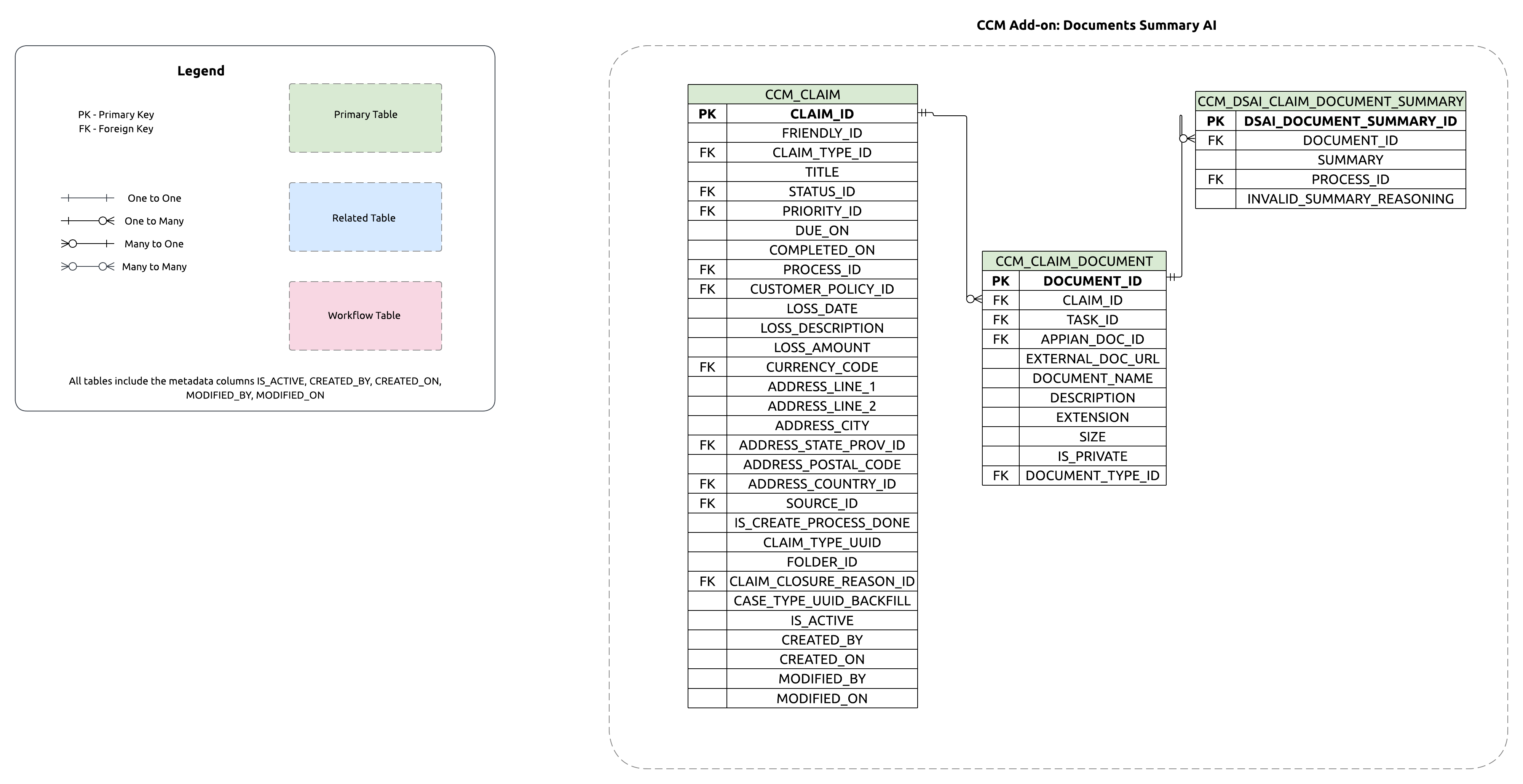

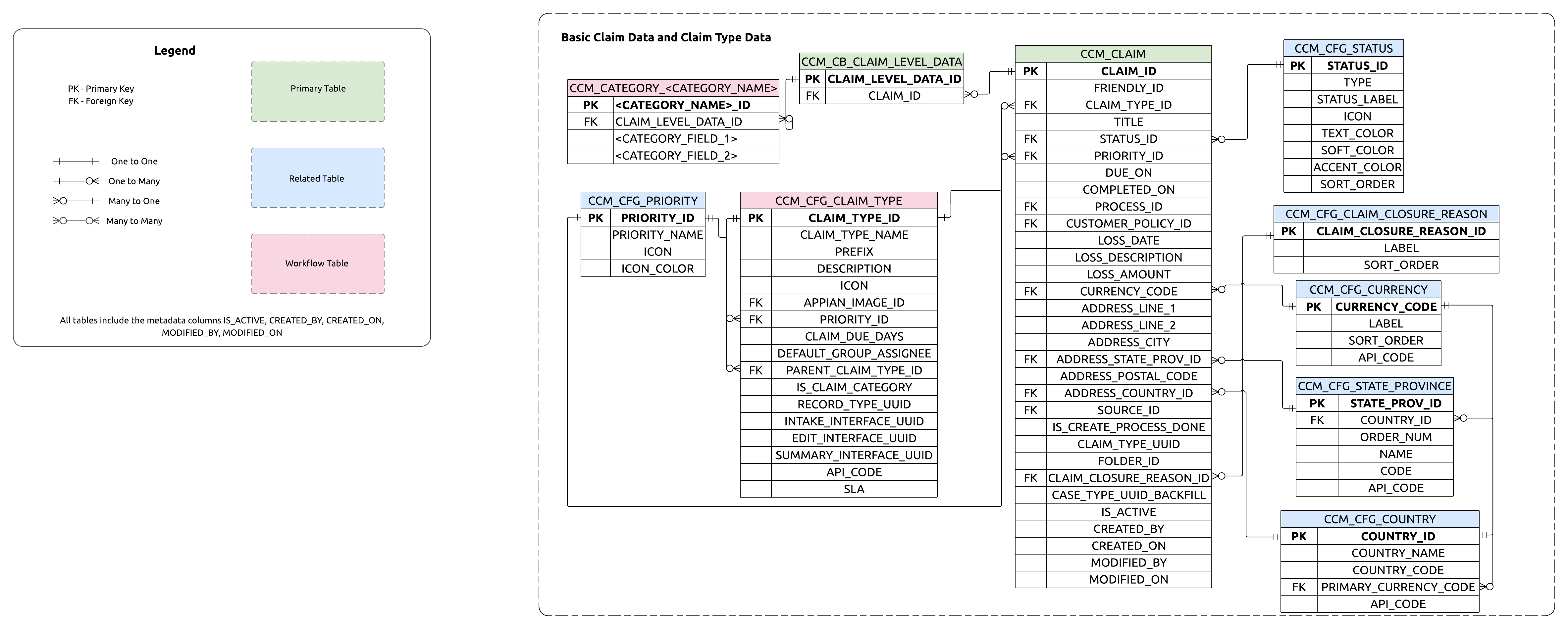

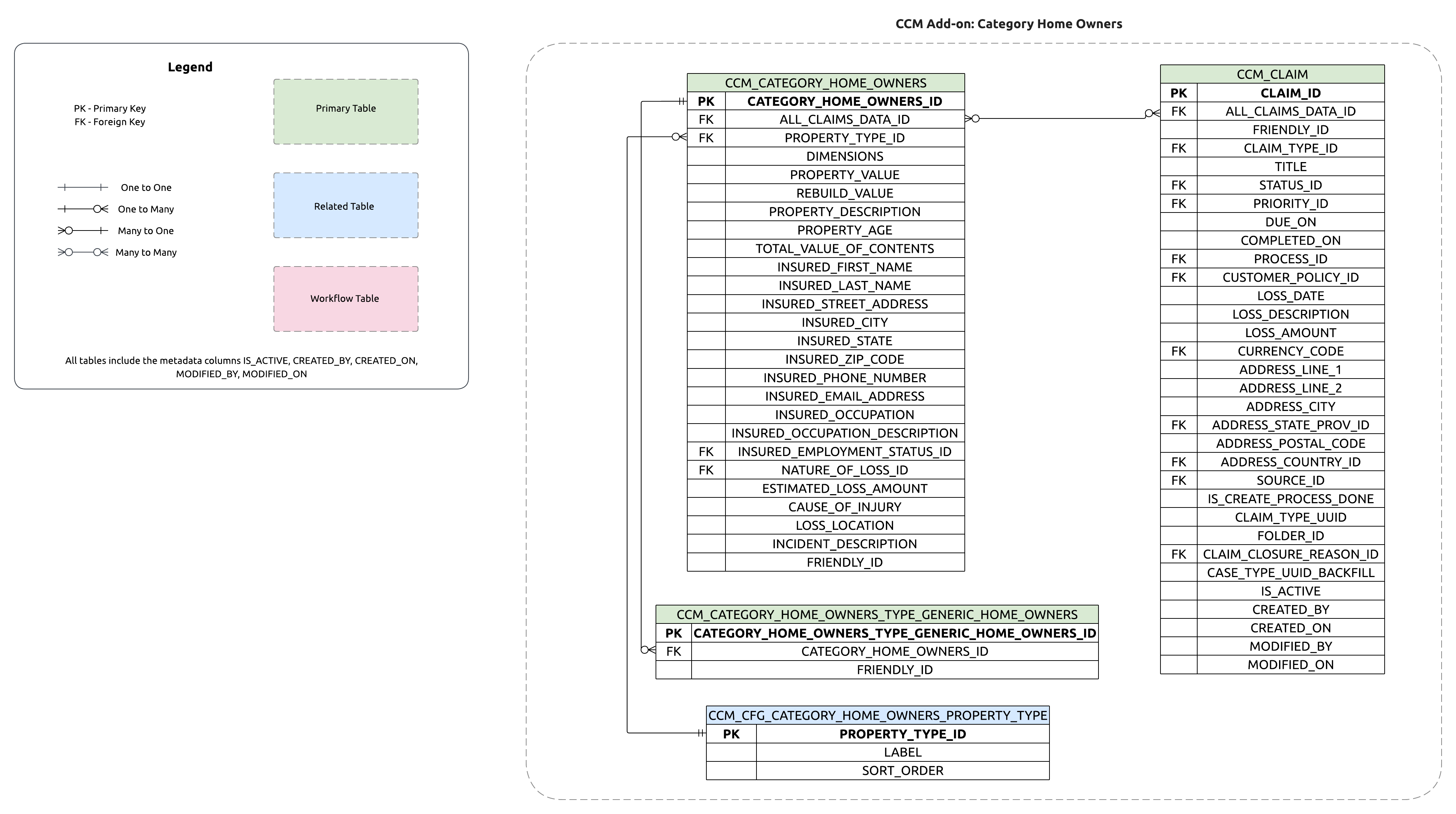

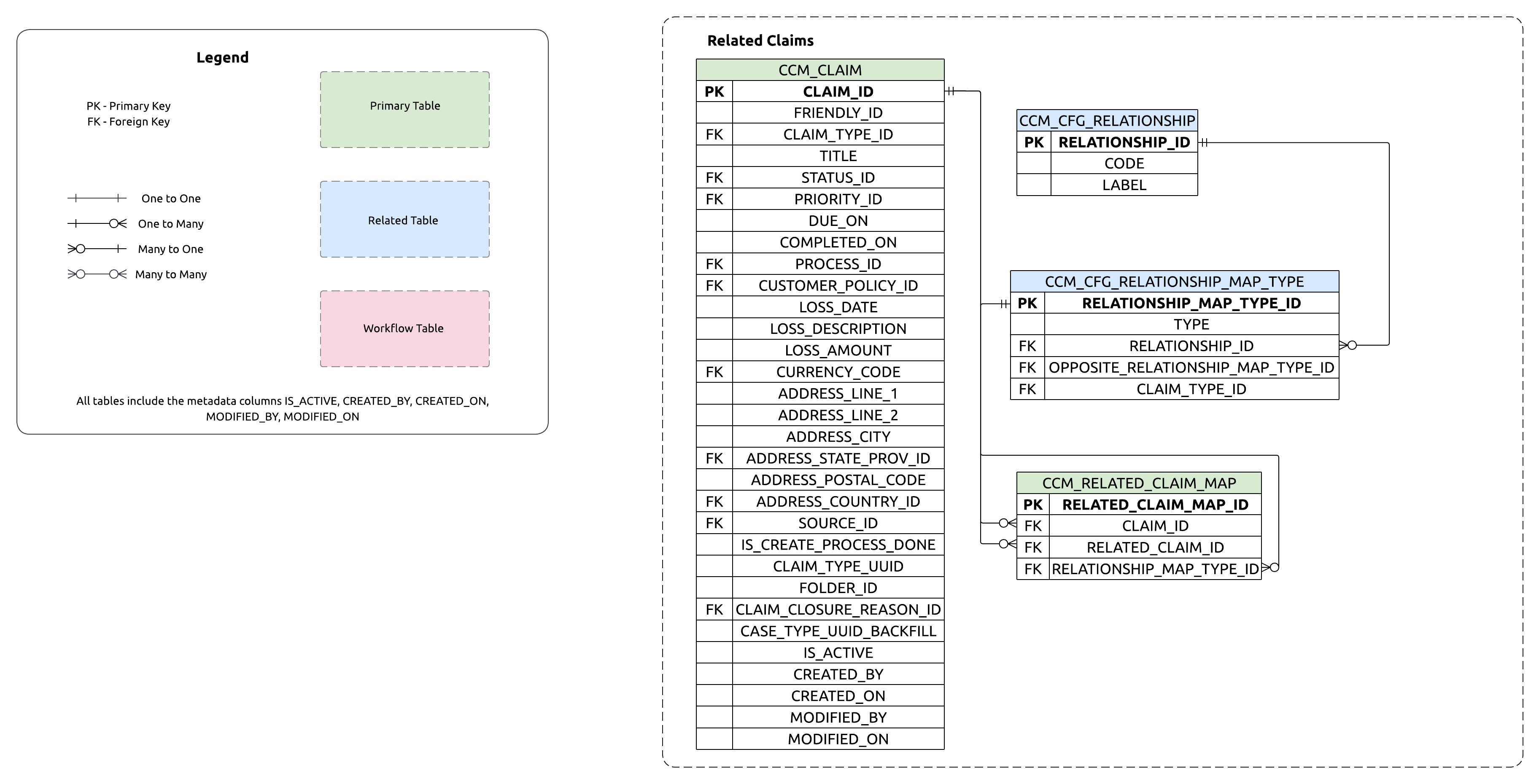

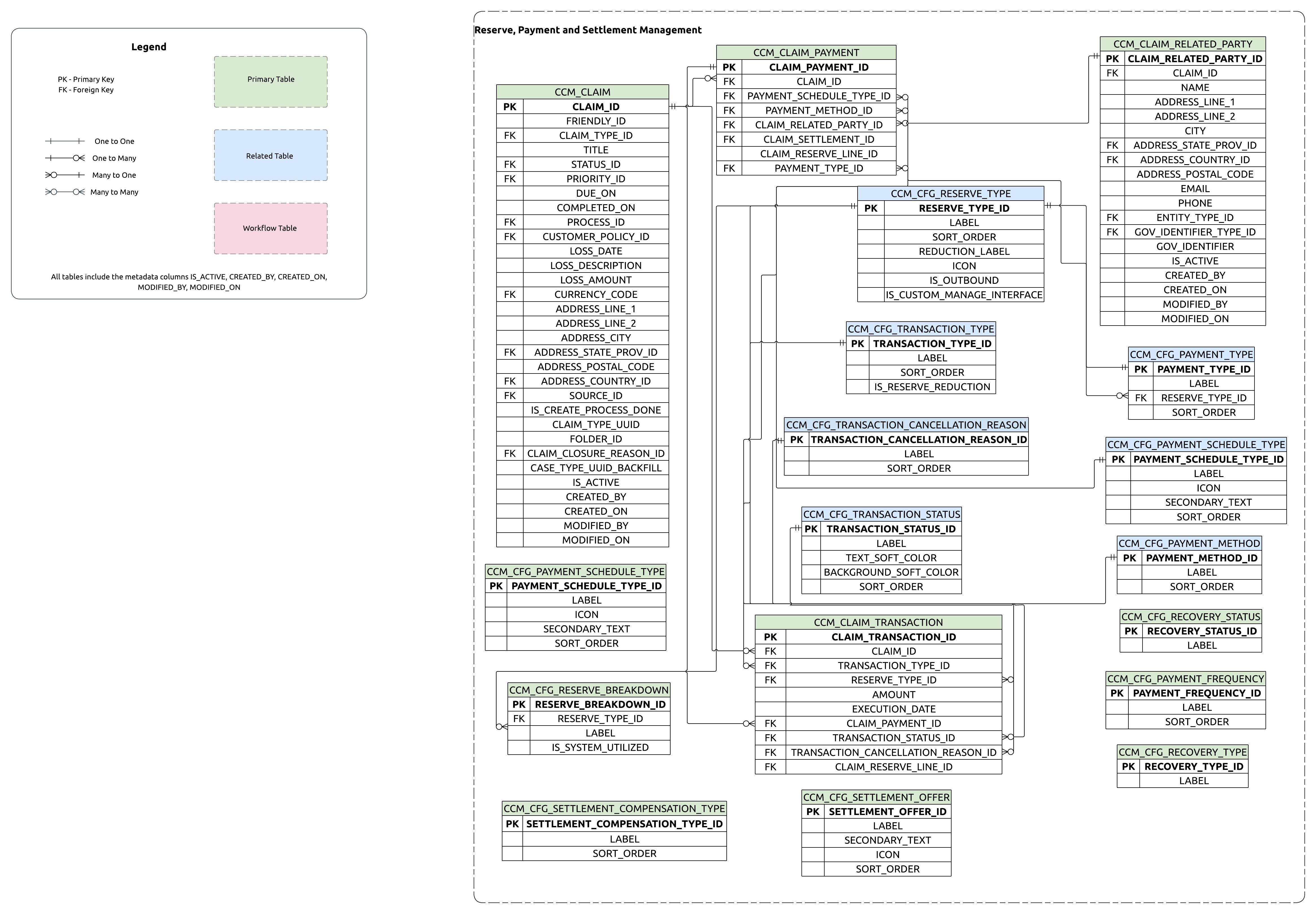

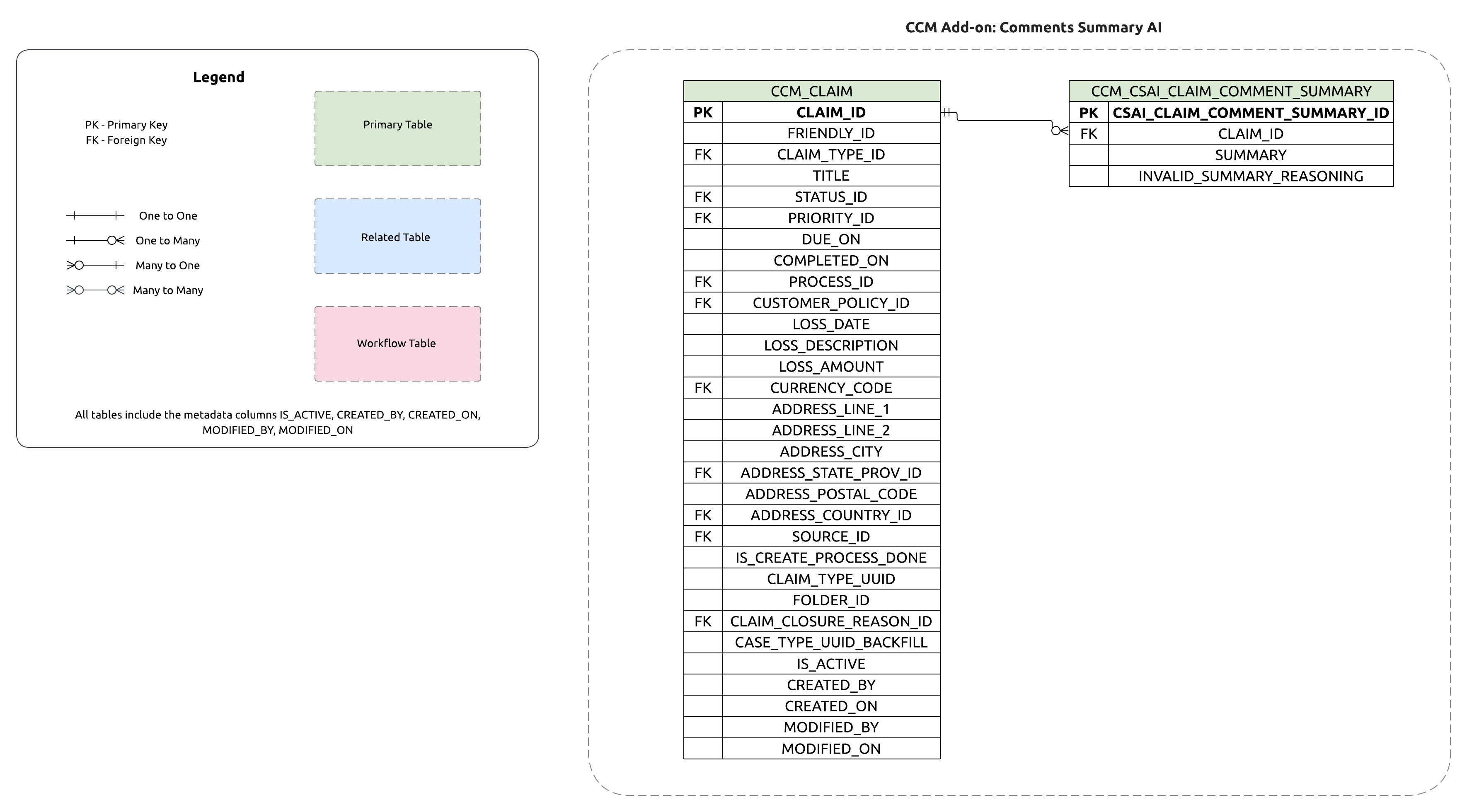

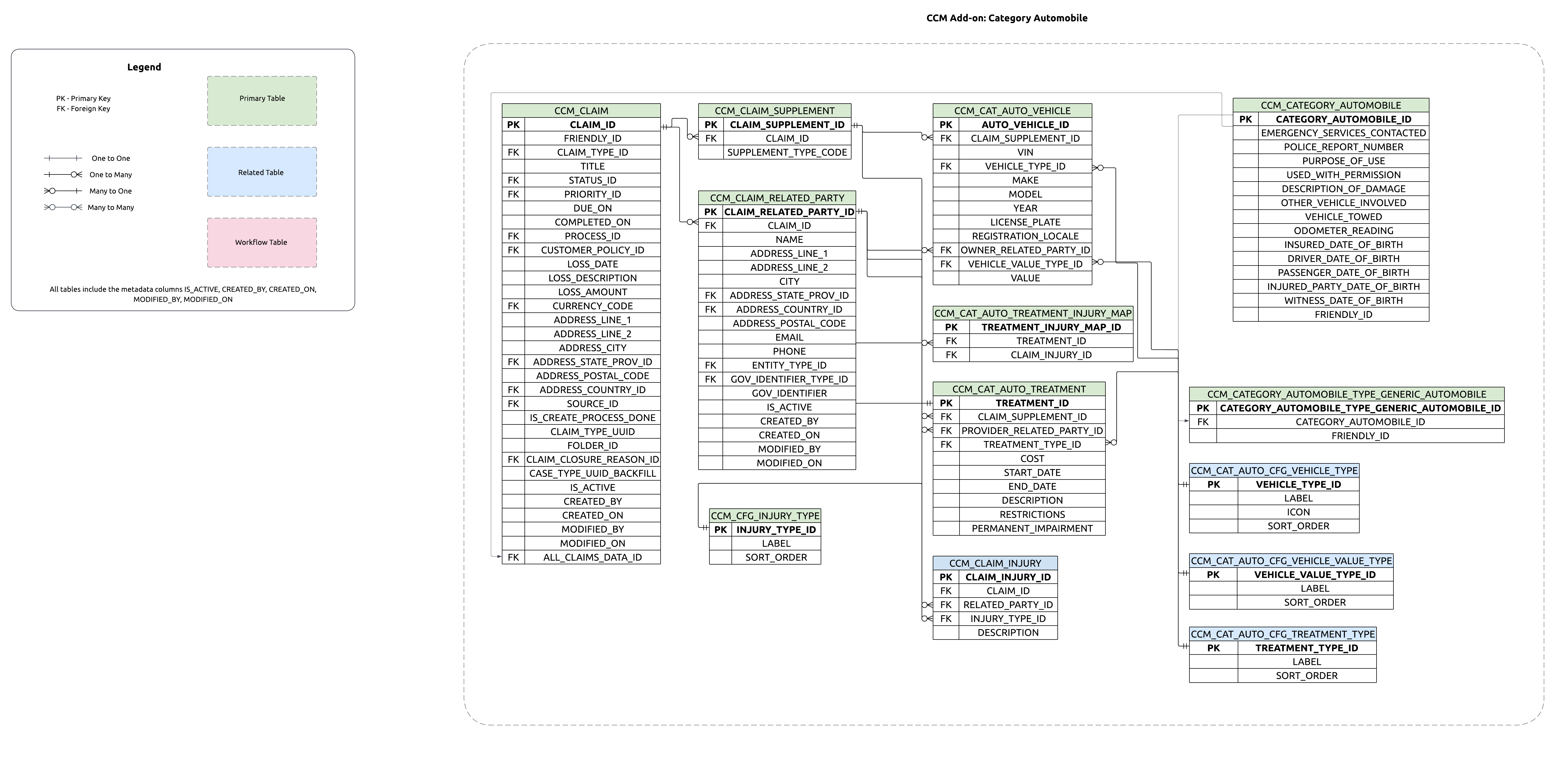

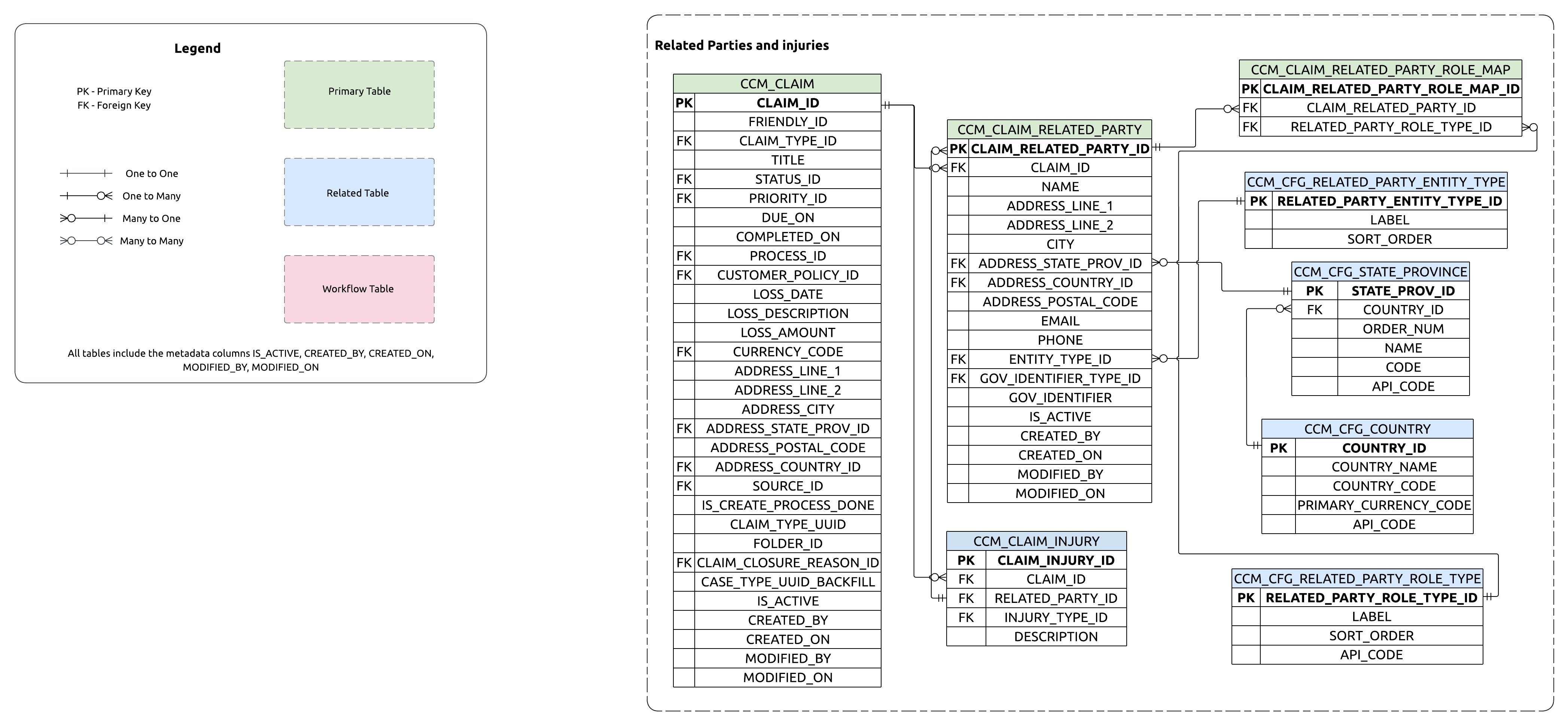

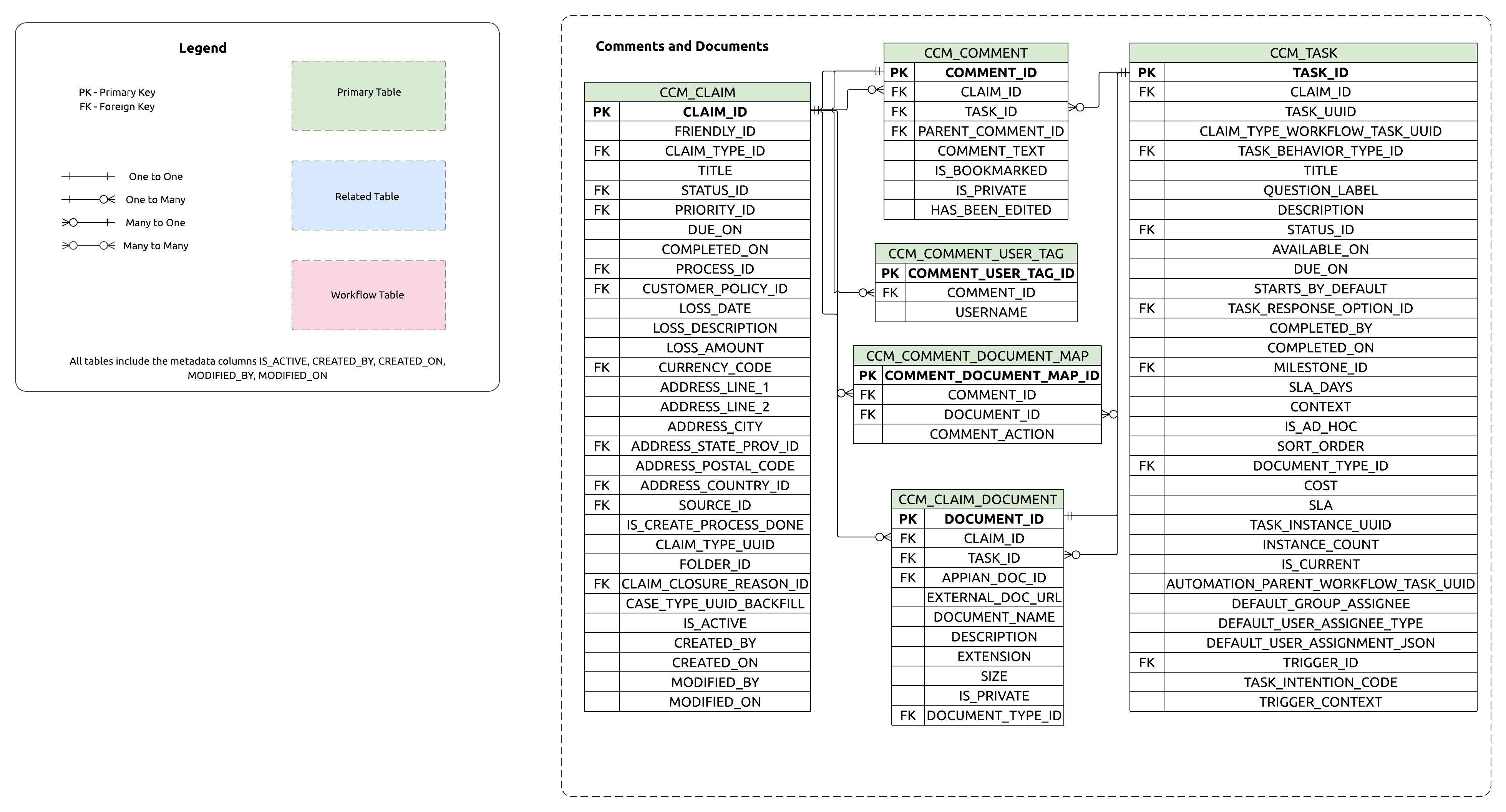

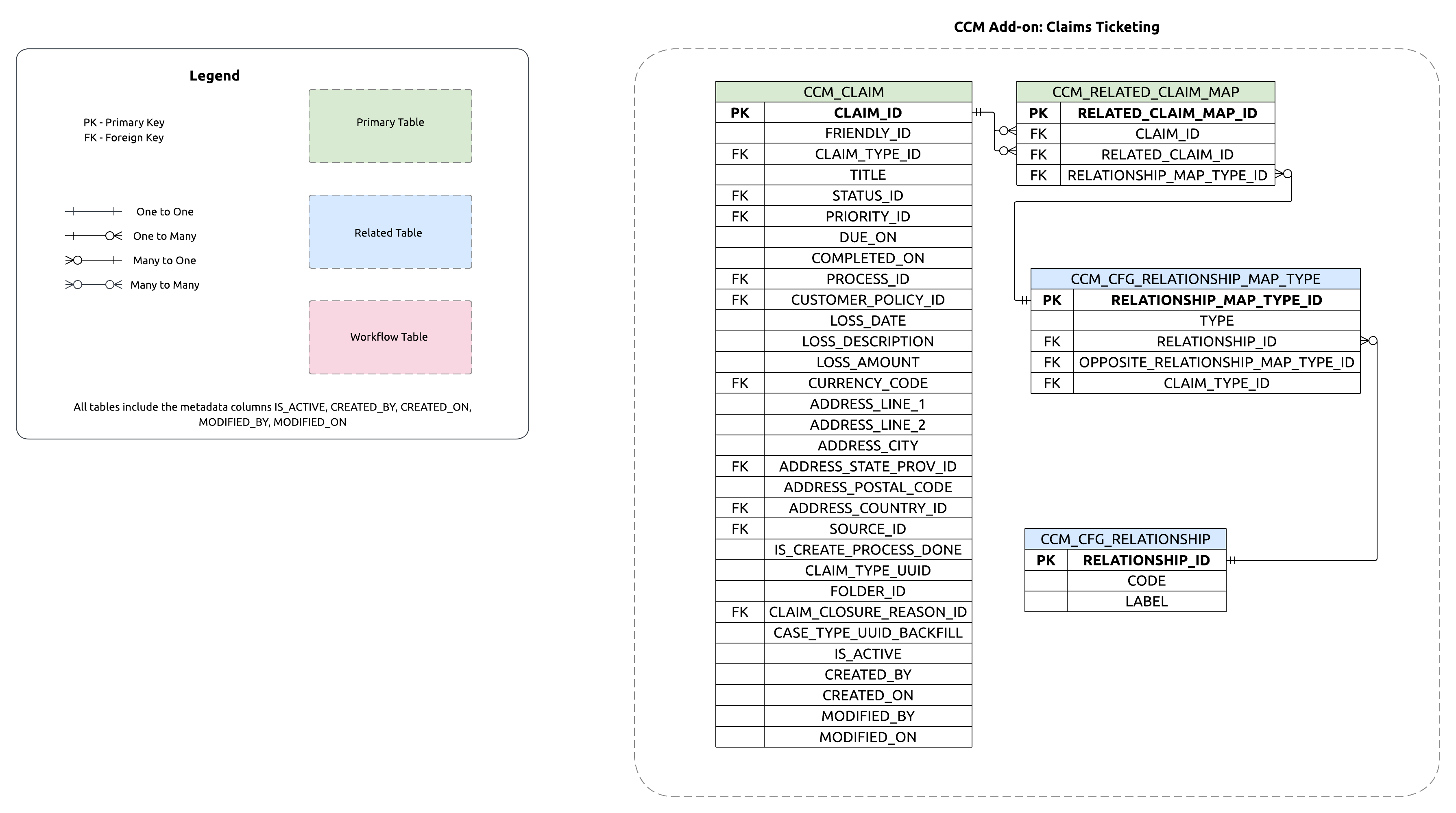

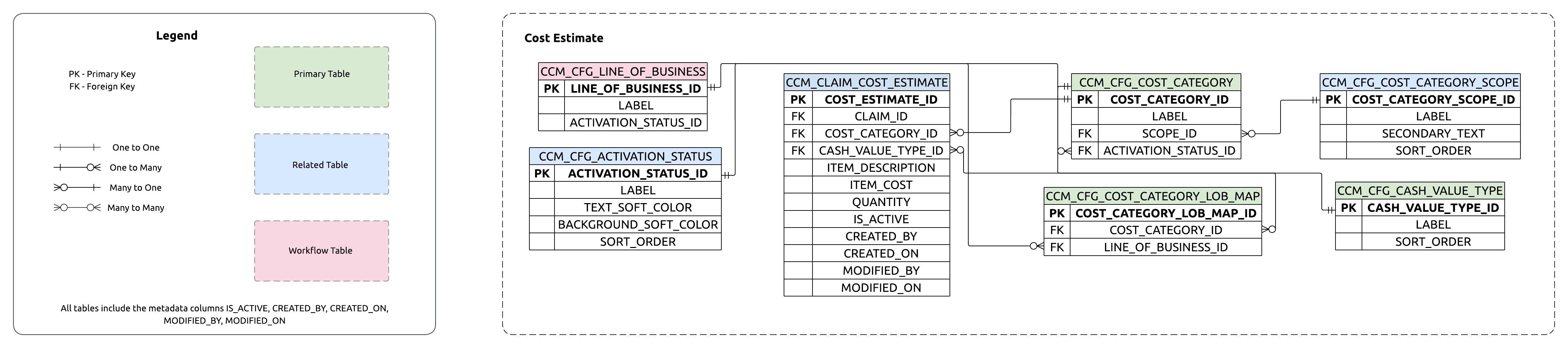

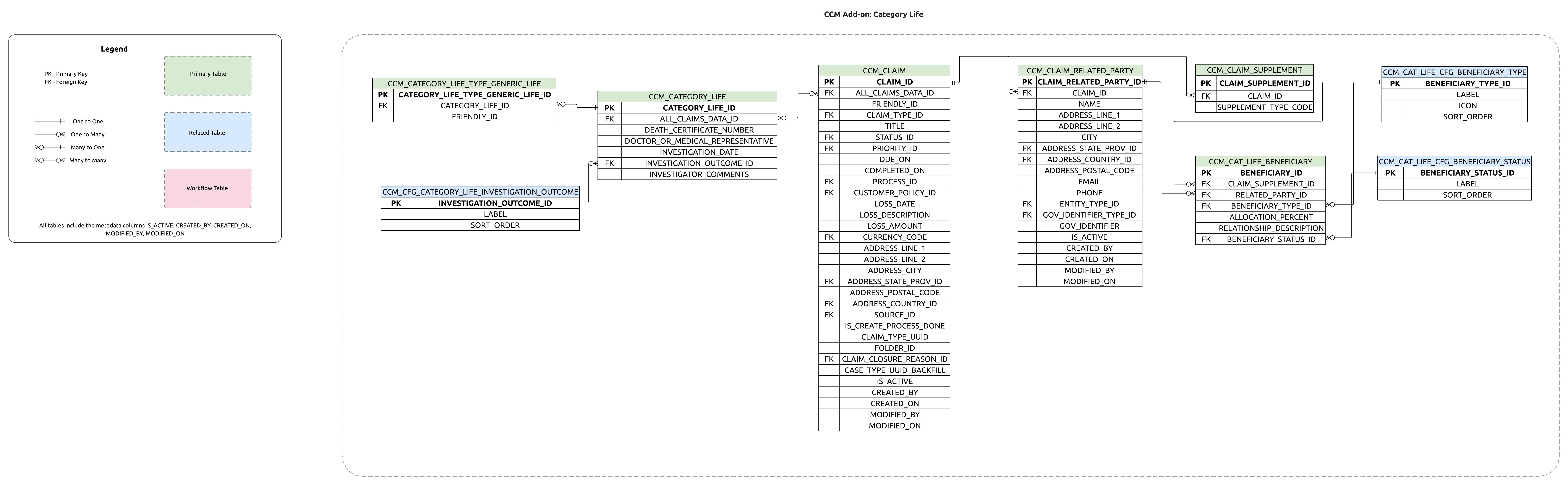

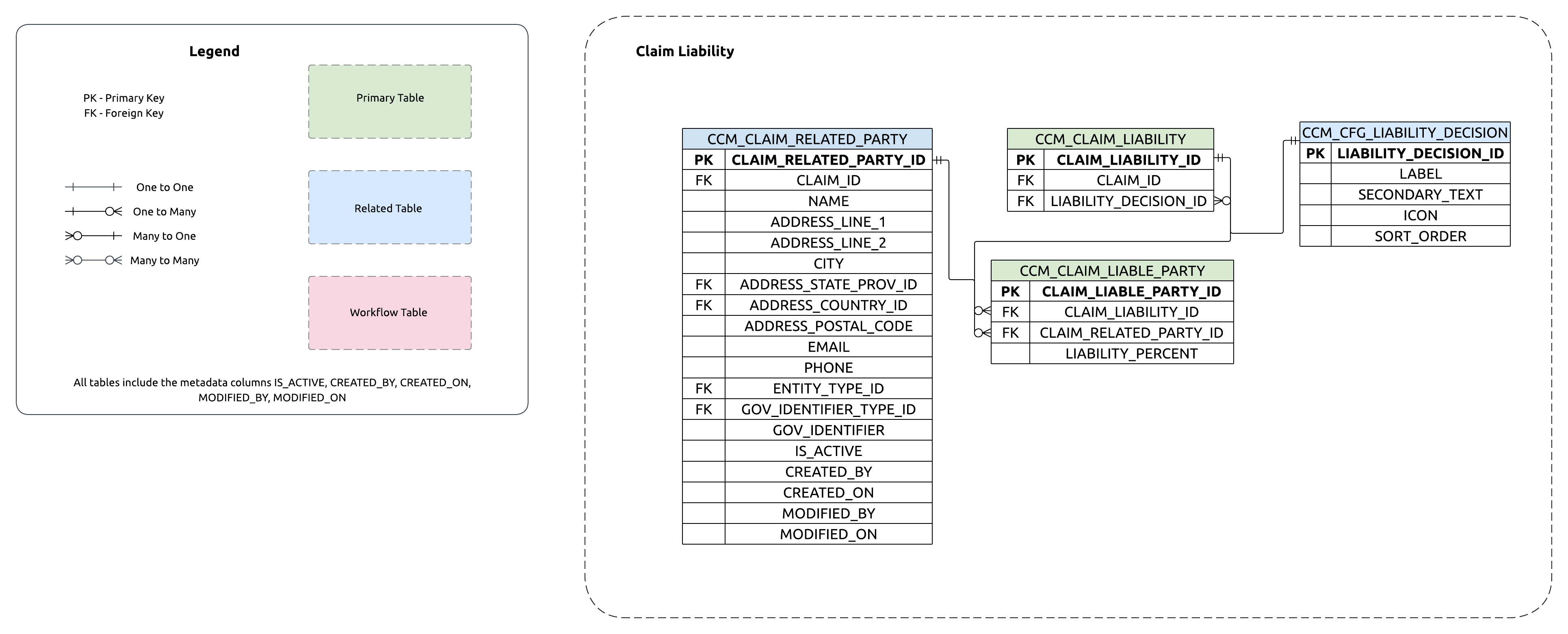

View this page in the latest version of Appian. Data Relationships Share Share via LinkedIn Reddit Email Copy Link Print On This Page This content applies solely to Connected Claims, which must be purchased separately from the Appian base platform. This content was written for Appian 26.6 and may not reflect the interfaces or functionality of other Appian versions. How do the data entities relate? The central record types and database entities in Connected Claims are associated with claims, claim types, and claim categories. Understanding the relationships between these entities helps you understand how the data in Connected Claims works together. The entity relationship diagrams (ERDs) on this page illustrate the main entities in Connected Claims and their relationships to each other. To read an ERD more easily, save each image as a PNG file and print it. The following legend uses diagram symbols, notations, and colors to indicate the different relationship types and data types in the ERDs: Primary key (PK): Labels the field that uniquely identifies a record in an entity. Foreign key (FK): Labels the field that links an entity to another entity. One: The relationship connects to exactly one record. Many: The relationship connects to multiple records. Zero or one: The relationship connects to no record or one record. One or many: The relationship connects to at least one record. Zero or many: The relationship connects to no record or to multiple records. Transactional data (green): Entities that hold transactional data. Reference data (blue): Entities that hold reference data, which is not editable in the Connected Claims interface. Configuration reference data (purple): Entities that hold reference data, which is editable in the Connected Claims interface. Metadata columns: All tables include the metadata columns IS_ACTIVE, CREATED_BY, CREATED_ON, MODIFIED_BY, and MODIFIED_ON. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close The following ERD illustrates the main data relationships in the Connected Claims base application (Connected Claims Management Base). Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Claims ERDs The Claims ERDs are drill-down views of each major relationship group in Connected Claims. Each ERD shows the relationships between the Claim entity (the Claim parent) and its child complex data types (CDTs). The ERDs cover the following CDT groups: Basic Claim Data, Claim Type Data, and Claim Supplemental Data Customer, Policy, Products, Coverages, and Deductibles Related Claims Related Parties and Injuries Comments and Documents Reserve, Payment, and Settlement Cost Estimate Claim Liability Each ERD also shows the tables that Connected Claims uses for the reference list of all claims. Basic Claim Data ERD This ERD illustrates the relationships between the Claim parent and the Basic Claim Data, Claim Type Data, and Claim Supplemental Data CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Customer, Policy, Products, Coverages, and Deductibles ERD This ERD illustrates the relationships between the Claim parent and Customer, Policy, Products, Coverages, and Deductibles CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Related Claims ERD This ERD illustrates the relationships between the Related Claims CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Related Parties and Injuries ERD This ERD illustrates the relationships between the Claim parent and the child Related Parties and Injuries CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Comments and Documents ERD This ERD illustrates the relationships between the Claim parent and the child Comments and Documents CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Reserve, Payment, and Settlement ERD This ERD illustrates the relationships between the Claim parent and the child Reserve, Payment, and Settlement CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Cost Estimate ERD This ERD illustrates the relationships between the Claim parent and the child Cost Estimate CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Claim Liability ERD This ERD illustrates the relationships between the Claim parent and the child Claim Liability CDTs. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close ERDs for the add-on modules The ERDs in this section illustrate the relationships between the Claim parent and the child CDTs of each Connected Claims add-on module. Each ERD applies only if you installed that add-on module and integrated it with Connected Claims. AI Claim Comment Summary ERD This ERD illustrates the relationships between the Claim parent and the child AI Claim Comment Summary CDTs, which aggregate and summarize claim discussion comments. The ERD applies only if you installed the AI Claim Comment Summary add-on module. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close AI Claim Document Summary ERD This ERD illustrates the relationships between the Claim parent and the child AI Claim Document Summary CDTs, which support AI-driven document summarization. The ERD applies only if you installed the AI Claim Document Summary add-on module. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Surveys and Questions ERD This ERD illustrates the relationships between the Claim parent and the child Surveys and Questions CDTs, which create, assign, and process claim survey tasks. The ERD applies only if you installed the Surveys and Questions add-on module. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close LOB supplement ERDs The ERDs in this section illustrate the relationships between the Claim parent and the child line of business (LOB) supplement add-on modules. Each ERD applies only if you installed the matching LOB supplement module. Automobile LOB supplement ERD This ERD illustrates the relationships between the Claim parent and the child Automobile LOB supplement CDTs, which extend the data model for automobile insurance claims and vehicle details. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Life LOB supplement ERD This ERD illustrates the relationships between the Claim parent and the child Life LOB supplement CDTs, which extend the data model for life insurance claim management. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Home Owners LOB supplement ERD This ERD illustrates the relationships between the Claim parent and the child Home Owners LOB supplement CDTs, which extend the data model for homeowners policy claims and property details. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Workers Compensation LOB supplement ERD This ERD illustrates the relationships between the Claim parent and the child Workers Compensation LOB supplement CDTs, which extend the data model for workers' compensation claims and workplace injury data. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Document Summary add-on ERD This ERD illustrates the relationships between the Claim Document and the Claim Document Summary CDTs. The ERD applies only if you installed the AI Claim Document Summary add-on module. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close AI Coverage Analyzer add-on ERD This ERD illustrates the relationships between the Claim parent and the Claim Coverage Verification CDTs. The ERD applies only if you installed the AI Coverage Analyzer add-on module. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Claims Ticketing add-on ERD This ERD illustrates the entity relationships for managing claim support tickets, tasks, and issue tracking. The ERD applies only if you installed the Claims Ticketing add-on module. Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close Feedback Was this page helpful? SHARE FEEDBACK Loading...
