Comments Patterns

On This Page

Tip: Interface patterns give you an opportunity to explore different interface designs. Be sure to check out How to Adapt a Pattern for Your Application.

Goal

Use this pattern when displaying a chronological list of messages from different users, such as comments on a topic or notes on a case. This page explains how you can use this pattern in your interface, and walks through the design structure in detail.

Comments

This pattern displays comments alongside the user's initials.

Tip: This pattern uses a stamp with text for the user initials, but you can achieve the same result with a simple user image component.

It uses a user record link for the display name, the "Secondary" rich text color for the time field, and aligns components using a side by side layout.

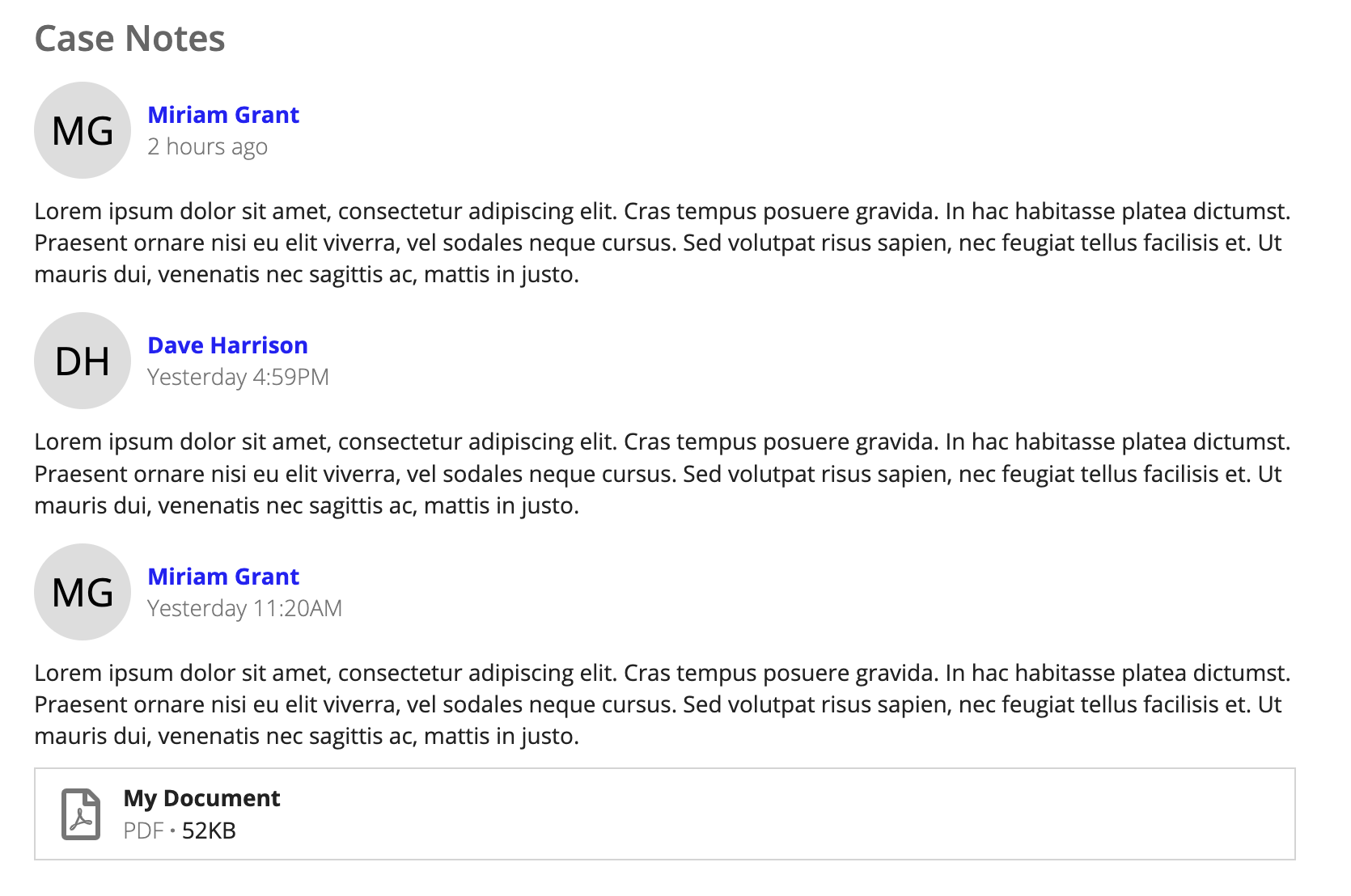

screenshot of comments pattern

Pattern expression

{
  a!localVariables(
    local!caseNotes: {
      a!map(user: "Miriam Grant",  comment: "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras tempus posuere gravida. In hac habitasse platea dictumst. Praesent ornare nisi eu elit viverra, vel sodales neque cursus. Sed volutpat risus sapien, nec feugiat tellus facilisis et. Ut mauris dui, venenatis nec sagittis ac, mattis in justo.", created: "2 hours ago",       document: null         ),
      a!map(user: "Dave Harrison", comment: "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras tempus posuere gravida. In hac habitasse platea dictumst. Praesent ornare nisi eu elit viverra, vel sodales neque cursus. Sed volutpat risus sapien, nec feugiat tellus facilisis et. Ut mauris dui, venenatis nec sagittis ac, mattis in justo.", created: "Yesterday 4:59PM",  document: null         ),
      a!map(user: "Miriam Grant",  comment: "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras tempus posuere gravida. In hac habitasse platea dictumst. Praesent ornare nisi eu elit viverra, vel sodales neque cursus. Sed volutpat risus sapien, nec feugiat tellus facilisis et. Ut mauris dui, venenatis nec sagittis ac, mattis in justo.", created: "Yesterday 11:20AM", document: "My Document")
    },
    {
      a!columnsLayout(
        columns: {
          a!columnLayout(
            contents: {
              a!headingField(
                text: "Case Notes",
                size: "MEDIUM",
                fontWeight: "BOLD"
              ),
              a!forEach(
                items: local!caseNotes,
                expression: a!sectionLayout(
                  contents: {
                    a!sideBySideLayout(
                      items: {
                        a!sideBySideItem(
                          /* If the user does not have a profile picture,   *
                           * you can show user initals in an a!stampField() */
                          item: a!stampField(
                            labelPosition: "COLLAPSED",
                            text: initials(fv!item.user),
                            backgroundColor: "SECONDARY",
                            size: "TINY"
                          ),
                          width: "MINIMIZE"
                        ),
                        a!sideBySideItem(
                          item: a!richTextDisplayField(
                            labelPosition: "COLLAPSED",
                            value: {
                              a!richTextItem(
                                text: fv!item.user,
                                link: a!userRecordLink(),
                                linkStyle: "STANDALONE",
                                style: "STRONG"
                              ),
                              char(10),
                              a!richTextItem(
                                text: fv!item.created,
                                color: "SECONDARY"
                              )
                            }
                          )
                        )
                      },
                      alignVertical: "MIDDLE"
                    ),
                    a!textField(
                      labelPosition: "COLLAPSED",
                      value: fv!item.comment,
                      readOnly: true
                    ),
                    a!cardLayout(
                      contents: {
                        a!sideBySideLayout(
                          items: {
                            a!sideBySideItem(
                              item: a!richTextDisplayField(
                                labelPosition: "COLLAPSED",
                                value: {
                                  a!richTextIcon(
                                    icon: "file-pdf-o",
                                    altText: "PDF file",
                                    color: "SECONDARY",
                                    size: "LARGE"
                                  )
                                }
                              ),
                              width: "MINIMIZE"
                            ),
                            a!sideBySideItem(
                              item: a!richTextDisplayField(
                                labelPosition: "COLLAPSED",
                                value: {
                                  a!richTextItem(
                                    text: fv!item.document,
                                    style: "STRONG"
                                  ),
                                  char(10),
                                  a!richTextItem(
                                    text: "PDF",
                                    color: "SECONDARY"
                                  ),
                                  " ",
                                  a!richTextItem(
                                    text: char(903),
                                    color: "SECONDARY",
                                    style: "STRONG"
                                  ),
                                  " ",
                                  a!richTextItem(
                                    text: "52KB"
                                  )
                                }
                              )
                            )
                          }
                        )
                      },
                      link: a!documentDownloadLink(
                        label: "Document Link"
                      ),
                      showWhen: not(isnull(fv!item.document))
                    )
                  }
                )
              )
            },
            width: "WIDE"
          ),
          a!columnLayout()
        }
      )
    }
  )
}

Comments (Lightweight)

This pattern is displays a more compact message list that does not include the user initials.

screenshot of the lightweight comments pattern

Pattern expression

{
  a!localVariables(
    local!lightweightCaseNotes: {
      a!map(user: "Miriam Grant",  comment: "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras tempus posuere gravida. In hac habitasse platea dictumst. Praesent ornare nisi eu elit viverra, vel sodales neque cursus. Sed volutpat risus sapien, nec feugiat tellus facilisis et. Ut mauris dui, venenatis nec sagittis ac, mattis in justo.", created: "2 hours ago",       document: null         ),
      a!map(user: "Dave Harrison", comment: "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras tempus posuere gravida. In hac habitasse platea dictumst. Praesent ornare nisi eu elit viverra, vel sodales neque cursus. Sed volutpat risus sapien, nec feugiat tellus facilisis et. Ut mauris dui, venenatis nec sagittis ac, mattis in justo.", created: "Yesterday 4:59PM",  document: null         ),
      a!map(user: "Miriam Grant",  comment: "Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras tempus posuere gravida. In hac habitasse platea dictumst. Praesent ornare nisi eu elit viverra, vel sodales neque cursus. Sed volutpat risus sapien, nec feugiat tellus facilisis et. Ut mauris dui, venenatis nec sagittis ac, mattis in justo.", created: "Yesterday 11:20AM", document: "My Document")
    },
    {
      a!columnsLayout(
        columns: {
          a!columnLayout(
            contents: {
              a!headingField(
                text: "Case Notes",
                size: "MEDIUM",
                fontWeight: "BOLD"
              ),
              a!forEach(
                items: local!lightweightCaseNotes,
                expression: a!sectionLayout(
                  contents: {
                    a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        a!richTextItem(
                          text: fv!item.user,
                          link: a!userRecordLink(),
                          linkStyle: "STANDALONE",
                          style: "STRONG"
                        ),
                        "  ",
                        a!richTextItem(
                          text: fv!item.created,
                          color: "SECONDARY"
                        )
                      }
                    ),
                    a!textField(
                      labelPosition: "COLLAPSED",
                      value: fv!item.comment,
                      readOnly: true
                    ),
                    a!richTextDisplayField(
                      labelPosition: "COLLAPSED",
                      value: {
                        a!richTextItem(
                          text: {
                            a!richTextIcon(
                              icon: "file-pdf-o",
                              altText: "PDF file"
                            ),
                            " ",
                            fv!item.document,
                            " (" & "PDF" & " " & "52KB" & ")"
                          },
                          link: a!documentDownloadLink(),
                          linkStyle: "STANDALONE"
                        )
                      },
                      showWhen: not(isnull(fv!item.document))
                    )
                  }
                )
              )
            },
            width: "WIDE"
          ),
          a!columnLayout()
        }
      )
    }
  )
}
