Page Headers
Optionally use one or more headers to highlight content at the top of a page.

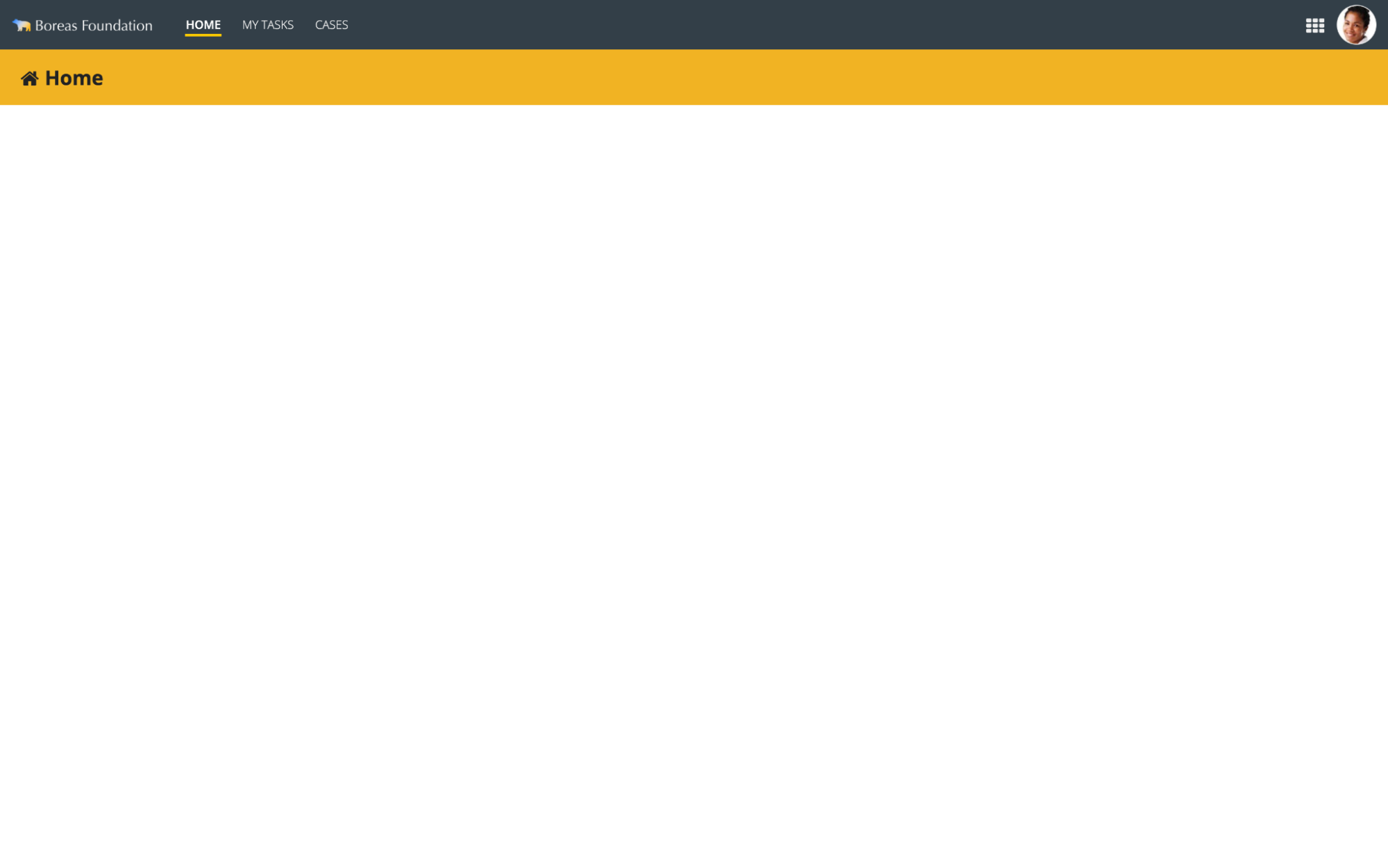

Title bar header
A title bar header draws attention to the page title by showing it on a dedicated header bar with a contrasting background color.
Rich Text Title Size: Medium Plus Rich Text Title Style: Strong
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
a!headerContentLayout(
header: {
a!cardLayout(
contents: {
a!sideBySideLayout(
alignVertical: "MIDDLE",
items: {
a!sideBySideItem(
width: "MINIMIZE",
item: a!richTextDisplayField(
marginBelow: "EVEN_LESS",
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "home",
size: "MEDIUM_PLUS"
),
}
)
),
a!sideBySideItem(
item: a!headingField(
marginBelow: "NONE",
text: "Home",
fontWeight: "SEMI_BOLD",
size: "MEDIUM",
headingTag: "H1"
)
)
}
)
},
height: "AUTO",
style: "#F0B323",
padding: "STANDARD",
marginBelow: "NONE",
showBorder: false
)
},
contents: {},
showWhen: true,
backgroundColor: "WHITE"
)
Title bar header (alternative)
Use this bold title bar style on pages where content is likely to be sparse. This approach is also effective for orienting occasional users by making the purpose of the page very clear.
A tall title bar also easily makes room for additional controls like breadcrumbs or a link to a shopping cart page.
Rich Text Size (Title): Large Plus Rich Text Style (Title): Plain Rich Text Size (Subtitle): Medium Rich Text Style (Subtitle): Plain
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
a!localVariables(
local!currentNodeId: 2,
local!nodes: a!forEach(
items: enumerate(local!currentNodeId) + 1,
expression: choose(
fv!item,
a!map(name: "Home", identifier: 1),
a!map(
name: "Online Self Service",
identifier: 2
)
)
),
a!formLayout(
titleBar: {
a!cardLayout(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!forEach(
items: local!nodes,
expression: if(
fv!isLast,
a!richTextItem(text: fv!item.name, size: "SMALL"),
{
a!richTextItem(
text: fv!item.name,
link: a!dynamicLink(
value: fv!item.identifier,
saveInto: local!currentNodeId
),
color: "#FFF",
size: "SMALL"
),
a!richTextItem(text: " / ", color: "", size: "SMALL")
}
)
)
}
),
a!headingField(
text: "Order Fishing License",
size: "MEDIUM_PLUS",
headingTag: "H1",
fontWeight: "BOLD",
marginAbove: "EVEN_LESS",
marginBelow: "NONE"
)
}
),
a!columnLayout(
contents: {
a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "Add to Cart",
style: "OUTLINE",
color: "SECONDARY"
),
a!buttonWidget(
label: "Check Out Now",
style: "SOLID",
color: "SECONDARY"
)
},
align: "END"
)
}
)
},
alignVertical: "MIDDLE"
)
},
style: "#1A2530",
padding: "MORE",
marginAbove: "NONE",
marginBelow: "NONE",
showBorder: false()
)
},
contents: {
if(
a!isPageWidth({ "PHONE", "TABLET_PORTRAIT" }),
/* Optimized for mobile and small screens */
a!columnsLayout(
columns: {
a!columnLayout(
contents: a!cardLayout(
contents: {
a!headingField(
text: "Who can get a license?",
size: "SMALL",
headingTag: "H2",
fontWeight: "SEMI_BOLD"
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: {
"Persons who have been a bonafide resident of the city, county, or state for six consecutive months immediately preceding the date of application for license.",
repeat(2, char(10)),
"Persons who have been domiciliary residents of the state for at least two months upon approval of a completed affidavit to be furnished by the state.",
repeat(2, char(10)),
"Any member of the armed forces of the United States, or a member of the immediate family of such a member, upon execution of a certificate of residence if the member (i) resides in the state, (ii) is on active duty, and (iii) is stationed at a military installation within, or in a ship based in, the state.",
repeat(2, char(10)),
"Students (including nonresident students boarding on campus) residing in the state who are enrolled in bonafide schools."
},
color: "#6C6C75"
)
}
)
},
style: "#F5F5F7",
padding: "STANDARD",
showBorder: false(),
marginBelow: "MORE"
)
),
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "About Fishing Licenses",
labelPosition: "ABOVE",
value: {
"Every person who is required to have a license to fish, hunt, and/or trap must carry such license with them (electronic copy, printed paper, or annual hard card) and show the license immediately upon request of any officer whose duty it is to enforce the game and inland fish laws, or upon the demand of any owner or lessee, or any employee or representative of such owner or lessee, upon whose land or water such person may be hunting, trapping, or fishing."
}
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(icon: "info-circle", color: "ACCENT"),
" Processing time is approximately 2-3 weeks"
},
marginBelow: "MORE"
),
a!radioButtonField(
choiceLabels: {
"State Freshwater Fishing",
"State Fresh/Saltwater Fishing"
},
choiceValues: { 1, 2 },
label: "License Type",
labelPosition: "ABOVE",
value: 1,
saveInto: {},
choiceLayout: "STACKED",
choiceStyle: "CARDS",
validations: {},
marginBelow: "MORE"
),
a!radioButtonField(
choiceLabels: {
"5-day ($10)",
"1-year ($22)",
"2-year ($43)",
"3-year ($65)"
},
choiceValues: { 1, 2, 3, 4 },
label: "License Validity",
labelPosition: "ABOVE",
value: 1,
saveInto: {},
choiceLayout: "STACKED",
choiceStyle: "CARDS",
validations: {},
marginBelow: "MORE"
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!dateField(
label: "First Day of Validity",
labelPosition: "ABOVE",
value: todate("6/14/2021"),
saveInto: {},
validations: {}
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
label: "Last Day of Validity",
labelPosition: "ABOVE",
value: { "6/18/2021" }
)
)
},
marginBelow: "MORE"
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: { "Number of Licenses" },
style: { "STRONG" }
)
}
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "",
icon: "minus",
size: "SMALL",
style: "OUTLINE",
color: "SECONDARY",
disabled: true
)
},
align: "START"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!integerField(
label: "Quantity",
labelPosition: "COLLAPSED",
value: 1,
saveInto: {},
refreshAfter: "UNFOCUS",
validations: {},
marginBelow: "STANDARD"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "",
icon: "plus",
size: "SMALL",
style: "OUTLINE",
color: "SECONDARY",
disabled: false
)
},
align: "START"
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE",
spacing: "DENSE"
)
},
width: "MEDIUM_PLUS"
)
},
stackWhen: { "PHONE", "TABLET_PORTRAIT" }
),
/* Pane layout for non-mobile interfaces */
a!paneLayout(
panes: {
a!pane(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(),
a!columnLayout(
contents: {
a!richTextDisplayField(
label: "About Fishing Licenses",
labelPosition: "ABOVE",
value: {
"Every person who is required to have a license to fish, hunt, and/or trap must carry such license with them (electronic copy, printed paper, or annual hard card) and show the license immediately upon request of any officer whose duty it is to enforce the game and inland fish laws, or upon the demand of any owner or lessee, or any employee or representative of such owner or lessee, upon whose land or water such person may be hunting, trapping, or fishing."
}
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(icon: "info-circle", color: "ACCENT"),
" Processing time is approximately 2-3 weeks"
},
marginBelow: "MORE"
),
a!radioButtonField(
choiceLabels: {
"State Freshwater Fishing",
"State Fresh/Saltwater Fishing"
},
choiceValues: { 1, 2 },
label: "License Type",
labelPosition: "ABOVE",
value: 1,
saveInto: {},
choiceLayout: "STACKED",
choiceStyle: "CARDS",
validations: {},
marginBelow: "MORE"
),
a!radioButtonField(
choiceLabels: {
"5-day ($10)",
"1-year ($22)",
"2-year ($43)",
"3-year ($65)"
},
choiceValues: { 1, 2, 3, 4 },
label: "License Validity",
labelPosition: "ABOVE",
value: 1,
saveInto: {},
choiceLayout: "STACKED",
choiceStyle: "CARDS",
validations: {},
marginBelow: "MORE"
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!dateField(
label: "First Day of Validity",
labelPosition: "ABOVE",
value: todate("6/14/2021"),
saveInto: {},
validations: {}
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
label: "Last Day of Validity",
labelPosition: "ABOVE",
value: { "6/18/2021" }
)
)
},
marginBelow: "MORE"
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: { "Number of Licenses" },
style: { "STRONG" }
)
}
),
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "",
icon: "minus",
size: "SMALL",
style: "OUTLINE",
color: "SECONDARY",
disabled: true
)
},
align: "START",
marginBelow: "NONE"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!integerField(
label: "Quantity",
labelPosition: "COLLAPSED",
value: 1,
saveInto: {},
refreshAfter: "UNFOCUS",
validations: {}
)
),
a!sideBySideItem(
item: a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "",
icon: "plus",
size: "SMALL",
style: "OUTLINE",
color: "SECONDARY",
disabled: false
)
},
align: "START",
marginBelow: "NONE"
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE",
spacing: "DENSE"
)
},
width: "NARROW"
),
a!columnLayout(width: "MEDIUM_PLUS")
}
)
},
width: "MEDIUM_PLUS"
),
a!columnLayout()
}
)
},
padding: "EVEN_MORE"
),
a!pane(
contents: {
a!headingField(
text: "Who can get a license?",
size: "SMALL",
headingTag: "H2",
fontWeight: "SEMI_BOLD"
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: {
"Persons who have been a bonafide resident of the city, county, or state for six consecutive months immediately preceding the date of application for license.",
repeat(2, char(10)),
"Persons who have been domiciliary residents of the state for at least two months upon approval of a completed affidavit to be furnished by the state.",
repeat(2, char(10)),
"Any member of the armed forces of the United States, or a member of the immediate family of such a member, upon execution of a certificate of residence if the member (i) resides in the state, (ii) is on active duty, and (iii) is stationed at a military installation within, or in a ship based in, the state.",
repeat(2, char(10)),
"Students (including nonresident students boarding on campus) residing in the state who are enrolled in bonafide schools."
},
color: "#6C6C75"
)
}
)
},
width: "MEDIUM",
backgroundColor: "#F5F5F7",
padding: "EVEN_MORE"
)
},
showPaneDividers: false
)
)
},
focusOnFirstInput: false()
)
)

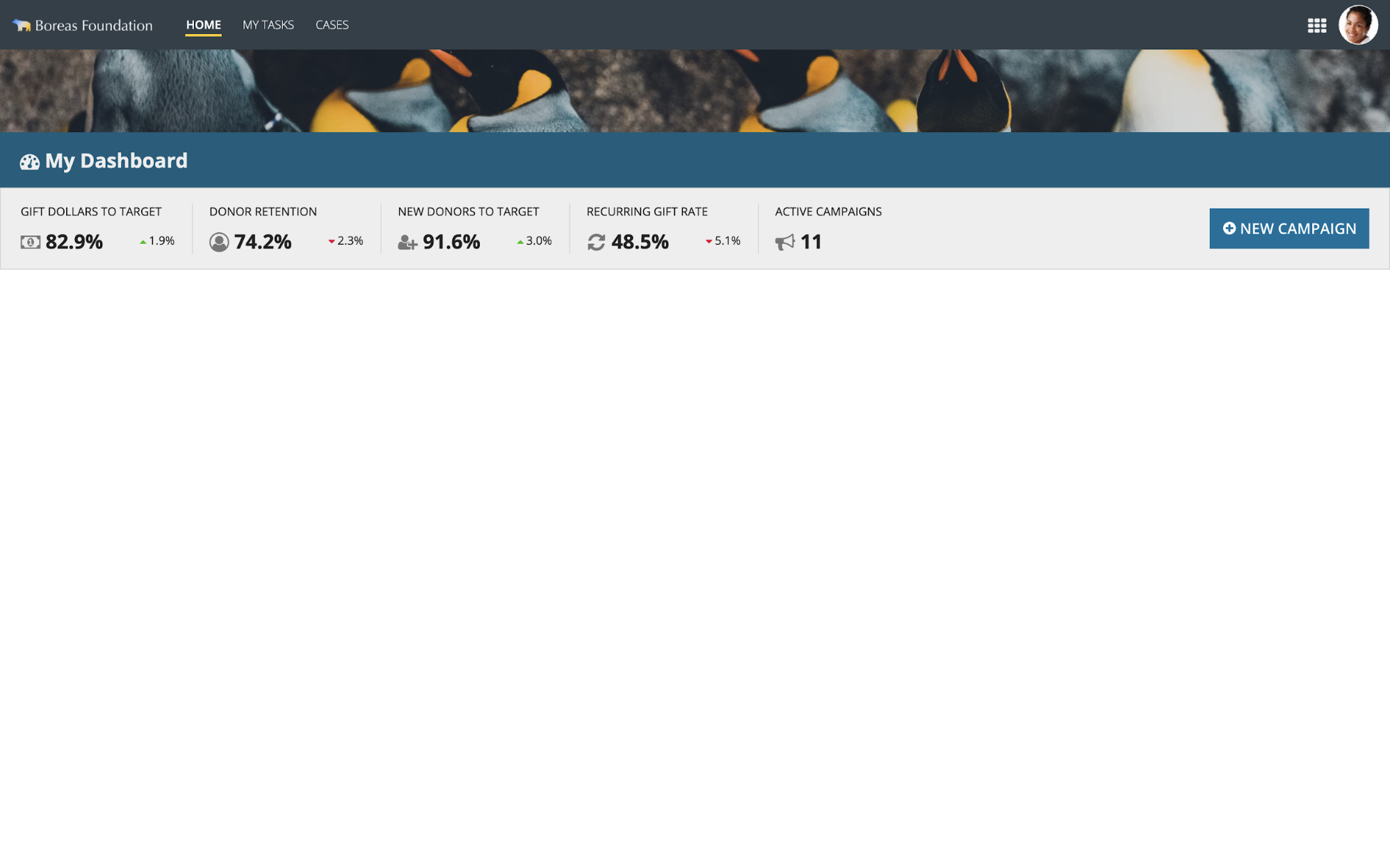

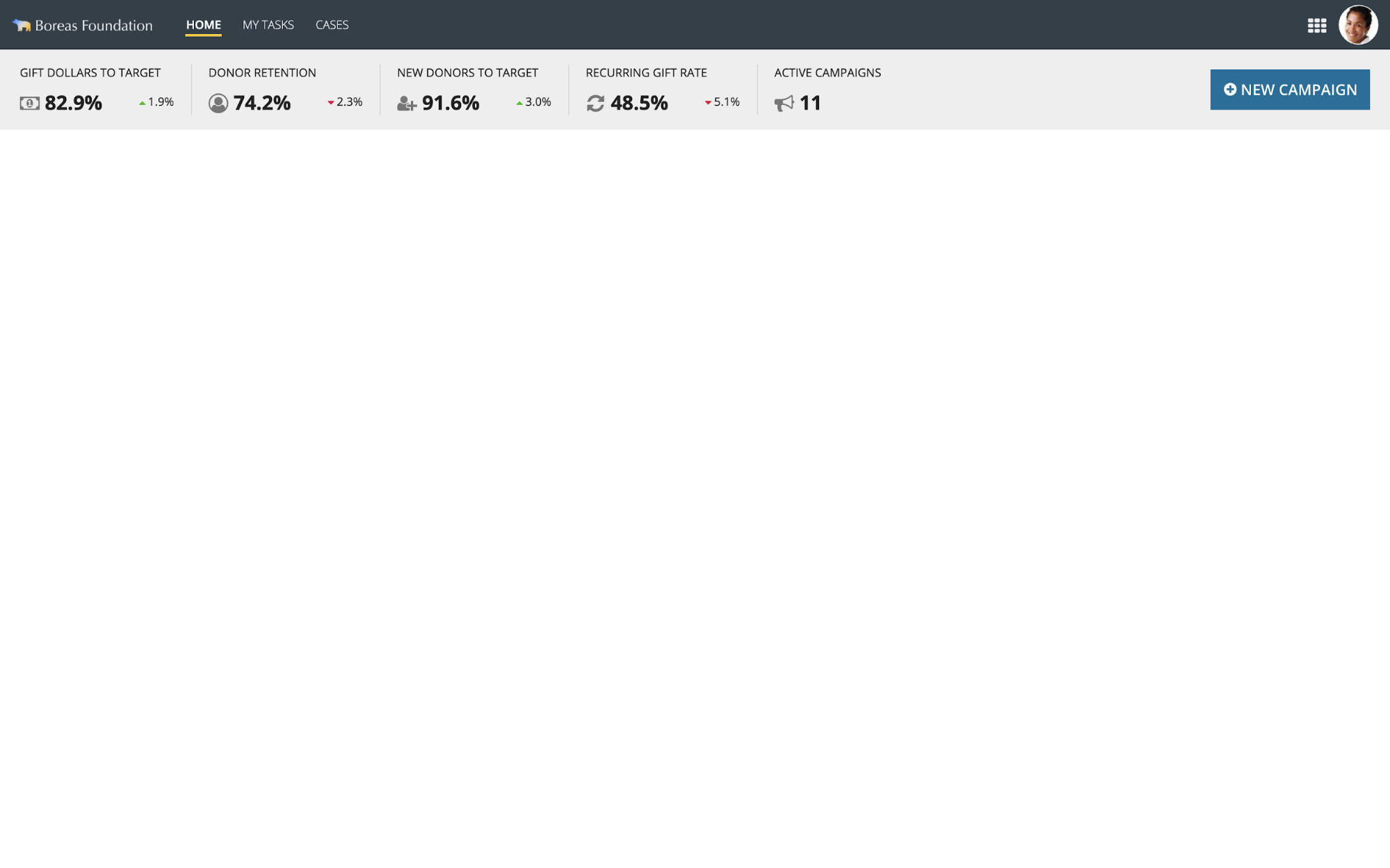

Key performance indicators header
Highlights multiple key performance indicators (KPIs) at the top of the page. Optionally preserves space for other content, such as a primary action button.
See Data Value Display.

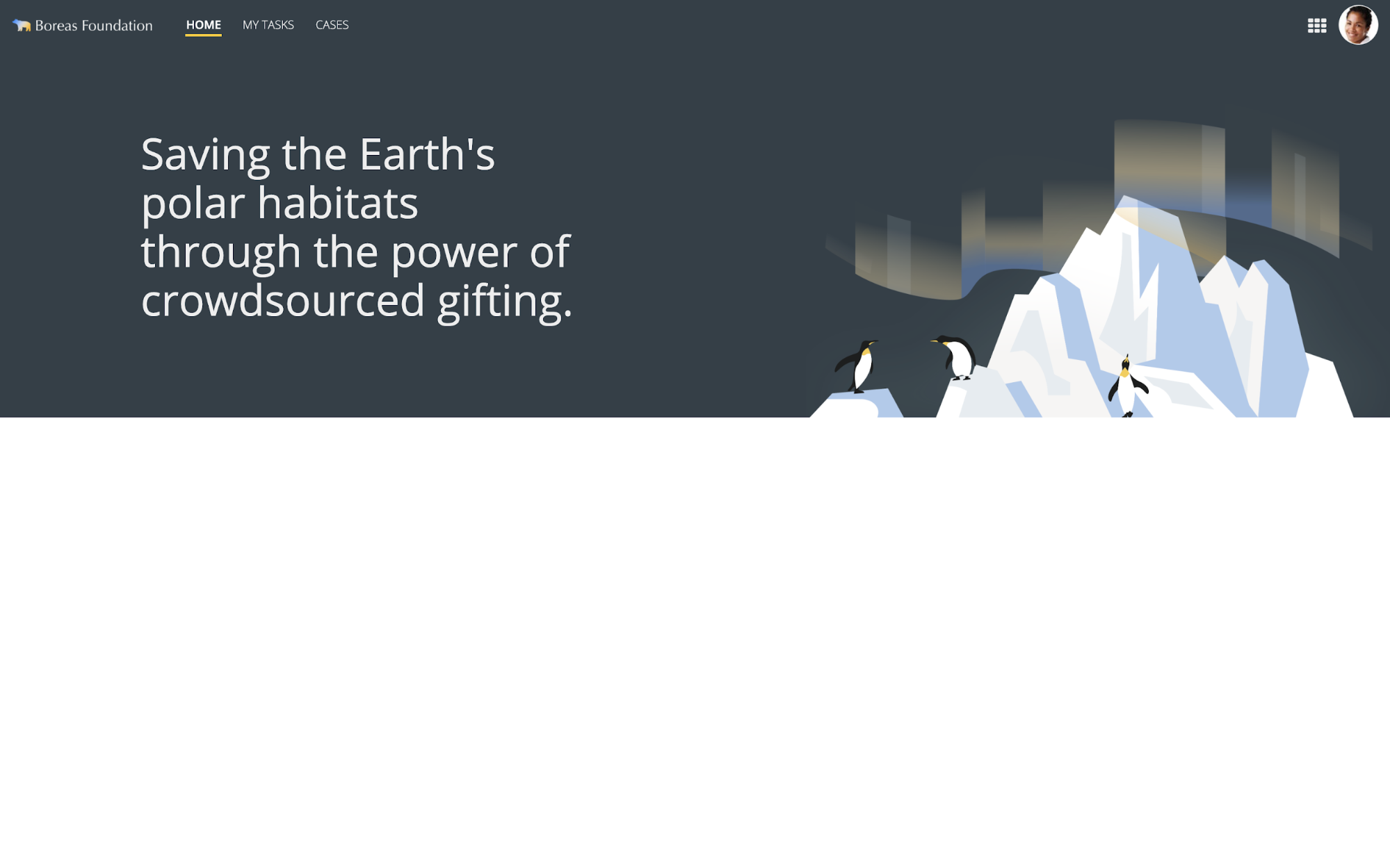

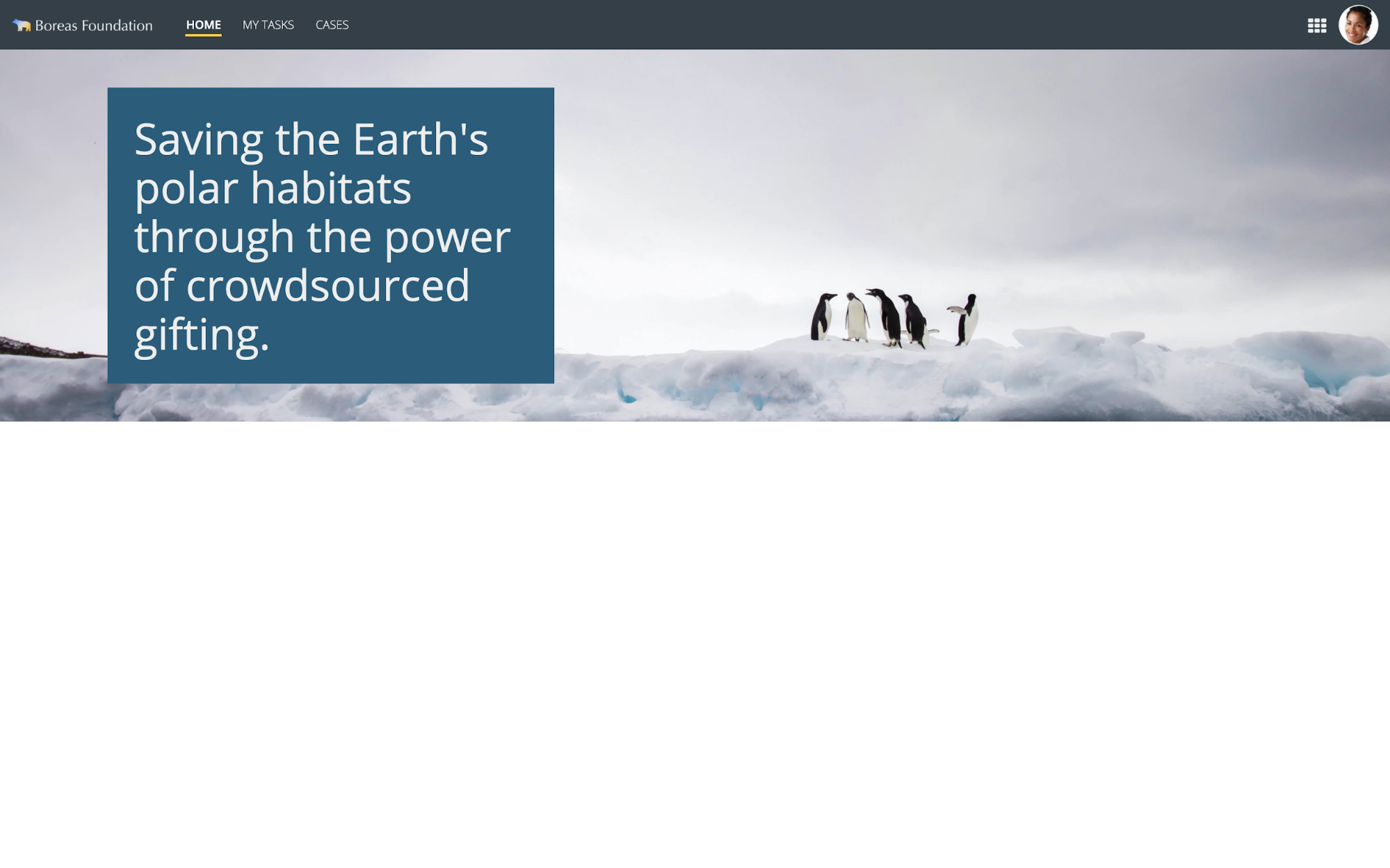

Hero card header
This pattern combines a card header with a site header bar that shares the same background color, producing a hero element that immediately draws a viewer's attention.
This style works best with the "Mercury" header bar style.

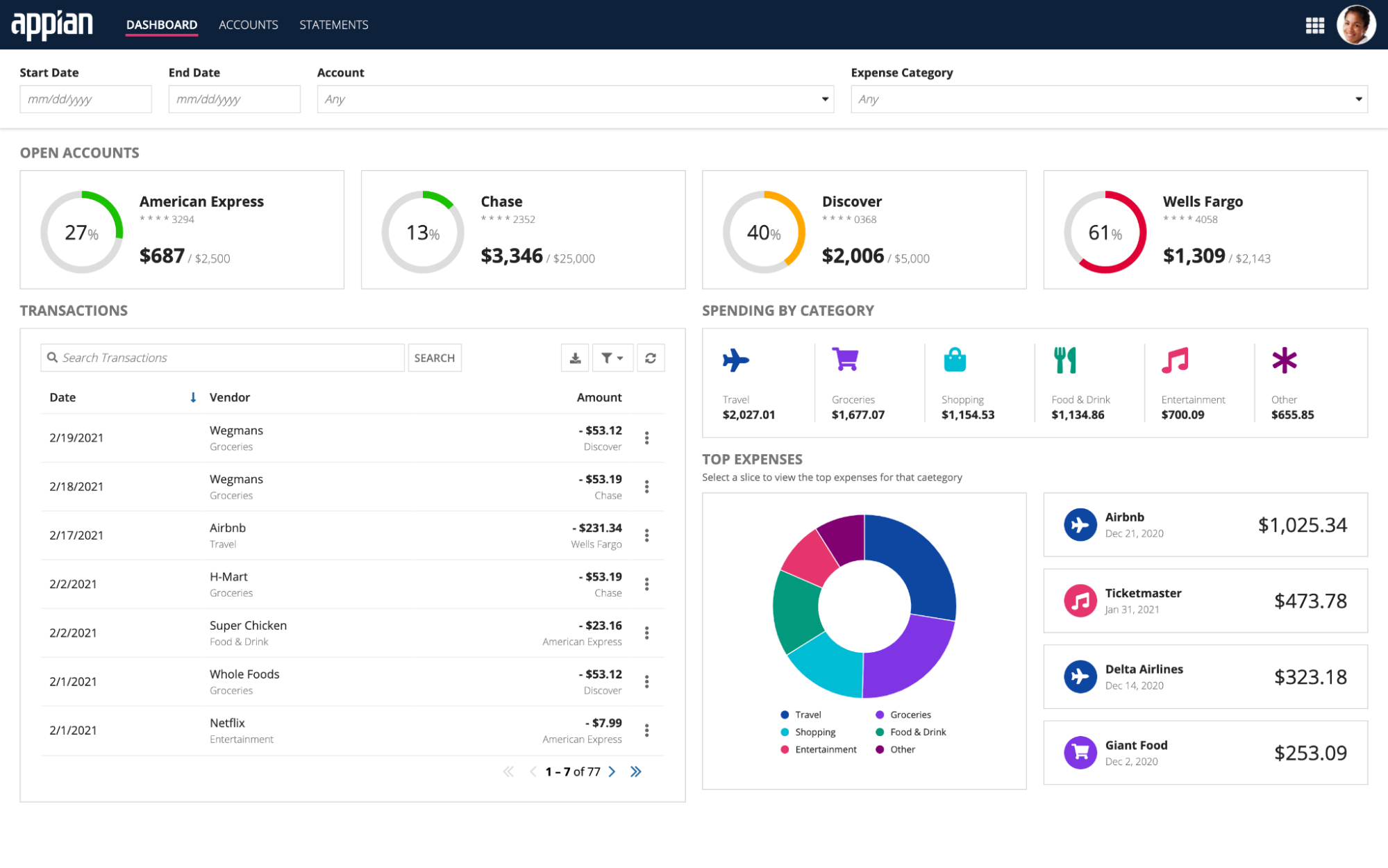

Filter bar header
This pattern displays filter controls at the top of the page that impact all page contents.
You can configure these filters to work with URL parameters, which will allow you to:
- Set default values for the filters.
- Create a link to a page with certain filter values automatically selected.
- Allow users to share links with their selected filters.
- Remember filter selections when users return to a previously filtered page.
See also:
- For an example of an interface expression that uses URL parameters with filters, see Example: Setting up a filter to work with URL parameters.
- For instructions on how to configure URL parameters to work in a site or portal page, see Set up URL parameters.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
a!localVariables(
local!transactionData: {
a!map(date: date(2025, 12, 19), vendor: "Wegmans", category: "Groceries", amount: 53.12,account: "Discover"),
a!map(date: date(2025, 12, 18), vendor: "Wegmans", category: "Groceries", amount: 53.19, account: "Chase"),
a!map(date: date(2025, 12, 17), vendor: "Airbnb", category: "Travel", amount: 231.34, account: "Wells Fargo"),
a!map(date: date(2025, 12, 2), vendor: "H-Mart", category: "Groceries", amount: 53.19, account: "Chase"),
a!map(date: date(2025, 12, 2), vendor: "Super Chicken", category: "Food & Drink", amount: 23.16, account: "American Express"),
a!map(date: date(2025, 12, 1), vendor: "Whole Foods", category: "Groceries", amount: 53.12, account: "Discover"),
a!map(date: date(2025, 12, 1), vendor: "Netflix", category: "Entertainment", amount: 7.99, account: "American Express")
},
local!openAccounts: {
a!map(accountName: "American Express", accountType: "Credit", creditLimit: 2500, total: 687, accountNumber: 3294),
a!map(accountName: "Chase", accountType: "Credit", creditLimit: 25000, total: 3346, accountNumber: 2352),
a!map(accountName: "Discover", accountType: "Credit", creditLimit: 5000, total: 2006, accountNumber: 0368),
a!map(accountName: "Wells Fargo", accountType: "Credit", creditLimit: 2143, total: 1309, accountNumber: 4058),
},
local!spendingByCategory: {
a!map(category: "Travel", total: 2027.01),
a!map(category: "Groceries", total: 1677.07),
a!map(category: "Shopping", total: 1154.53),
a!map(category: "Food & Drink", total: 1134.86),
a!map(category: "Entertainment", total: 700.09),
a!map(category: "Other", total: 655.85)
},
local!categoryBranding: {
a!map(category: "Travel", icon: "plane", color: "#0D47A1"),
a!map(category: "Groceries", icon: "shopping-cart", color: "#8036E6"),
a!map(category: "Shopping", icon: "shopping-bag", color: "#00BCD4"),
a!map(category: "Food & Drink", icon: "cutlery", color: "#07987C"),
a!map(category: "Entertainment", icon: "music", color: "#E4356C"),
a!map(category: "Other", icon: "asterisk", color: "#810172")
},
a!headerContentLayout(
header: {
/* These filters aren't set up to filter data;
they are intended to illustrate how a filter bar header might look */
a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!dateField(
label: "Start Date",
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!dateField(
label: "End Date",
),
width: "MINIMIZE"
),
a!sideBySideItem(
width: "2X",
item: a!dropdownField(
label: "Account",
choiceLabels: {
"Chase",
"Discover",
"Wells Fargo",
"American Express",
"Goldman Sachs"
},
choiceValues: {
"Chase",
"Discover",
"Wells Fargo",
"American Express",
"Goldman Sachs"
},
placeholder: "All accounts",
)
),
a!sideBySideItem(
width: "2X",
item: a!dropdownField(
label: "Expense Category",
placeholder: "All categories",
choiceLabels: {
"Food & Drink",
"Groceries",
"Shopping",
"Entertainment",
"Travel",
"Other"
},
choiceValues: {
"Food & Drink",
"Groceries",
"Shopping",
"Entertainment",
"Travel",
"Other"
},
)
)
},
alignVertical: "MIDDLE",
spacing: "SPARSE"
)
},
style:"NONE",
padding: "STANDARD",
marginBelow: "NONE",
showBorder: false,
showShadow: true
)
},
contents: {
a!headingField(
text: upper("Open Accounts"),
size: "SMALL",
headingTag: "H2",
color: "SECONDARY",
fontWeight: "BOLD",
marginBelow: "LESS"
),
a!cardGroupLayout(
labelPosition: "COLLAPSED",
cards: a!forEach(
items: local!openAccounts,
expression: a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!gaugeField(
percentage: fv!item.total / fv!item.creditLimit * 100,
primaryText: a!gaugePercentage(),
color: a!match(
value: fv!item.total / fv!item.creditLimit * 100,
whenTrue: fv!value > 49,
then: "NEGATIVE",
whenTrue: fv!value > 30,
then: "WARN",
default: "POSITIVE"
),
size: "SMALL"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: index(fv!item, "accountName", {}),
size: "MEDIUM",
style: "STRONG"
),
char(10),
a!richTextItem(
text: {
"****",
index(fv!item, "accountNumber", {})
},
color: "SECONDARY",
size: "SMALL"
),
char(10),
char(10),
a!richTextItem(
text: {
text(index(fv!item, "total", {}), "$###,###,###")
},
size: "MEDIUM_PLUS",
style: "STRONG"
),
a!richTextItem(
text: {
" / ",
dollar(index(fv!item, "creditLimit", {}), 0)
},
color: "SECONDARY"
)
}
)
)
},
alignVertical: "MIDDLE",
spacing: "SPARSE"
)
},
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "STANDARD",
showBorder: false,
showShadow: true
)
),
spacing: "STANDARD",
cardWidth: "NARROW",
cardHeight: "AUTO",
marginBelow: "MORE"
),
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!headingField(
text: upper("Transactions"),
size: "SMALL",
headingTag: "H2",
color: "SECONDARY",
fontWeight: "BOLD",
marginBelow: "LESS"
),
a!cardLayout(
contents: {
/*Use record data to populate your grid and add search, filter, and export capabilities*/
a!gridField(
labelPosition: "COLLAPSED",
data: local!transactionData,
columns: {
a!gridColumn(
label: "Date",
sortField: "date",
value: datetext(fv!row.date, "MMM dd, YYYY"),
align: "START",
width: "AUTO"
),
a!gridColumn(
label: "Vendor",
sortField: "vendor",
value: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: a!richTextItem(
text: {
fv!row.vendor,
char(10),
a!richTextItem(
text: fv!row.category,
color: "SECONDARY",
size: "SMALL"
)
}
)
),
width: "AUTO"
),
a!gridColumn(
label: "Amount",
sortField: "amount",
value: a!richTextDisplayField(
value: {
a!richTextItem(
text: dollar(fv!row.amount),
style: "STRONG"
),
char(10),
a!richTextItem(
text: fv!row.account,
color: "SECONDARY",
size: "SMALL"
)
}
),
align: "END",
width: "AUTO"
),
a!gridColumn(
value: a!buttonArrayLayout(
buttons: {
a!buttonWidget(
icon: "ellipsis-v",
style: "LINK",
size: "SMALL"
)
}
),
width: "ICON"
)
},
pageSize: 7,
initialSorts: { a!sortInfo(field: "date") },
validations: {},
borderStyle: "LIGHT",
shadeAlternateRows: false
)
},
height: "AUTO",
style: "NONE",
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "STANDARD",
showBorder: false,
showShadow: true
)
},
width: "AUTO"
),
a!columnLayout(
contents: {
a!headingField(
text: upper("Spending by Category"),
size: "SMALL",
headingTag: "H2",
color: "SECONDARY",
fontWeight: "BOLD",
marginBelow: "LESS"
),
a!cardLayout(
contents: {
a!columnsLayout(
columns: {
a!forEach(
items: local!spendingByCategory,
expression: {
a!localVariables(
local!thisCategoryBranding: index(local!categoryBranding,
wherecontains(
index(fv!item,"category",{}),
index(local!categoryBranding, "category",{})
),
{}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: local!thisCategoryBranding.icon,
color: local!thisCategoryBranding.color,
size: "LARGE"
),
char(10),
char(10),
a!richTextItem(
text: fv!item.category,
color: "SECONDARY",
size: "SMALL"
),
char(10),
a!richTextItem(
text: dollar(fv!item.total),
style: "STRONG"
)
}
)
}
)
)
}
)
},
spacing: "SPARSE",
showDividers: true
)
},
height: "AUTO",
style: "NONE",
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "MORE",
showBorder: false,
showShadow: true
),
a!headingField(
text: upper("Top Expenses"),
size: "SMALL",
headingTag: "H2",
color: "SECONDARY",
fontWeight: "BOLD",
marginBelow: "NONE"
),
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: a!richTextItem(
text: "Select a slice to view the top expenses for that category",
color: "#666666",
size: "SMALL"
)
),
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!cardLayout(
contents: {
/*Consider configuring a drilldown to filter your transaction data*/
a!pieChartField(
labelPosition: "COLLAPSED",
series: a!forEach(
items: local!spendingByCategory,
expression: a!chartSeries(
label: fv!item.category,
data: fv!item.total
)
),
showDataLabels: false,
showTooltips: true,
showAsPercentage: true,
colorScheme: a!colorSchemeCustom(local!categoryBranding.color),
style: "DONUT",
seriesLabelStyle: "LEGEND",
height: "TALL"
)
},
height: "TALL",
style: "NONE",
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "NONE",
showBorder: false,
showShadow: true
)
},
width: "MEDIUM"
),
a!columnLayout(
contents: {
a!cardGroupLayout(
labelPosition: "COLLAPSED",
cards: {
a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!stampField(
labelPosition: "COLLAPSED",
icon: "plane",
backgroundColor: "#0D47A1",
contentColor: "#ffffff",
size: "TINY"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "Airbnb", style: "STRONG"),
char(10),
a!richTextItem(
text: "Dec 21, 2020",
color: "SECONDARY",
size: "SMALL"
)
}
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "$1,025.34", size: "MEDIUM_PLUS")
},
align: "RIGHT"
)
)
},
alignVertical: "MIDDLE",
stackWhen: {"PHONE", "TABLET_PORTRAIT", "TABLET_LANDSCAPE", "DESKTOP_NARROW"}
)
},
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "STANDARD",
showBorder: false,
showShadow: true
),
a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!stampField(
labelPosition: "COLLAPSED",
icon: "music",
backgroundColor: "#E4356C",
contentColor: "#ffffff",
size: "TINY"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "Ticketmaster", style: "STRONG"),
char(10),
a!richTextItem(
text: "Jan 31, 2021",
color: "SECONDARY",
size: "SMALL"
)
}
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "$473.78", size: "MEDIUM_PLUS")
},
align: "RIGHT"
)
)
},
alignVertical: "MIDDLE",
stackWhen: {"PHONE", "TABLET_PORTRAIT", "TABLET_LANDSCAPE", "DESKTOP_NARROW"}
)
},
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "STANDARD",
showBorder: false,
showShadow: true
),
a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!stampField(
labelPosition: "COLLAPSED",
icon: "plane",
backgroundColor: "#0D47A1",
contentColor: "#ffffff",
size: "TINY"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "Delta Airlines", style: "STRONG"),
char(10),
a!richTextItem(
text: "Dec 14, 2020",
color: "SECONDARY",
size: "SMALL"
)
}
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "$323.18", size: "MEDIUM_PLUS")
},
align: "RIGHT"
)
)
},
alignVertical: "MIDDLE",
stackWhen: {"PHONE", "TABLET_PORTRAIT", "TABLET_LANDSCAPE", "DESKTOP_NARROW"}
)
},
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "STANDARD",
showBorder: false,
showShadow: true
),
a!cardLayout(
contents: {
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!stampField(
labelPosition: "COLLAPSED",
icon: "shopping-cart",
backgroundColor: "#8036E6",
contentColor: "#ffffff",
size: "TINY"
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "Giant Food", style: "STRONG"),
char(10),
a!richTextItem(
text: "Dec 2, 2020",
color: "SECONDARY",
size: "SMALL"
)
}
),
width: "MINIMIZE"
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextItem(text: "$253.09", size: "MEDIUM_PLUS")
},
align: "RIGHT"
)
)
},
alignVertical: "MIDDLE",
stackWhen: {"PHONE", "TABLET_PORTRAIT", "TABLET_LANDSCAPE", "DESKTOP_NARROW"}
)
},
shape: "SEMI_ROUNDED",
padding: "STANDARD",
marginBelow: "NONE",
showBorder: false,
showShadow: true
)
},
spacing: "STANDARD",
cardWidth: "MEDIUM",
cardHeight: "AUTO"
)
}
)
}
)
},
width: "AUTO"
)
},
stackWhen: {"PHONE", "TABLET_PORTRAIT", "TABLET_LANDSCAPE"}
)
},
backgroundColor: "TRANSPARENT"
)
)

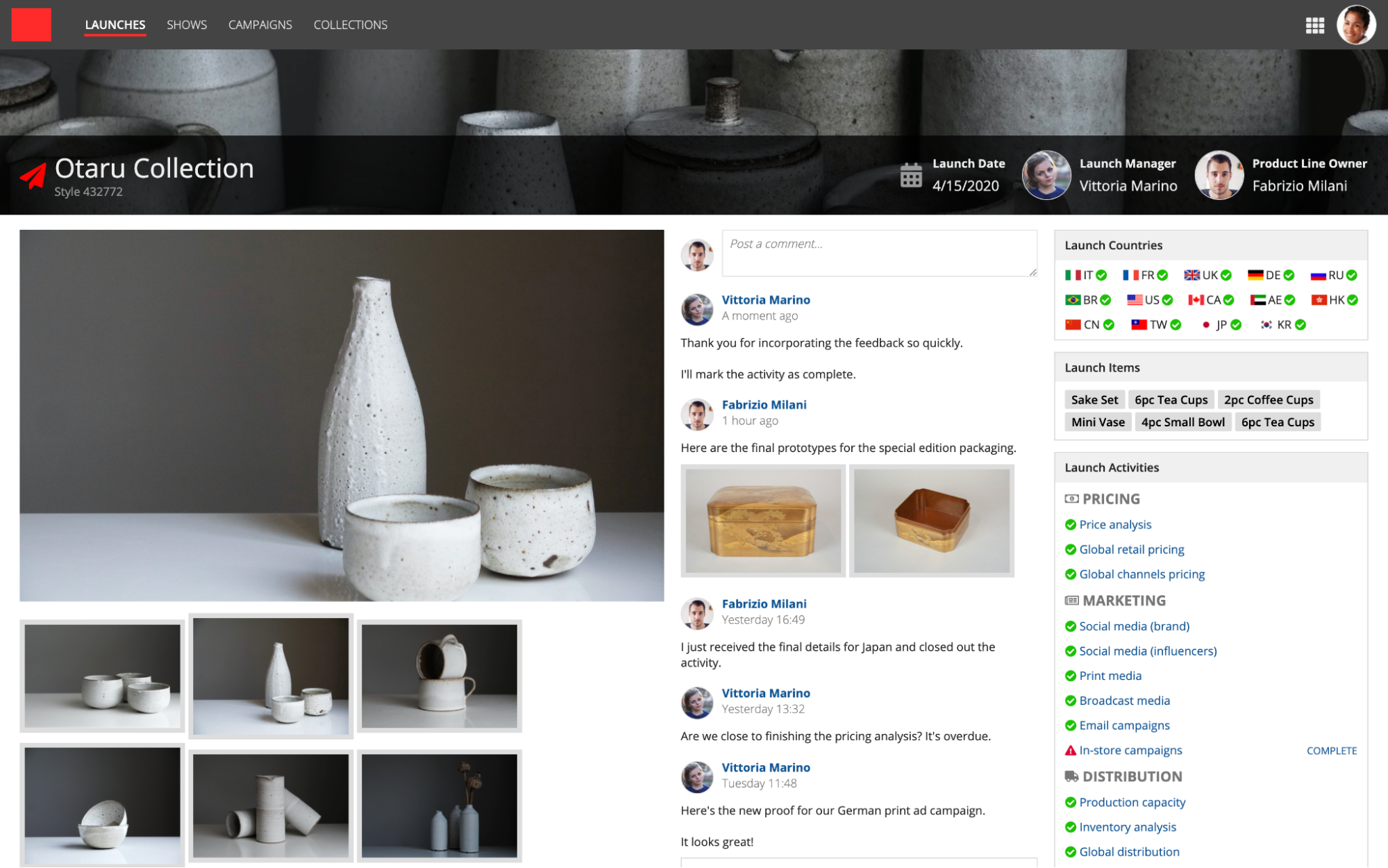

Decorative billboard header
Billboard headers allow content to be displayed as an overlay on top of decorative photos.
Choose the appropriate shade and transparency for the overlay to allow content to easily be read.
Use a card to create high contrast for overlay contents
Optionally include a card as the background for billboard overlay contents to ensure sufficient contrast against the photo.
Mix and match header types
Combine multiple types of headers as needed.
This example uses:
- Decorative billboard
- Title bar card
- KPI bar card
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
a!headerContentLayout(
header: {
a!billboardLayout(
backgroundMedia: a!webImage(
source: "https://images.unsplash.com/photo-1574950333594-f3e9a9446d0f?ixid=MXwxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHw%3D&ixlib=rb-1.2.1&auto=format&fit=crop&w=2250&q=80"
/* https://unsplash.com/photos/12R_znWtJHQ */
),
height: "EXTRA_SHORT",
marginBelow: "NONE"
),
a!cardLayout(
contents: {
a!sideBySideLayout(
alignVertical: "MIDDLE",
items: {
a!sideBySideItem(
width: "MINIMIZE",
item: a!richTextDisplayField(
marginBelow: "EVEN_LESS",
labelPosition: "COLLAPSED",
value: {
a!richTextItem(
text: {
a!richTextIcon(
icon: "tachometer"
)
},
size: "MEDIUM_PLUS",
)
}
),
),
a!sideBySideItem(
item: a!headingField(
marginBelow: "NONE",
text: "My Dashboard",
size: "MEDIUM",
fontWeight: "SEMI_BOLD",
headingTag: "H1"
)
)
}
),
},
height: "AUTO",
style: "#165C7D",
padding: "STANDARD",
marginBelow: "NONE",
showBorder: false
),
a!cardLayout(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!columnsLayout(
columns: {
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: { "GIFT DOLLARS TO TARGET" }
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "money",
color: "SECONDARY",
size: "MEDIUM_PLUS"
),
a!richTextItem(
text: { " 82.9%" },
size: "MEDIUM_PLUS",
style: { "STRONG" }
)
}
)
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "caret-up",
color: "POSITIVE",
size: "STANDARD"
),
a!richTextItem(
text: { "1.9%" },
color: "STANDARD",
size: "STANDARD"
)
}
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE"
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: { "DONOR RETENTION" }
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "user-circle-o",
color: "SECONDARY",
size: "MEDIUM_PLUS"
),
a!richTextItem(
text: { " 74.2%" },
size: "MEDIUM_PLUS",
style: { "STRONG" }
)
}
)
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "caret-down",
color: "NEGATIVE",
size: "STANDARD"
),
a!richTextItem(
text: { "2.3%" },
color: "STANDARD",
size: "STANDARD"
)
}
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE"
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: { "NEW DONORS TO TARGET" }
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "user-plus",
color: "SECONDARY",
size: "MEDIUM_PLUS"
),
a!richTextItem(
text: { " 91.6%" },
size: "MEDIUM_PLUS",
style: { "STRONG" }
)
}
)
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "caret-up",
color: "POSITIVE",
size: "STANDARD"
),
a!richTextItem(
text: { "3.0%" },
color: "STANDARD",
size: "STANDARD"
)
}
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE"
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: { "RECURRING GIFT RATE" }
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "refresh",
color: "SECONDARY",
size: "MEDIUM_PLUS"
),
a!richTextItem(
text: { " 48.5%" },
size: "MEDIUM_PLUS",
style: { "STRONG" }
)
}
)
),
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "caret-down",
color: "NEGATIVE",
size: "STANDARD"
),
a!richTextItem(
text: { "5.1%" },
color: "STANDARD",
size: "STANDARD"
)
}
),
width: "MINIMIZE"
)
},
alignVertical: "MIDDLE"
)
}
),
a!columnLayout(
contents: {
a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: { "ACTIVE CAMPAIGNS" }
),
a!sideBySideLayout(
items: {
a!sideBySideItem(
item: a!richTextDisplayField(
labelPosition: "COLLAPSED",
value: {
a!richTextIcon(
icon: "bullhorn",
color: "SECONDARY",
size: "MEDIUM_PLUS"
),
a!richTextItem(
text: { " 11" },
size: "MEDIUM_PLUS",
style: { "STRONG" }
)
}
)
)
},
alignVertical: "MIDDLE"
)
}
)
},
spacing: "SPARSE",
showDividers: true
)
},
width: "WIDE_PLUS"
),
a!columnLayout(contents: {}, width: "AUTO"),
a!columnLayout(
contents: {
a!buttonArrayLayout(
buttons: {
a!buttonWidget(
label: "NEW CAMPAIGN",
icon: "plus-circle",
size: "LARGE",
style: "SOLID"
)
},
align: "END",
marginBelow: "NONE"
)
},
width: "NARROW"
)
},
alignVertical: "MIDDLE"
)
},
height: "AUTO",
style: "#eee",
padding: "STANDARD",
marginBelow: "NONE"
)
},
contents: {},
backgroundColor: "WHITE"
)
