About the Query Editor

Overview

The query editor is an intuitive interface that makes creating queries fast and easy. You can use the query editor to create queries to a record type or a data store entity.

This page describes the features of the query editor for querying records or data store entities, and outlines its supported functionality and limitations.

For instructions on how to use the query editor, see Using the Query Editor.

Query records

You can use the query editor to query data from any of your record types, except:

• Unsynced service-backed record types.
• Process-backed record types.
• Record types that haven't been updated.

Elements of the query editor

After selecting a record type, the query editor configuration screen appears. Each section of the query editor corresponds to a different part of the generated query.

Depending on the type of query you're making, the elements on the screen will differ. By default, the query editor allows you to create a selection query.

Selection query elements

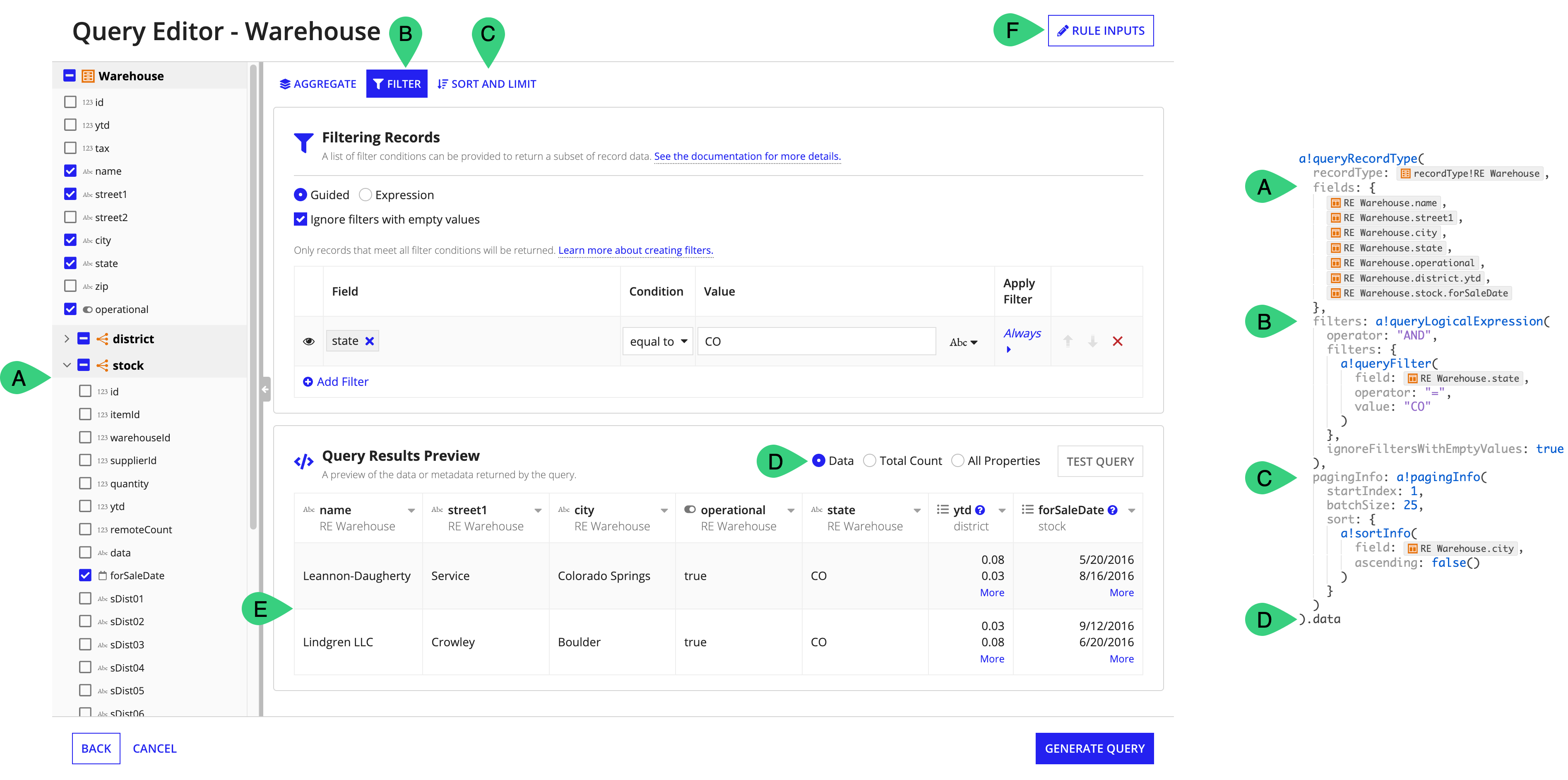

For selection queries, the query configuration screen is made up of the following sections:

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

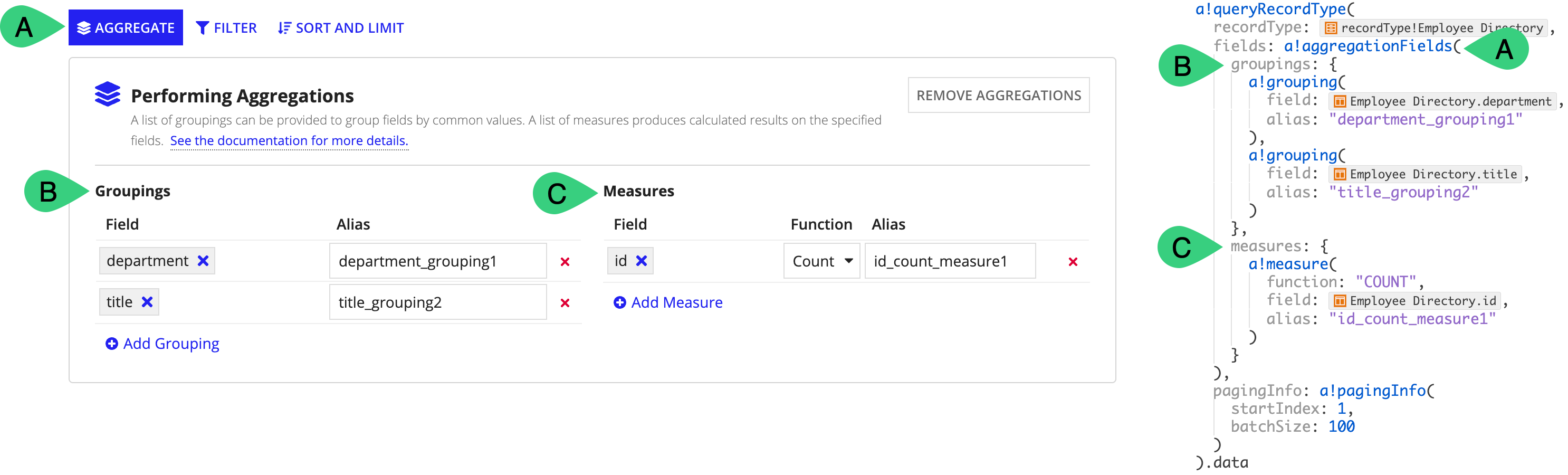

Aggregation query elements

Aggregation queries are made up of the same sections as selection queries, however, the fields are configured on the Aggregate tab:

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

Supported fields

In your query, you can select fields from the base record type and any of your related record types. Related record types will be identified based on their relationship name and an icon indicating the type of data relationship:

• is a one-to-one relationship.
• is a one-to-many relationship.
• is a many-to-one relationship.

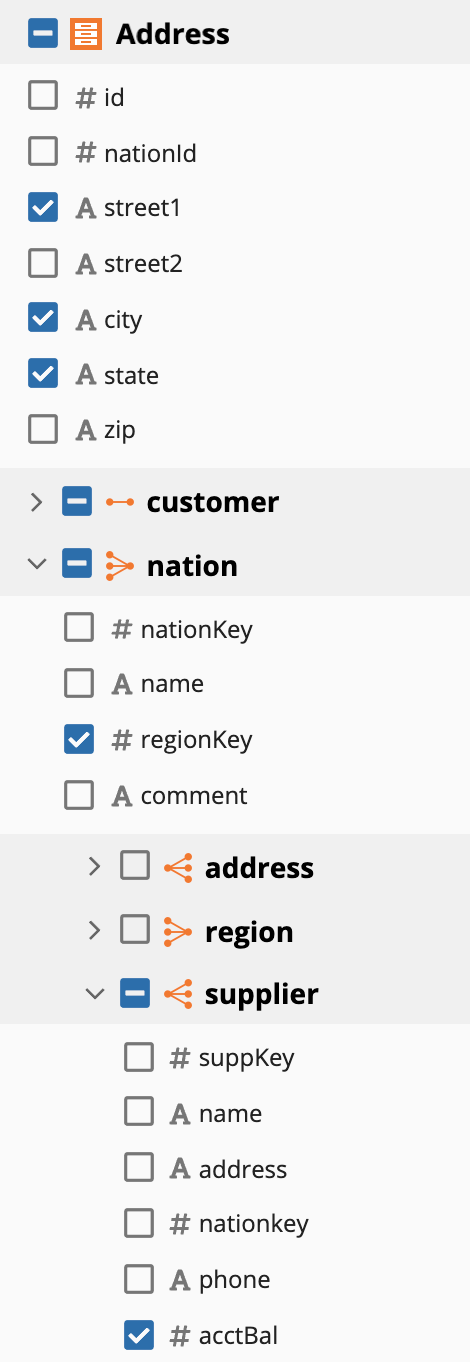

This example shows how to choose both record fields and related record fields for your query.

Aggregate data

By default, the query editor allows you to configure a selection query. You can use this section to create groupings that collect fields by common values and measures that produce a calculated result.

An alias is required for each grouping and measure. The alias is the short name by which the result of the grouping or the measure can be referenced in other parts of the a!queryRecordType() expression.

Rule inputs and variables

Rule inputs and local variables let you define context-specific values in your expression rule or interface.

The query editor parses these rule inputs and local variables so you can use them as part of your query. For example, you might use a rule input or local variable to store the value of a filter. When you open the query editor, the local variables and rule inputs are evaluated immediately.

Filter options

The Filter section allows you to determine which records to return based on conditions you specify. Filters can be applied to the entire query or to a measure when building an aggregation.

You can configure filters using a guided mode or expression mode.

Guided mode

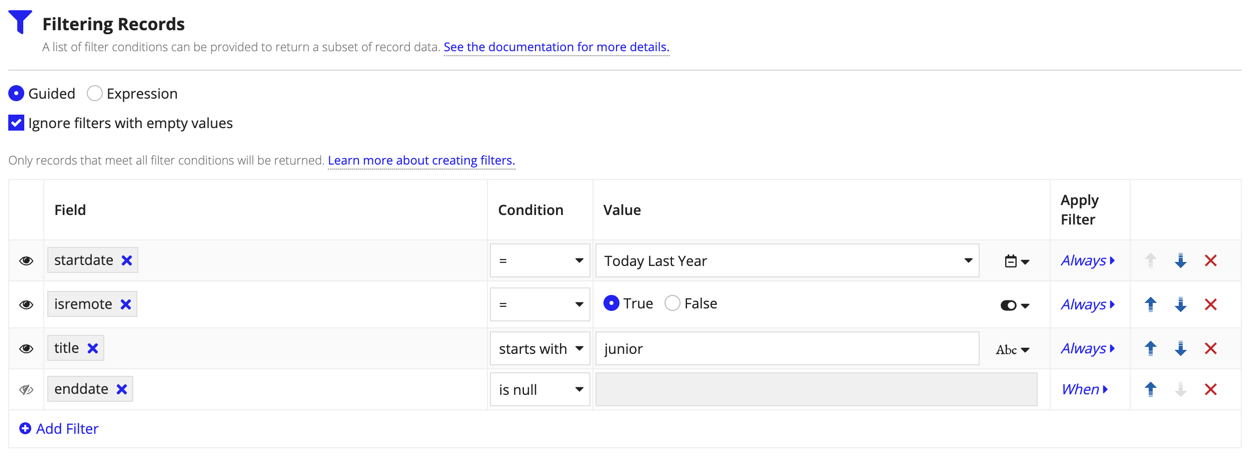

Selecting Guided allows you to easily set up filters using four criteria: Field, Condition, Value, and Apply Filter. Multiple filters are combined using the AND operator.

Ignore filters with empty values is selected by default. This means a filter will not be applied if its value parameter returns an empty value. This is useful when you have multiple filters that are all optional (for example, a grid that can be filtered by multiple selections).

If you don't select Ignore filters with empty values and the value for a filter is not supplied, the query will return an error.

Field

The Field picker contains all the fields in the record type, as well as related record fields.

The Condition and Value options will change depending on the data type of the selected Field. Only the conditions and values that are compatible with the data type of the selected field will display.

Condition

The Condition list displays all of the operators that can be applied to the selected field. Only operators that are compatible with the data type of the chosen field display.

The following tables define the behavior of each operator and their compatibility with Appian data types.

Comparison and logic operators:

String matching operators:

AI-powered and full-text search operators:

See where to use these search operators.

Operator compatibility by data type: The following table shows which operators can be applied to each data type.

Value

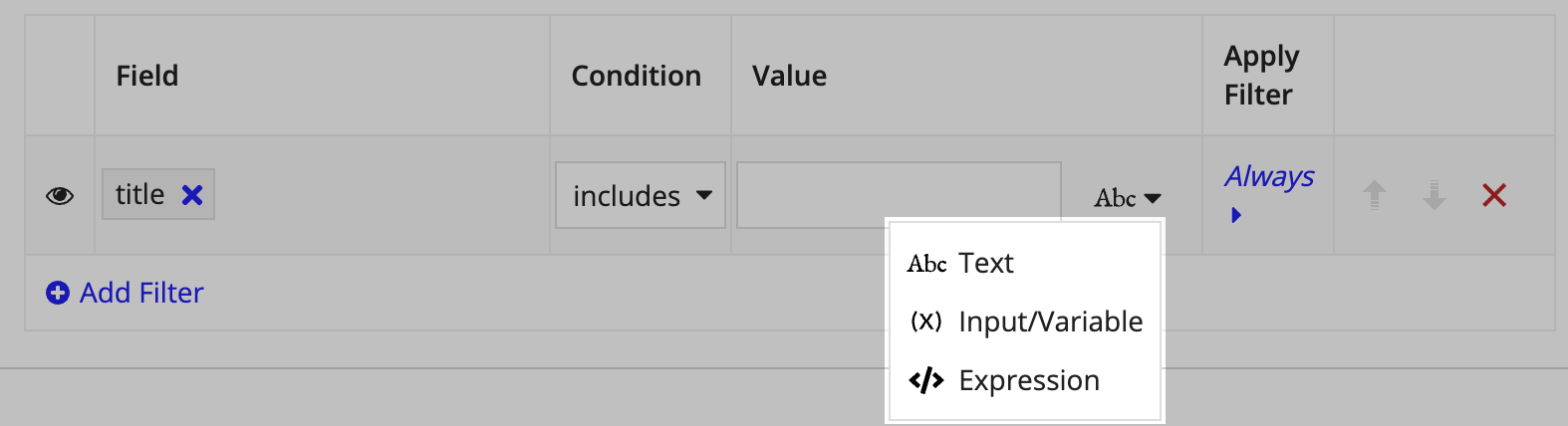

You can select how you want to pass in the filter value using the Value context menu.

The options in the context menu change based on the data type of the selected field. In most cases filter values can be passed in using the following:

• Static value, such as text or integer.
• Rule input or local variable.
• Expression.
• Date presets (for Date and Date and Time data types).

Only rule inputs and local variables that are compatible with the data type of the selected field will display. This includes:

• Rule inputs and local variables that have the same data type as the selected field.

• Rule inputs and local variables that have Appian data types that can be cast to the same data type as the selected field.

  For example, if you select a field that has a data type of Text, you can select rule inputs or variables of the same type or those that can be cast to the Text data type.

See the table below for some examples of Appian data types that can be cast to primitive data types:

Apply filter

The Apply Filter decides when the filter in that row is applied to the query. Use this option only when you want to apply the filter when a particular condition is met, such as if the user belongs to a specific group.

On the left side of each filter row, there is an icon that indicates whether or not the filter is applied based on the Apply Filter column. Each icon represents a different status determined by whether the filter is applied or not applied.

Visual Icon	Filter Status
	Applied
	Not Applied

Ordering filters

On the right side of each filter row, you can change the filter order using the up or down arrows.

Because filters are evaluated with the AND operator, the filter order can affect the speed of the query. Generally, it's better to order your filters so that those removing the most options come first.

Expression mode

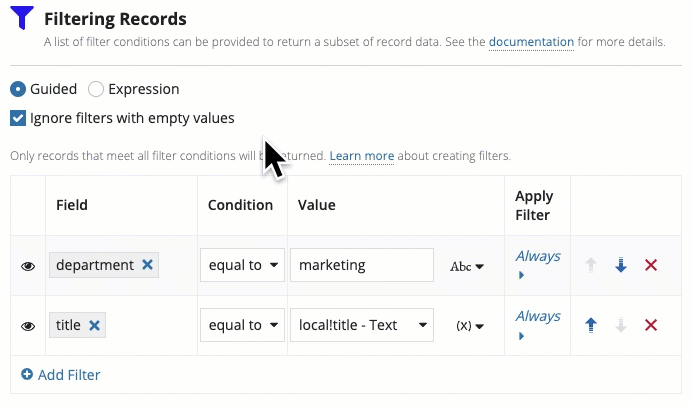

If you need to create more complex filters, you can start in Guided mode, then switch to Expression mode to configure them manually.

For example, if you want to use OR to combine filters instead of AND, create all of your filters in Guided mode, then switch to Expression mode and change AND to OR for the a!queryLogicalExpression() operator parameter.

Sort and limit

The Sort and Limit section allows you to determine the order of the records displayed for your query, and constrain the number of records returned.

You can configure filters using a guided mode or expression mode.

Guided mode

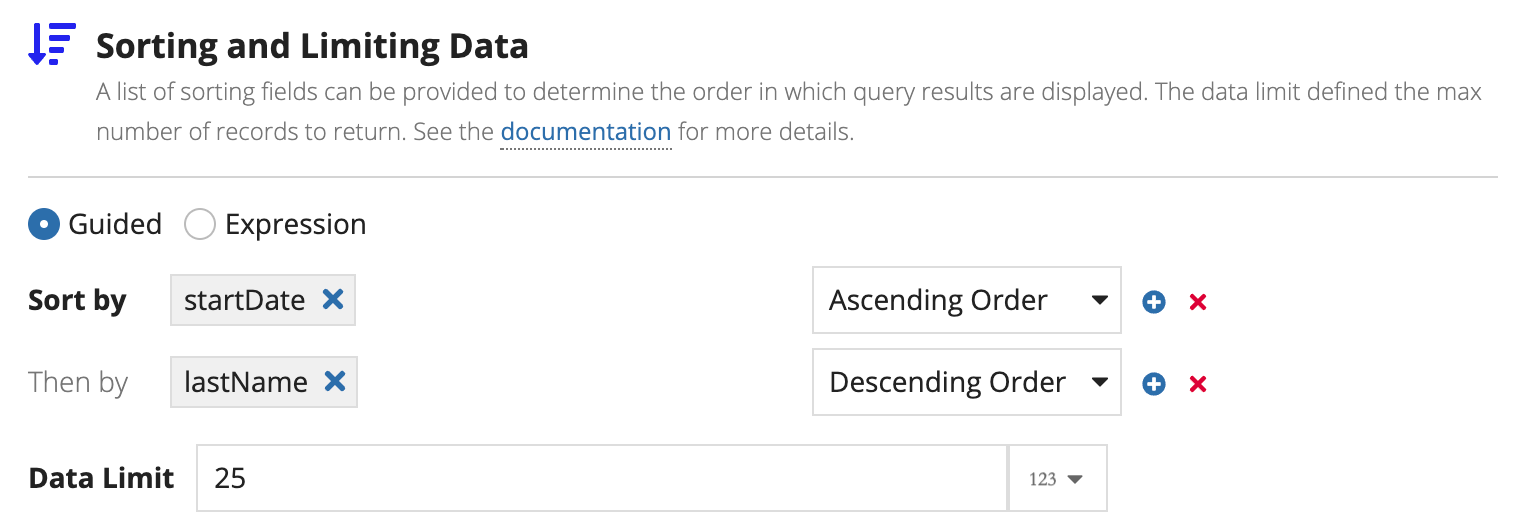

In Guided mode, you can Sort by one or more fields in either ascending or descending order.

You can also set a Data Limit to restrict the number of records returned by the query.

Expression mode

If you need more advanced sorting or limiting conditions, you can configure them manually without closing the query editor. This can be useful in certain situations, like when you want to use a rule input for your sorting and limiting.

Query properties

Queries are often one part of an expression, interface, or process model, and each of these may need different data or metadata from the query's result.

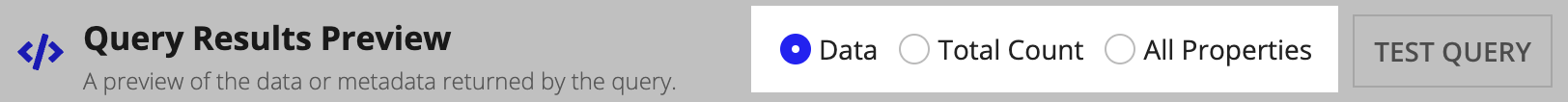

The query editor lets you choose what is returned by the generated query:

• The queried data.
• The total count of records.
• All properties of a!queryRecordType().

Data

In many parts of your app, the query data is all you need, so the Data option is selected by default. This option appends .data to the generated query, so only the specified record data is returned.

Keep this option selected for situations like populating an interface or working with the data in a process model.

For example, in a support application, support engineers will need to update information as a case progresses. To see up-to-date case information in an "Update Case" form, you would need to query the latest record data. For optimal performance, the query can be limited to the data. Other properties, like the total count of case records, are not needed when updating a single case.

Total count

The Total Count option displays the number of records matching your query regardless of the data limit. The total count is calculated automatically; there is no additional performance cost to get the total count for a synced record type.

However, if you are querying a legacy record type, Appian only calculates the total count if you choose to retrieve it. If you do not need the total count for the query, it is recommended that you do not set this parameter in order to maximize performance.

All properties

When you select the All Properties option, the data, total count, and additional properties are returned. The additional properties are metadata used when configuring some interface components or to build error handling into a part of your application.

Say you have an interface that displays data from a few different record types. If the query for one of these fails, you may want to hide a section of the interface showing that record data. You could use the success or errorCode property to check for an issue and then define alternative behavior in the case of a failed query.

For a full list of properties, see a!queryRecordType().

Query results preview

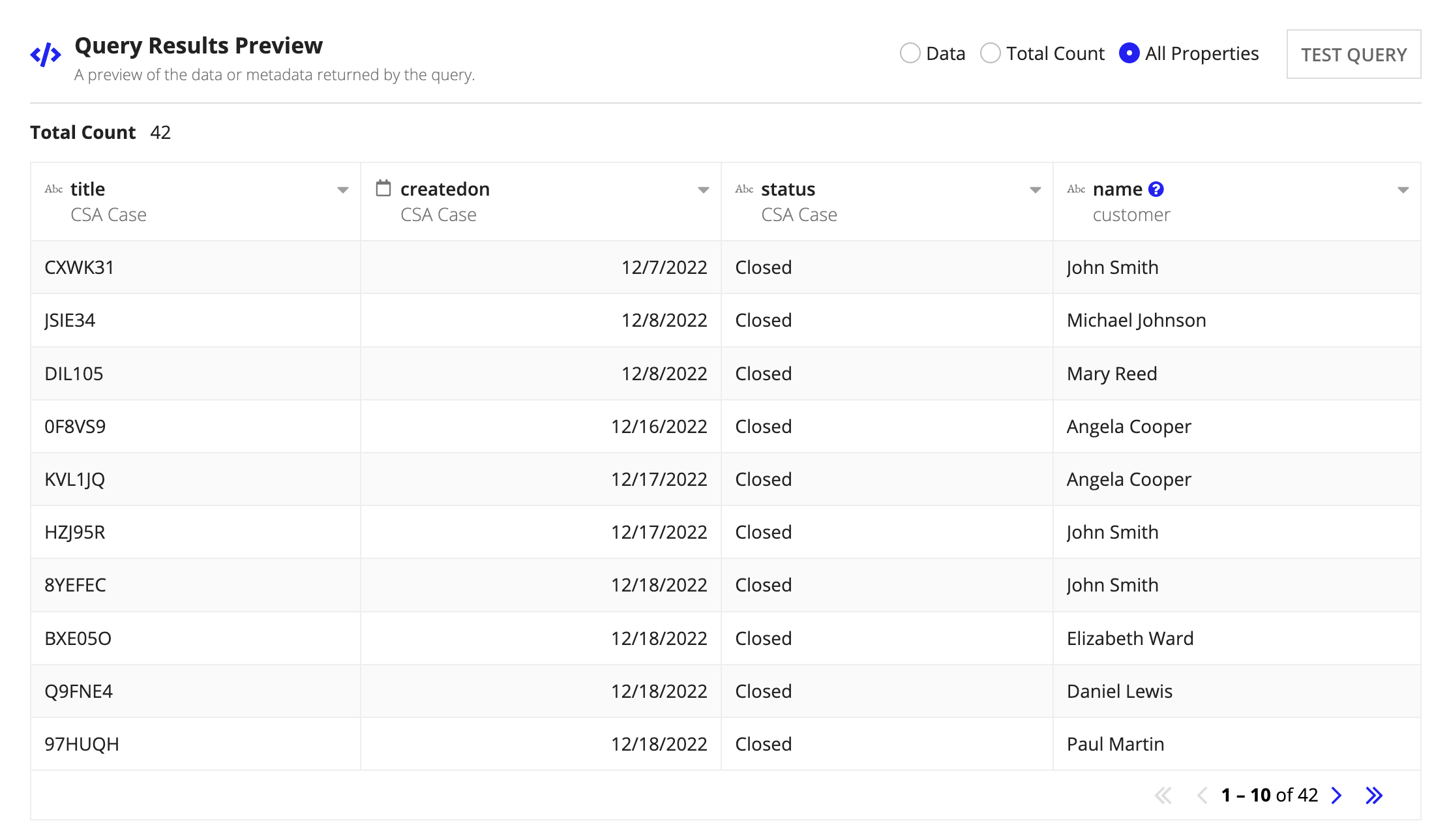

The Query Results Preview section allows you to test and troubleshoot your query directly from the query editor.

The query preview displays 10 records per page, and you can click through the pages to view all records returned by the query.

Query entities

You can use the query editor to query data from a data store entity (DSE), so long as:

• You create a constant referencing the DSE.
• You have Viewer permission to the constant and the DSE.
• The field names do not contain special characters and are not type encrypted text.

Elements of the query editor

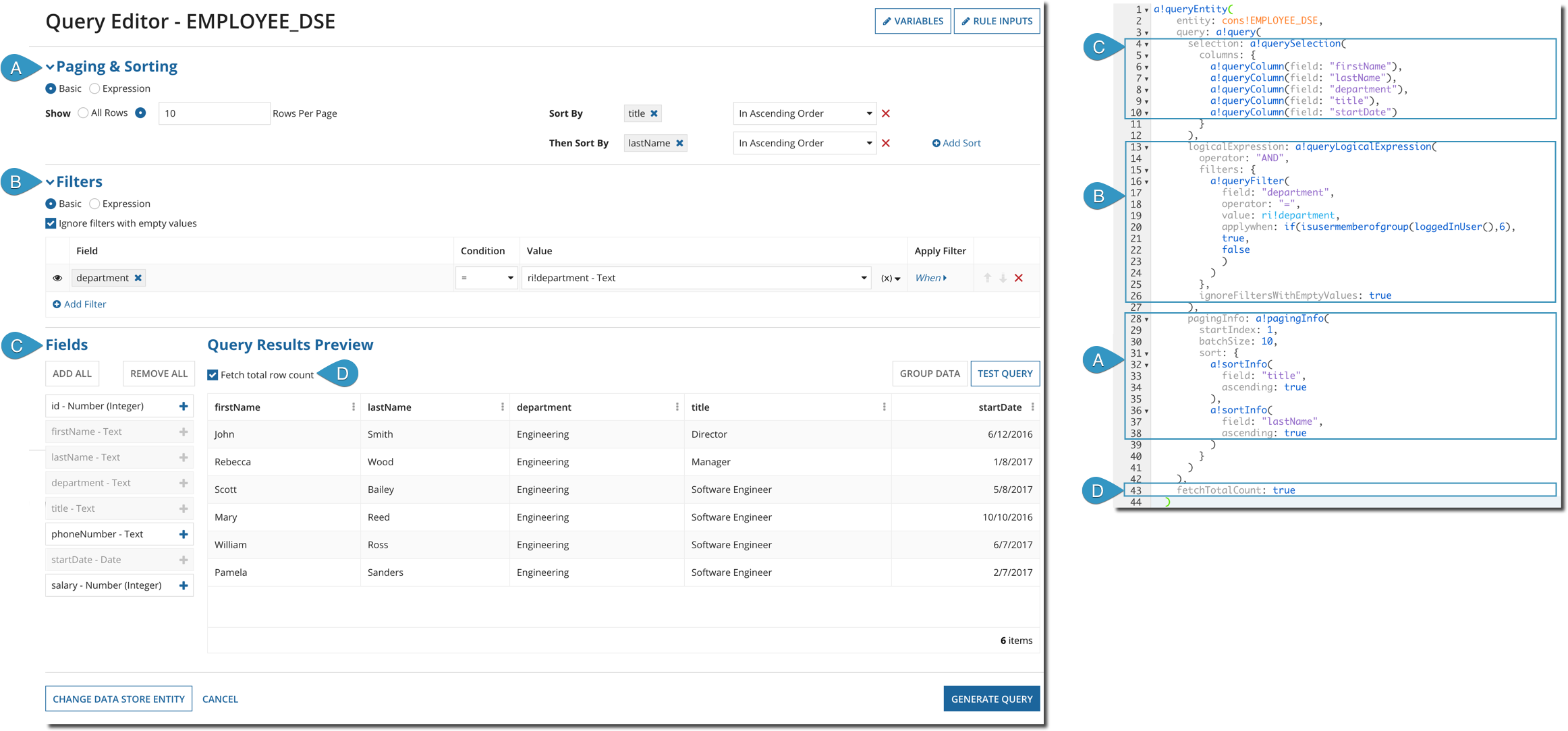

After selecting the constant referencing your data store entity, the query editor configuration screen appears. Each section of the query editor corresponds to a different part of the generated query.

The query editor is made up of the following sections:

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

Call Out Letter	Section Name	Function Parameter	Function	Description
A	Paging & Sorting	pagingInfo	a!pagingInfo()	Determines how many rows to return, as well as how to sort those rows.
B	Filters	logicalExpression	a!queryLogicalExpression()	Determines which rows of data to return based on conditions you specify.
C	Fields	selection	a!querySelection()	Determines which fields of the data to return.
D	Query Results Preview	fetchTotalCount	a!queryEntity()	Previews the results of the query and contains field configuration options in the context menu . Fetch total row count in this section determines whether or not to retrieve the total number of rows.

Rule inputs and variables

The query editor parses rule inputs and local variables that are present in your expression rule or interface so you can use them as part of your query. For example, you might use a rule input or local variable to store the value of a filter. When you open the query editor, the local variables and rule inputs are evaluated immediately so make sure that you initialize them correctly.

In the expression example shown, the ri!user rule input is empty. This will cause a runtime error when the query editor opens.

1
2
3
4
5
6
7
8
9
10
 a!localVariables(
   local!user: user(ri!user),
   a!queryEntity(
     entity: cons!SUPPORT_CASE_DSE,
     query: a!query(
       pagingInfo: a!pagingInfo(startIndex: 1, batchSize: 50)
     ),
     fetchTotalCount: false
   )
 )

To resolve this issue, make sure you create and save a test value for ri!user before saving and closing the expression.

The following sections describe how to create and save test values for rule inputs and local variables.

Creating test values for rule inputs

The RULE INPUTS button at the top of the query editor allows you to create rule inputs and change their test values without having to close the query editor. In order to save the rule input test values for future use, you must save the rule or interface. The query editor can change the test values, however it cannot save the test values for use after closing the rule or interface.

Evaluating test values for local variables

If your expression contains a local or function variable, a VARIABLES button will display next to RULE INPUTS. VARIABLES allows you to edit the test values of local variables and function variables. These test values are not saved to the rule or interface; they are there as a convenience so you can test your queries with different values.

See Using the Query Editor for more information on configuring rule inputs and variables.

Paging and sorting

Paging and sorting sets limits on the amount of rows returned by your query and determines the order of the rows.

Basic mode

In Basic mode, you can either retrieve all rows, or you can limit the amount of rows returned per page to a certain number. You can also sort on multiple fields in either ascending or descending order.

Expression mode

If you need more advanced paging and sorting settings, you can configure them manually without closing the query editor. Simply select Expression and an expression editor box prepopulated with the a!pagingInfo() function displays. This can be useful in certain situations, such as if you want to use a rule input for your paging and sorting.

Filters

Filters allow you to determine which rows of data to return based on conditions you specify.

Basic mode

Selecting Basic allows you to easily set up filters using four criteria: Field, Condition, Value, and Apply Filter. Multiple filters are combined using the AND operator.

Ignore filters with empty values is selected by default. When selected, a filter will not be applied if its value parameter returns an empty value. This is useful when you have multiple filters that are all optional (for example, a grid that can be filtered by multiple selections). If you don't select Ignore filters with empty values and the value for a filter is not supplied, the query will return an error.

Field

The Field picker contains all the fields in the data store entity, including nested data types. The Condition and Value options will change depending on the data type of the selected Field. Only the conditions and values that are compatible with the data type of the selected field will display.

Field names that include special characters in your data store entity cannot be configured using the query editor and will not display. Likewise, if your data contains nested data types, only fields with one-to-one or many-to-one relationships will display. Fields with one-to-many relationships are not displayed in order to avoid run time errors.

Condition

The Condition list displays all of the operators that can be applied to the selected field. Only operators that are compatible with the data type of the chosen field display.

The following tables define the behavior of each operator and their compatibility with Appian data types.

Comparison and logic operators:

String matching operators:

AI-powered and full-text search operators:

See where to use these search operators.

Operator compatibility by data type: The following table shows which operators can be applied to each data type.

Note that for Date and Date and Time data types, between is substituted with Date Range in the query editor dropdown list. This is just to indicate that you can select from a list of date presets for the filter's value. The parameter in the expression will still display between.

Value

You can select how you want to pass in the filter value using the Value context menu. The options in the context menu change based on the data type of the selected field.

In most cases filter values can be passed in using the following:

• Static value, such as text or integer.
• Rule input or local variable.
• Expression.
• Date presets (for Date and Date and Time data types).

If you select Input/Variable, existing rule inputs and local variables appear in the Value list.

Only rule inputs and local variables that are compatible with the data type of the selected field will display. This includes:

• Rule inputs and local variables that have the same data type as the selected field.
• Rule inputs and local variables that have Appian data types that can be cast to the same data type as the selected field.

For example, if you select a field that has a data type of Text, you can select rule inputs or variables of the same type or those that can be cast to the Text data type. See the table below for some examples of Appian data types that can be cast to primitive data types.

• User can be cast to Text
• List of User can be cast to List of Text
• Document can be cast to Integer
• Folder can be cast to Integer
• Document or Folder can be cast to Integer
• Group can be cast to Integer
• List of Document can be cast to List of Integer
• List of Folder can be cast to List of Integer
• List of Document or Folder can be cast to List of Integer
• List of Group can be cast to List of Integer

Apply filter

The Apply Filter decides when the filter in that row is applied to the query. Use this option only when you want to apply the filter when a particular condition is met, such as if the user belongs to a specific group.

The Apply Filter can be configured in an expression editor by clicking on the link in the Apply Filter column, shown as either Always or When. Always means the filter is always applied, and When means a condition expression exists. Enter an expression that returns a boolean value.

On the left side of each filter row, there is an icon that indicates whether or not the filter is applied based on the Apply Filter column. Each icon represents a different status determined by whether the filter is applied or not applied.

Visual Icon	Filter Status
	Applied
	Not Applied

Ordering filters

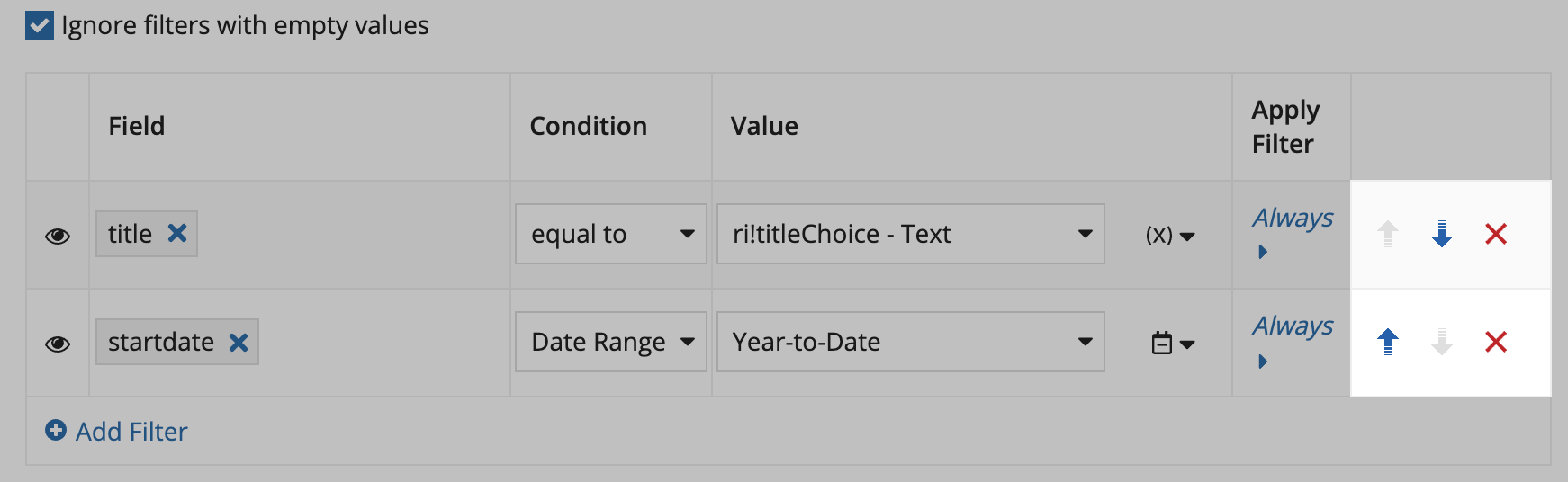

On the right side of each filter row, you can change the filter order using the up or down arrows, or delete the filter using the x icon.

Because filters are evaluated with the AND operator, the filter order can affect the speed of the query. Generally, it is better to order them so that filters that remove the most options come first.

Expression mode: filters

If you need to create more complex filters, you can start in Basic mode, then switch to Expression mode to configure them manually. Simply select Expression and an expression editor box will display where you can modify the a!queryLogicalExpression function.

For example, if you want to use OR to combine filters instead of AND, create all of your filters in Basic mode, then switch to Expression mode and change AND to OR for the a!queryLogicalExpression() operator parameter.

Fields

The Fields section contains a field picker that shows all of the fields in the data store entity. If there is a nested data type, you can expand it by clicking >.

Note that some fields cannot be configured in the query editor. The following fields will not display:

• For nested data types, fields with one-to-many relationships.
• Fields with names that include special characters in the data store entity.

You can add or remove the fields that you want your query to return. See Using the Query Editor for more information on how to add or remove fields from your query. The order of the columns in the preview pane changes as you select and remove fields from the list. If you clear a column and re-add it, it will be added as the last column.

Query results preview

The Query Results Preview section allows you to test and troubleshoot your query directly from the query editor. The TEST QUERY button populates the Query Results Preview section with the results of your query.

Fetch total row count

If Fetch total row count is selected, a parameter will be applied to the query that will retrieve the total number of rows that are returned. Note that Fetch total row count is applied to the query, not just the preview.

If you have a lot of data, it is recommended to turn off Fetch total row count to improve performance. In some cases, the total row count will be retrieved even if it is not selected. For more information on this, see a!queryEntity().

Normally, Fetch total row count is deselected by default. However, when launching the query editor from a read-only grid in design mode, it is automatically selected and cannot be changed.

When this setting is turned off, the total number of rows at the bottom of the Query Results Preview grid displays 1,000,000 to indicate the total is unknown.

Organize fields

You can use the context menu to move filters left or right, edit aliases, and set the visibility for fields. See Using the Query Editor for more information on how to configure fields.

Group data

You can group your data and perform calculations with it by clicking GROUP DATA. When your data is grouped, the context menu provides additional options for calculating and grouping it. See Using the Query Editor for more information on data grouping.

Supported logic and parameters

The query editor can be opened from any a!queryRecordType() or a!queryEntity() function that is a part of a rule or interface that does not have any syntax errors. It can also be opened from an empty expression rule or interface.

Query editor cannot open scenarios

The following scenarios will prevent the query editor from opening:

pagingInfo parameter

If your expression contains a pagingInfo parameter that cannot be translated to Basic mode, the Expression mode will open by default.

To open in Basic mode, the pagingInfo parameter must meet the following requirements:

• It cannot contain any rule inputs.
• It cannot contain any additional non-query functions such as if(), where(), etc.

logicalExpression parameter

If your expression contains a logicalExpression parameter that cannot be translated to Basic mode, the Expression mode will open by default.

To open in Basic mode, the logicalExpression parameter must meet the following requirements:

• The filters cannot be combined using the OR operator.
• It cannot contain nested logical expressions.
• It cannot contain any additional non-query functions such as if(), where(), etc.

If the a!queryEntity() function uses the filter parameter instead of the logicalExpression parameter, the Filter section will automatically open in Expression mode.

If you switch to Basic mode, the query editor will wrap your a!queryFilter() in an a!queryLogicalExpression().

Feedback
