Architecture: Appian on Kubernetes

On This Page

This page describes the high-level system architecture of Appian on Kubernetes.

Overview

Appian runs using various components: application server, search server, data server, and others. For self-managed environments, Kubernetes orchestrates running all the various components as pods, managed by a singular Appian custom resource configuration file.

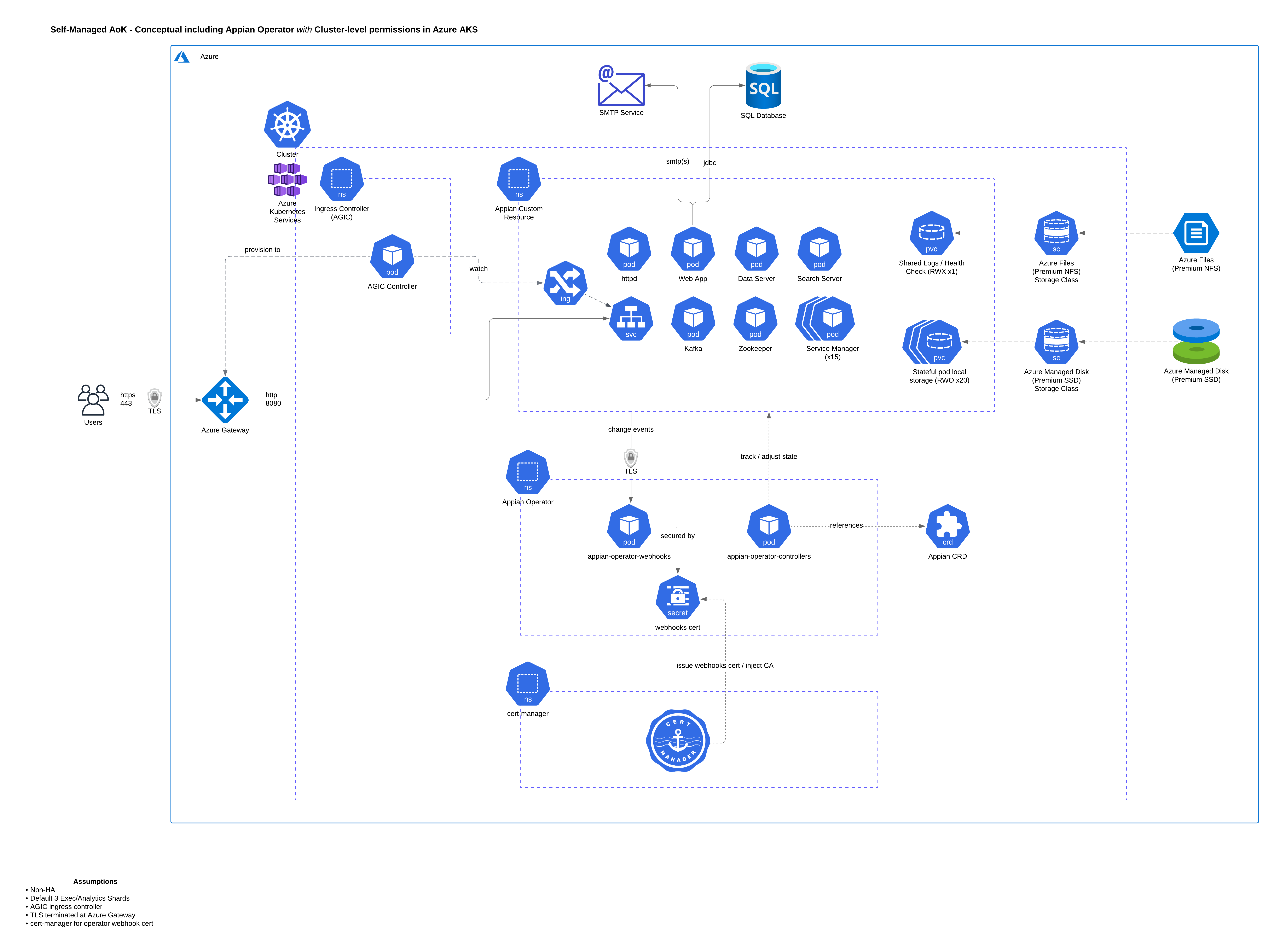

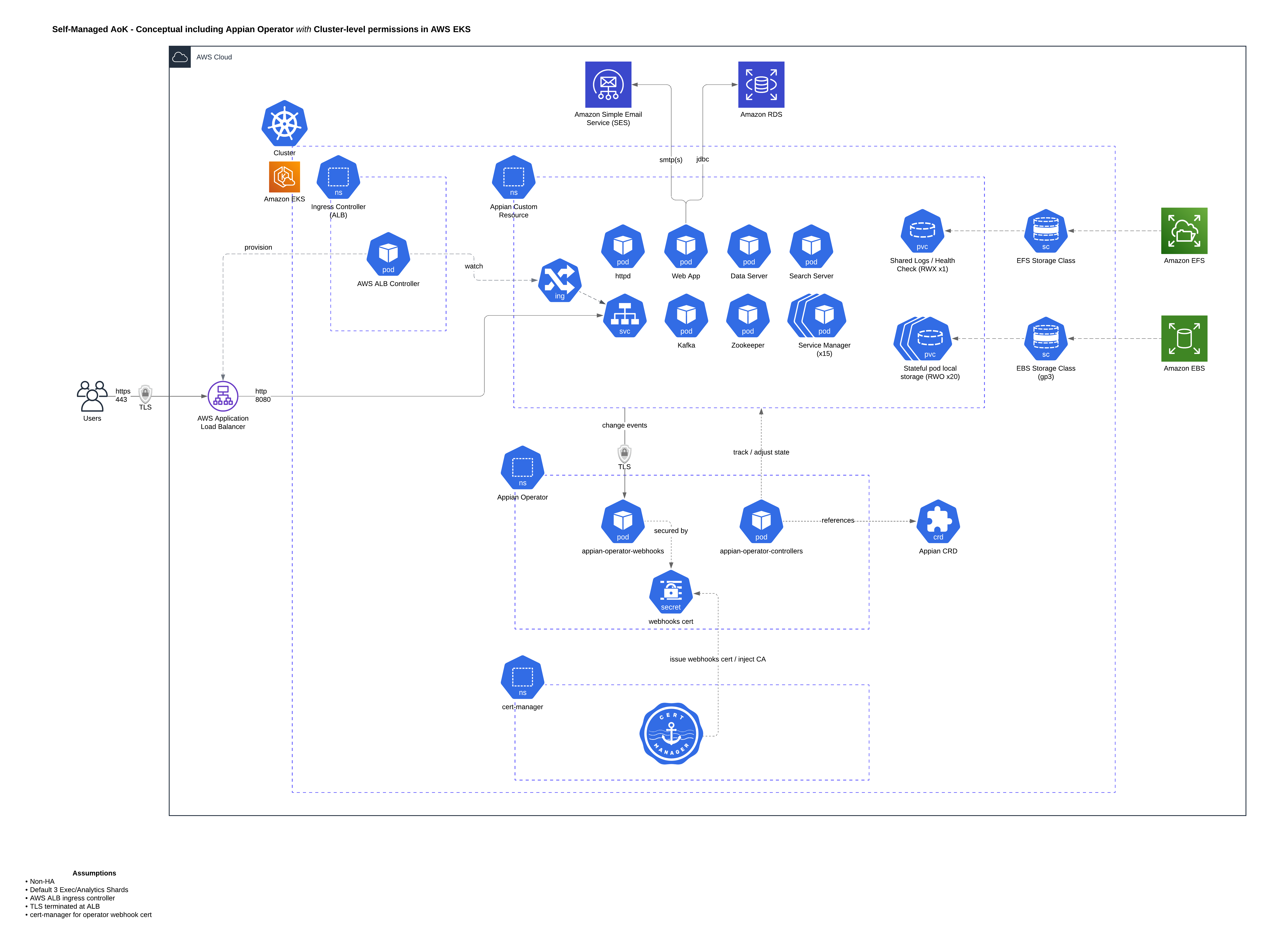

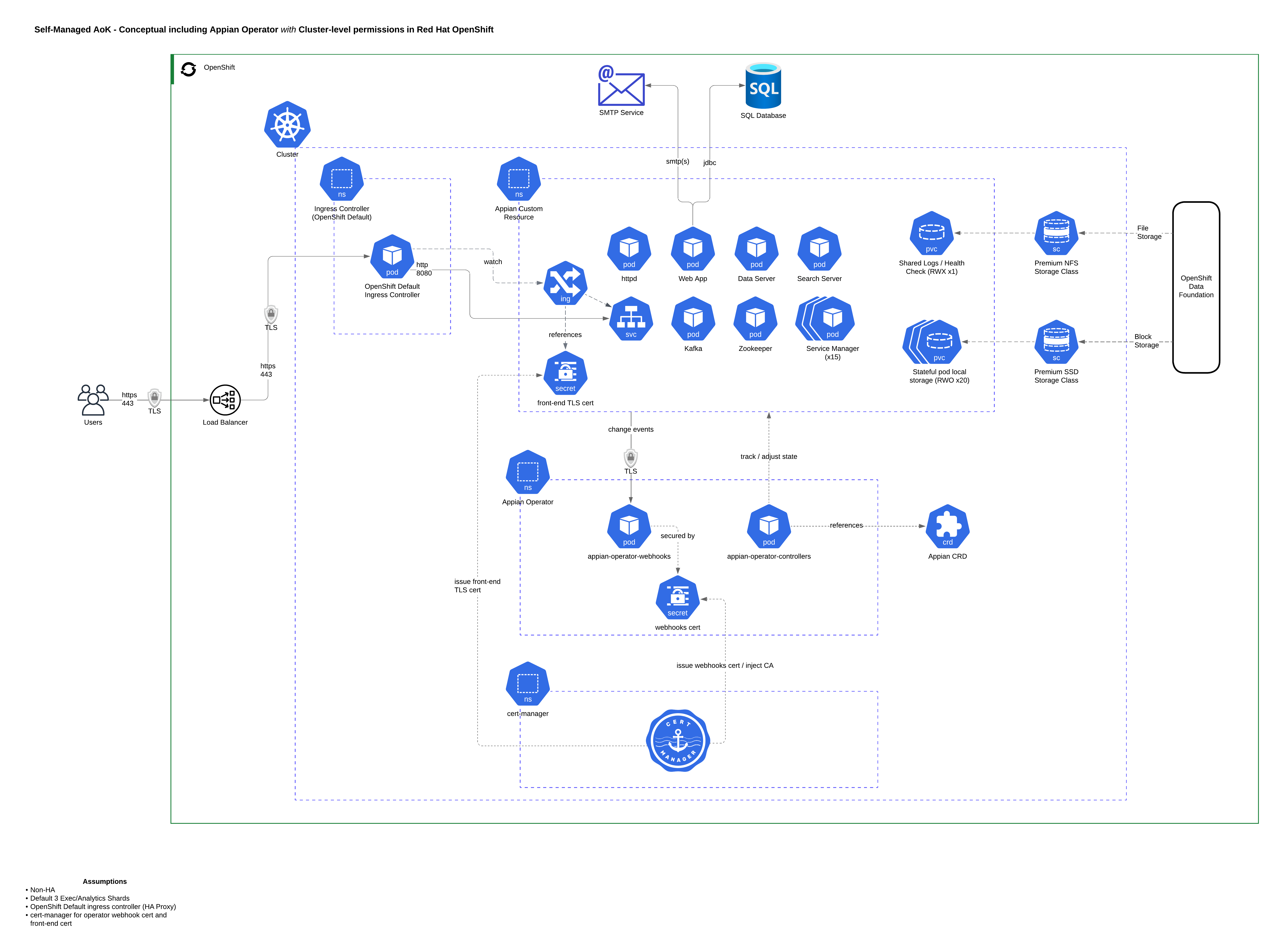

The architecture of pods and clusters can differ based on the Kubernetes platform you're using.

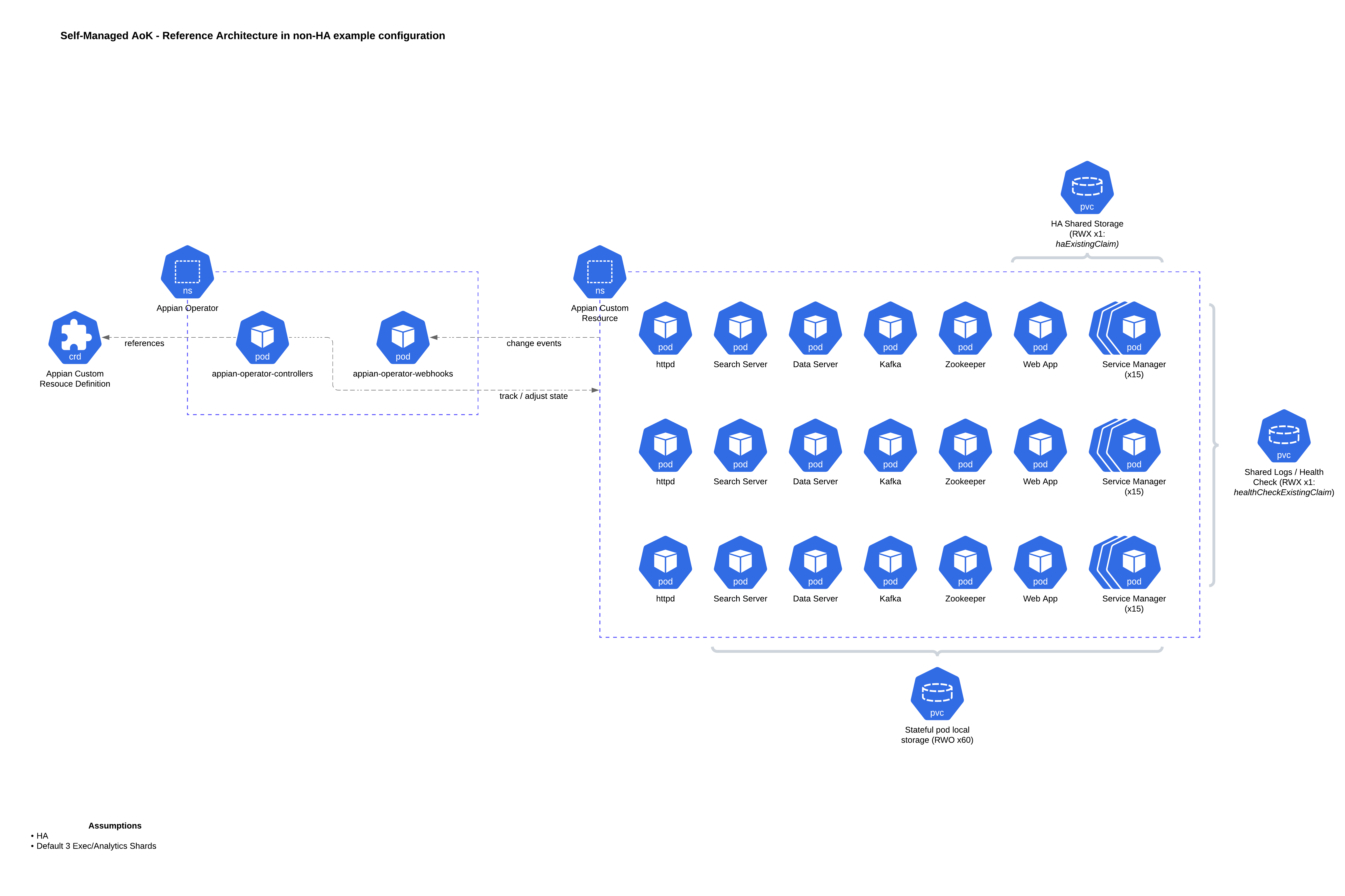

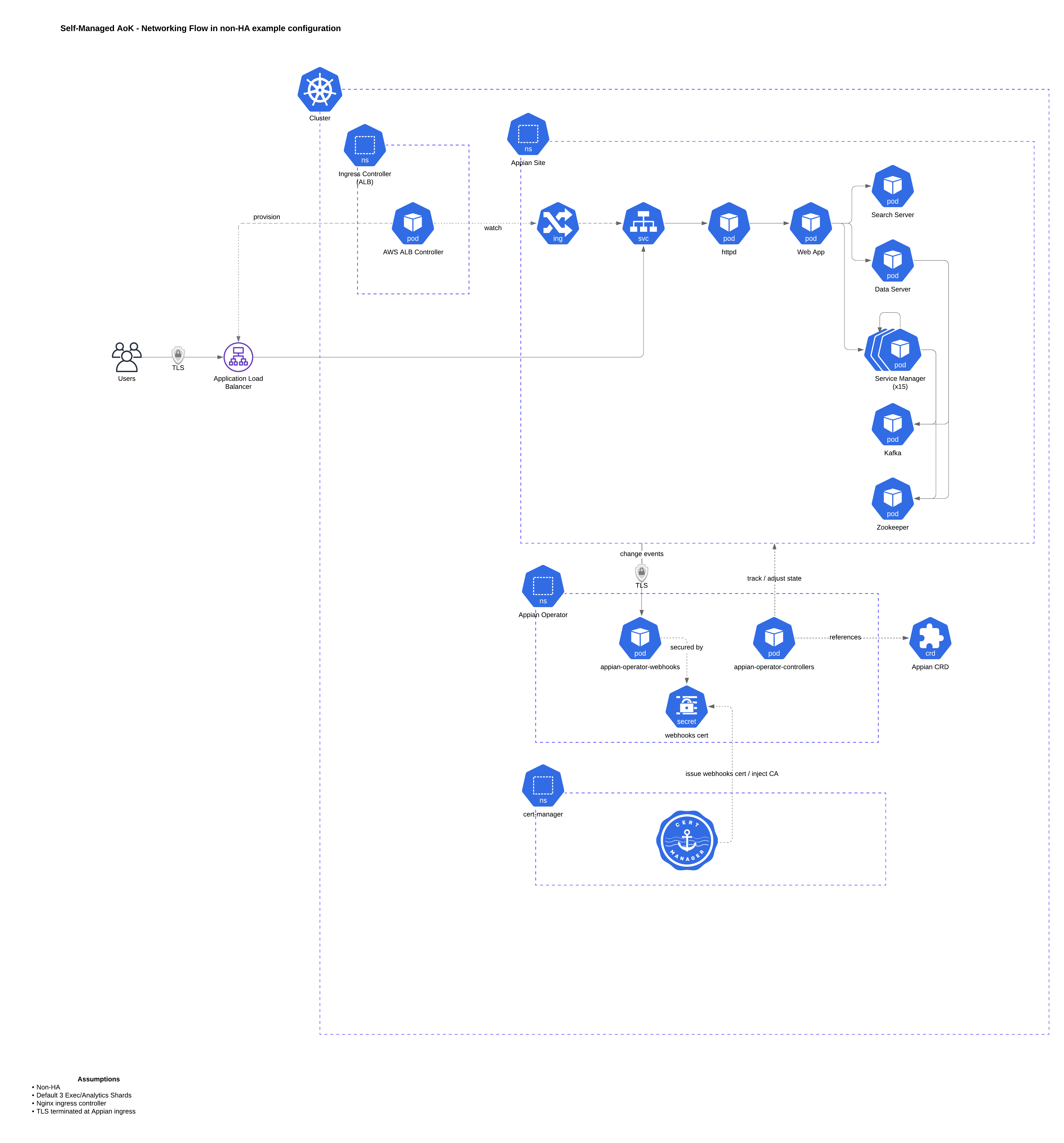

This page discusses the Appian operator pattern and provides diagrams of a number of common implementations.

Operator pattern

Appian implements the operator pattern to orchestrate standing up and maintaining all the Appian components. You can tell Appian to start or stop, and the Appian operator will gracefully start or stop the Appian components in the correct order. The operator runs constantly to correct the state of components if any fall outside their specification. Appian also runs using a single configuration (custom resource definition (CRD)) for all the components. The resulting site is easy to self-host and configure.

We'll give context on what the operator pattern is, what the Appian operator itself is responsible for managing, and help build a mental model of what Appian on Kubernetes really looks like.

What is an operator?

Kubernetes is built around declarative state. You tell the cluster what you expect to be there (the desired state), and the cluster constantly works its hardest to ensure what's actually there (the actual state) is always in alignment with what's desired. Of particular interest is Kubernetes' self-healing capabilities — if you ask for three replicas of a pod, not only will three replicas come up, but if one of them goes down, Kubernetes will recognize this discrepancy and work to get it up and running again. This constant work and rework to make sure the desired and actual states are in alignment is called reconciliation.

Kubernetes typically covers this through various built-in controllers. For example, clusters come with a Deployment Controller which reacts whenever a Deployment is created, updated, or deleted. This controller can be thought of as an infinite loop that is constantly checking the desired state (the Deployment manifests) and actual state of the cluster and reconciling the two.

When you're working on complex, stateful applications that require more logic than just the basic Kubernetes primitives like Pods and Deployments, you might find yourself wondering if you can write your own controller that reacts to a custom resource you define. This is essentially what an operator is — by leveraging custom resource definitions, you can extend the Kubernetes API to add new types of resources for which you write your own controller for.

There are multiple frameworks available for creating your own operator. Appian uses Kubebuilder to quickly scaffold our own custom resource and controller code.

What does the Appian operator do?

Since Appian is such a complex, stateful application, it's not enough to simply throw its image(s) into a Pod spec and call it a day. There's a good amount of behind-the-scenes logic and coordination that goes into starting Appian.

The Appian operator is meant to handle that for you. Rather than going through this complicated installation process yourself, you can instead define a base configuration for your Appian installation via the Appian custom resource and let the operator handle all the dirty work for you.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

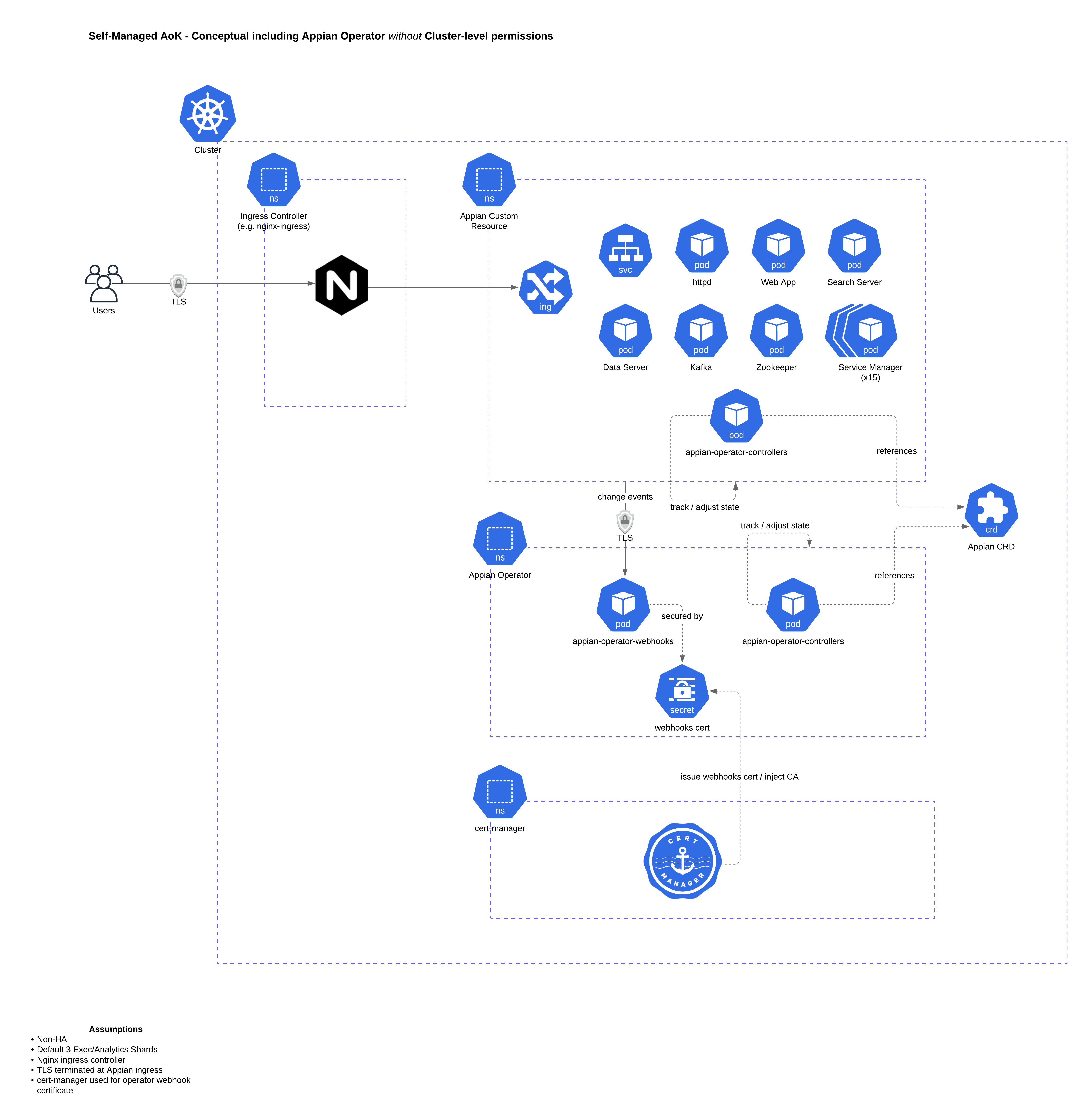

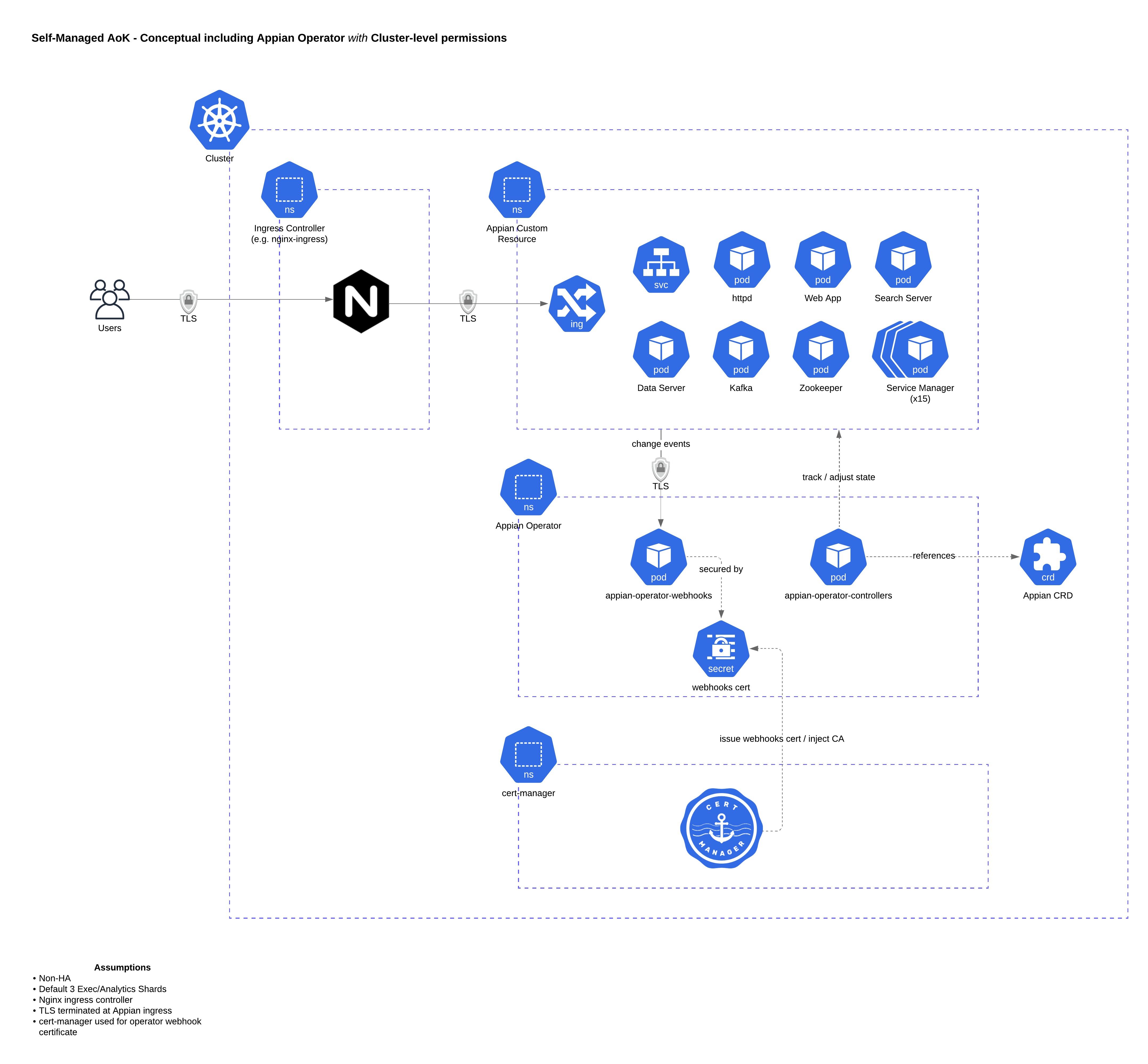

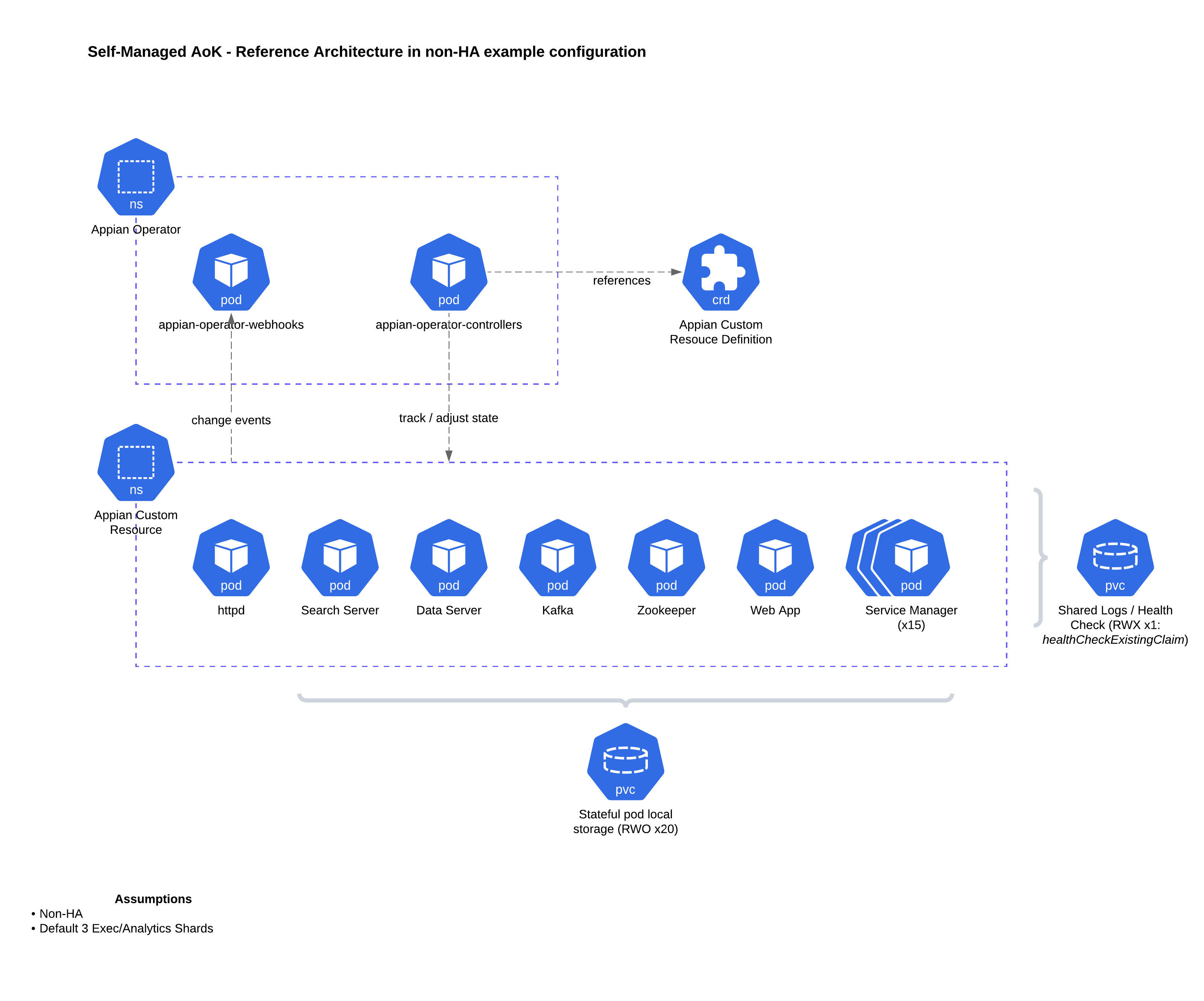

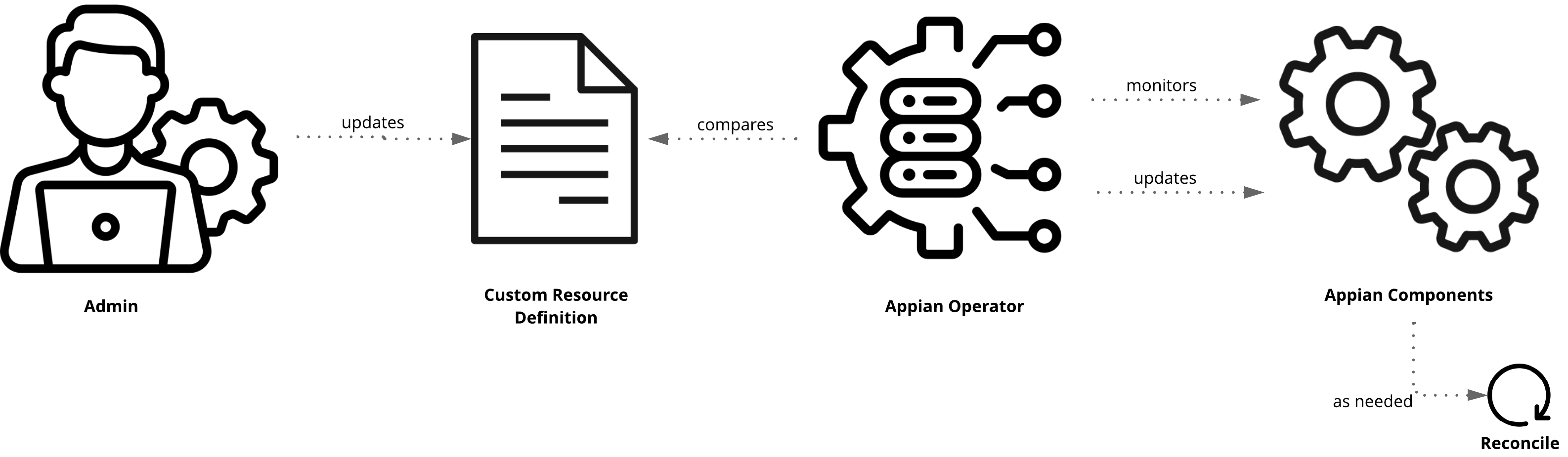

Let's walk through how this works. When you install the Appian operator Helm chart, your cluster is given a new custom resource definition (or CRD) for Appian. This basically allows you to apply an Appian custom resource (or CR) that follows the spec laid out by the CRD, just like you can apply a Pod or a Deployment that follows the spec defined by the Kubernetes API. You can think of CRDs and CRs as analogous to classes and objects in object-oriented languages like Java — the CRD defines the spec, while a CR is an actual instance of that spec.

When you install the Appian operator Helm chart, your cluster is also given an Appian controller that knows how to respond to Appian CRs. Whenever you create an Appian CR, this controller will constantly work to make sure the desired state of the CR is in alignment with the actual state in the cluster. This constant reconciliation logic allows for better self-healing when things go wrong.

In addition to managing cluster state for you, the operator pattern allows Appian to expose lots of base configurations at the CRD level. When creating your CRD, you can specify all sorts of things such as custom properties, specific images, init containers, URLs, ingress, and anything else. The operator will take these configurations and apply them correctly to all the various Kubernetes resources it creates and manages.
