a!recordData() Function

On This Page

This function references a set of records from a record type and allows additional filtering in a read-only grid, chart, or selection component that uses a record type as the source. When referencing one-to-many relationships in grid columns, you can filter, sort, and limit that related record set using the relatedRecordData parameter and the a!relatedRecordData() function.

Related functions and information:

Parameters

a!recordData( recordType, filters, relatedRecordData, fields )

Keyword Type Description

recordType

RecordType

A reference to a record type, configured using the recordType! domain. For example, recordType!Employee.

filters

Any Type

A single logical expression or a list of query filters, which are applied together with an AND operation, can be provided to apply additional filters to the record set. Queries also inherit the record-level security or default filters defined on the referenced record type. When filtering, use only record fields or related record fields from the referenced record type. Record types sourced from a web service or other expression only support this parameter if the data is synced.

relatedRecordData

List of RelatedRecordData

When selecting one-to-many related record data, use a!relatedRecordData() to filter, sort, and limit the related record sets. This parameter is only supported when a!recordData() is used in a read-only grid.

fields

Any Type

Fields to retrieve in a read-only grid. Reference a list of fields using the recordType! domain, or use a!selectionFields() to return all fields from the record type and any related record types. When this parameter is null in a read-only grid, only the fields specified in the columns parameter will be retrieved.

Returns

RecordData

Using the function

The following sections cover important details about the a!recordData() function.

Where to use this function

The a!recordData() function is supported within the data parameter of the following components:

Using the filters parameter

Note:  The filters parameter is not supported on legacy service-backed record types.

The filters parameter allows you to specify which data is returned using a!queryFilter() or a!queryLogicalExpression(). You can filter by record fields or related record fields using the recordType domain.

For example, the following expression would display a pie chart with all active employees.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

{
  a!pieChartField(
    data: a!recordData(
     recordType: recordType!Employee,
      filters: a!queryLogicalExpression(
        operator: "AND",
        filters: {
          a!queryFilter(
           field: recordType!Employee.relationships.employeeStatus.fields.isActive,
            operator: "=",
            value: true
          )
        },
        ignoreFiltersWithEmptyValues: true
      )
    )
    ...

Using the relatedRecordData parameter

The relatedRecordData parameter in a!recordData() accepts the a!relatedRecordData() function to filter, sort, and limit related record data from a one-to-many relationship. The relatedRecordData parameter is only supported in a!recordData() when it's used to configure a read-only grid.

When the relatedRecordData parameter is null, the grid returns up to 100 related records for each base record, sorted in ascending order by the primary key of the related record type.

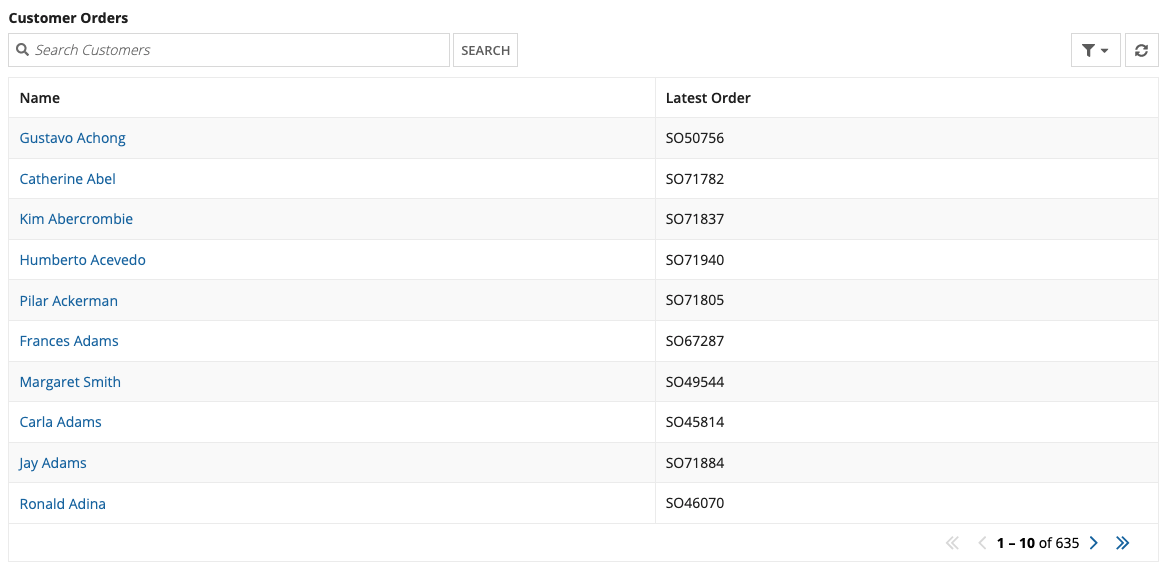

For example, if you add the related record field orderNumber as a column in a customer grid, each customer row displays up to 100 orders by default. To display only the latest order for each customer, configure a!relatedRecordData() to set the limit to 1 and sort by orderDate in descending order.

/relatedrecorddata-on-grid

When configuring a!relatedRecordData(), note the following:

Using the fields parameter

The fields parameter allows you to specify when to query the fields referenced in the columns of a read-only grid. Configuring this parameter can improve performance on grids that use dynamic behavior (such as conditional logic) to determine which fields display in your grid.

By default, a grid will query and display all the data specified in the columns, pagingSaveInto, and selectionSaveInto parameters. This default behavior can potentially impact performance if your grid includes dynamic behavior since it may result in querying more data than necessary.

For example, let's say you configured the showWhen parameter on the columns in your grid so that certain columns only appear to managers. Even when columns are hidden from the grid, those fields will still be queried since they're specified in the columns parameter of the grid.

To alter this default behavior, you can configure an if() statement in the fields parameter of a!recordData() to specify that when a manager views the grid, it should only query certain fields. If someone other than a manager views the grid, query a different set of fields.

The expression would look something like this:

Note:  When configuring the fields parameter, you must specify all of the fields referenced in the columns, selectionSaveInto, and pagingSaveInto parameters of the read-only grid. Otherwise, those fields will not be queried and, therefore, not appear in the grid.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

a!localVariables(
local!managers: a!isUserMemberOfGroup(loggedInUser, cons!MANAGER_GROUP),
a!gridField(
  data: a!recordData(
    recordType: recordType!Case,
    /* The grid will only retrieve one of these two sets of fields */
!   fields: if(local!managers,
!     { /* Fields for Managers */
!       recordType!Case.fields.id,
!       recordType!Case.fields.name,
!       recordType!Case.fields.description,
!       recordType!Case.fields.createdOn,
!     },
!     { /* Fields for Engineers */
!       recordType!Case.fields.id,
!       recordType!Case.fields.description,
!       recordType!Case.fields.status,
!       recordType!Case.fields.assignedTo,
!       recordType!Case.fields.timeInQueue,
!       recordType!Case.relationships.comment.fields.description,
!       recordType!Case.fields.createdOn,
!     }
! ),
  /* Only fetch the last 3 comments added to a case */
  a!relatedRecordData(
    relationship: recordType!Case.relationships.comment,
    sort: a!sortInfo(
      field: recordType!Case.relationships.comment.fields.createdOn,
      ascending: false
    ),
    limit: 3
  ),
  columns: {
    a!gridColumn(
     label: "Id",
     value: fv!row[recordType!Case.fields.id],
    ),
    a!gridColumn(
     label: "Name",
     value: fv!row[recordType!Case.fields.name],
    ),
    a!gridColumn(
     label: "Description",
     value: fv!row[recordType!Case.fields.description],
    ),
    /* The fields used in the following 4 grid columns
       may or may not be displayed. But by using the
       'fields' parameter we ensure they are not queried if
       they are not needed.
    */
    a!gridColumn(
     label: "Status",
     value: fv!row[recordType!Case.fields.status],
!    showWhen: not(local!managers)
    ),
    a!gridColumn(
     label: "Assigned To",
     value: fv!row[recordType!Case.fields.assignedTo],
!    showWhen: not(local!managers)
    ),
    a!gridColumn(
     label: "Time in Queue",
     value: fv!row[recordType!Case.fields.timeInQueue],
     align: "END",
!    showWhen: not(local!managers)
    ),
    a!gridColumn(
     label: "Time in Queue",
     value: fv!row[recordType!Case.relationships.comment.fields.description],
!    showWhen: not(local!managers)
    ),
    a!gridColumn(
     label: "createdOn",
     align: "END",
     value: fv!row[recordType!Case.fields.createdOn]
    )
   }
  )
 )
)

Unsupported field types

You cannot query record fields of type Extra Long Text using a!recordData(), so fields of this type cannot be used in records-powered components.

Using smart search in a grid

When you use a!recordData() in a read-only grid, you can apply smart search to the grid's default search box using the grid's smartSearchType and similarityScoreThreshold parameters. See the Read-Only Grid page to learn how to configure smart search in the default search box.

If you want to customize the grid's search box and its styling, you must build a custom search box. To build a custom search box that uses smart search, use a!queryFilter() with the "semantic search" or "lexical search" operator in the filters parameter of a!recordData(). See Configure Smart Search for implementation details.

Query timeout

Queries to synced and unsynced record types will timeout after 65 seconds. If you are querying large volumes of data, this may cause the interface or expression to error.

To resolve timeout errors, reduce the amount of data in your query by:

  • Reducing the batch size.
  • Limiting the number of fields returned.
  • Applying more specific filters.

Some complex queries may result in reduced performance. Ensure you're following query best practices.

Examples

Record type object references are specific to each environment. If you copy and paste these examples into your interface, they will not evaluate. Use them as a reference only.

Display employees with certain titles in a grid

Let's say you want to create a read-only grid that displays all employees that do not have a "manager" title.

A sample expression could look like this. This expression uses an Employee record type, which has a one-to-many relationship with a Case record type.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

a!gridField(
  label: "Employees",
  data:
    a!recordData(
      recordType: recordType!Employee,
      filters: a!queryFilter(
        field: recordType!Employee.fields.title,
        /* This filter removes all records where "Manager" is found in the "Title" column. */
        operator: "<>",
        value: "Manager"
      )
    ),
  columns: {
    a!gridColumn(
      label: "Name",
      sortField: recordType!Employee.fields.lastname,
      value: a!linkField(
        links: {
          a!recordLink(
            label: fv!row[recordType!Employee.fields.firstname] & " " & fv!row[recordType!Employee.fields.lastname],
            recordType: recordType!Employee,
            identifier: fv!identifier
          )
        }
      )
    ),
    a!gridColumn(
      label: "Title",
      sortField: recordType!Employee.fields.title,
      value: fv!row[recordType!Employee.fields.title]
    ),
    a!gridColumn(
      label: "Department",
      sortField: recordType!Employee.fields.department,
      value: fv!row[recordType!Employee.fields.department]
    ),
    a!gridColumn(
      label: "Phone Number",
      sortField: recordType!Employee.fields.phonenumber,
      value: fv!row[recordType!Employee.fields.phonenumber]
    )
  },
)

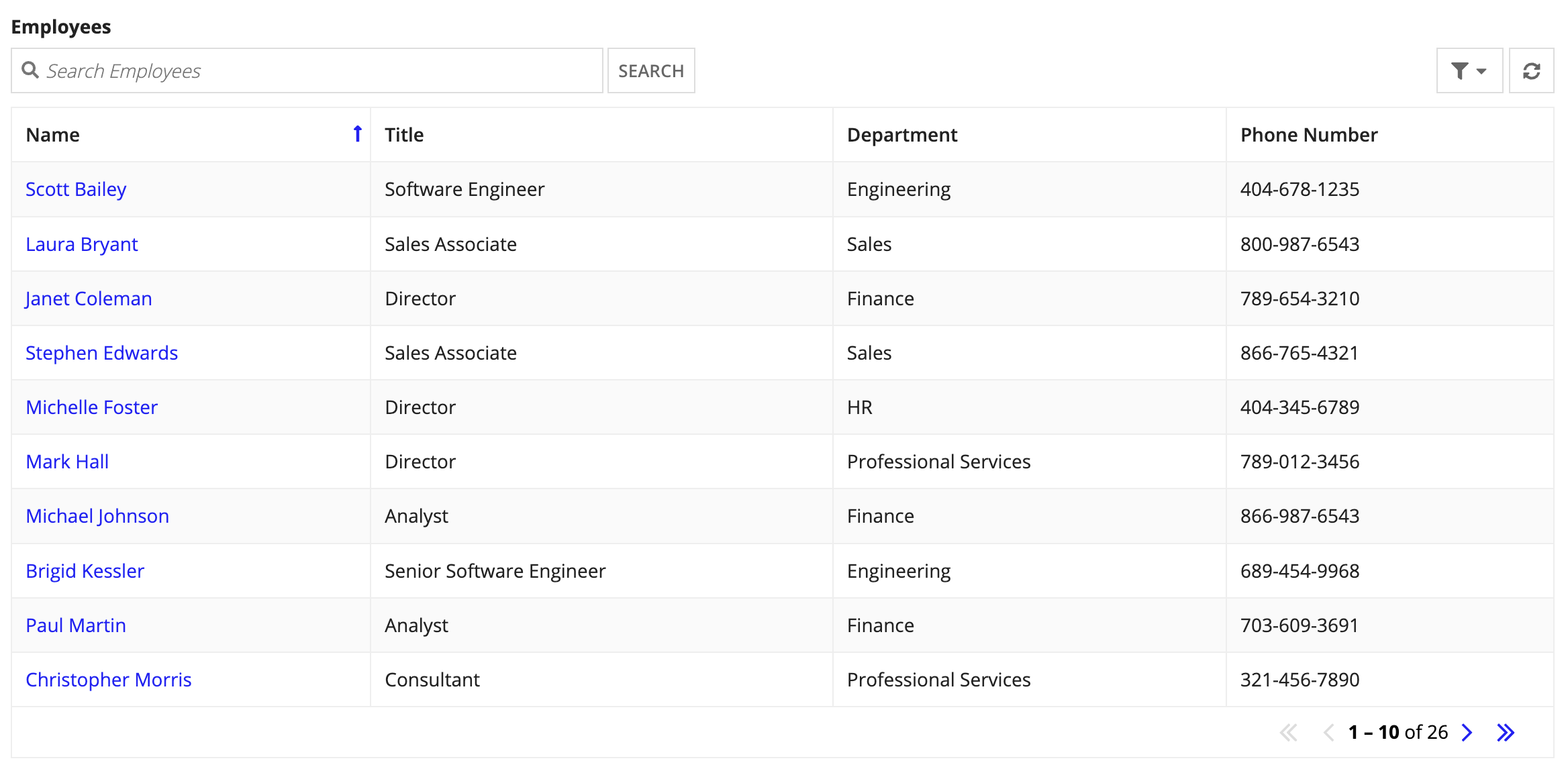

This would return something like:

Returns a grid with employee information

Display employees and their latest open case in a grid

In this example, you want to create a read-only grid that displays all employees and their latest open support case.

A sample expression could look like this. This expression uses an Employee record type, which has a one-to-many relationship with a Case record type.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

   a!gridField(
     label: "Employees",
     data: a!recordData(
       recordType: recordType!Employee,
        /* This function limits the number of returned support cases to 1
        and returns that latest open support case based on its creation
        date and status. */
       relatedRecordData:
        a!relatedRecordData(
          relationship: recordType!Employee.relationships.cases,
          limit: 1,
          sort:
            a!sortInfo(
              field: recordType!Case.fields.createdOn,
              ascending: false
            ),
          filters:
            a!queryFilter(
              field: recordType!Case.fields.status,
              operator: "=",
              value: "Open"
           )
         )
       ),
     columns: {
       a!gridColumn(
         label: "ID",
         sortField: recordType!Employee.fields.id,
         value: fv!row[recordType!Employee.fields.id],
         align: "END",
         width: "ICON"
       ),
       a!gridColumn(
         label: "First Name",
         sortField: recordType!Employee.fields.firstName,
         value: fv!row[recordType!Employee.fields.firstName]
       ),
       a!gridColumn(
         label: "lastName",
         sortField: recordType!Employee.fields.lastName,
         value: fv!row[recordType!Employee.fields.lastName]
       ),
       a!gridColumn(
         label: "Phone Number",
         sortField: recordType!Employee.fields.phoneNumber,
         value: fv!row[recordType!Employee.fields.phoneNumber]
       ),
       a!gridColumn(
         label: "Title",
         sortField: recordType!Employee.fields.title,
         value: fv!row[recordType!Employee.fields.title]
       ),
       a!gridColumn(
         label: "Latest Case",
         sortField: recordType!Employee.relationships.cases.fields.caseTitle,
         value: fv!row[recordType!Employee.relationships.cases.fields.caseTitle]
       )
     }
   )

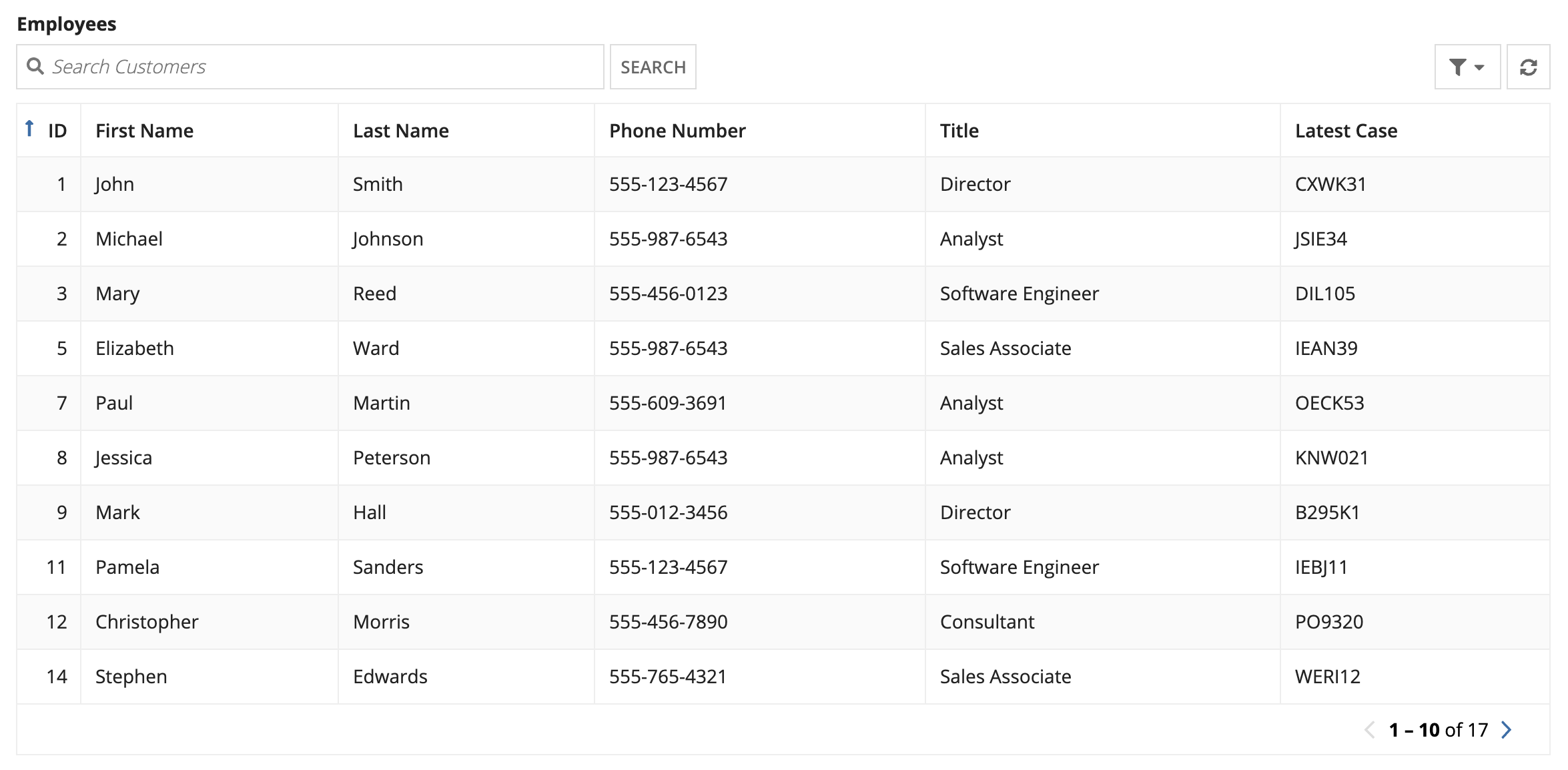

This would return something like:

Returns a grid with employee information and the latest support case assigned to each

Build a custom search box using smart search for a grid

See this recipe for a full example implementing smart search in a custom search box for a read-only grid.

Feature compatibility

The table below lists this function's compatibility with various features in Appian.
Feature Compatibility Note
Portals Compatible
Offline Interfaces Partially compatible

Can be used with offline interfaces if loaded at the top of the interface.
Sync-Time Custom Record Fields Incompatible
Real-Time Custom Record Fields Incompatible

Custom record fields that evaluate in real time must be configured using one or more Custom Field functions.
Process Reports Incompatible

Cannot be used to configure a process report.
Process Events Partially compatible

If autoscale is enabled, can be used to configure a supported process event node (such as a start event or timer event).
Process Autoscaling Compatible

Can be used in autoscaled processes.
Event Consumer Filter Conditions Incompatible

Cannot be used in filter conditions.
Event Consumer Event Handlers Incompatible

Cannot be used in event handler expressions.
