Tutorial: Build a Doc Classification Process

On This Page

Estimated time to complete this tutorial: 1 hour

User experience level: Beginner

Overview

In this tutorial, you'll build an Appian process model that uses an AI skill to classify documents.

In the process, users can submit a document and the AI skill will classify the type of document that's submitted. Depending on the classification, the process will notify the appropriate group that they need to review and approve the document. If the AI skill can't confidently classify the document, then an analyst will be notified so they can manually assess the document.

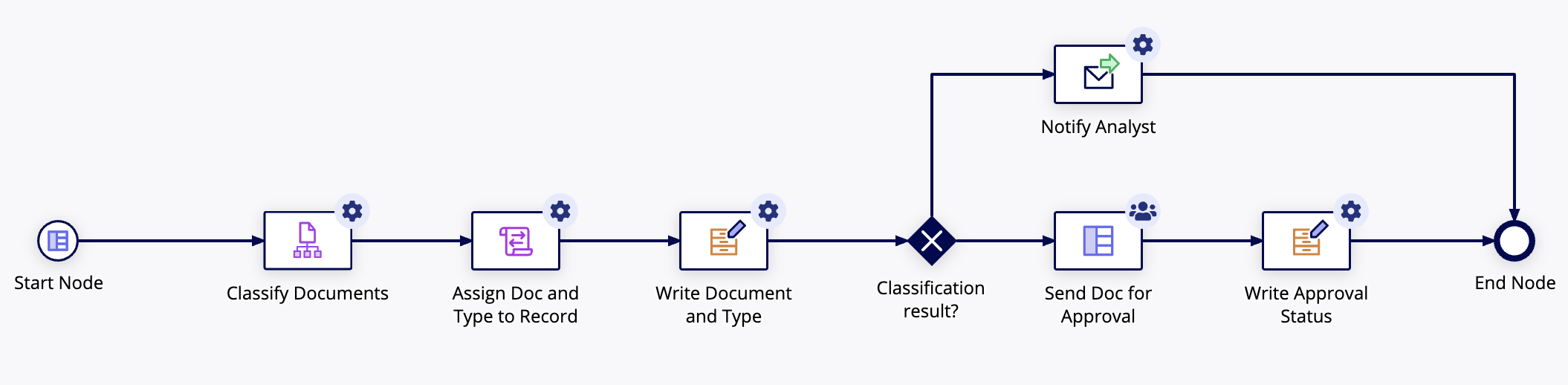

Fully built process

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeFully built process

By delegating this task to AI, the process proceeds much faster and with a higher degree of accuracy than if this classification were done manually by a person.

This page walks you through how to create your own document classification process:

  1. Create and train AI skills.
  2. Create a record type to manage documents.
  3. Create additional design objects, like a start form and user input task, to use in your process model.
  4. Configure a document classification process model.

Scenario

Acme Logistics is a shipping and receiving company that manages inventory for its customers. In addition to physical items, Acme has to manage and act on documents such as invoices and purchase orders.

Different teams need to approve the different document types: the fulfillment department is responsible for approving purchase orders, while the accounts payable department approves invoices. Customers submit these documents through Acme's website, so all documents have one submission channel.

It takes time to analyze each incoming document and know which department should be notified, so Acme is eager to see how Appian can help. In this tutorial, you'll build a process to classify the submitted documents and route them to the appropriate teams.

Quick definitions

  • Model: The product of combining a dataset with a machine learning algorithm. A model is unique to a purpose which requires recognition, understanding, reasoning, and decision-making. For example, the model used to classify purchase orders isn't necessarily the same one that can recognize stop signs in a set of pictures.
    • An AI skill can contain multiple models. When the AI skill is integrated in a process model, only the published model within that AI skill is used.
  • Document type: The categories of documents you want the AI skill to classify. In this tutorial, the document types are invoice and purchase order.
  • Confidence: Measures how sure the model is of its prediction. Confidence is calculated per document. Most decisions (made by humans or computers) can vary in confidence.

Setup

Before you start this tutorial, complete the following setup.

Create an application

First, you need to create an application to contain the design objects you'll create in this tutorial. You can use the Application Building Tutorial to quickly create an application for this exercise.

If you have an existing application, you can use that instead.

Tip:  Objects in this tutorial use the AT prefix. If you're creating objects in an application that uses a different prefix, use your application's prefix in new object names.

Download example documents

Before the AI skill can serve its purpose, it needs to learn a lot about the documents your business encounters. In your own applications, you'll need to build a complete and representative dataset to train the model. The model can only learn from the documents you provide to it, so it's important to have a large number and variety of realistic examples.

For this tutorial, we've provided sample documents for you. Download the following files to your computer since you'll use them to train your AI skills:

Unzip the compressed folders, as you'll need to upload the documents individually and not as a ZIP file.

System requirements

This tutorial is designed to be used with Appian 25.2 and later.

Part 1: Create AI skill

First, you'll create an AI skill. This AI skill takes a document as an input and uses machine learning to classify that document.

To create this AI skill:

  1. In your application, go to the Build view.
  2. In the application toolbar, click NEW > AI Skill. The Create AI Skill dialog displays.
  3. Expand the Classification section and choose Documents.

  4. Configure the following properties:

    Property Action
    Name Enter AT_IncomingDocument.
    Description Enter AI skill to classify documents Acme receives.
  5. Click CREATE.
  6. In the Review AI Skill Security dialog, keep the default settings.
    • The AT Users group should be assigned Viewer permissions.
    • The AT Administrators group should be assigned Administrator permissions.
  7. Click SAVE.

Create document types

In this step, you'll begin telling the document classification skill about each type of document that is typically attached to a form submission.

You'll need to train the model to recognize whether a document is an invoice or a purchase order. To do that, you'll create a document type and add examples of those documents.

To create a document type:

  1. In your new AI skill, click + CREATE FIRST MODEL.
  2. Click + NEW DOCUMENT TYPE.
  3. In the Document Type Name, enter Invoice.
  4. Click UPLOAD.

  5. Browse for and select the Invoice documents you downloaded earlier.

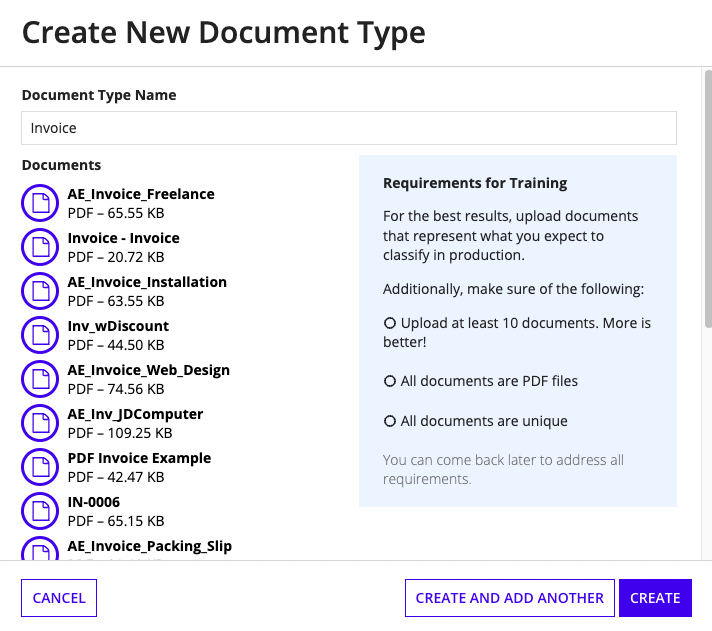

    Invoice document type

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeInvoice document type

  6. After the documents finish uploading, click CREATE AND ADD ANOTHER to create this document type and add another document type.
  7. In the Document Type Name, enter Purchase Order.
  8. Click UPLOAD to add training documents.
  9. Browse for and select the Purchase Order documents you downloaded earlier.
  10. After the documents finish uploading, click CREATE.
  11. Click SAVE.

Train the model

Once you finish creating the document types, you'll need to train the model.

From the Create Model page, click TRAIN MODEL.

Note:  If this option is unavailable, check that you've met all of the requirements for the example documents and that you've saved your changes. The AI skill checks your documents as you upload them.

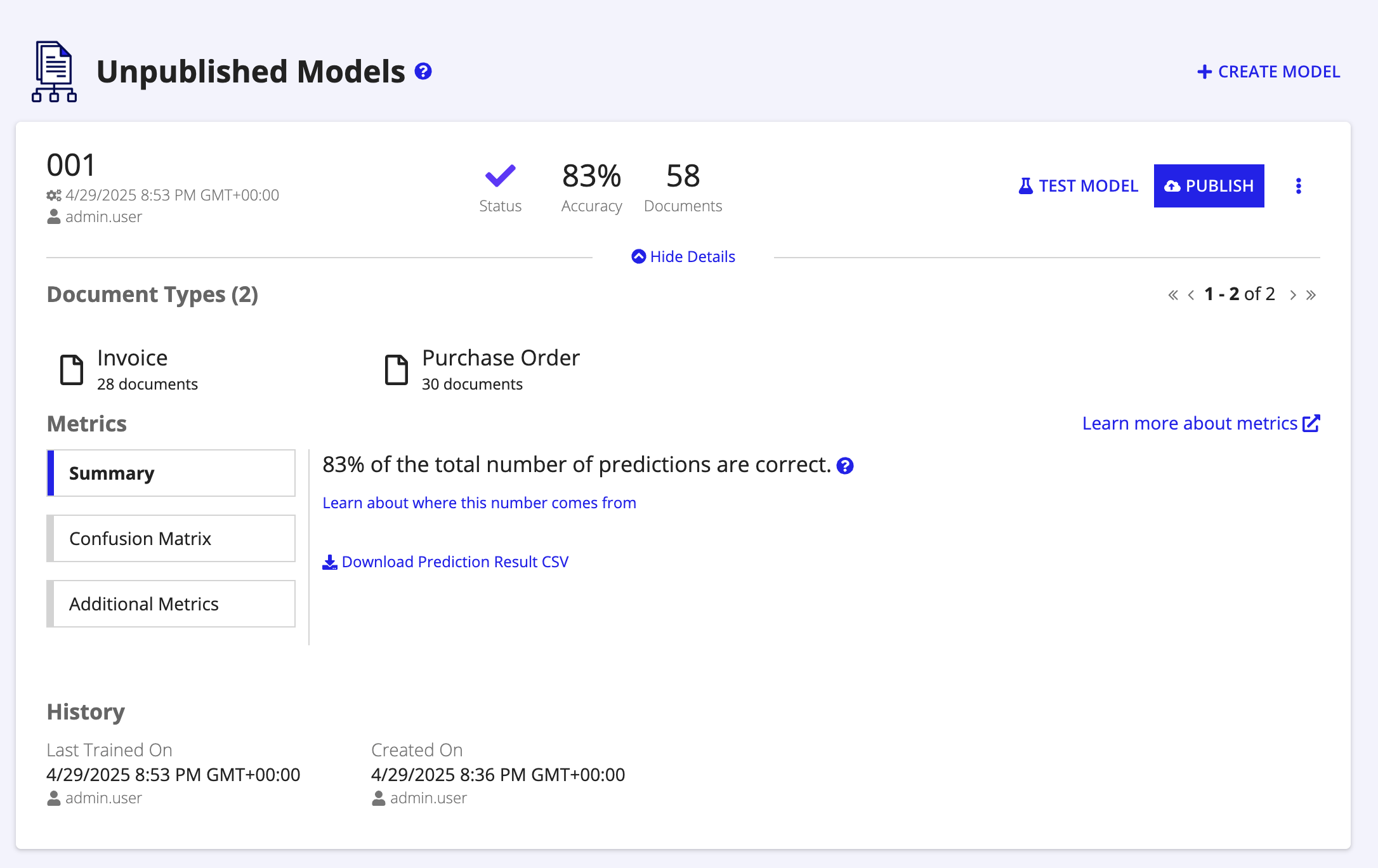

Training takes a few minutes to complete. While you wait, proceed to the next step.

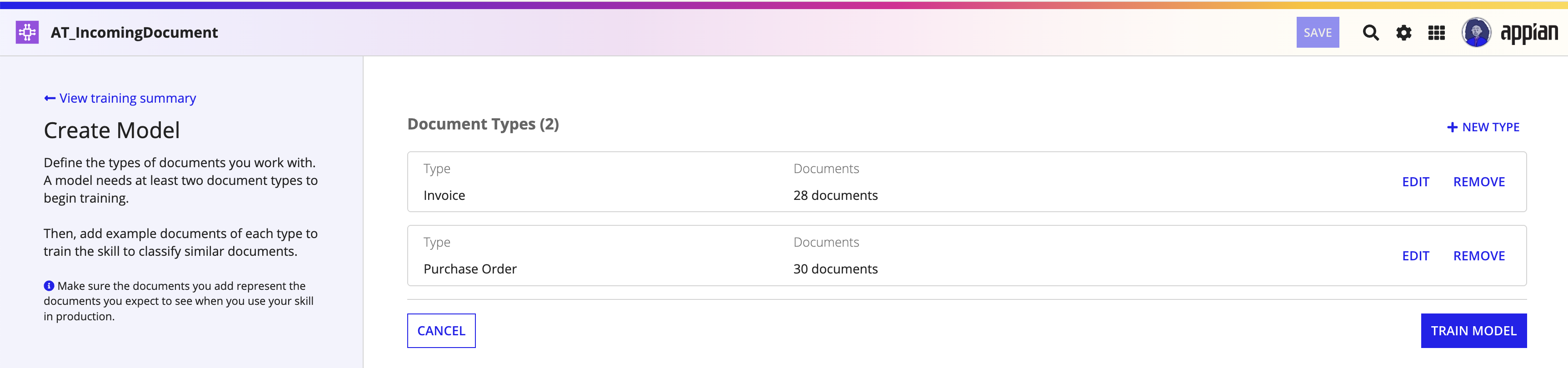

images/tutorial-incoming-document-skill.png

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-incoming-document-skill.png

Part 2: Create a record type to manage documents

Now, you'll create a record type to manage the different documents submitted by customers. Since there are different types of documents that can be submitted, you'll also create a related record type to store a list of document types.

To create these record types:

  1. In your application, go to the Build view.
  2. Click NEW > Record Type.

  3. In Create Record Type, configure the following properties:

    Property Action
    Name Enter AT Order Document.
    Display Name (Plural) Keep the default display name of Order Documents.
    Description Enter A record type to manage documents uploaded to Acme Logistics.
  4. Click CREATE.
  5. In the Review Record Type Security dialog, keep the default settings.
    • The AT Users group should be assigned Viewer permissions.
    • The AT Administrators group should be assigned Administrator permissions.
  6. Click SAVE. The record type opens in a new tab.
  7. Click TELL US ABOUT YOUR DATA. The Configure Data Source dialog opens.
  8. Click New Data Model.
  9. Click NEXT.
  10. For Data Source, select the relational database where Appian will create your table. If your environment contains a single relational database, that database is selected and cannot be unselected.
  11. Click NEXT.
  12. Click X next to the following fields to remove them from the data model:
    • createdBy
    • createdOn
    • modifiedBy
    • modifiedOn

    Tip:  We won't use these fields in this tutorial; however, in your own applications, you should consider keeping these fields so you can easily track when data is created and updated, and by whom.

  13. Click NEW FIELD and configure the following:
    • Enter document for the field name.
    • Select Document as the data type.
    • For Will This Record Type only Store Documents?, keep Yes selected and click DONE.
  14. Click NEW FIELD and configure the following:
    • Enter isApproved for the field name.
    • Select Boolean as the data type.
  15. Click NEW CHOICE LIST.
  16. In the Add Choice List Field dialog, configure the following:
    • For Name, enter AT Order Document Type.

    • For List Items, copy and paste the following:

      1
2
3

      Invoice
Purchase Order
Unknown
  17. Click CREATE CHOICE LIST. The AT Order Document Type record type is created, and a field of type Number (Integer) is added to the AT Order Document record type to create a many-to-one relationship to AT Order Document Type.
  18. Click NEXT.
  19. Click NEXT again since you won't add any additional relationships. The record type will already have two relationships:
    • A many-to-one relationship to the AT Order Document Type record type.
    • A many-to-one relationship to the Document record type.

    Tip:  In a real application, this record type would likely have a relationship to an Order record type, where core order information is stored, like the customer who submitted it, the assigned account executive, and the warehouse where the order will be fulfilled. For the purposes of this tutorial, we're only creating relationships to these two record types.

  20. Keep the Create Table checkbox checked and click SAVE CHANGES.
  21. Click CLOSE.

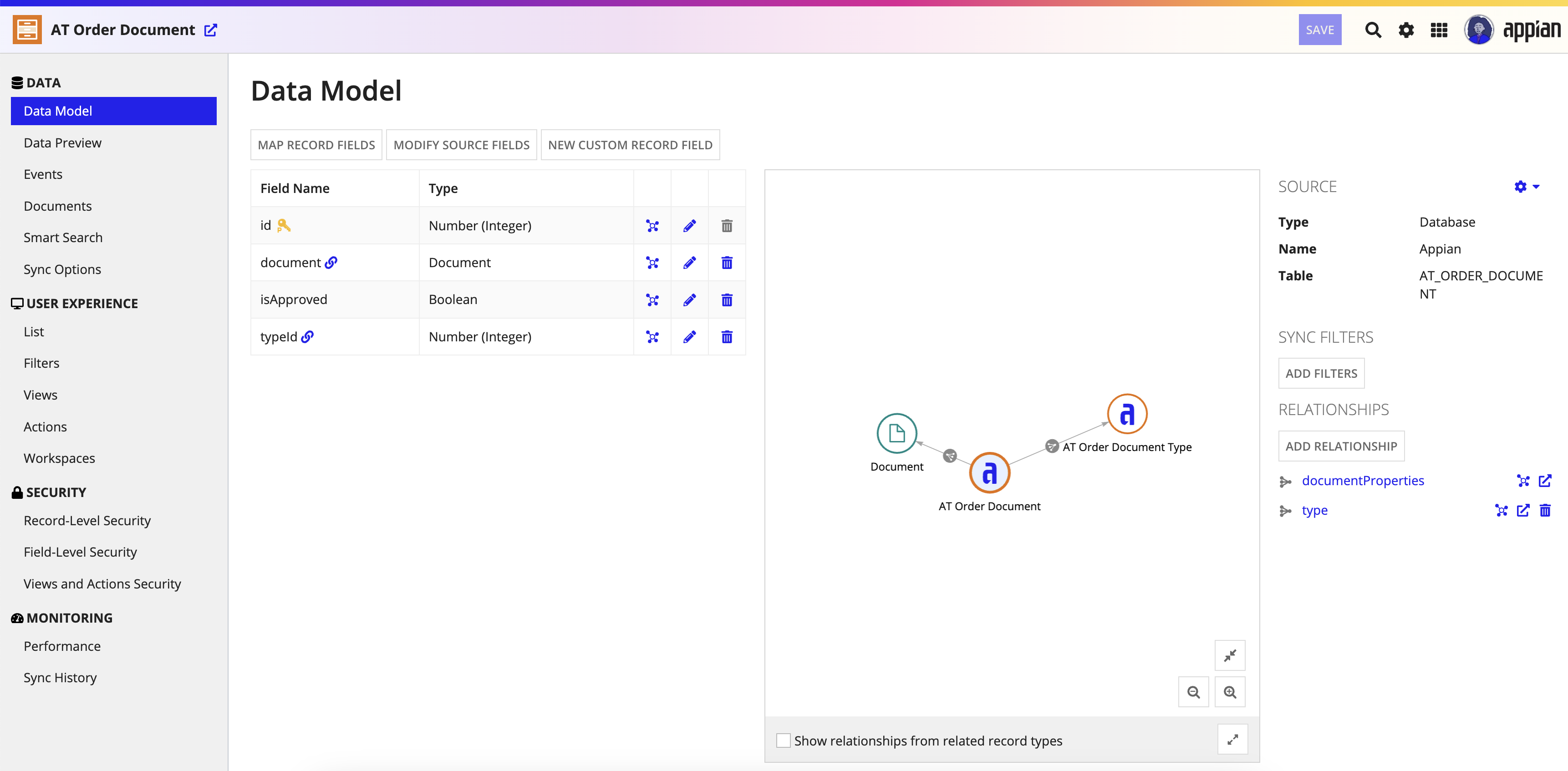

Order Document record type

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeOrder Document record type

Part 3: Create additional design objects

Next, you'll create the following objects to use in the process model:

  • A start form, which will allow users to upload documents.
  • A task form, which will allow users in the Fulfillment department to review a purchase order.
  • A group for the fulfillment department.
  • A group for accounts payable.

Create a start form

You need to create a start form to allow Acme's customers to upload invoices.

To create this form:

  1. In your application, go to the Build view.
  2. Click NEW > Interface.

  3. Configure the following fields:

    Property Action
    Name Enter AT_IntakeForm.
    Description Enter Interface to allow vendors to upload documents.
    Save In Keep the default folder selection of AT Rules & Constants.
  4. Click CREATE.
  5. In the interface object, click Expression mode expression mode icon.

  6. Open the Rule Inputs pane. Click New Rule Input and configure the following properties:

    Property Action
    Name Enter document.
    Type Select the Document data type Data Type.
    Note: Make sure you don't select the Document record type Record Type.
  7. Click CREATE.

  8. In the Interface Definition, copy and paste the following expression:

    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

    a!formLayout(
  titleBar: a!headerTemplateSimple(
    title: "Submit to Acme Logistics",
    secondaryText: "Thank you for contacting Acme! Upload your document and we'll be in touch."
  ),
  contents: {
    a!fileUploadField(
      label: "File Upload",
      value: ri!document,
      saveInto: ri!document,
      /* Replace with a reference to the AT Order Document record type in your environment  */
      target: recordType!AT Order Document,
      required: true,
      maxSelections: 1
    )
  },
  buttons: a!buttonLayout(
    primaryButtons: {
      a!buttonWidget(
        label: "Submit",
        submit: true,
        loadingIndicator: true,
        style: "SOLID"
      )
    },
    secondaryButtons: {
      a!buttonWidget(
        label: "Cancel",
        value: true,
        validate: false,
        submit: true,
        style: "OUTLINE"
      )
    }
  )
)

  9. Replace the record type reference with a reference to the AT Order Document record type in your environment.

    Note:  Record type references are specific to each environment, which is why you need to change the references whenever you copy and paste a record type reference from outside the application.

  10. Click SAVE.

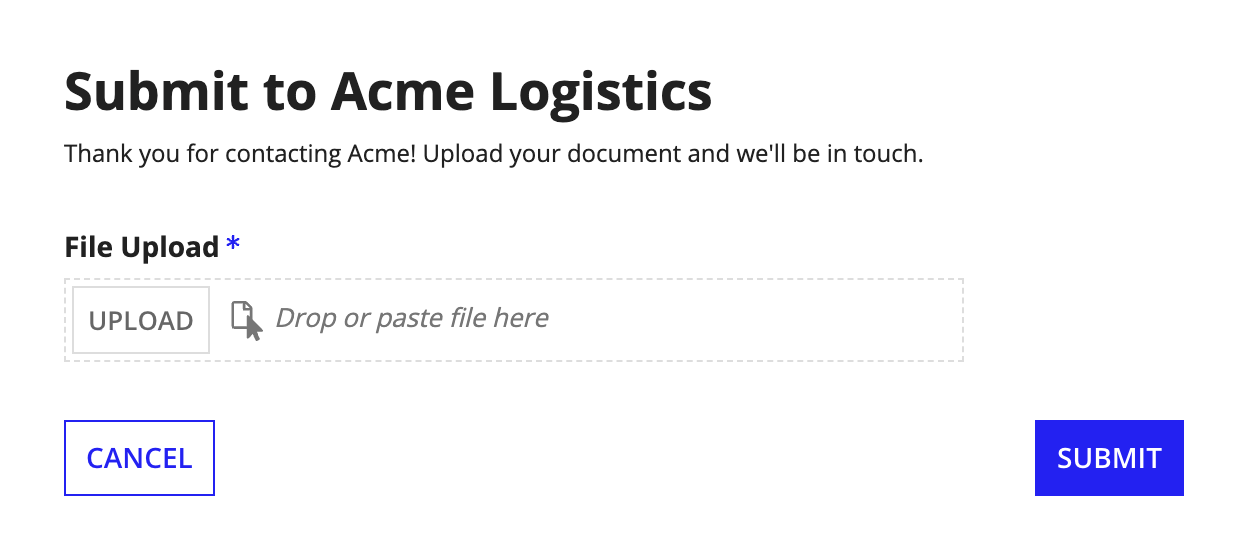

The interface should look like this:

classification start form

Create a task form

In this step, you'll create a form to display as part of a user input task. This form will allow accounts payable or the fulfillment department to approve or reject a submitted document.

To create the task form:

  1. In your application, go to the Build view.
  2. Click NEW > Interface.

  3. Configure the following fields:

    Property Action
    Name Enter AT_reviewTask.
    Description Enter Interface to review the customer submitted document.
    Save In Keep the default folder selection of AT Rules & Constants.
  4. Click CREATE.
  5. In the interface object, click Expression mode expression mode icon.

  6. Open the Rule Inputs pane. Click New Rule Input and configure the following properties:

    Property Action
    Name Enter orderDocument.
    Type Select AT Order Document (record type).
  7. Click CREATE.

  8. In the Interface Definition, copy and paste the following expression:

    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

    a!formLayout(
  titleBar: a!headerTemplateSimple(
    title: "Review Document",
    secondaryText: "Someone submitted a document via Acme's website. Review the document before approving.",
  ),
  contents: {
    a!sectionLayout(
      contents: {
        a!documentViewerField(
          document: ri!orderDocument[recordType!AT Order Document.fields.document]
        )
      }
    )
  },
  buttons: a!buttonLayout(
    primaryButtons: {
      a!buttonWidget(
        label: "Approve",
        value: true,
        saveInto: ri!orderDocument[recordType!AT Order Document.fields.isApproved],
        submit: true,
        loadingIndicator: true,
        style: "SOLID"
      )
    },
    secondaryButtons: {
      a!buttonWidget(
        label: "Reject",
        value: false,
        saveInto: ri!orderDocument[recordType!AT Order Document.fields.isApproved],
        validate: false,
        submit: true,
        style: "OUTLINE"
      )
    }
  )
)

  9. Replace all record type references with references to the AT Order Document record type in your environment.

    Note:  Record type references are specific to each environment, which is why you need to change the references whenever you copy and paste a record type reference from outside the application.

  10. Click SAVE.

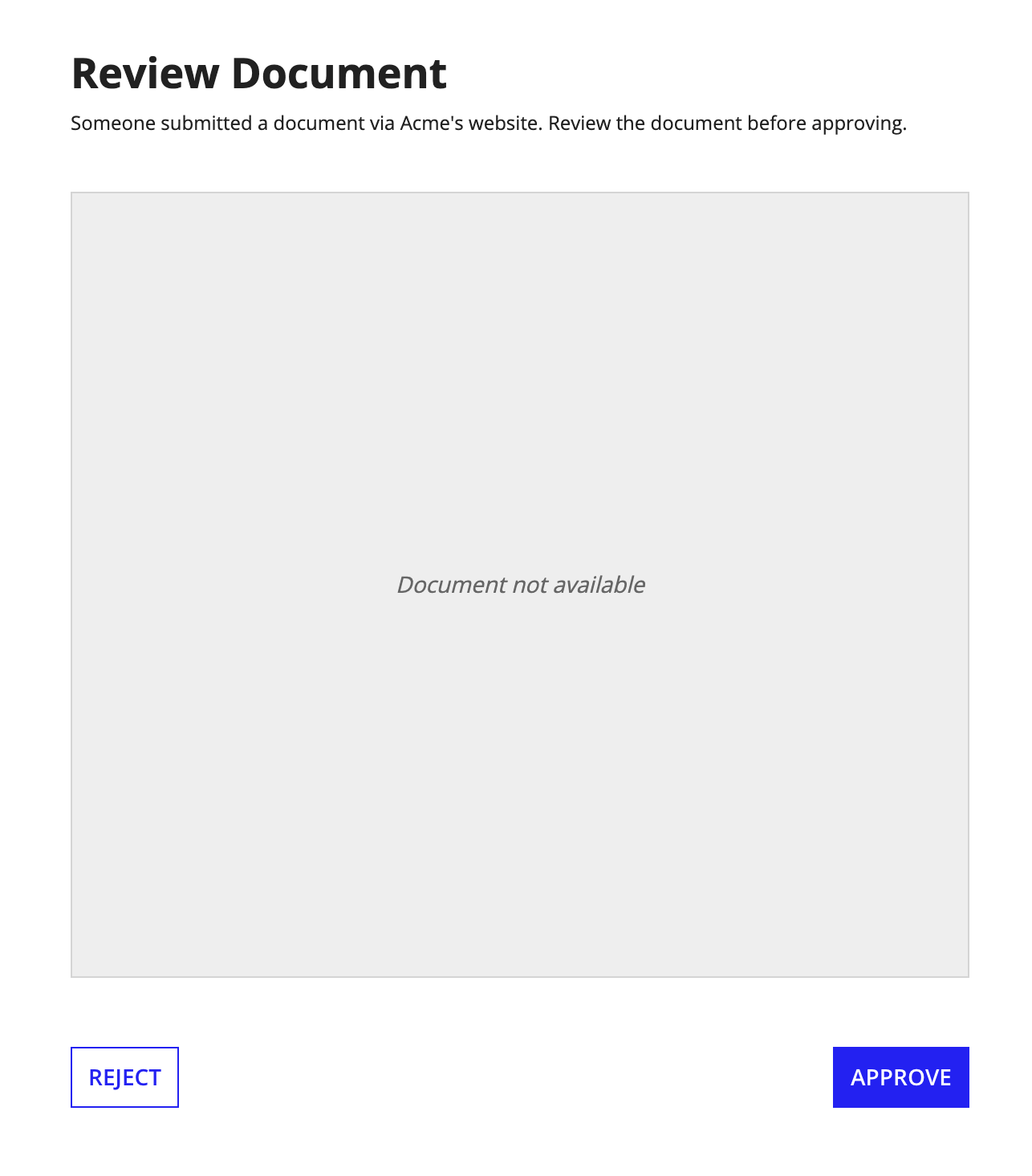

Since there isn't any data in the AT Order Document record type yet, the document viewer will be blank.

tutorial-po-task-form

Create a group for the fulfillment department

In this step, you'll create a group for the fulfillment department. You'll also create a constant for the group so you can reference it in your process model.

To create the fulfillment department group and constant:

  1. In your application, go to the Build view.
  2. Click NEW > Group.

  3. Configure the followings:

    Property Action
    Name Enter AT Fulfillment Department.
    Description Enter Group of all users in the fulfillment department.
    Group Members Enter your username.
  4. Click CREATE.
  5. In the Review Group Security dialog, keep the default settings.
    • The AT Administrators group should be assigned Administrator permissions.
  6. Click SAVE.
  7. Click NEW > Constant.

  8. Configure the following:

    Property Action
    Name Enter AT_GROUP_FULFILLMENT_DEPT.
    Type Select Group.
    Value Search and select the Fulfillment Department.
    Save In Keep the default folder selected.
  9. Click CREATE.

Create a group for accounts payable

You'll also create a group and constant for the accounts payable department.

To create the accounts payable group and constant:

  1. In your application, go to the Build view.
  2. Click NEW > Group.

  3. Configure the followings:

    Property Action
    Name Enter AT Accounts Payable.
    Description Enter Group of all users in Accounts Payable.
    Group Members Enter your username.
  4. Click CREATE.
  5. In the Review Group Security dialog, keep the default settings.
    • The AT Administrators group should be assigned Administrator permissions.
  6. Click SAVE.
  7. Click NEW > Constant.

  8. Configure the following:

    Property Action
    Name Enter AT_GROUP_ACCOUNTS_PAYABLE.
    Type Select Group.
    Value Search and select the Accounts Payable.
    Save In Keep the default folder selected.
  9. Click CREATE.

Part 4: Build the classification process

With your objects created and configured, you can start building your end-to-end process.

The following instructions walk you through how to publish your document classification model and configure the process model below.

Fully built process

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeFully built process

Publish the document classification model

Before you create the process model to classify documents, you'll need to publish your document classification model.

Publishing the model will make it available to use in the Classify Documents smart service in the process model.

To publish the model:

  1. Open the AT_IncomingDocument AI skill.

  2. Under Unpublished Models, click PUBLISH.

    Training metrics

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeTraining metrics

  3. Click SAVE. The model should now appear under Published Models.

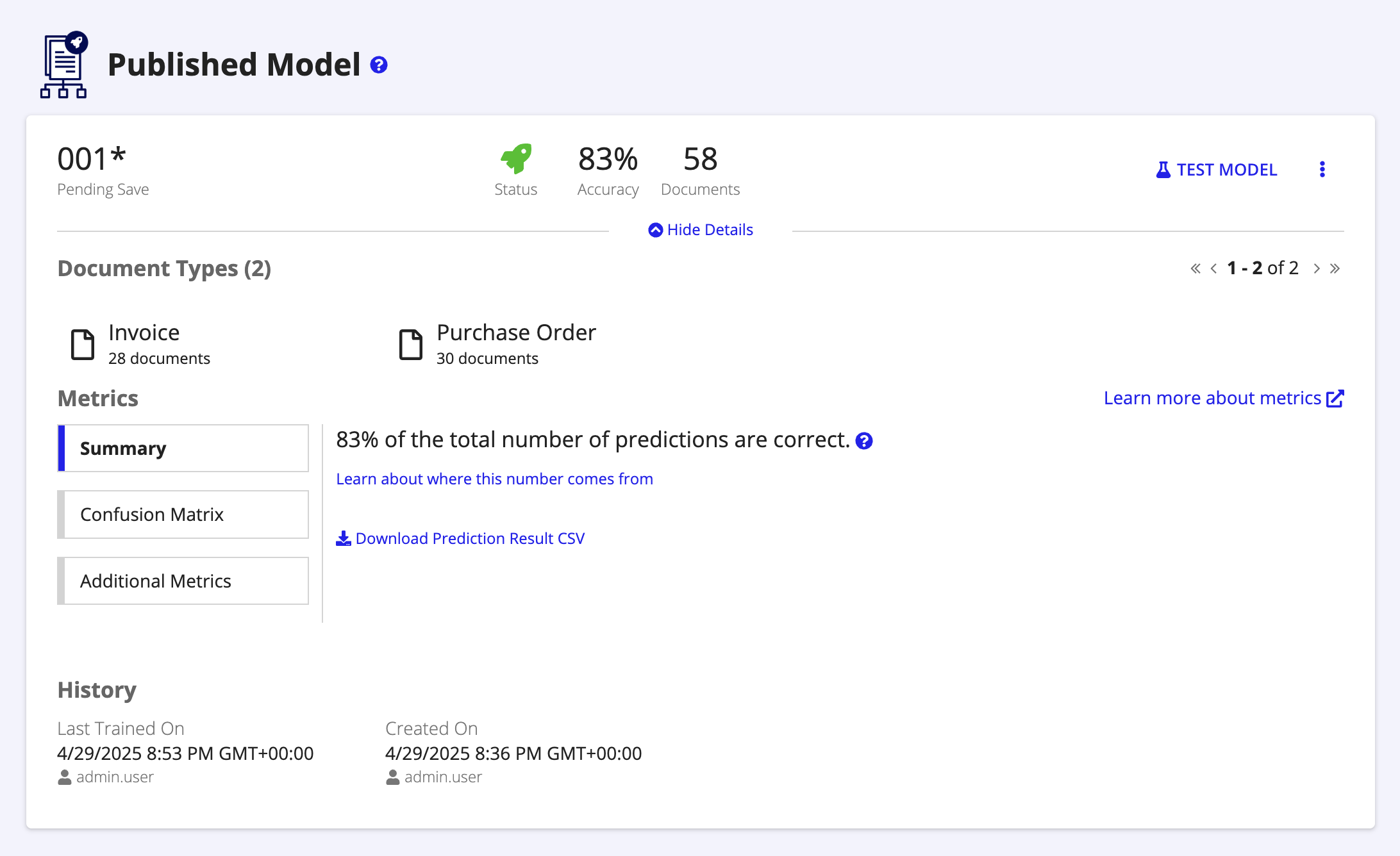

    Publish the model

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closePublish the model

Create the process model

Now that the document classification model can be called from a smart service, let's build the process that will use the published model in this AI Skill.

To create the process model:

  1. In the application toolbar, click NEW > Process Model.

  2. Configure the following properties:

    Property Action
    Name Enter AT Document Intake.
    Description Enter Process to collect and verify incoming documents from Acme customers.
    Save In Keep the default folder selected.
  3. Click CREATE.
  4. In the Review Process Model Security dialog, keep the default settings.
    • The AT Users group should be assigned Viewer permissions.
    • The AT Administrators group should be assigned Administrator permissions.
  5. Click SAVE.
  6. From the File menu, click Properties.
  7. In the Process Model Properties dialog, go to the Variables tab.

  8. Create the following process variables:

    Name Type Value Parameter? Required? Multiple?
    cancel Boolean Blank Yes No No
    docType Number (Integer) Blank No No No
    document Document (Data Type) Blank Yes No No
    orderDocument AT Order Document (Record Type) Blank No No No

Configure the start form

Next, you'll configure the start form:

  1. In the Process Model Properties dialog, go to the Process Start Form tab.
  2. In the Interface text box, enter AT.
  3. Select AT_intakeForm when it displays in the dropdown list.

  4. Click No in the Create Process Parameters dialog since you already created all of the variables in the previous step.

    The rule inputs from the interface are automatically mapped to the process variables created earlier.

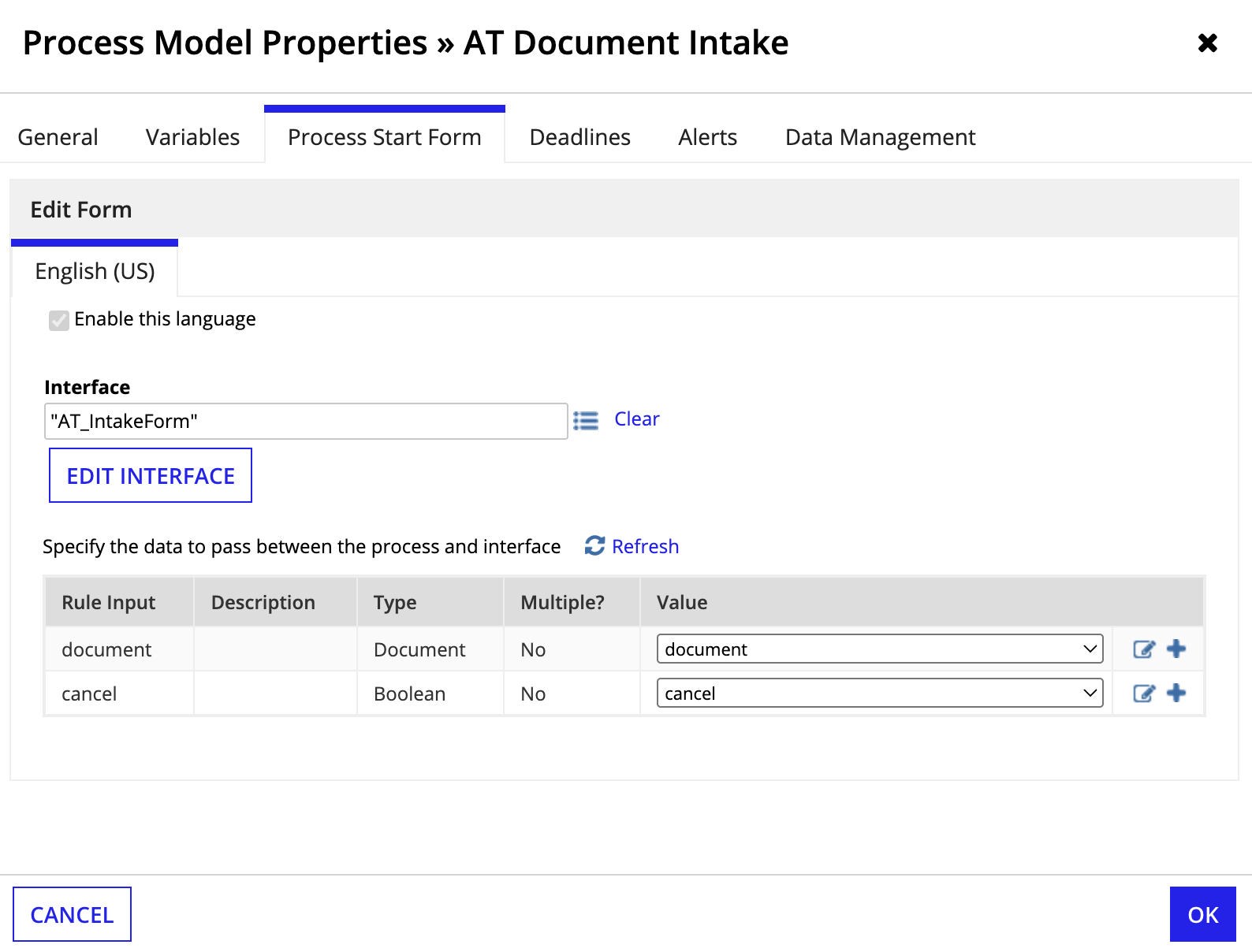

    Configure the start form

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeConfigure the start form

  5. Click OK to return to the process model.
  6. In the menu bar, click File > Save & Publish.

Configure the Classify Documents smart service

After defining your start form and process variables, the first node to add to the process is the Classify Documents smart service.

This smart service will return predictions for each document type, grouped by the model's confidence in those predictions. You'll save the results of the document classification into process variables so you can reference them later in the process.

To configure the smart service:

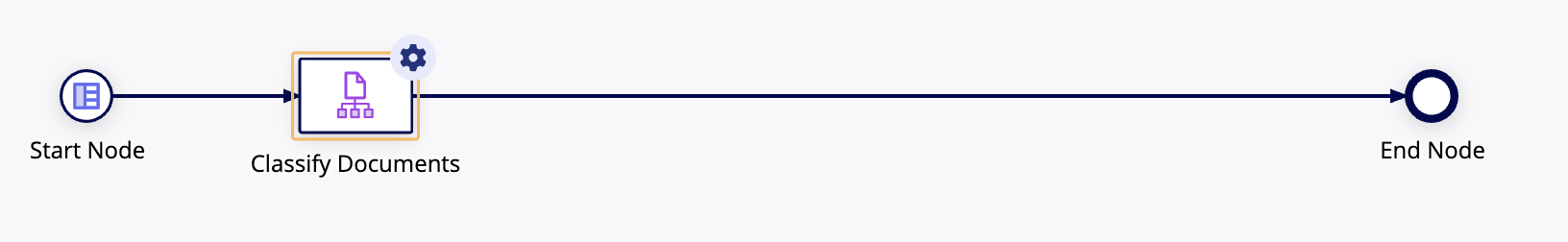

  1. From the palette, drag in a Classify Documents node.

    images/tutorial-classification-node.png

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-classification-node.png

  2. Open the Classify Documents node.
  3. Go to the Setup tab.
  4. Under Select AI Skill, select the AT_IncomingDocument skill you created earlier.
  5. Go to the Data tab.

  6. On the Inputs tab, configure the inputs with the following values:

    Input Action
    Document For Value, click Edit as Expression and enter pv!document.
    Confidence Threshold For Value, enter 60

  7. On the Outputs tab, configure the outputs with the following values:

    Output Action
    AboveThreshold For Target, click New process variable. This will automatically create a process variable called AboveThreshold with a type of ClassificationResult.

    Click OK to set the Target to this process variable.
    BelowThreshold For Target, click New process variable. This will automatically create a process variable called BelowThreshold with a type of ClassificationResult.

    Click OK to set the Target to this process variable.
    Failed For Target, click New process variable. This will automatically create a process variable called Failed with a type of ClassificationResult.

    Click OK to set the Target to this process variable.
  8. Click OK to return to the process model.
  9. In the menu bar, click File > Save & Publish.

Assign document and type to the record process variable

After the AI skill classifies the document type, you want to assign the document identifier and type to the orderDocument process variable. This will allow you to write these values to the AT Order Document later.

To assign the document identifier and type to the orderDocument process variable:

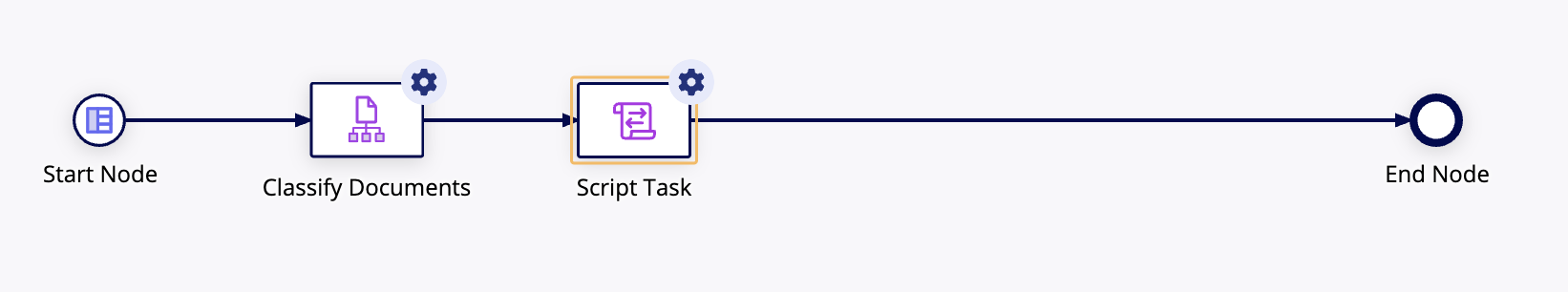

  1. From the palette, drag in a Script Task node and place it after the Classify Documents node.

    images/tutorial-script-task-node.png

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-script-task-node.png

  2. Open the Script Task.
  3. For Name, enter Assign Doc and Type to Record.
  4. Go to the Data tab.
  5. On the Outputs tab, click + New Custom Output.
  6. For Expression, click Edit as Expression.

  7. Enter the following expression. This will determine which value to write to the record type depending on the classification type. If the classification is below the threshold, no type will be written.

    1
2
3
4
5
6
7
8
9

    if(
   pv!BelowThreshold,
   3,
   if(
     pv!AboveThreshold.type = "Invoice",
     1,
     2
  )
)
  8. Click SAVE AND CLOSE.
  9. For Target, choose orderDocument > typeId. This will appear as orderDocument.typeId.
  10. Click + New Custom Output.
  11. For Expression, click Edit as Expression.
  12. Enter pv!document.
  13. Click SAVE AND CLOSE.
  14. For Target, choose orderDocument > document. This will appear as orderDocument.document.
  15. Click OK.

Write the document identifier and type

Next, you'll add a Write Records node to write the document identifier and type to the AT Order Document record type.

To write the document identifier and type:

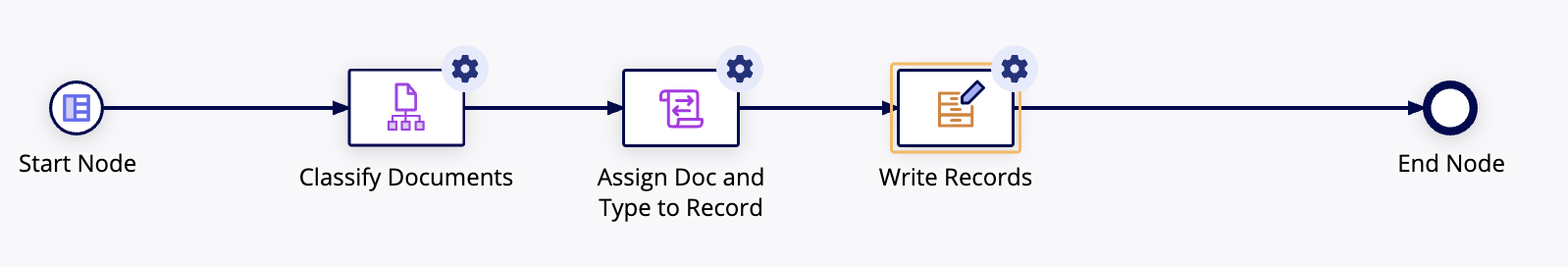

  1. From the palette, drag in a Write Records node and place it after the Assign Doc Type to Record node.

    images/tutorial-write-purchase-order-node.png

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-write-purchase-order-node.png

  2. Open the Write Records node.
  3. For Name, enter Write Document and Type.
  4. Go to the Setup tab.

  5. For Records Input, select the orderDocument process variable. The Record Type field will automatically populate with the AT Order Document record type.

    Note:  Since the record type does not have record events configured, no events will be written.

  6. Go to the Data tab and select the Outputs tab.
  7. For Records Updated, set the Target to orderDocument.
  8. Click OK.

Build additional paths

Next, you'll add a gateway to the process so you can specify which action to take depending on the outcome of the document classification.

To add a gateway:

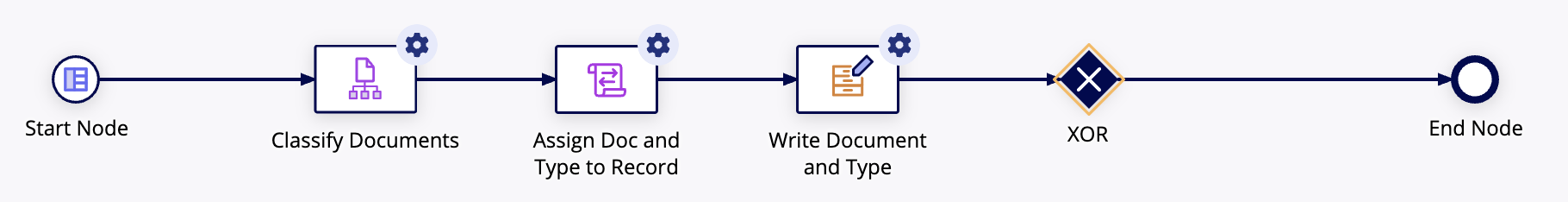

  1. From the palette, drag in an XOR node and place it after the Write Document and Type node.

    images/tutorial-xor-classification-node.png

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-xor-classification-node.png

  2. Open the XOR node.
  3. For Name, enter Classification result?
  4. Click OK.

You'll create two paths:

Notify the appropriate department

In this path, you'll add a User Input Task to assign a review document task to either the fulfillment department or accounts payable depending on how the document was classified.

After the User Input Task, you'll write the approval status to the AT Order Document record type to indicate whether the document was approved or rejected.

To create this path:

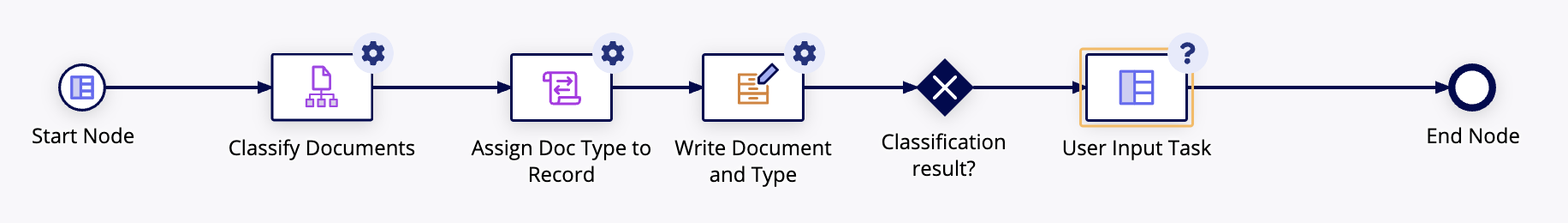

  1. From the palette, drag in a User Input Task and place it after the Classification result? node.

    images/tutorial-user-input-classification-node.png

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-user-input-classification-node.png

  2. Open the User Input Task.

  3. On the General tab, configure the following:

    Property Action
    Name Enter Send Doc for Approval.
    Description Enter Notifies the appropriate department that there is a new document ready for review and approval.
    Task Display Name Enter New document received.
    Default Task Priority Select Normal.
  4. Go to the Forms tab.
  5. For Interface, search and select AT_reviewTask.
  6. Click Yes to create an activity class parameter. The orderDocument rule input from the interface should be mapped to the orderDocument process variable.
  7. Go to the Data tab.
  8. In the Inputs tab, click the orderDocument input and configure the following:
    • For Value, enter pv!orderDocument.
    • For Save into, select the orderDocument process variable.
  9. Go to the Assignment tab.
  10. For Assign to the following, click Edit as Expression.

  11. In the expression editor, enter the following. This will send the document to accounts payable if the document is an invoice, or to the fulfillment department if it's a purchase order.

    Note:  Record type references are specific to each record type and environment, so you'll need to reference the record type from your own environment whenever you copy and paste a record type reference from outside the application.

    1
2
3
4
5

    =if(
   pv!orderDocument[recordType!AT Order Document.fields.typeId] = 1,
   cons!AT_GROUP_ACCOUNTS_PAYABLE,
   cons!AT_GROUP_FULFILLMENT_DEPT
 )
  12. Click SAVE AND CLOSE.
  13. Click OK.

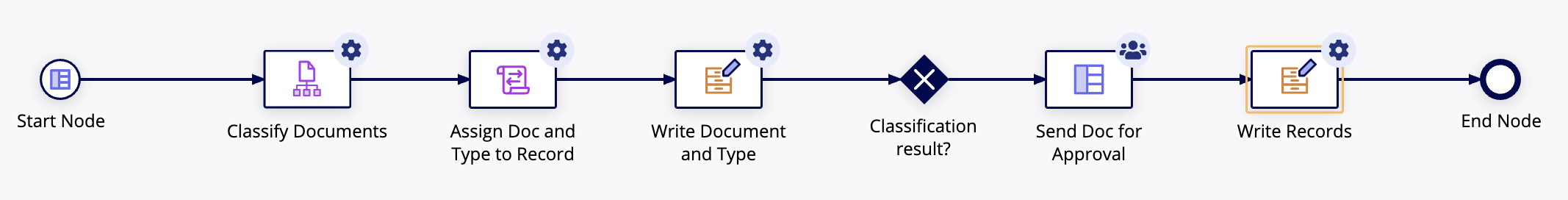

  14. From the palette, drag in a Write Records and place it after the Send Doc for Approval node.

    images/tutorial-write-reviewed-doc-node.png

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-write-reviewed-doc-node.png

  15. Open the Write Records node.
  16. For Name, enter Write Approval Status.
  17. Go to the Setup tab.
  18. For Records Input, select the orderDocument process variable. The Record Type for Events field will automatically populate with the AT Order Document record type.
  19. Click OK.

Notify the analyst

Next, you'll create a path to follow when the model's prediction aren't up to your standards (that is, the model isn't very confident in its predictions).

In this path, you'll notify an analyst if any predictions fall below the threshold, so they can review the document manually.

To create this path:

  1. Add a second flow connector between the Classification result? and End nodes.

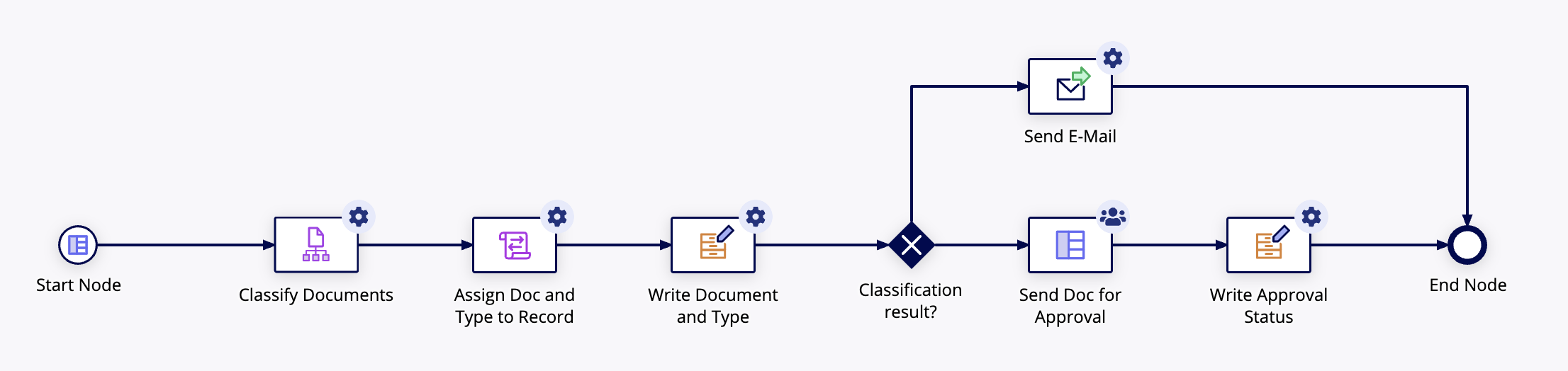

  2. From the palette, drag in a Send Email node and place it on the connector between Classification result? node and the End node.

    images/tutorial-send-email-node.png

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeimages/tutorial-send-email-node.png

  3. Open the Send Email node.
  4. For Name, enter Notify Analyst.
  5. Go to the Setup tab.

  6. For Email Configuration, configure the following:

    Property Value
    From Select Process Model.
    To Enter your email.
    Subject Enter For Review: Document type prediction below threshold.

  7. For Message Body, click Insert An Expression and enter the following:

    1
2
3
4
5

    "Dear Analyst, the following document type was predicted with a confidence level before your threshold. Review the prediction to confirm it's correct." & char(10),
char(10),
"Document: " & pv!document,
char(10),
"Predicted type: " & pv!BelowThreshold.type
  8. Click SAVE AND CLOSE.

  9. Click OK.

    Tip:  In a real application, you may add nodes after the Send Email email node to identify and fix the document's classification. For the purposes of this tutorial, we're just demonstrating a potential alternative path for when the classification isn't confident enough.

Configure the gateway node

Now that you've built the possible paths, you can configure the gateway to direct the process model to any of them based on the results of the Classify Documents smart service.

To configure the gateway:

  1. Open the Classification Result? node.
  2. Go to the Decision tab.

  3. Click NEW CONDITION and configure the following:

    Property Action
    Condition Click Edit as Expression and enter a!isNotNullOrEmpty(pv!BelowThreshold).

    Click SAVE AND CLOSE.
    Result Select Notify Analyst.
    Path Label Enter Low confidence.
  4. In the Else if no rules are TRUE row, set the Result to the Send Doc for Approval node.
  5. Click OK.
  6. In the menu bar, click File > Save & Publish.

That's it! Your process should look like this:

Fully built process

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeFully built process

Test the process

Now that you've finished creating your process model, you can run it a few times to test the different AI skills.

To verify each path, you should try classifying both types of documents.

To test the process model above:

  1. From the File menu, click Start Process for Debugging.
  2. Use the form to upload an invoice or purchase order document.
  3. Click SUBMIT. The monitoring tab for the process displays.

  4. Click Refresh in the toolbar to watch the process advance through each node.

    Note:  The Classify Documents smart service may take a few minutes to complete.

  5. Observe the path the process took, and click Process Details in the toolbar.
  6. In the Process History tab, verify that the Classify Documents node ran successfully.

Feedback
