Mobile and Windows Authentication Requirements

Introduction

If you have special network configurations and are using the Appian Mobile or Appian for Windows app, it's important to understand how the apps authenticate with the Appian server. This page explains how authentication with the mobile and Windows apps work, the network requirements, and the supported methods for restricting access to the Appian server.

How app authentication works

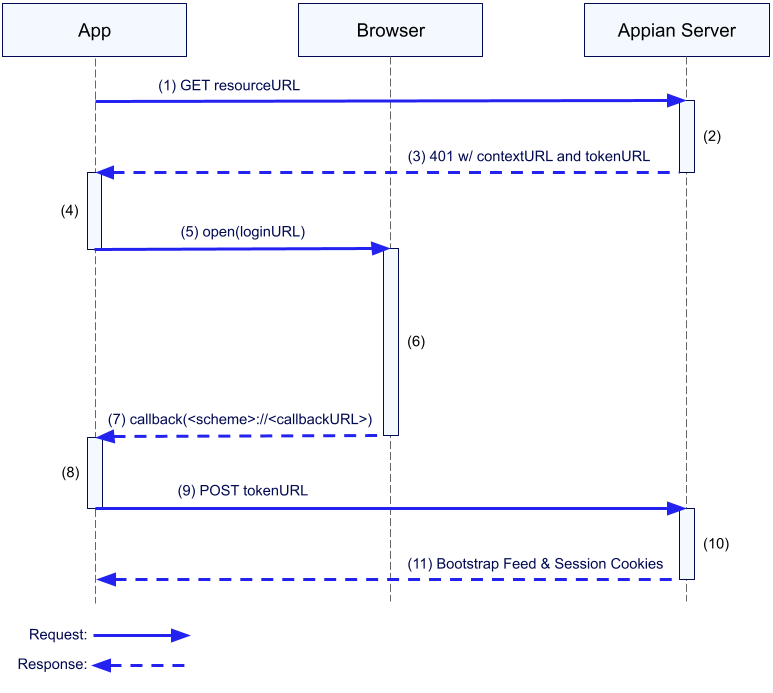

To understand the network requirements for the Appian Mobile and Appian for Windows apps, it helps to understand how the client and server communicate during authentication.

1. The app requests a resource from the server.
2. The server determines that the request is not authenticated.
3. The server replies with a 401 status code and a JSON payload containing a context URL and token URL. Example:

   1
   2
   3
   4
     {
      "contextUrl": "https://mysite.appiancloud.com/suite",
      "tokenUrl": "https://mysite.appiancloud.com/suite/mobileAuthTokenConsumer"
     }


4. The app examines the response and determines two things:
   • The response has a 401 status code with contextUrl and tokenUrl keys and came from an Appian server.
   • The app needs to authenticate with the server.
5. The app constructs a "login" URL that contains a number of important query parameters needed to set state on the server. It then prompts the user to sign in by opening the login URL in the user's web browser. Example:

   1
     https://mysite.appiancloud.com/suite?codeChallenge=zWNaqbvS3TXav7Kq4TNtwT196dIIB3yS50JG2TrzKkQ&scheme=com.appian.tempo


6. The user signs in using the web browser. If the web browser already has a session with the Appian server, it will be terminated prior to prompting the user to sign in.

7. When the user successfully authenticates with the Appian server, the server redirects the web browser to a "callback" URL that uses the scheme provided by the login URL and contains a "token" value. Realizing that the scheme of the requested URL corresponds to the app, the web browser forwards the callback URL to the app. Example:

   1
   com.appian.tempo://mysite.appiancloud.com/suite?result=login&token=jA0ECQMC1PKb87zVWJUB0qsB9euIDt4oB1CgxLd5Y5IO6lSDiFCkxsIXj_58PDNTLWRfV-B6hYCaFbPOrF3IfkEUyfgWt2SKAy9X28IsnTG7xozdOhouP934xUR5-Ionb-qrQ0T9MNJT3f4cUa__1Vhn9k9r2KOqEdvCGwbGUocgacJH54o_vQUB9C7yhfLNz6vGsZvtpQ-PW5N8C_edCm7saNq18yRcf7grOzaZnVrWFATLFyVQFxeOAvo


8. The app closes the web browser.
9. The app makes a POST request to the "token" URL received in step 3. The body of the request contains the token returned by the web browser.
10. The server uses the token to establish an authenticated session.
11. The server returns a "bootstrap" response with information about the user and session cookies that allow the app to make subsequent requests without reauthenticating.

Network requirements

The app requires direct communication with the Appian server

In order for the authentication flow described above to complete successfully, the Appian Mobile and Appian for Windows apps must be able to communicate directly with the Appian server.

Appian doesn't support configurations in which the apps:

• Need authentication cookies to reach the Appian server.
• Receive HTTP responses from a server other than an Appian server.

Network proxy support

If communication between the Appian Mobile app and server is routed through an intermediary, such as a load balancer or proxy, requests and responses cannot be modified.

Appian for Windows doesn't support corporate network proxies that require all device internet traffic to be routed through them, such as a SOCKS proxy.

Supported methods for restricting network access to the Appian server

The Appian Mobile and Appian for Windows apps support the following methods of restricting network access to the server.

VPN

The Appian Mobile and Appian for Windows apps can connect to a VPN-protected server as long as the device is connected to the VPN. Devices can connect to a VPN at the operating system level or with a per-app VPN configured through MDM.

Client certificates (Appian Mobile only)

The Appian server can be secured behind a network gateway that issues certificate challenges. Appian Mobile allows users to import a client certificate to be used whenever a certificate challenge is received. See Client Certificate Access for more information.
