a!asyncVariable() Function

On This Page

Function

a!asyncVariable( value, refreshOnReferencedVarChange, refreshOnVarChange, refreshAfter )

Use in a!localVariables() to load data asynchronously and configure refresh behavior for local variables that take more than 500 ms to load. Components that depend on the local variable will show a placeholder until the data is ready. To control the refresh behavior without loading the data asynchronously, use a!refreshVariable(). When used outside of an interface, the refresh parameters are ignored and the variable doesn’t load asynchronously.

Note:  In offline mobile and portal interfaces, async variables will load with the rest of the interface, instead of loading in the background.

See also: a!localVariables(), Asynchronous Loading

Parameters

Keyword Type Description

value

Any Type

The expression to get data that will load asynchronously.

refreshOnReferencedVarChange

Boolean

When true, the value of this async variable will be refreshed each time the value of any variable it references within the value parameter is updated. To refresh the local variable when another variable that is not used within value changes, use refreshOnVarChange. Default: true.

refreshOnVarChange

Any Type

Refreshes the value of this async variable each time any of these specific variables change. This allows you to refresh the value when a variable that is not referenced within the value parameter is updated. You can define either using a single variable (refreshOnVarChange: local!var1) or a list of variables (refreshOnVarChange: {local!var1, local!var2}).

refreshAfter

List of Text String

Refreshes the value of this async variable after a record action completes from a dialog window within a!recordActionField(). Instead of requiring the user to reload the entire page, this parameter allows you to refresh a local variable after the user completes a record action. Valid values: "RECORD_ACTION".

Returns

Any Type

Usage considerations

Using in offline mobile and portal interfaces

Offline mobile and portal interfaces do not support async loading. Any local variable that uses a!asyncVariable() will simply load synchronously in portals and offline mobile. This means the data will load with the rest of the interface, and no placeholder will be displayed.

Grids, charts, and KPIs: Choosing between a!asyncVariable and loadDataAsync

Read-only grid, chart, and KPI components offer two ways to load their data asynchronously. Use the following table to decide which method is best for your use case.

Method When to use How it works
loadDataAsync parameter When a read-only grid, chart, or KPI component's data is sourced from a record type and is not used elsewhere in the interface. Use a record type for the data parameter and set loadDataAsync to true.
a!asyncVariable() When you need to use the same data in multiple components on an interface. Define your data query inside an a!asyncVariable and use the local variable in the component's data parameter.

Note:  If you use an async variable as the data source for a read-only grid, chart, or KPI, the component will always load asynchronously, even if loadDataAsync is set to false.

Anything that relies on an async variable will also load asynchronously

Any expression or variable that relies on an async variable will also become asynchronous. This means any component or variable that depends on the async variable will only be evaluated after the async data is available.

Placeholder behavior

When an interface is waiting on an async variable, a placeholder appears. Where it appears depends on which components are using the async data.

Condition Placeholder Behavior
The component using the async data supports placeholders That component shows its own placeholder
The component using the async data doesn't support placeholders The first component it's nested in that supports placeholders will show the placeholder
No components in the hierarchy support placeholders The entire interface displays a placeholder

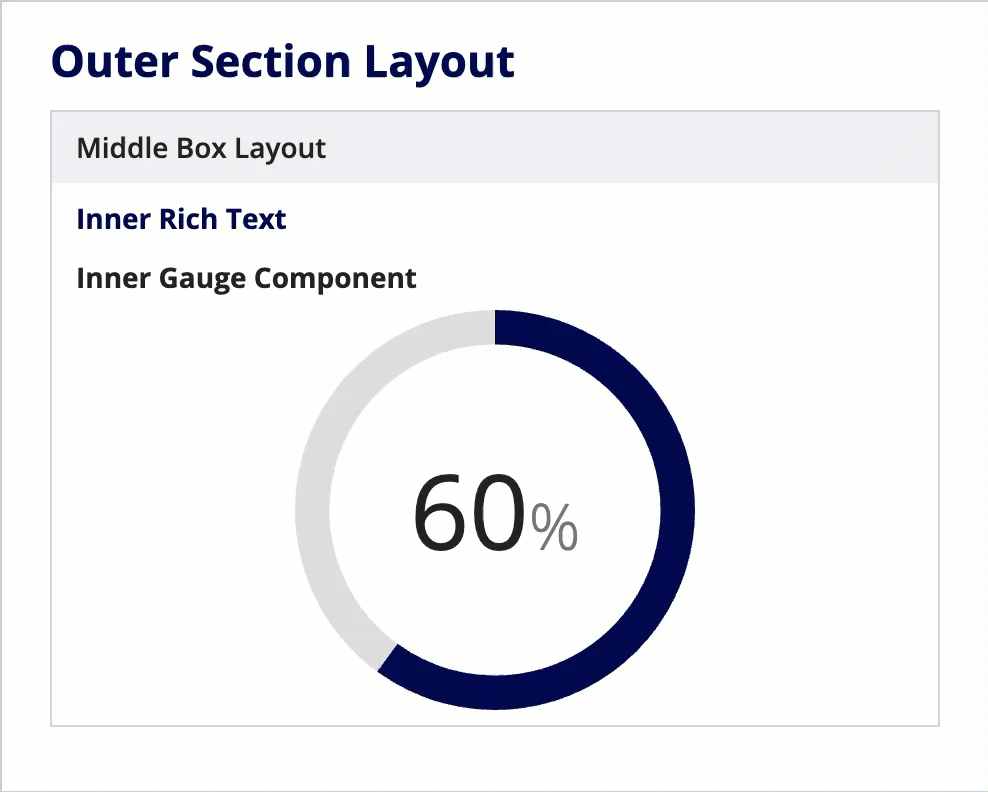

For example, in the following expression, the async variable is used in the gauge component. However, the contents of the box layout will display a loading indicator since it is the inner-most component that can display a placeholder.

gif of a component that relies on an async variable that can't display a placeholder

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

a!localVariables(
  local!asyncData: a!asyncVariable(value: "60"),
  {
    a!sectionLayout(
      label: "Outer Section Layout",
      contents: {
        a!boxLayout(
          label: "Middle Box Layout",
          contents: {
            a!richTextDisplayField(
              labelPosition: "COLLAPSED",
              value: a!richTextItem(
                text: "Inner Rich Text",
                color: "ACCENT",
                style: "STRONG"
              )
            ),
            a!gaugeField(
              label: "Inner Gauge Component",
              percentage: local!asyncData,
              primaryText: a!gaugePercentage()
            )
          }
        )
      }
    )
  }
)

Limiting how much of an interface displays a placeholder

If you find that too much of your interface is being replaced by a loading indicator, you can wrap the specific component that needs the async data in a component that is able to render a placeholder, such as a!cardLayout().

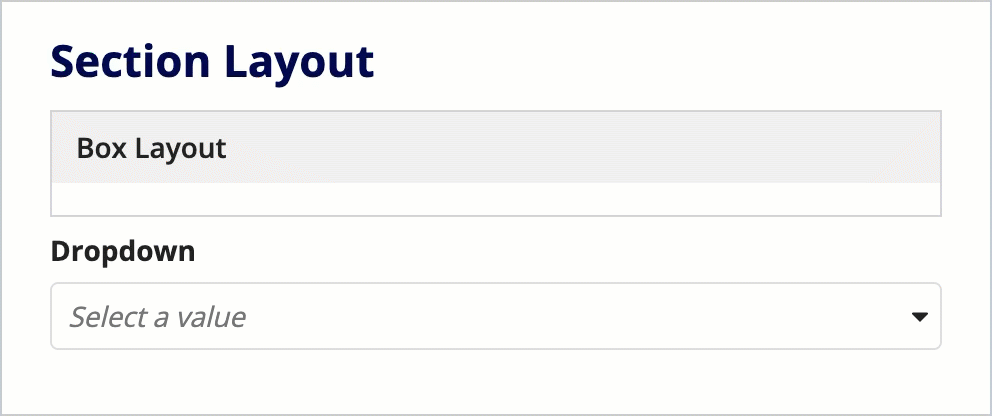

For example, the following expression would cause anything inside the section layout to display a placeholder until the data is available.

gif of a component that relies on an async variable that can't display a placeholder

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

a!localVariables(
  local!asyncData: a!asyncVariable(
    value: a!dataSubset(
      data: { "Low", "Medium", "High" },
      identifiers: { 1, 2, 3 }
    )
  ),
  {
    a!sectionLayout(
      label: "Section Layout",
      contents: {
        a!boxLayout(
          label: "Box Layout"
        ),
        a!dropdownField(
          choiceLabels: local!asyncData.data,
          choiceValues: local!asyncData.identifiers,
          label: "Dropdown",
          placeholder: "Select a value"
        )
      }
    )
  }
)

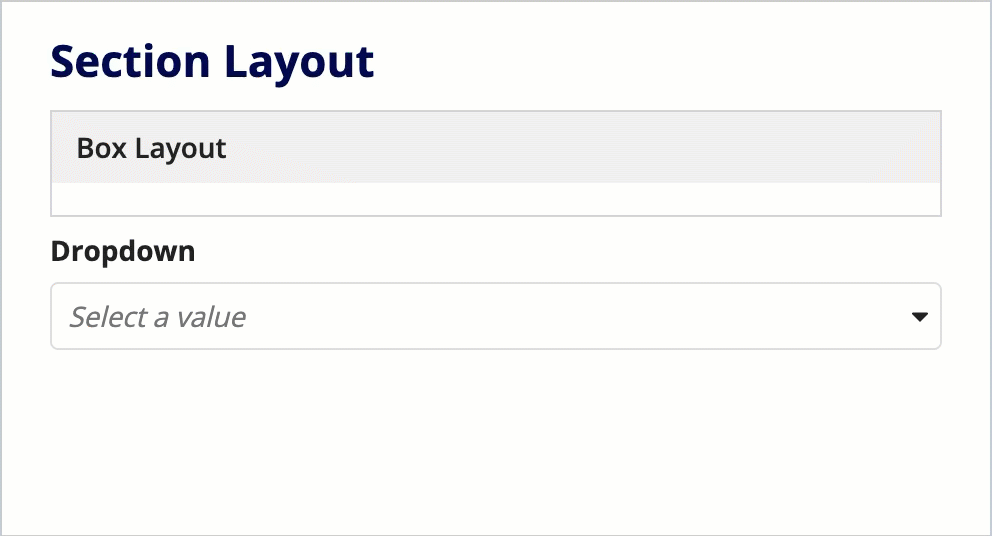

However, if you wrap the dropdown component in a card layout, the box layout displays immediately, while the dropdown component displays a placeholder. To make the card layout invisible, add the padding: "NONE" and showBorder: false parameters.

Tip:  You can also add the height parameter to the card layout to ensure that the height of the placeholder is always the same.

gif of a component that relies on an async variable wrapped inside a card layout

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

a!localVariables(
  local!asyncData: a!asyncVariable(
    value: a!dataSubset(
      data: { "Low", "Medium", "High" },
      identifiers: { 1, 2, 3 }
    )
  ),
  {
    a!sectionLayout(
      label: "Section Layout",
      contents: {
        a!boxLayout(
          label: "Box Layout"
        ),
        a!cardLayout(
          contents: {
            a!dropdownField(
              choiceLabels: local!asyncData.data,
              choiceValues: local!asyncData.identifiers,
              label: "Dropdown",
              placeholder: "Select a value"
            )
          },
          height: "SHORT",
          padding: "NONE",
          showBorder: false
        )
      }
    )
  }
)

Components that support placeholders

The following components can display placeholders:

  • Layouts:
    • a!boxLayout()
    • a!cardLayout()
    • a!cardGroupLayout()
    • a!columnsLayout()
    • a!columnLayout()
    • a!sectionLayout()
    • a!sideBySideLayout()
    • a!wizardStep()
    • a!tabItem
  • Charts:
    • a!areaChartField()
    • a!barChartField()
    • a!columnChartField()
    • a!lineChartField()
    • a!pieChartField()
    • a!scatterChartField()
  • Other display components:
    • a!gridField() (read-only grid)
    • a!kpiField()
    • a!richTextDisplayField()

For an example of how you can use an async placeholder for a specific grid column, see the Async column example on the Read-Only Grid Component page.

Form submissions

Submit buttons will block submission of the form if an async variable is still loading or in an error state. A validation message will appear below the placeholder.

Performance considerations

To maintain application performance and scalability, use a!asyncVariable() strategically, not for every query. Each async variable requires additional server resources, so using them too often can negatively impact your environment's performance and the user experience.

As a best practice:

  • Start with the slowest loading data. Focus your efforts on the parts of the interface that will provide the most noticeable improvement.
  • Limit the number of async variables to 7 per interface for the best performance.
  • Don't make a variable async if it's already fast. If a query consistently returns in under 500ms, the flash of a loading placeholder can feel more jarring to a user than a brief, synchronous load.

Note:  The interface performance details don't measure the true evaluation time for async variables. Async variables will always appear with a time of <1 ms (less than 1 millisecond), regardless of how long its data actually takes to load.

Examples

Basic async query

This example demonstrates how to use a!asyncVariable() to asynchronously load data for a chart. While the chart data is being loaded, a placeholder replaces the chart and the section layout and chart label display.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

a!localVariables(
  local!submissionsByDate: a!asyncVariable(
    /* a!dataSubset could be replaced with a query
    like a!queryRecordType() */
    value: a!dataSubset(
      data: {
        a!map(date: today() - 7, count: 12),
        a!map(date: today() - 6, count: 15),
        a!map(date: today() - 5, count: 22),
        a!map(date: today() - 4, count: 18),
        a!map(date: today() - 3, count: 25),
        a!map(date: today() - 2, count: 30),
        a!map(date: today() - 1, count: 21)
      }
    )
  ),
  {
    a!sectionLayout(
      label: "Submission Dashboard",
      contents: {
        a!columnChartField(
          label: "Submissions Over Last 7 Days",
          categories: local!submissionsByDate.data.date,
          series: {
            a!chartSeries(
              label: "Count",
              data: local!submissionsByDate.data.count
            )
          }
        )
      }
    )
  }
)

Reusing async data

This example shows how the result of a single async query can be used in multiple components. The local!salesByCategory variable is used to populate both a card choice and a bar chart component. Both components will display placeholders until the data is loaded.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145

a!localVariables(
  local!currentMonth: month(today()),
  local!timePeriodSelection: local!currentMonth,
  local!selectedCategory: 1,
  local!salesByCategory: a!asyncVariable(
    /* a!dataSubset could be replaced with a query
    like a!queryRecordType() */
    value: a!dataSubset(
      data: {
        a!map(
          id: 1,
          productLine: "Beverages",
          beverageTypes: {
    /* This could be a reference to a related record.
    The rest of the product lines would have similar data. */
            a!map(
              productCode: "Coke",
              sales: 20535.24
            ),
            a!map(
              productCode: "Pepsi",
              sales: 13556.06
            ),
            a!map(
              productCode: "Dr Pepper",
              sales: 12300.55
            ),
            a!map(
              productCode: "Sprite",
              sales: 5168.4
            ),
            a!map(
              productCode: "Other",
              sales: 4271.5
            ),
            a!map(
              productCode: "Vitamin Water",
              sales: 4030.47
            )
          },
          total_sales_sum: 111562.51
        ),
        a!map(
          id: 2,
          productLine: "Cereals",
          total_sales_sum: 59862.22
        ),
        a!map(
          id: 3,
          productLine: "Dairy",
          total_sales_sum: 43763.59
        ),
        a!map(
          id: 4,
          productLine: "Culinary",
          total_sales_sum: 40160.97
        ),
        a!map(
          id: 5,
          productLine: "Infant Nutrition",
          total_sales_sum: 6284.0
        )
      }
    )
  ),
  {
    a!headingField(
      text: "Top Selling Products By Category & Month",
      size: "LARGE",
      fontWeight: "BOLD",
      marginBelow: "LESS"
    ),
    a!columnsLayout(
      columns: {
        a!columnLayout(
          contents: {
            a!dropdownField(
              label: "Time Period",
              choiceLabels: {"January", "February", "March", "April", "May", "June", "July", "August", "September", "October", "November", "December"},
              choiceValues: { 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 },
              value: local!timePeriodSelection,
              saveInto: local!timePeriodSelection,
              marginBelow: "STANDARD"
            )
          },
          width: "NARROW"
        )
      }
    ),
    a!columnsLayout(
      columns: {
        a!columnLayout(
          contents: {
            a!cardChoiceField(
              label: "Categories",
              data: local!salesByCategory.data,
              cardTemplate: a!cardTemplateBarTextStacked(
                id: fv!data.id,
                primaryText: fv!data.productLine,
                secondaryText: a!currency(
                  isoCode: "USD",
                  value: fv!data.total_sales_sum,
                  decimalPlaces: 0,
                  format: "SYMBOL"
                )
              ),
              value: local!selectedCategory,
              saveInto: local!selectedCategory,
              maxSelections: 1
            )
          },
          width: "NARROW_PLUS"
        ),
        a!columnLayout(
          contents: {
            /* This bar chart could be set up to change based
            on the chosen category */
            a!barChartField(
              label: "Selected Category",
              categories: index(
                index(
                  local!salesByCategory.data,
                  "beverageTypes"
                ),
                "productCode"
              ),
              series: a!chartSeries(
                  label: "Total Sales",
                  data: index(
                    index(
                      local!salesByCategory.data[1],
                      "beverageTypes"
                    ),
                    "sales"
                  )
                ),
              showLegend: false,
              showTooltips: true
            )
          }
        )
      }
    )
  }
)

Feature compatibility

The table below lists this function's compatibility with various features in Appian.
Feature Compatibility Note
Portals Compatible
Offline Interfaces Compatible
Sync-Time Custom Record Fields Incompatible
Real-Time Custom Record Fields Incompatible

Custom record fields that evaluate in real time must be configured using one or more Custom Field functions.
Process Reports Incompatible

Cannot be used to configure a process report.
Process Events Incompatible

Cannot be used to configure a process event node, such as a start event or timer event.
Process Autoscaling Incompatible

Cannot be used in autoscaled processes.
Event Consumer Filter Conditions Incompatible

Cannot be used in filter conditions.
Event Consumer Event Handlers Incompatible

Cannot be used in event handler expressions.
