Configuring Security for Case Management Studio

Overview

Case Management Studio apps use a combination of groups and object security to assign permission levels to users, which can only be configured in Designer.

This page is meant for low-code developers to learn about configuring security for Case Management Studio apps.

Groups in Case Management Studio apps

As with most Appian objects and apps, use groups to set security for objects in your case management apps. Using groups to set security for your objects allows you to control object access by changing a user's group membership, rather than directly editing the object's role map.

The Case Management Studio base app comes with a few out-of-the-box groups.

Group Name	Description
CMGT All Users	All users who use the application in both Workspace and Studio, including internal users and members of the Design Administrators group.
CMGT Design Administrators	Members of this group have administrator permission to all objects and groups in the app.
CMGT Application Users	All users who use the app in Workspace and Studio. This does not include members of the Design Administrators group.
CMGT Service Accounts	Holds all service account users for the app.
CMGT Internal Users	All users who would be considered employees or workers that should have access to all cases, such as members of the Case Workers and Case Managers groups.
CMGT Case Workers	All users who have a case worker role.
CMGT Case Managers	All users who have a case manager role.
CMGT Data Stewards	All users who prepare case management data for reporting and analysis in Process HQ. Members hold the Data Stewards role on the record types that processes and reports use.
CMGT Business Groups	A parent group to hold all of the organization specific groups that you create to fit your business's security needs, such as groups for specific departments or teams.

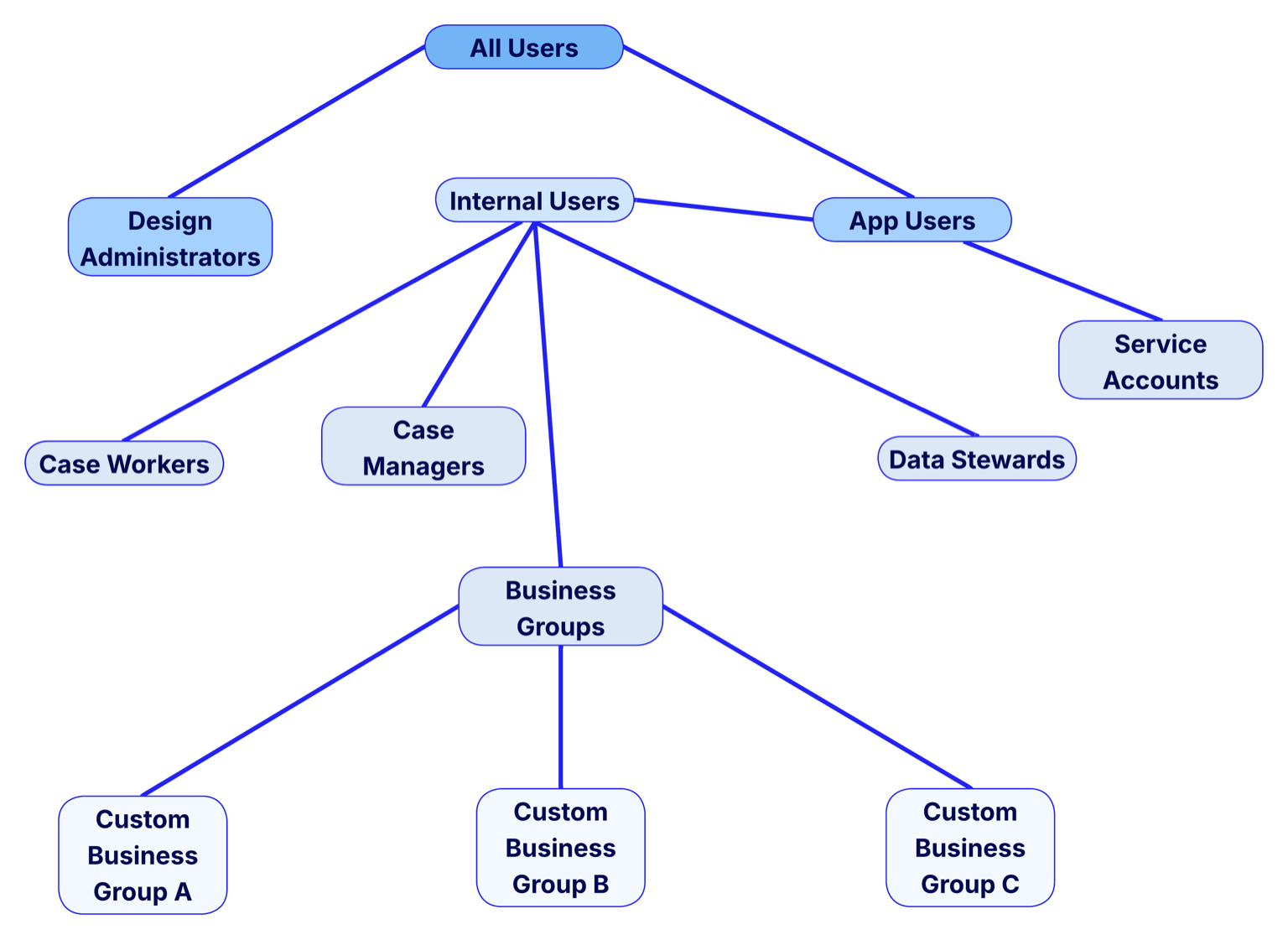

Use the diagram below to better understand the hierarchy of the Case Management Studio groups.

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to close

You can easily manage which users are in each of the special Case Management Studio groups the same way you can manage any groups in Designer. To learn more about managing groups and membership, see Group Management.

CMGT Data Stewards group

The CMGT Data Stewards group comes out-of-the-box with the Case Management Studio base app and sits under the CMGT Internal Users group. Members are data stewards for your case management data, which means they can add and configure case management processes in Process HQ so analysts and business users can explore them.

The group holds the Data Stewards role by default on the following record types:

• Cases
• Tasks
• Case Type
• Status
• Priority
• Task Behavior Type
• Task Response Option

Because the group arrives with these roles already assigned, you only need to add users to it. You don't have to assign data stewards to each record type yourself. To learn how data stewards use these record types, see Configuring Process Insights for Case Management Studio.

Control Panel Users group

In addition to these Case Management Studio specific groups, the Control Panel Users system group also comes out-of-the-box and allows users to access the Control Panel workspace. Users or groups must be added to this group by a system administrator. This does not apply to the CMGT Case Managers group, which is included in the Control Panel Users group by default.

The Control Panel Users group should only be used to grant users access to the Control Panel and should not be used to set object security. Also, this group is at the environment level, meaning it is not contained within an application.

To learn more about security for the Control Panel workspace and control panel object, see Control panel object security.

Object security in Case Management Studio apps

Setting security for objects generated by the Control Panel, such as interfaces and record types, is the same as setting security for these objects in any other Appian application. Simply edit the object's role map to assign the Case Management Studio groups the appropriate permission to the object.

By default, most generated record types and interfaces use the following rolemap:

• Admin: CMGT Design Administrators
• Editor: CMGT Case Managers
• Viewer: CMGT All Users

Record type security for Case Management Studio

For any record type generated by the Control Panel, you can set record level security in addition to record type object security. Record level security allows you to set more granular permission levels to specify which users can see which specific records. Within the context of Case Management Studio, this translates to which cases, case types, and case categories that users have access to.

To determine who can see individual cases, set record level security on case record types. By default, users associated with the case and members of the CMGT Internal Users and CMGT Service Accounts groups can view and edit cases.

To determine who can see a given case type when creating a new case from workspace, set record level security on the hierarchy record type.

See the control panel object security page to learn more about security for the record types generated by the Control Panel for Case Management Studio.

Case category and case type security

You can also limit who can view and make configurations to each case category and case type in the Control Panel workspace by setting security on individual case categories and types in the control panel object. See the control panel object security page for more information.
