Record Type Tutorial (JDBC SQL Integration)

On This Page

Note:  Appian provides a Snowflake connected system. If you're connecting to Snowflake, use the connected system instead of a custom JDBC driver. This tutorial remains useful as a reference for connecting to other JDBC-compatible data sources.

Introduction

Appian’s data fabric makes it easy to unify, secure, and optimize data across your enterprise, regardless of where it lives. If your data sources provide a JDBC driver, you can bring all of your data together by creating a service-backed record type, which is a record type that uses a web service as its data source.

In the first half of this tutorial, we’ll focus on a common scenario: accessing reference data stored in a data warehouse or data lake, such as Snowflake or AWS Redshift. Specifically, we’ll guide you through creating a service-backed record type using Snowflake as the data source. This record type retrieves data using a JDBC SQL integration and can be used as a reference dataset in your application.

To highlight one of the key differentiators of Appian’s data fabric, the second half of this tutorial will demonstrate how to create record actions that write data back to Snowflake.

By the end of this tutorial, you’ll not only have a clear understanding of how to use Snowflake as the data source for your record type but also gain practical knowledge to replicate the process for other JDBC-compatible data sources.

Note:  If you are connecting to one of the supported databases, connect using a data source connected system and create database-backed record types instead.

Objectives

In this tutorial, you’ll learn how to:

  • Connect Appian to Snowflake.
  • Query data in Snowflake using a JDBC SQL integration.
  • Create a service-backed record type to easily use this data throughout your applications.
  • Generate record actions to create a new record or update an existing record.

After you complete this tutorial, you will understand how to use JDBC SQL integration to create a service-backed record type to interact with any JDBC-compatible data sources.

Setup

Create a trial Snowflake account

In this tutorial, you will connect your Appian application to Snowflake. Before we start, you need to create a Snowflake trial account, which provides a 30-day free trial.

During the account creation, ensure that you select the Enterprise Snowflake edition to gain ACCOUNTADMIN access. For this tutorial, any cloud provider and region will work, so feel free to choose whichever you’d like.

Load data in Snowflake

The Snowflake trial account includes sample datasets; however, you cannot modify these datasets. To write data in Snowflake, you’ll need to create a new database and table.

Create a new SQL Worksheet in Snowflake using the SQL commands below. Running this command should create a new database and table, and load 2,000 rows of data into the table.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

create database analytics;

CREATE OR REPLACE TABLE ANALYTICS.PUBLIC.CUSTOMER (
    C_CUSTKEY VARCHAR(36),
    C_NAME VARCHAR(50),
    C_ADDRESS VARCHAR(100),
    C_NATIONKEY INT,
    C_PHONE VARCHAR(20),
    C_ACCTBAL NUMBER,
    C_MKTSEGMENT VARCHAR(20),
    C_COMMENT VARCHAR(200)
);

INSERT INTO ANALYTICS.PUBLIC.CUSTOMER (
C_CUSTKEY
,C_NAME
,C_ADDRESS
,C_NATIONKEY
,C_PHONE
,C_ACCTBAL
,C_MKTSEGMENT
,C_COMMENT
)
SELECT UUID_STRING() as C_CUSTKEY
,C_NAME
,C_ADDRESS
,C_NATIONKEY
,C_PHONE
,C_ACCTBAL
,C_MKTSEGMENT
,C_COMMENT
FROM SNOWFLAKE_SAMPLE_DATA.TPCH_SF1.CUSTOMER ORDER BY C_CUSTKEY limit 2000;

Create the application and user groups

Now that you have your data in Snowflake, let’s create our JDBC SQL Tutorial application:

  1. Sign in to Appian Designer.
  2. Click NEW APPLICATION.

  3. In the Create New Application dialog, configure the following properties:

    Property Action
    Name Enter JDBC SQL Tutorial.
    Prefix Keep the default prefix JST, which Appian constructs using the initial characters of each word you entered in the Name parameter. We'll be following the recommended naming standard by using this short, unique prefix whenever we name an object in this application.
    Description Enter a description for the application, such as JDBC Tutorial.
    Generate groups and folders to secure and organize objects Keep this checkbox selected Appian will automatically generate standard groups and folders and assign default security groups for this application.
  4. Click CREATE.
  5. In the Review Application Security dialog, keep the default security settings. Because we selected the Generate groups and folders option in the previous step, Appian automatically uses the JST Users and JST Administrator groups it generated to set our application security appropriately.
  6. Click SAVE.

Deploy a Snowflake JDBC driver

This tutorial relies on the custom JDBC connected system to connect to Snowflake since it is an unsupported database.

To use the custom JDBC connected system, you must first deploy a Snowflake JDBC driver to your site. If you don’t, you won’t be able to follow the rest of the tutorial.

Note:  If you’re using Appian Community Edition, Snowflake JDBC driver is pre-deployed for you.

Connect Appian to Snowflake

Our first step will be to connect Appian to our Snowflake database. To do this, we’ll create a connected system.

Since you deployed a JDBC driver to your site, a Custom Snowflake Data Source will be available when you go to create a new connected system.

To configure the connected system:

  1. In your application, go to the Build view.
  2. Click NEW > Connected System.

  3. Choose the Custom Snowflake Data Source and configure the following properties:

    Property Action
    Name Enter JST Snowflake CS.
    Description Enter Snowflake connection for this application.
    Connection URL Enter your Snowflake connection URL, using the following format as a guide: jdbc:snowflake://<myorganization-myaccount>.snowflakecomputing.com/?user=<username>&warehouse=COMPUTE_WH&db=ANALYTICS&schema=PUBLIC&JDBC_QUERY_RESULT_FORMAT=JSON.
    Username Enter username for your Snowflake trial account.
    Password Enter the password for your Snowflake trial account.
  4. Click TEST CONNECTION to verify that the connection is successful.
  5. Keep the remaining default settings and click CREATE.
  6. Keep the default security settings for the connected system and click SAVE.

Query data in Snowflake

Now that we can access the Snowflake database, we’ll create a SQL integration object to query the data in Snowflake.

To create a SQL integration object:

  1. In your application, go to the Build view.
  2. Click NEW > Integration.
  3. In the Create Integration dialog, select Use a connected system.
  4. Select the JST Snowflake CS connected system.
  5. Select SQL Query Integration operation to read data from Snowflake.
  6. For Name, enter JST_Snowflake_Query_Customer.
  7. For Description, enter Snowflake data query.
  8. Click CREATE.

  9. In the SQL Statements input box, copy and paste the following SQL query.

    1
2
3
4

    SELECT * FROM CUSTOMER
ORDER BY C_CUSTKEY
LIMIT 1000
OFFSET {offset};

    Note:  We'll use this integration object in a record data source expression later on. This expression can return a maximum of 1,000 records with each integration call, so we set the limit to 1,000 and create an offset parameter to sync the dataset in batches.

  10. Click +New Rule Input to add a new rule input offset with Number (Integer) type.
  11. Under Parameters, set the offset parameter value to ri!offset.
  12. In the testing pane, enter 0 in the Value field. This allows us to test the query by returning 1,000 records.
  13. Click TEST REQUEST to ensure you are successfully retrieving the records.
  14. Click SAVE and close the SQL Integration object.

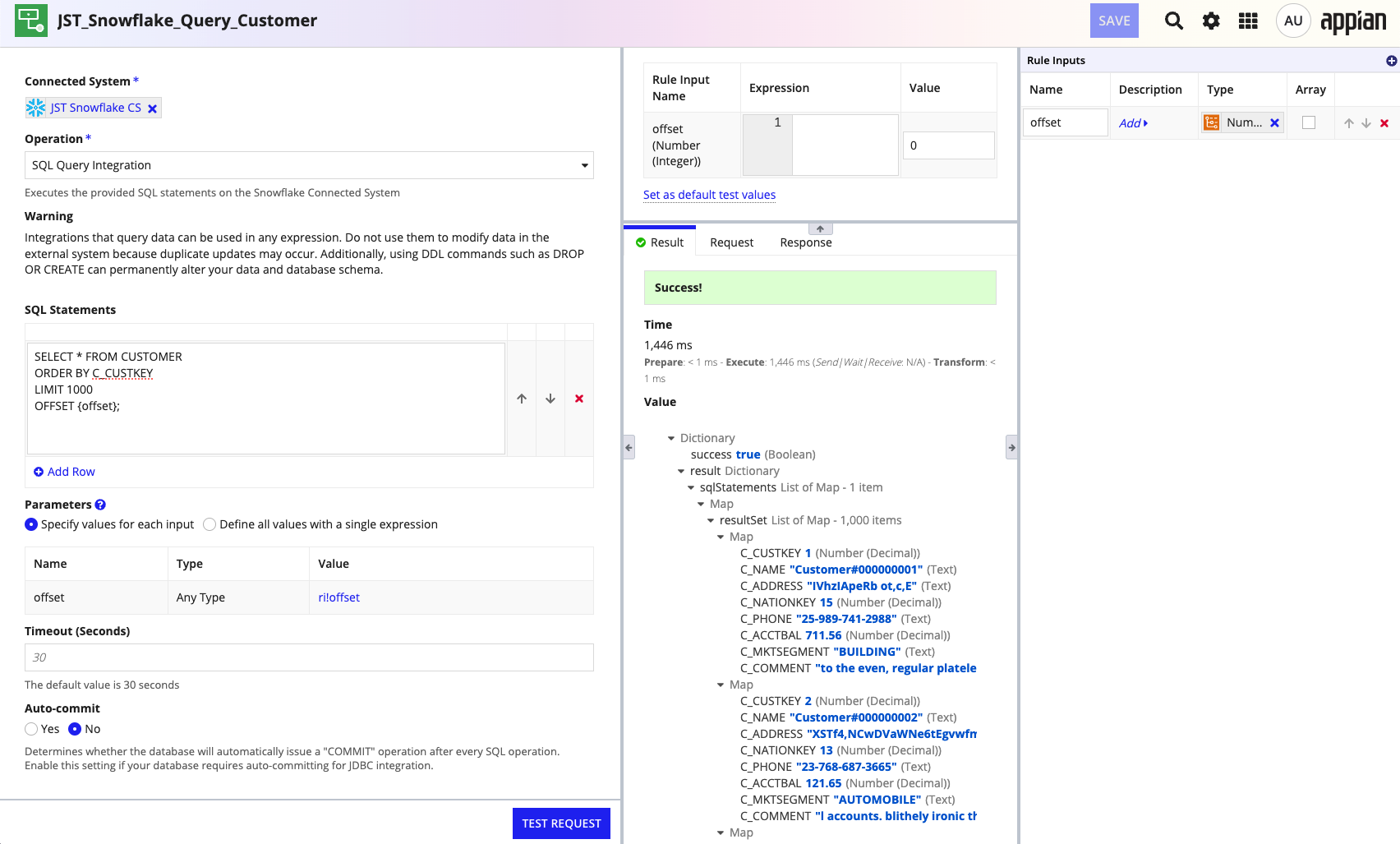

SQL object that queries data from Snowflake

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeSQL object that queries data from Snowflake

Create a service-backed record type

Next, we'll create a record type to query and display the Snowflake data in our Appian application.

We'll create and configure the record type in steps.

To begin:

  1. In your application, go to the Build view.
  2. Click NEW > Record Type.
  3. For Name, enter JST Customer.
  4. For Description, enter Snowflake customer data.
  5. Click CREATE.
  6. In the Review Record Type Security dialog, keep the default security group settings.
  7. Click SAVE. The Customer record type will open in a new tab.

Configure the record data source

When the Customer record type opens in a new tab, the Data Model page opens by default. From this page, we'll select our data source as the first step in configuring the record type.

  1. On the Data Model page, click TELL US ABOUT YOUR DATA.
  2. Click Web Service.
  3. Click NEXT.
  4. For Choose how to access data, keep the default selection Optimized Data Access. The data will be synced in Appian to automatically optimize performance and enable additional features.
  5. Click NEXT.
  6. For Choose Record Data Source, click Create Record Data Source.
  7. Select Use an existing integration.
  8. Find and choose the JST_Snowflake_Query_Customer integration created in the previous step.
  9. Click NEXT.

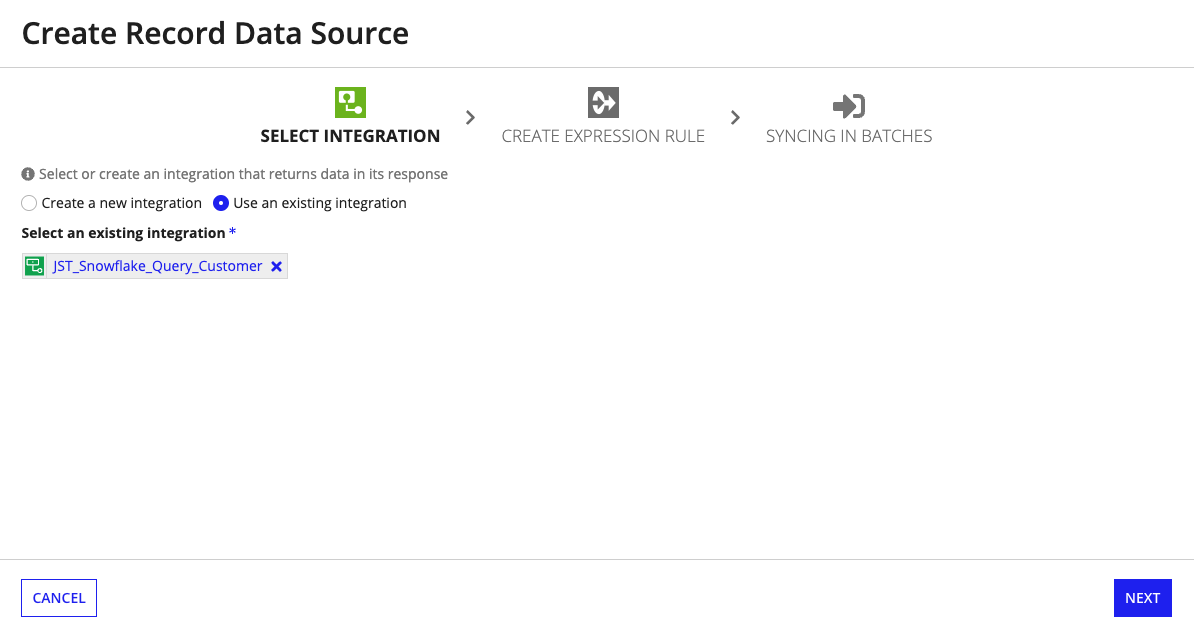

select integration step of creating a record data source

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeselect integration step of creating a record data source

Create the record data source expression rule

Next, we'll create the record data source expression.

The record data source expression connects the integration to the record type, calls the integration, and returns the requested data. After we create the integration for the record data source, the configuration wizard automatically defines the property fields for our expression rule.

In the CREATE EXPRESSION RULE step, verify that the following information is automatically populated in each field below:

Property Value
Name JST_Snowflake_Query_Customer_recordDataSource
Description The Record Data Source for the JST Customer Record Type
Application JDBC SQL Tutorial
Save In JST Rules & Constants

Click NEXT to continue on to configuring syncing in batches.

Configure syncing in batches

In the last step of the wizard, you'll specify whether you want to sync your record data in batches.

Appian provides the option to sync larger datasets in batches. The record data source can return a maximum of 1,000 records with each integration call. Our customer dataset has 2,000 records, so we will need to make two calls to retrieve everything.

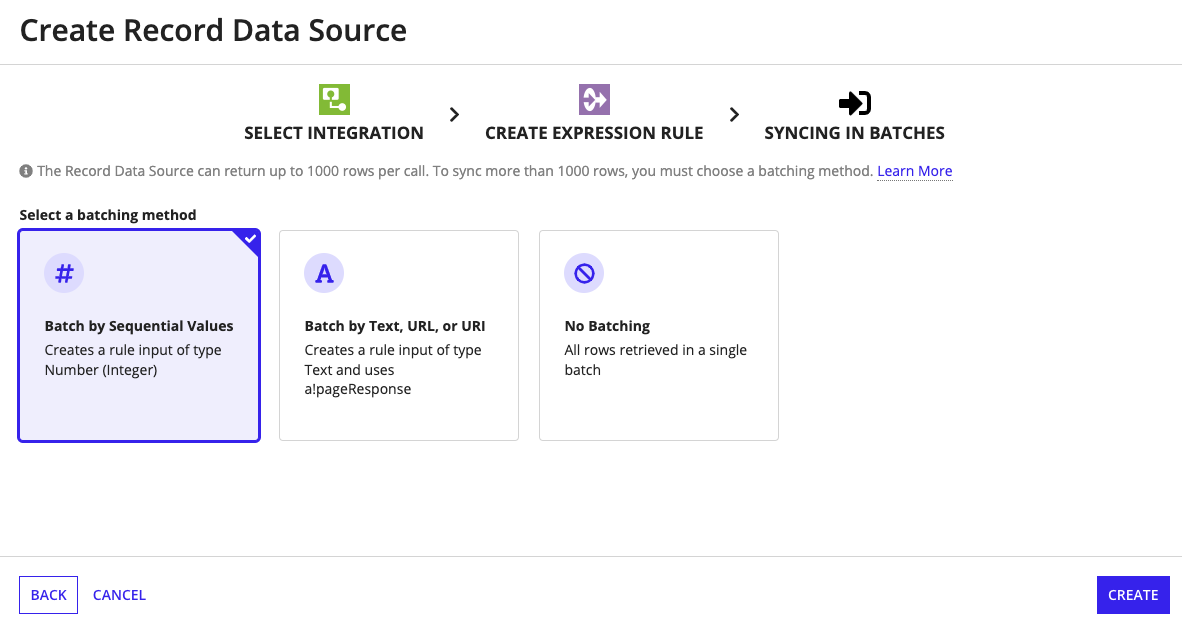

create expression rule step of creating a record data source

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closecreate expression rule step of creating a record data source

  1. Select the option to batch using Sequential Values.
  2. Click CREATE.

Two generated objects are listed on the confirmation page: the record data source expression and the integration to get all customer data.

Before you close the wizard, we need to edit the record data source expression rule to map query result data in the correct format.

Caution:  If you click OK now, you will see an error.

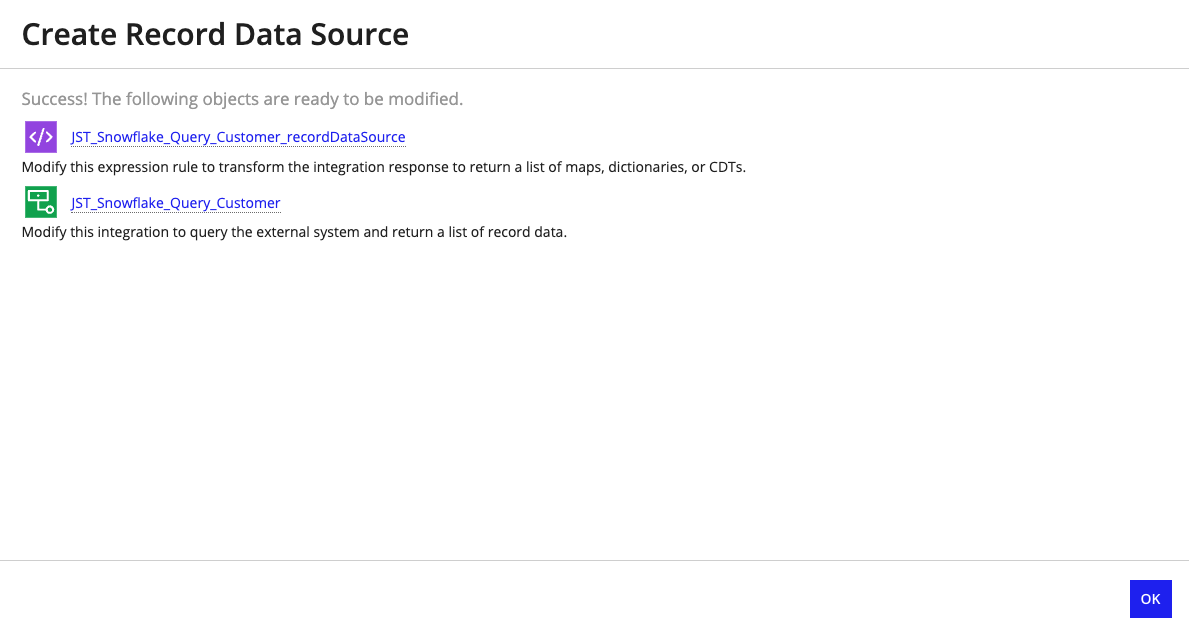

final step of creating a record data source showing created objects

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closefinal step of creating a record data source showing created objects

Configure the record data source expression

By default, the integration's response includes a result.sqlStatements that is a generic List of Dictionary with many properties describing each customer. We will map the data to fields that will make up the record type.

To update the Record Data Source expression with these changes:

  1. On the Create Record Data Source dialog, click the JST_Snowflake_Query_Customer_recordDataSource expression rule to open it.

  2. On line 5, replace the null value of offset with the following expression:

    1

    1000*(ri!batchNumber-1)

    This will retrieve data in batches of 1,000 records for syncing.

  3. On line 13, replace the default value local!integrationResponse.result.body with the actual path that our integration returns, local!integrationResponse.result.sqlStatements.resultSet.
  4. In the testing pane, enter 0 in the Value field. This allows us to test the query by returning 1,000 records.
  5. Click TEST RULE. The output should be a 1000 Lists of Map, each with the fields set in the a!map() of the expression.
  6. Click SAVE and close the expression rule tab.
  7. After closing the expression rule, we are returned to the Create Record Data Source dialog. Click OK.

Verify data in the preview

Once you've configured the integration, you can confirm that the record data source expression is working by examining the data preview shown on the Configure Data Source dialog. After you've verified the preview data, click Next.

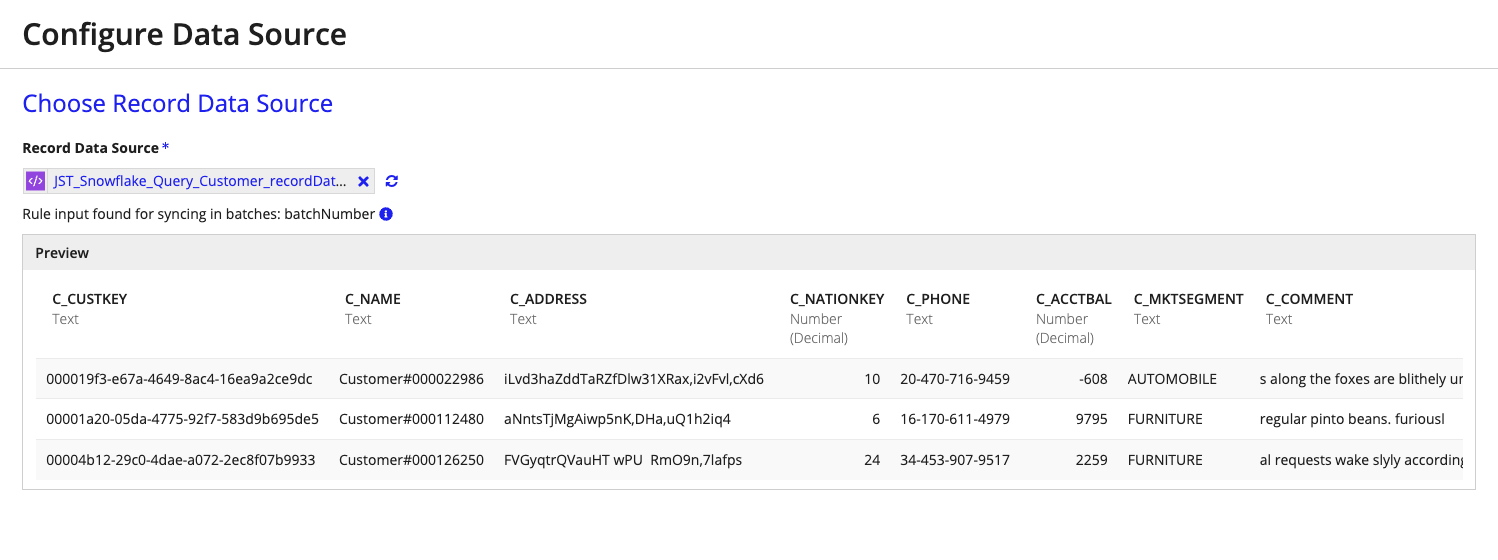

confirming record data source configuration

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeconfirming record data source configuration

Configure record type fields

Appian automatically maps your source data fields to record fields. You select the field that will serve as the primary key, and optionally select any number of unique fields as well. You can also re-order the fields, change the display names and add field descriptions as desired.

To select and configure the record type fields:

  1. For Primary Key, select C_CUSTKEY.
  2. Click FINISH.
  3. Click SAVE.

Saving the record type starts a full sync of your record data. This should only take a couple of seconds to complete. Click Sync History to see details of the sync operation and confirm that it completed successfully.

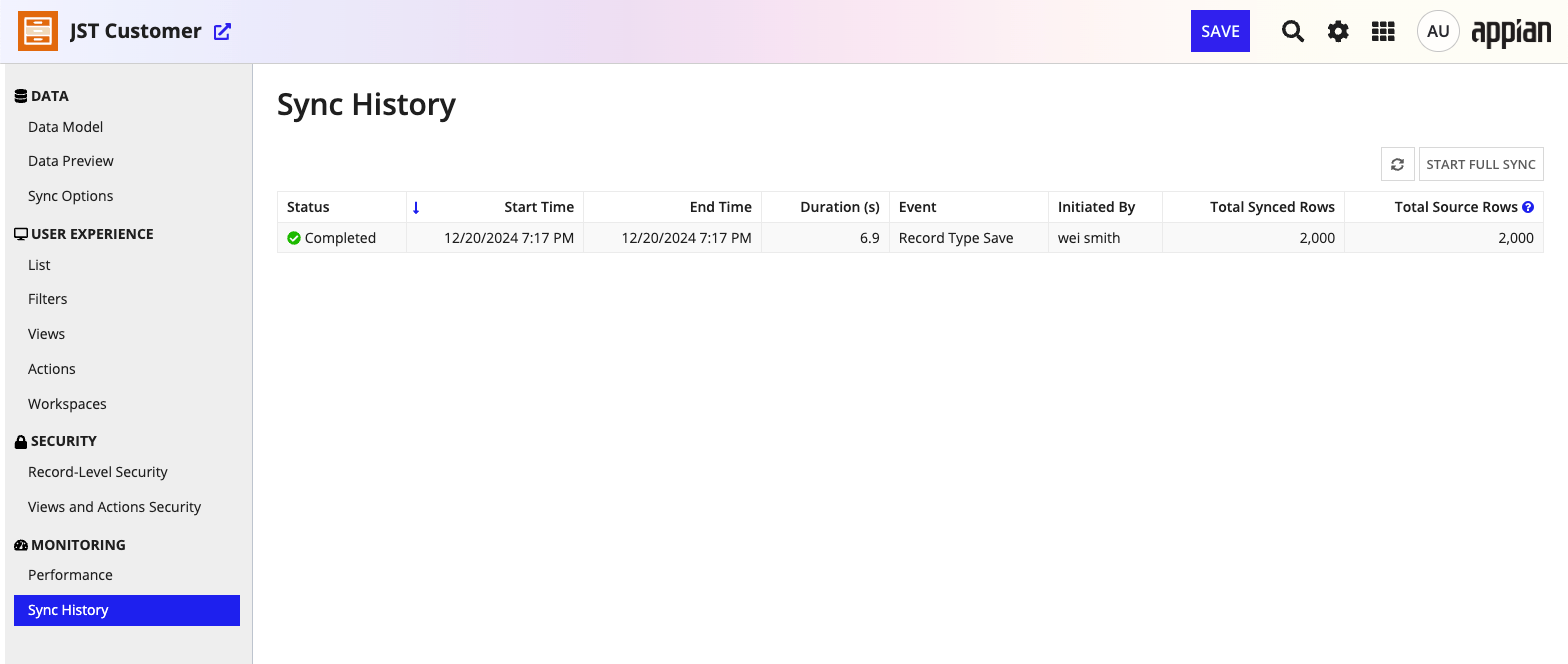

JST Customer sync history page

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeJST Customer sync history page

Configure the list view

Now let's populate our record list with more meaningful data.

To customize the automatically generated list view:

  1. In the record type, go to List.
  2. Click EDIT LIST to open the Edit Record List dialog.
  3. For Empty Grid Message, enter No customers exist with this criteria.
  4. For Rows to Display Per Page, enter 25. This controls the batchSize that is passed into the Paging Info input for your single record source.
  5. In the Columns section of the configuration pane, delete the C CUSTKEY column by hovering over the three dots and clicking the X.
  6. Click the C Name link. The grid configuration pane will show details about that column.
  7. Click DISPLAY OPTIONS.
  8. From the list of options, click RECORD LINK.
  9. For Display Value, click Edit as Expression.

  10. Use the expression below to show the Customer name on each row.

    Note:  If you copy and paste this expression, you will need to replace the record field references with references in your own environment.

    1
2
3
4
5
6
7
8
9

    a!linkField(
 links: {
   a!recordLink(
    label: fv!row[recordType!JST Customer.fields.C_NAME],
    recordType: recordType!JST Customer,
     identifier: fv!identifier
  )
 }
)
  11. Click OK.
  12. Change the Label of the column to Name.
  13. Click the Grid link (grid) above the Label to return the Columns list.
  14. Update the Label of the remaining columns in the same way:
    • C ADDRESS: Address
    • C NATIONKEY: Nation Key
    • C PHONE: Phone
    • C ACCTBAL: Account Balance
    • C MKTSEGMENT: Market Segment
    • C COMMENT: Comment
  15. Click OK.
  16. Click SAVE.
  17. To test your record list configuration, click the link under URL. You should end up with a list view that looks like this:

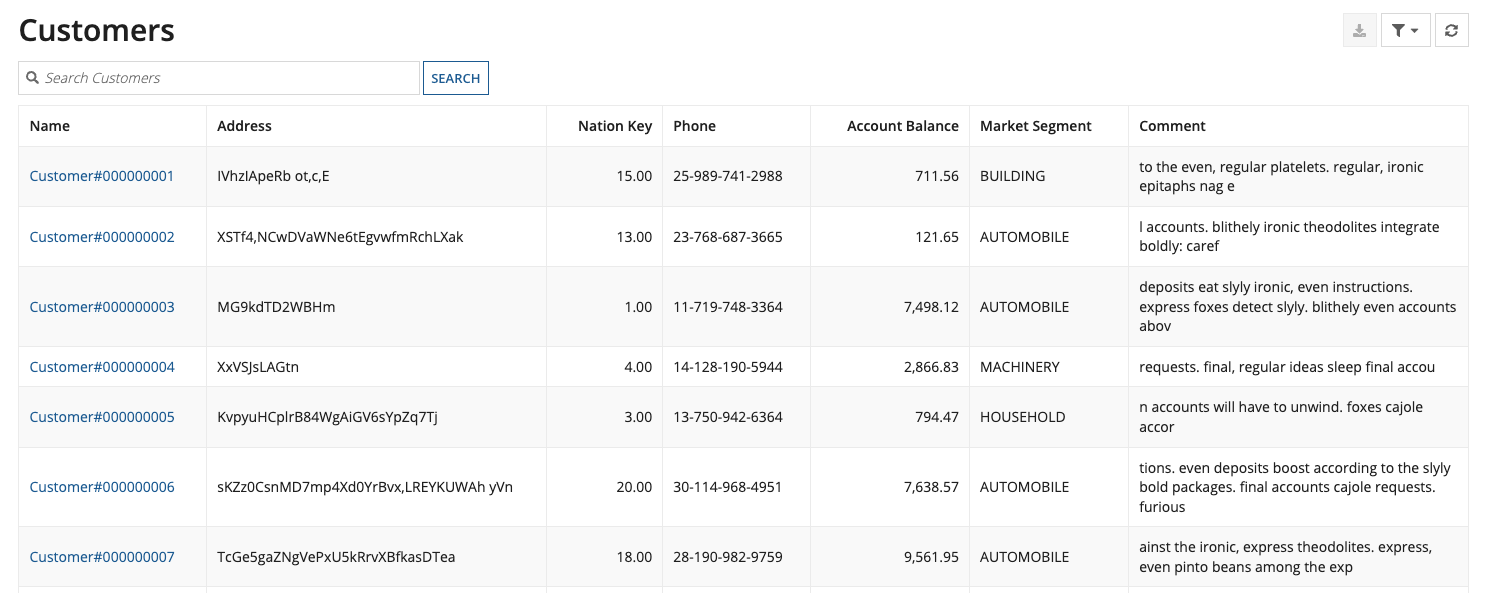

JST Customer record list view example

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeJST Customer record list view example

Create a user filter

To make it easier for users to find information about specific customers, we can build user filters that compare user selections with the values of record fields and return the records that match.

In this tutorial, we'll create a user filter that uses the Market Segment field to see data for a selected market segment.

To create a user filter:

  1. In the record type, click Filters.
  2. Click New User Filter.
  3. On the Create New User Filter dialog, select the Expression option.
  4. For Name, enter Market Segment.

  5. For the Filter Expression, use the following expression:

    Note:  If you copy and paste this expression, you will need to replace the record field references with references in your own environment.

    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

    a!localVariables(
 local!segment: a!queryRecordType(
  recordType: recordType!JST Customer,
  fields: a!aggregationFields(
    groupings: a!grouping(
      field: recordType!JST Customer.fields.C_MKTSEGMENT,
      alias: "segment"
    )
  ),
  pagingInfo: a!pagingInfo(
    startIndex: 1,
    batchSize: 100
  )
 ),
 a!recordFilterList(
  name: "Market Segment",
  allowMultipleSelections: true,
  options: a!forEach(
    items: local!segment.data,
    expression: a!recordFilterListOption(
      id: fv!index,
      name: fv!item.segment,
      filter: a!queryFilter(
        field: recordType!JST Customer.fields.C_MKTSEGMENT,
        operator: "=",
        value: fv!item.segment
      )
    )
  )
)
)
  6. Click OK.
  7. Click SAVE.
  8. To test your filter configuration:
    1. In the record type, go to List.
    2. Click the link under URL to open the record list.
    3. Select AUTOMOBILE from the MARKET SEGMENT dropdown and verify that the grid shows only the automobile customers.

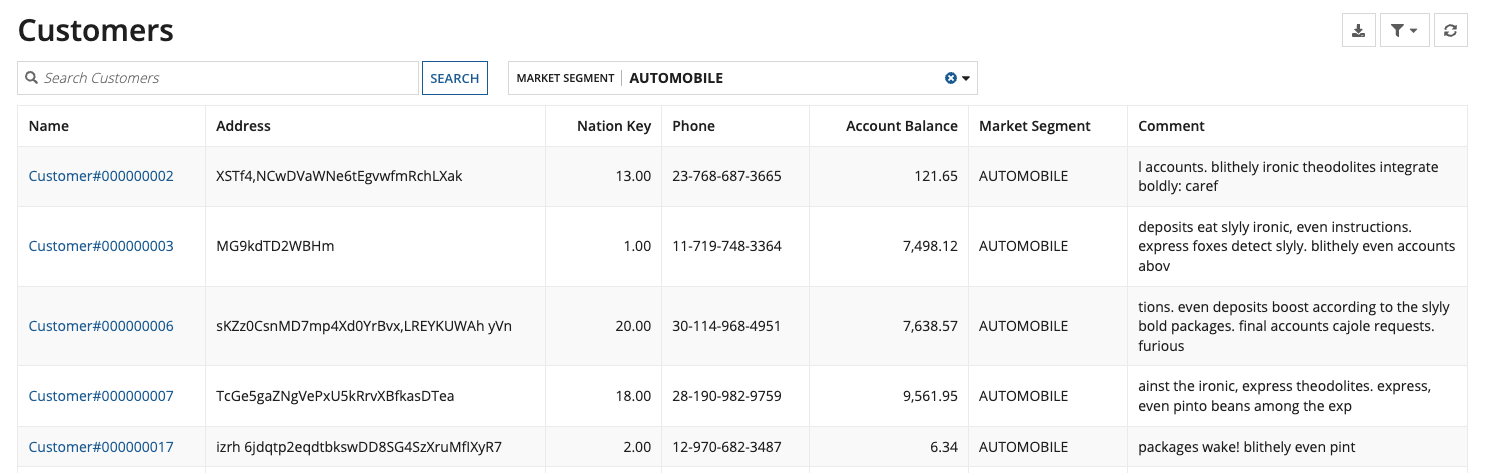

Customer list with user filter applied

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeCustomer list with user filter applied

Generate the Summary view

Next, we'll create a Summary view for the record type:

  1. In the record type, go to Views.
  2. Click GENERATE RECORD VIEW.
  3. For Data Included in Your Record View, the Customer record type is already selected, so you can click NEXT.
  4. For View Name, use the default name Summary and then click NEXT.
  5. Click GENERATE VIEW.
  6. Click CLOSE.
  7. Click SAVE.

Update the generated Summary view

Next, we'll customize our new Summary view with meaningful labels displayed on each record.

  1. From the Views page, open the generated interface rule!JST_CustomerSummary.
  2. Open the JST_CustomerSummary interface by CMD or CTRL clicking on the Interface name

  3. Go to Expression mode and enter the following expression:

    Note:  If you copy and paste this expression, you will need to replace the record field references with references in your own environment.

    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100

    {
  a!sectionLayout(
  label: "Customer",
  labelSize: "MEDIUM",
  labelHeadingTag: "H2",
  labelColor: "STANDARD",
  contents: {
    a!columnsLayout(
      columns: {
        a!columnLayout(
          contents: {
            a!textField(
              label: "Name",
              labelPosition: "JUSTIFIED",
              value: a!defaultValue(
                ri!customer[recordType!JST Customer.fields.C_NAME],
                "–"
              ),
              readOnly: true
            ),
            a!textField(
              label: "Nation Key",
              labelPosition: "JUSTIFIED",
              value: if(
                isnull(
                  ri!customer[recordType!JST Customer.fields.C_NATIONKEY]
                ),
                "–",
                text(
                  ri!customer[recordType!JST Customer.fields.C_NATIONKEY],
                  "#"
                )
              ),
              readOnly: true
            ),
            a!textField(
              label: "Account Balance",
              labelPosition: "JUSTIFIED",
              value: if(
                isnull(
                  ri!customer[recordType!JST Customer.fields.C_ACCTBAL]
                ),
                "–",
                text(
                  ri!customer[recordType!JST Customer.fields.C_ACCTBAL],
                  "#"
                )
              ),
              readOnly: true
            ),
            a!paragraphField(
              label: "Comment",
              labelPosition: "JUSTIFIED",
              value: a!defaultValue(
                ri!customer[recordType!JST Customer.fields.C_COMMENT],
                "–"
              ),
              readOnly: true
            )
          }
        ),
        a!columnLayout(
          contents: {
            a!textField(
              label: "Address",
              labelPosition: "JUSTIFIED",
              value: a!defaultValue(
                ri!customer[recordType!JST Customer.fields.C_ADDRESS],
                "–"
              ),
              readOnly: true
            ),
            a!textField(
              label: "Phone",
              labelPosition: "JUSTIFIED",
              value: a!defaultValue(
                ri!customer[recordType!JST Customer.fields.C_ADDRESS],
                "–"
              ),
              readOnly: true
            ),
            a!textField(
              label: "Market Segment",
              labelPosition: "JUSTIFIED",
              value: a!defaultValue(
                ri!customer[recordType!JST Customer.fields.C_MKTSEGMENT],
                "–"
              ),
              readOnly: true
            )
          }
        )
      }
    )
  },
  divider: "ABOVE",
  marginAbove: "STANDARD",
  marginBelow: "MORE"
)
}
  4. Click SAVE.
  5. To test the Summary view:
    1. In the record type, go to List.
    2. Click the link under URL to open the record list.
    3. Click a customer name to display the record's Summary view.

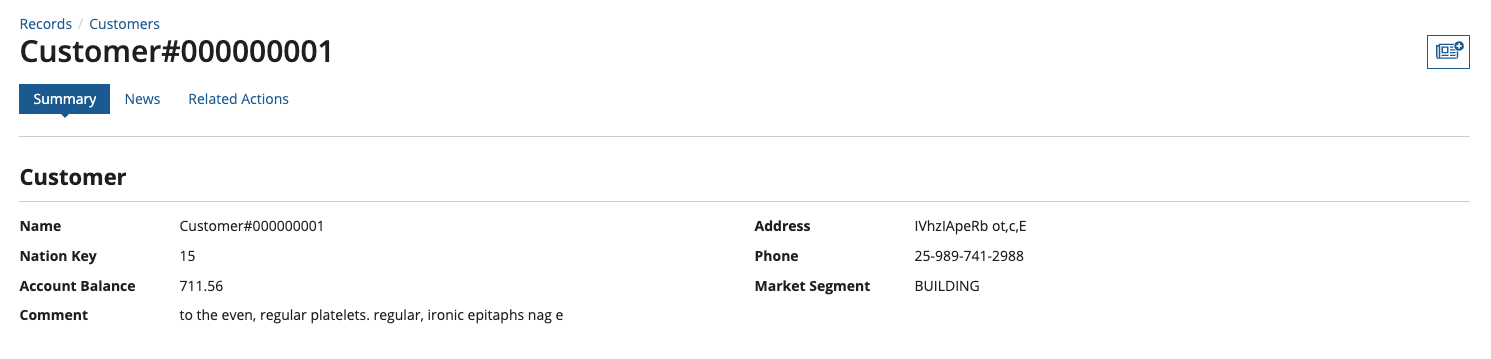

customer record summary view

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closecustomer record summary view

Configure record actions

In this last part of the tutorial, we'll create record actions to create a new customer and update customer information.

Let’s first create SQL integration objects for creating and updating a customer record in Snowflake.

Create a SQL integration object for new customers

Before we create a record action, we'll create a new integration to create and update data in Snowflake.

To create the SQL integration object:

  1. In your application, go to the Build view.
  2. Click NEW > Integration.
  3. Find and choose the JST Snowflake CS connected system that you created in a previous step.
  4. For Operation, select SQL Write Integration operation to write data back to Snowflake.
  5. For Name, enter JST_Snowflake_Insert_Customer.
  6. Click CREATE.

Next, we’ll add an additional rule input needed to store user-entered data for the components in the interface. In the RULE INPUTS pane on the right, click +New Rule Input. * For Name, enter record. * For Type, enter record type JST Customer.

  1. In the SQL Statements input box, copy and paste the following SQL query:

    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

    INSERT INTO CUSTOMER (
   C_CUSTKEY,
   C_NAME,
   C_ADDRESS,
   C_NATIONKEY,
   C_PHONE,
   C_ACCTBAL,
   C_MKTSEGMENT,
   C_COMMENT
)
VALUES
   ({C_CUSTKEY},
   {C_NAME},
   {C_ADDRESS},
   {C_NATIONKEY},
   {C_PHONE},
   {C_ACCTBAL},
   {C_MKTSEGMENT},
   {C_COMMENT}
);
  2. Under Parameters, click Edit as expression next to the C_CUSTKEY parameter.
  3. In the Edit Expression dialog, enter ri![recordType!JST Customer.fields.C_CUSTKEY].

Note:  If you copy and paste the expression, you'll need to replace the record field reference with one in your environment.

  1. Click OK.
  2. Do the same for the remaining 7 parameters to map the record rule input field to each parameter.
  3. Click SAVE.

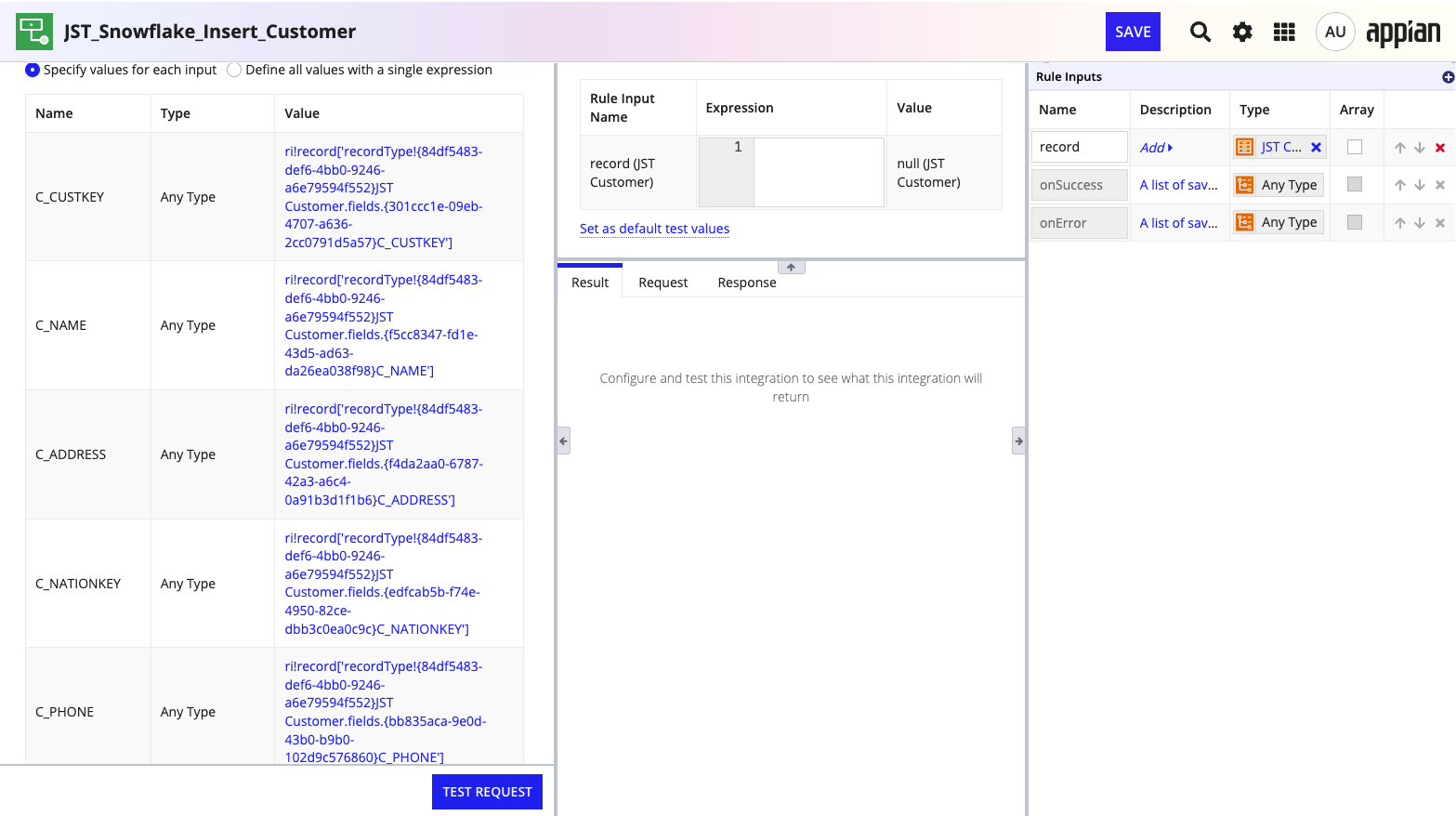

snowflake integration object to insert customer

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closesnowflake integration object to insert customer

Create a SQL integration object to generate a UUID for a new customer

To sync new or updated data in our service-backed record type, we will use the Sync Records smart service to sync data changes.

To configure the Sync Records smart service, we will call an integration to generate a UUID when creating a new customer. Then, we'll trigger a sync for the new record after the data has been successfully written to the Snowflake.

To create the SQL integration object:

  1. Go to the Build view, click NEW > Integration.
  2. In the Create Integration dialog, select Use a connected system.
  3. Find and choose the custom Snowflake connected system (JST Snowflake CS) created in the previous step.
  4. For Operation, select SQL Query Integration operation to generate a UUID from Snowflake.
  5. For Name, enter JST_Snowflake_UUID.
  6. Click CREATE.

  7. For SQL Statements, copy and paste the following SQL query. This will generate eight parameters.

    1

    SELECT UUID_STRING() as uuid;
  8. Click SAVE.

Create an expression rule to parse the UUID generated from the SQL integration

Next, we'll create an expression rule to parse the UUID returned from the integration call so that we can use it to create a new customer record in Snowflake and immediately sync the change.

  1. Go to the Build view, click NEW > Expression Rule.
  2. For Name, enter JST_getUuid.
  3. For Description, enter Get UUID from Snowflake.
  4. Click CREATE.

  5. Copy and paste the following expression:

    1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

    a!localVariables(

/* Call the integration and store the response in a local variable */
local!integrationResponse: rule!JST_Snowflake_UUID(),

if(
   /* This will return true if the integration succeeds */
   local!integrationResponse.success,

   /* If needed, modify the expression below to return a list of maps, dictionaries, or CDTs that map to your record data */
   local!integrationResponse.result.sqlStatements.resultSet.uuid,



   /* If the integration is unsuccessful, handle accordingly */

   if(
      /* Note: handling of out of bounds exceptions varies by web service */
      tointeger(index(local!integrationResponse.result, "statusCode", 0)) = 416,

      /* If this is an out of bounds error, return an empty list to finish syncing */
      {},

      /* If this is a different error, return the integration error. */
      /* If you need additional logic to determine the error, use a!integrationError() in the integration to format the error displayed in the sync monitor */
      local!integrationResponse.error
   )
)
)
  6. Click TEST RULE to ensure the expression is returning a UUID from the integration.
  7. Click SAVE.

Create a SQL integration object to update customers

Next, we need to create a SQL integration object to update customer information. To save a little time during this tutorial, we will duplicate the SQL integration object JST_Snowflake_Insert_Customer created in the previous step.

To create the SQL integration object:

  1. Select the checkbox beside the JST_Snowflake_Insert_Customer integration in the Build view, then click DUPLICATE button.
  2. For Name, enter JST_Snowflake_Update_Customer.
  3. Click CREATE.

  4. In the SQL Statements input box, copy and paste the following SQL query, replacing the current statement.

    1
2
3
4
5
6
7
8
9

    UPDATE CUSTOMER
   SET C_NAME= {C_NAME},
   C_ADDRESS={C_ADDRESS},
   C_NATIONKEY={C_NATIONKEY},
   C_PHONE={C_PHONE},
   C_ACCTBAL={C_ACCTBAL},
   C_MKTSEGMENT={C_MKTSEGMENT},
   C_COMMENT={C_COMMENT}
WHERE C_CUSTKEY={C_CUSTKEY};
  5. Click SAVE.

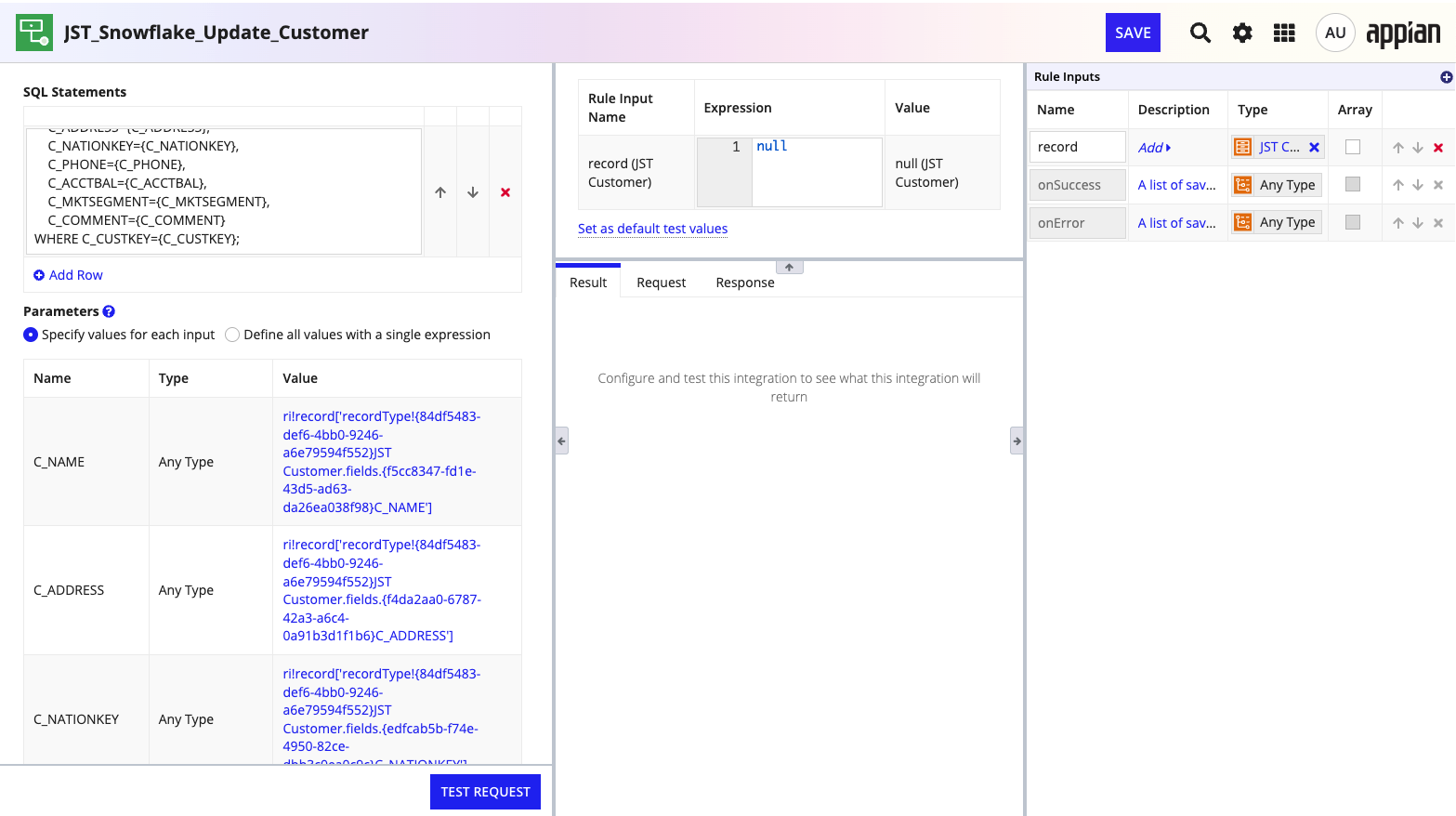

snowflake integration object to update customer

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closesnowflake integration object to update customer

Create an interface

We're going to create an interface named JST_CreateOrUpdateCustomer. This interface will show a form for users to input values about a new customer or update values for an existing customer.

To create an interface object:

  1. In the Build view, click NEW > Interface.
  2. For Name, enter JST_CreateOrUpdateCustomer.
  3. Click CREATE.
  4. In the RULE INPUTS pane, click New Rule Input.
  5. For Name, enter record.
  6. For Type, enter JST Customer record type.
  7. Leave the Array checkbox unselected. The form only allows users to submit a single customer, so there is no need for the rule input to accept multiple records.
  8. Click CREATE AND ADD ANOTHER.
  9. For Name, enter cancel.
  10. For Type, select Boolean.
  11. Click CREATE AND ADD ANOTHER.
  12. For Name, enter isUpdate. This rule input tracks whether the form is being used to create a new record or update an existing one.
  13. For Type, select Boolean.

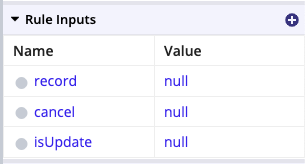

  14. Click CREATE. Your finished rule inputs should look like this:
    rule inputs

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closerule inputs

  15. In expression mode, copy and paste the following expression. Replace the record field references with references in your own environment.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105

   a!formLayout(
   label: if(
      ri!isUpdate,
      "Update Customer",
      "Create Customer"
   ),
   contents: {
      a!columnsLayout(
         columns: {
         a!columnLayout(
            contents: {
               a!textField(
               label: "Name",
               labelPosition: "ABOVE",
               value: ri!record[recordType!JST Customer.fields.C_NAME],
               saveInto: ri!record[recordType!JST Customer.fields.C_NAME],
               characterLimit: 50,
               required: true
               ),
               a!textField(
               label: "Phone Number",
               labelPosition: "ABOVE",
               value: ri!record[recordType!JST Customer.fields.C_PHONE],
               saveInto: ri!record[recordType!JST Customer.fields.C_PHONE],
               characterLimit: 15,
               required: false
               ),
               a!textField(
               label: "Market Segment",
               labelPosition: "ABOVE",
               value: ri!record[recordType!JST Customer.fields.C_MKTSEGMENT],
               saveInto: ri!record[recordType!JST Customer.fields.C_MKTSEGMENT],
               characterLimit: 50,
               required: false
               )
            }
         ),
         a!columnLayout(
            contents: {
               a!textField(
               label: "Address",
               labelPosition: "ABOVE",
               value: ri!record[recordType!JST Customer.fields.C_ADDRESS],
               saveInto: ri!record[recordType!JST Customer.fields.C_ADDRESS],
               characterLimit: 100,
               required: true
               ),
               a!floatingPointField(
               label: "Nation Key",
               labelPosition: "ABOVE",
               value: ri!record[recordType!JST Customer.fields.C_NATIONKEY],
               saveInto: ri!record[recordType!JST Customer.fields.C_NATIONKEY],
               refreshAfter: "UNFOCUS",
               validations: {}
               ),
               a!floatingPointField(
               label: "Account Balance",
               labelPosition: "ABOVE",
               value: ri!record[recordType!JST Customer.fields.C_ACCTBAL],
               saveInto: ri!record[recordType!JST Customer.fields.C_ACCTBAL],
               required: false
               ),
               a!paragraphField(
               label: "Comment",
               labelPosition: "ABOVE",
               value: ri!record[recordType!JST Customer.fields.C_COMMENT],
               saveInto: ri!record[recordType!JST Customer.fields.C_COMMENT],
               refreshAfter: "UNFOCUS",
               height: "MEDIUM",
               validations: {}
               )
            }
         )
         }
      )
   },
   buttons: a!buttonLayout(
      primaryButtons: {
         a!buttonWidget(
         label: if(ri!isUpdate, "Save", "Create"),
         saveInto: if(ri!isUpdate,
         a!save(
            target: ri!record[recordType!JST Customer.fields.C_CUSTKEY],
            value: ri!record[recordType!JST Customer.fields.C_CUSTKEY]),
         a!save(
            target: ri!record[recordType!JST Customer.fields.C_CUSTKEY],
            value: rule!JST_GetUuid()
         )),
         submit: true,
         style: "SOLID",
         validate: true
         )
      },
      secondaryButtons: {
         a!buttonWidget(
         label: "Cancel",
         value: true,
         saveInto: ri!cancel,
         submit: true,
         style: "OUTLINE",
         validate: false
         )
      }
   )
   )
  1. Click SAVE.

Create the process model

Now, let's create the process model object. We'll also use the JST_CreateOrUpdateCustomer interface as the start form to automatically populate our variables.

To create the process model:

  1. Go to the Build view, click NEW > Process Model.
  2. For Name, enter JST Create Or Update Customer.
  3. Click CREATE.
  4. In the Review Process Model Security dialog, update the default security as follows:
    • For JST Users, set the Permission Level to Initiator.
    • For JST Administrators, leave the Permission Level as Administrator.
  5. Click SAVE. The Appian Process Modeler opens automatically and displays the JST Create Or Update Customer process.
  6. From the menu bar, click File > Properties.
  7. Click the Process Start Form tab.
  8. For Interface, select JST_CreateOrUpdateCustomer.
  9. On the Create Process Parameters dialog, click YES. The record, cancel, and isUpdate process variables are created. You can see these variables if you go to the Variables tab.

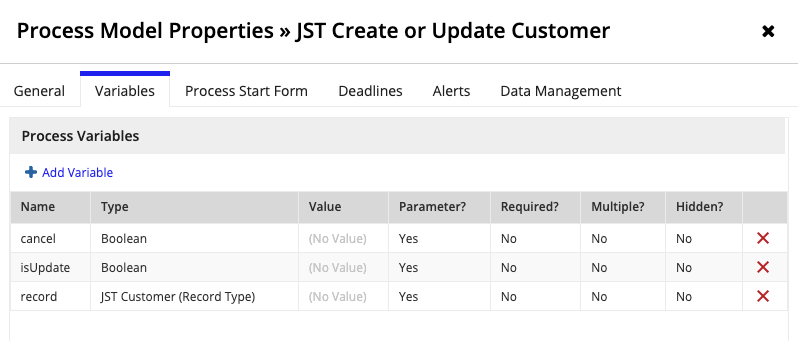

    process model properties window for JST Create or Update Customer

    Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeprocess model properties window for JST Create or Update Customer

  10. Click OK.
  11. Drag an XOR node from the palette to the canvas, and drop it on top of the existing connector between the Start Node and End Node. This gateway node uses the value of pv!cancel and pv!isUpdate to select the appropriate workflow path.

Configure new customer workflow

  1. Drag a CALL INTEGRATION node from the Automation Smart Services palette group to the canvas, and drop it on top of the existing connector between the XOR Node and End Node.
  2. Click the label and change it to Insert Customer.
  3. Double-click the Call Integration node.
  4. Go to the Setup tab.
  5. In the Select Integration field, select JST_Snowflake_Insert_Customer integration object.
  6. Go to the Data tab. When an integration is selected, the integration’s inputs will automatically appear as node inputs. There is one node input.
  7. In the Node Inputs pane, click record.
  8. For the Value field, use the dropdown to select record.
  9. Click OK.
  10. Drag a SYNC RECORDS node from the Data Services palette group to the canvas, and drop it on top of the existing connector between the CALL INTEGRATION node and the End Node.
  11. Click the label and change it to Sync Customer Record.
  12. Double-click the Sync Records node.
  13. Go to the Data tab.
  14. In the Node Inputs pane, click Record Type.
  15. For the Value field, click the Expression Editor to open the dialog.
  16. Enter recordType!JST Customer.
  17. Click SAVE AND CLOSE.
  18. In the Node Inputs pane, click Identifiers.
  19. For the Value field, use the dropdown to select record.C_CUSTKEY. The field is automatically populated with the correct process variable syntax.
  20. Click OK.

Note:  While you've successfully configured the Sync Records node, this node won't work until you complete the steps under Sync changed data.

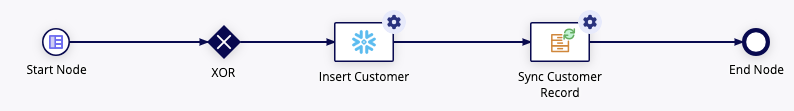

Your process model should look like this:

new customer process model

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closenew customer process model

Configure update customer workflow

We need a similar workflow to update a customer.

  1. Click the Connect (connect) button in the tool bar.
  2. Hover over XOR node and click on the red dot to connect XOR node with Sync Customer Record node.
  3. Click the Select (select) button in the tool bar.
  4. Drag a CALL INTEGRATION node from the palette to the canvas, and drop it on top of the new connector between the XOR Node and Sync Customer Record.
  5. Click the label on the new Call Integration node and change to Update Customer.
  6. Double-click the node and go to the Setup tab.
  7. In the Select Integration field, select JST_Snowflake_Update_Customer integration object.
  8. Go to the Data tab.
  9. In the Node Inputs pane, click record. For the Value field, use the dropdown to select record.
  10. Click OK.

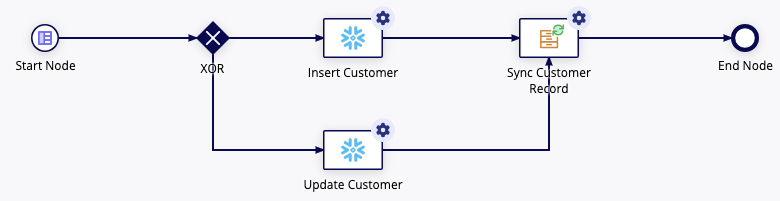

Your process model should look like this:

update customer process model

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeupdate customer process model

Add a cancel flow

We also need a workflow to cancel the process.

  1. Click the Connect button in the tool bar.
  2. Hover over the XOR node and click on the red dot to connect the XOR node with End Node.
  3. Click the Select button in the tool bar.
  4. Right-click each flow connector and select Enable Activity-Chaining.

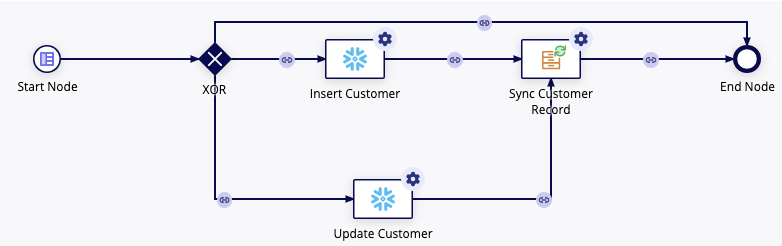

Your process model should look like this

update customer process model with cancel workflow

Scroll or drag to pan · ⌘+/⌘− to zoom · Esc to closeupdate customer process model with cancel workflow

Configure the decision logic

Now let’s define the logic within the XOR gateway.

To configure the gateway decision logic:

  1. Double-click the XOR node.
  2. On the Configure XOR dialog, click the Decision tab.
  3. Click NEW CONDITION twice to add two new conditions.
  4. Configure properties for the first condition:
    • For Condition, enter pv!cancel.
    • For Result, in the go to dropdown list, select End Node
    • For Path Label, enter Cancel.
  5. Configure properties for the second condition:
    • For Condition, enter pv!isUpdate.
    • For Result, in the go to dropdown list, select Update Customer.
    • For Path Label, enter Update.
  6. Configure properties for the Else if no rules are TRUE condition:
    • For Result, in the go to dropdown list, select Insert Customer.
  7. Click OK.
  8. From the menu bar, click File > Save & Publish.

Now that we have a process model, we'll configure a new record list action so users have a way to initiate the process.

To create the record list action:

  1. In the Build view, open the JST Customer record type.
  2. In the record type, go to Actions.
  3. Under Record List Actions, click CONFIGURE NEW ACTION MANUALLY. The Create New Action dialog appears.
  4. For Display Name, enter New Customer.
  5. For Process Model, enter JST Create Or Update Customer.
  6. Click OK.
  7. Under Related Actions, click CONFIGURE NEW ACTION MANUALLY. The Create New Related Action dialog appears.
  8. For Display Name, enter Update Customer.
  9. For Icon, select pencil-square-o icon.
  10. For Process Model, enter JST Create Or Update Customer.
  11. For Context, change the default expression to the following:
1
2
3
4
5

   {
   cancel: false(), /* Boolean */
   isUpdate: true(), /* Boolean */
   record: rv!record /* JST Customer */
   }
  1. Click OK.
  2. Click SAVE.

Let's add the Update Customer action to the Summary view.

Right now, the related action will only appear on the Related Actions view on each record, but we'll add a related action shortcut so users can more quickly update customer information while viewing the summary.

To add the related actions to the Summary view:

  1. In the record type, go to Views.
  2. Click edit next to Summary.
  3. In the Edit View dialog, under Related Action Shortcuts, select the checkbox for Update Customer.
  4. Click OK.
  5. Click SAVE.

Sync changed data

To use the Sync Records smart service with a service-backed record type, we must configure a sync by identifier expression.

A sync by identifier expression is similar to a record data source expression, but instead of returning all source data, it will only return a specific customer record.

Create a SQL integration for changed data

We’ll first create a SQL integration to retrieve the changed data.

To create the SQL integration object:

  1. Go to the Build view, click NEW > Integration.
  2. In the Create Integration dialog, select Use a connected system.
  3. Find and choose the custom Snowflake connected system (JST Snowflake CS) created in the previous step.
  4. In the Operation dropdown list, select SQL Query Integration to get data from Snowflake.
  5. For Name, enter JST_Snowflake_Query_Customer_By_Uuid.
  6. Click CREATE.
  7. In the Rule Inputs pane, click + New Rule Input.
    • For Name, enter C_CUSTKEY.
    • For Type, select Text.

  8. In the SQL Statements input box, copy and paste the following SQL query:

    1
2
3
4
5
6
7
8
9
10

    SELECT C_CUSTKEY
,C_NAME
,C_ADDRESS
,C_NATIONKEY
,C_PHONE
,C_ACCTBAL
,C_MKTSEGMENT
,C_COMMENT
FROM CUSTOMER
WHERE C_CUSTKEY={C_CUSTKEY}
  9. In the Parameters section, click Edit as expression next to the C_CUSTKEY parameter.
  10. In the Edit Expression dialog, enter ri!C_CUSTKEY.
  11. Click OK.
  12. Click SAVE.

Configure a sync by identifier expression

Now that we have all our required objects, we'll configure a sync by identifier expression.

To configure the expression:

  1. In the record type, go to Sync Options.
  2. Under Configure sync by identifier expression, click + CONFIGURE EXPRESSION RULE.
  3. Under Sync Expression, click add to create a sync expression.
  4. Select the Use an existing integration option.
  5. Search and select JST_Snowflake_Query_Customer_By_Uuid.
  6. Click NEXT.
  7. For Create Expression Rule, leave the default generated name.
  8. Click NEXT.
  9. Leave the *Syncing in Batches screen blank and click NEXT.
  10. Click CREATE. The created objects appear in the dialog.
  11. On the Create Sync Expression dialog, click OK.
  12. On the Edit Sync Expression dialog, click the generated expression rule JST_Snowflake_Query_Customer_By_Uuid_syncExpression to open it.

  13. On line 5, replace the null value of C_CUSTKEY with the following expression:

    1

    ri!identifiers
  14. On line 17 and line 20, replace the default value of local!integrationResponse.result.body with the following:
1

   local!integrationResponse.result.sqlStatements.resultSet
  1. Click SAVE and close the expression rule tab.
  2. Return to the record type and click OK to close the dialog.
  3. Click SAVE.

Test record actions

In this last step, we'll test out our record actions.

To test the record list action:

  1. In the record type, go to List.
  2. Open the link under URL.
  3. On the record list, click + NEW CUSTOMER.
  4. Enter some information in the form.
  5. Click CREATE. The new customer should appear in the record list.

To test a related action:

  1. From the record list, select a customer to view their Summary view.
  2. Click UPDATE CUSTOMER.
  3. Update some information in the Update Customer form.
  4. Click SAVE. The Summary view should update to reflect your changes.

Congratulations! You've configured your own service-backed record type using JDBC SQL integration with an external data store. You made it through all of the parts and steps to successfully create a fully functioning record type with a Summary view, record actions, and a user filter.

Feedback
